3X HLK-LD2450 24G Home Wave Human Body Motion Target Tracking Sensor Module Test Distance Angle Speed

3X HLK-LD2450 24G Home Wave Human Body Motion Target Tracking Sensor Module Test Distance Angle Speed Kuvaus

Product Description: The LD2450 is a motion target tracking sensor module from the Hilink 24G millimeter wave series, which includes extremely simplified 24 GHz sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
Motion target tracking is to track the position of the moving target in the region in real , and realize the distance, angle and speed measurement of the moving target in the region.

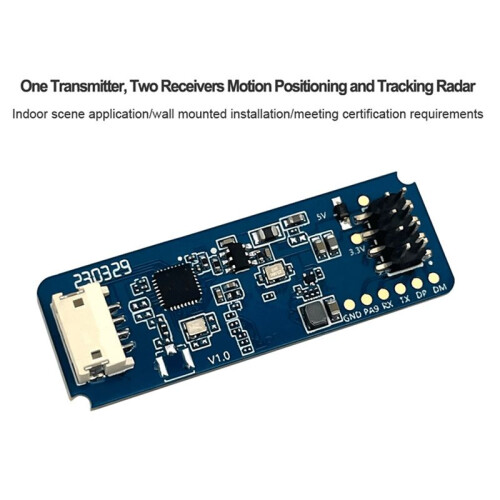

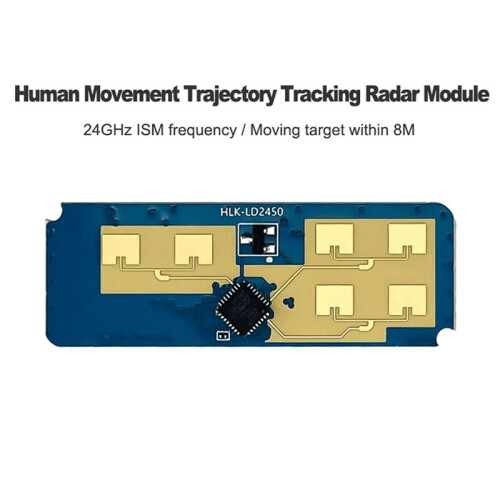

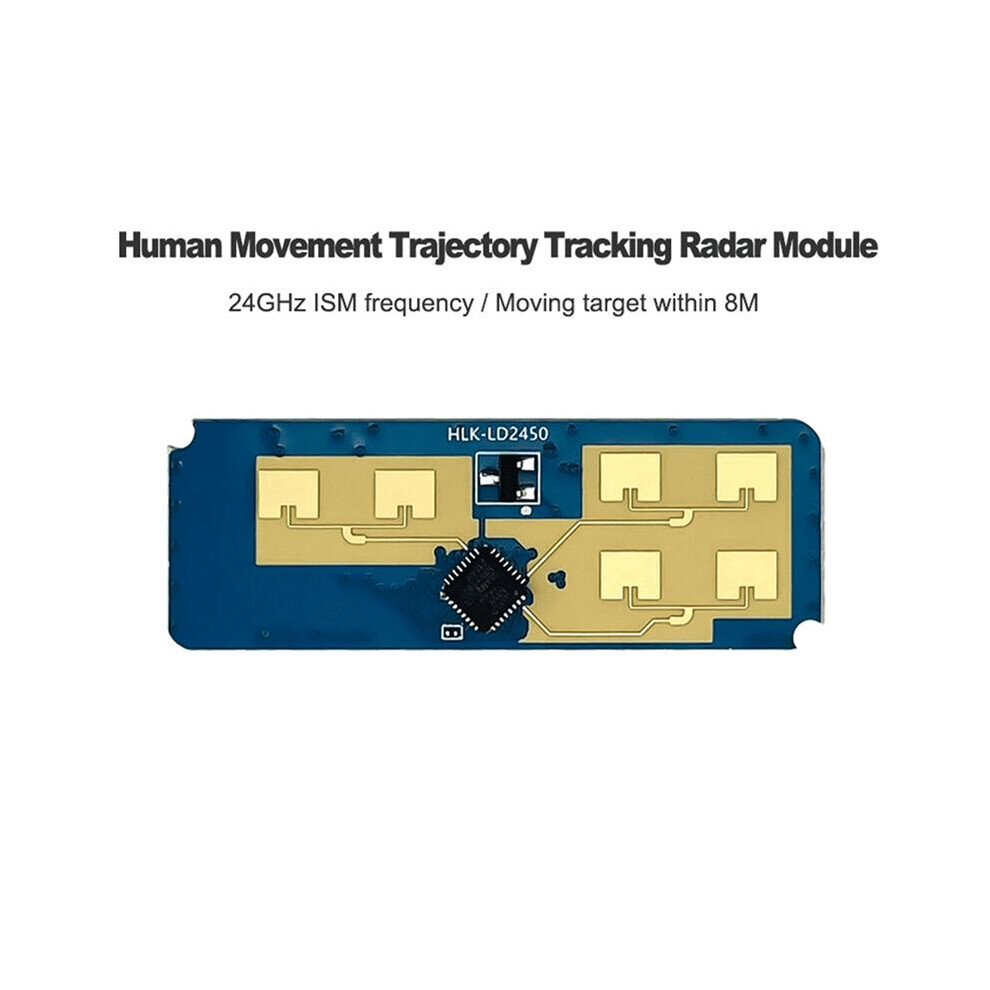

The sensor hardware consists of an AloT millimeter wave chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the chip's proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and- and can be flexibly applied to different scenarios and end products.

Product Characteristics:
24 GHz ISM band
Integrated intelligent millimeter wave chip and intelligent algorithm firmware
Precise motion target localization and tracking
Longest detection range: 6m
Wall mounting
Azimuth angle: 60, pitch angle: 35
The cost-effective choice
Multiple connection options with pin and socket interface
Material: plastic
colour: As Shown

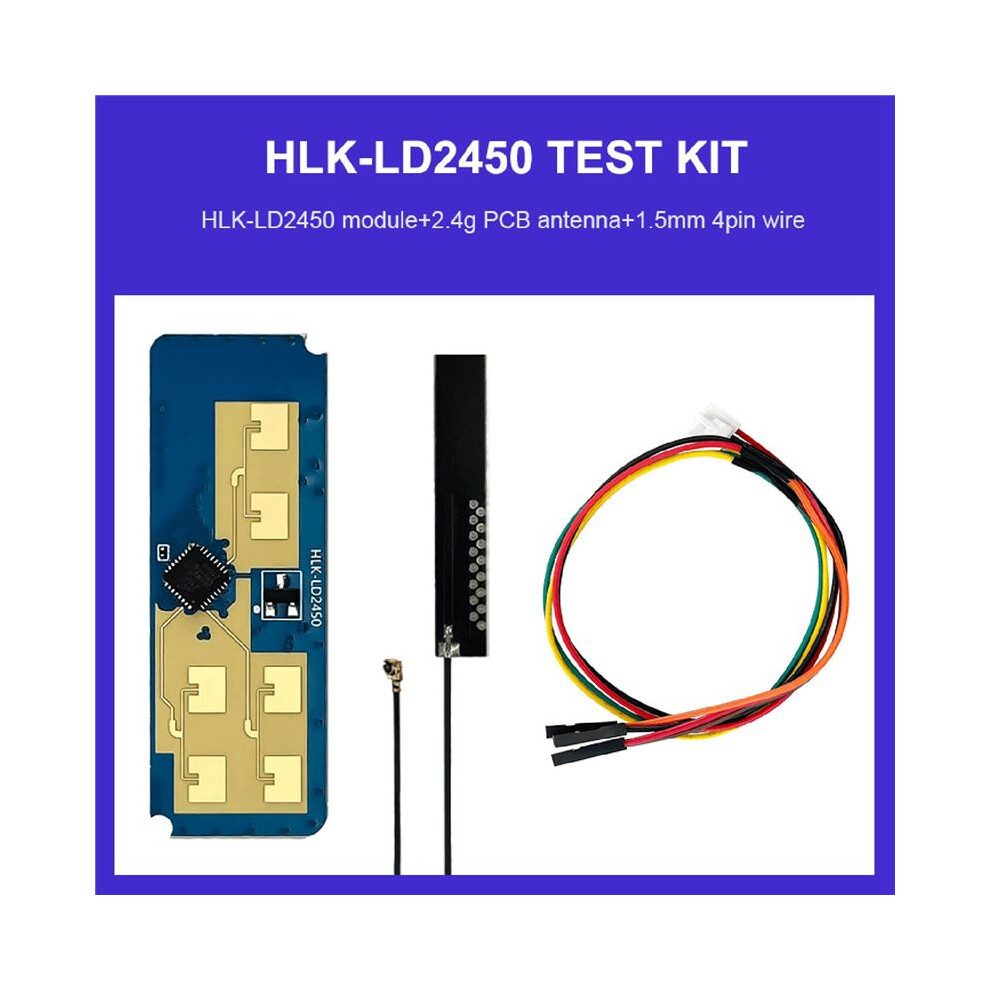

Package Contents:
3 x Sensor Module
3 x PCB Antenna
3 x 4PIN Cable
