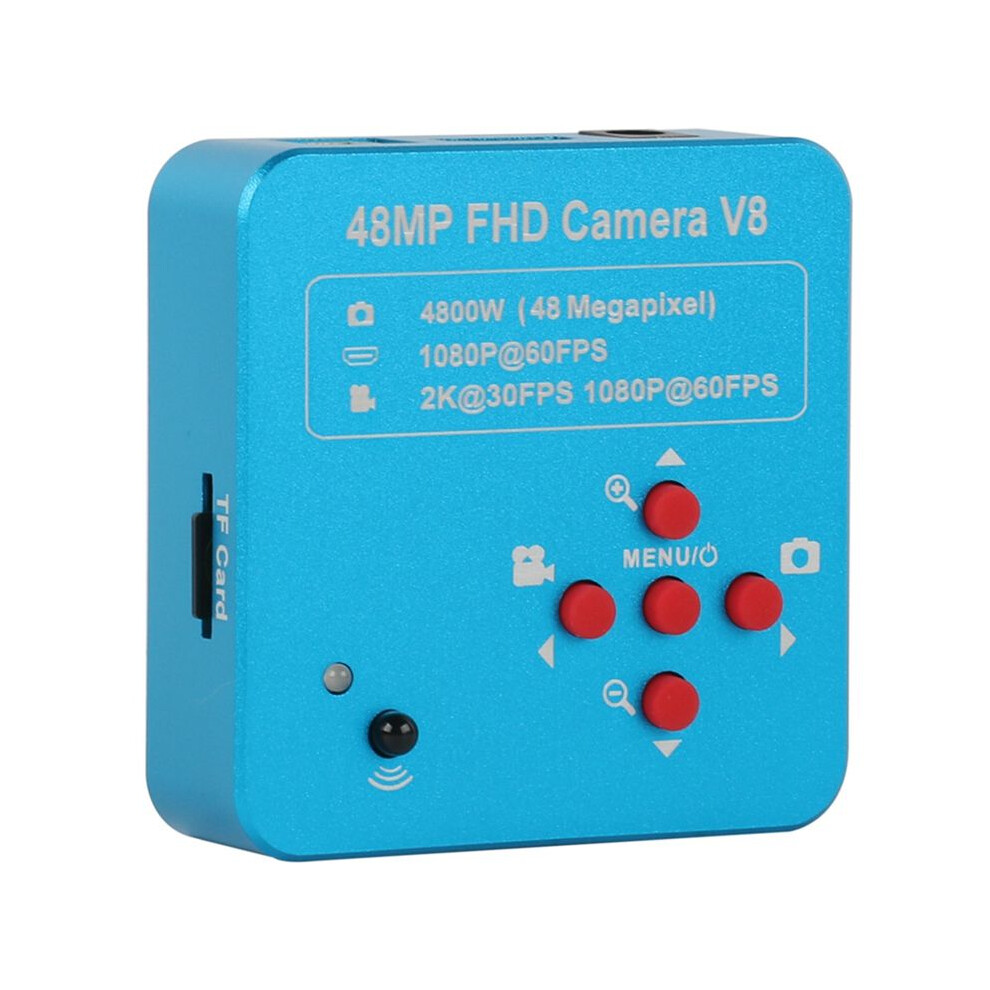

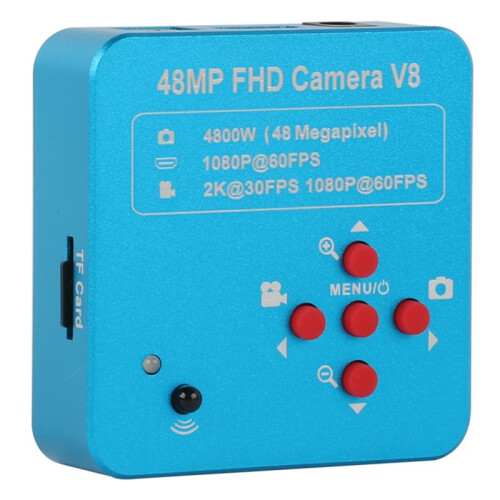

48MP 2K 1080P 60FPS -Compatible USB Industrial Digital Video Microscope Camera C Mount Interface TF Card

48MP 2K 1080P 60FPS -Compatible USB Industrial Digital Video Microscope Camera C Mount Interface TF Card Kuvaus

Module:4860
Sensor: CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:(Type A).USB(Type B).TF Card

Image resolution:48MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
resoltion:1920*1080p 60FPS
Can output with USB at the same
scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with at the same
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in: 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CSmouth
Camera size:74x74x35mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
Colour:As Shown
Material:aluminum

Package Contents:
1 x Microscope Camera
