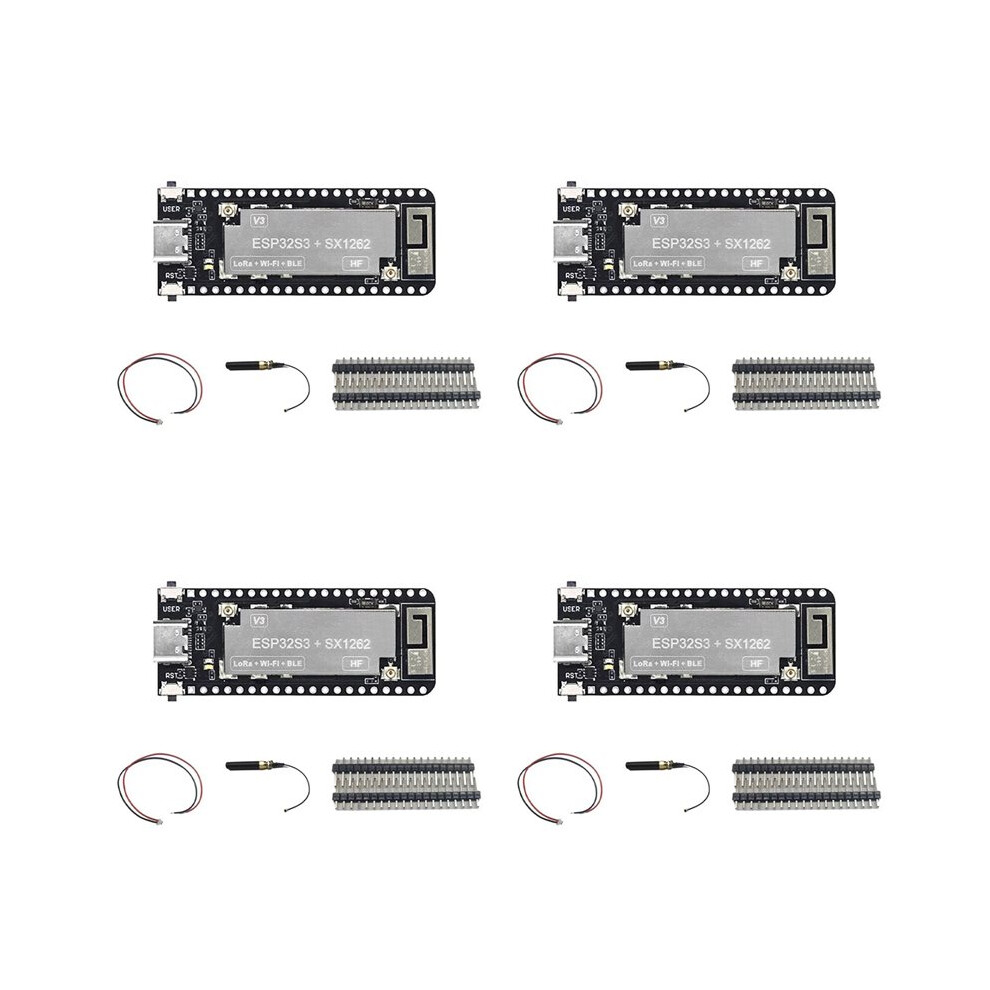

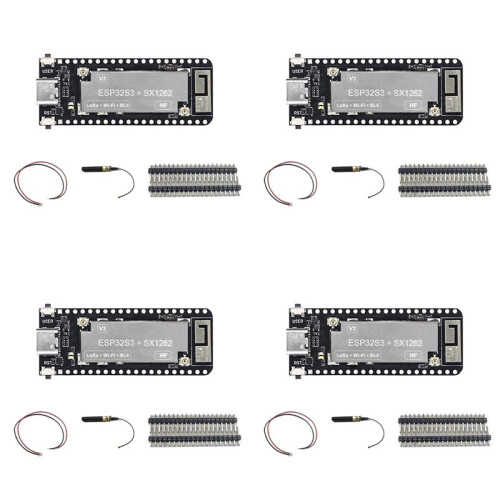

4X Wireless Stick Lite V3 Development Board SX1262+ESP32S3 LoRa Development Board 863-928MHZ Support WiFi
Varastossa
Miksi tulet rakastamaan ostoksia OnBuyssa:
- Ansaitse Cashback jokaisesta ostoksesta – käytä se heti seuraavaan tilaukseesi
- Ilmainen toimitus – miljooniin tuotteisiin sivustolla
- Asiakkaat rakastavat meitä – 135,000 arvostelua arvosanalla “Erinomainen”
OnBuyn myymien tuotteiden hinnat sisältävät ALV:n.
Korottomat maksuvaihtoehdot saatavilla
Katso koko tuotekuvaus ja tiedot
Toimitus: Vakio (Ilmainen) | ke 7. - ma 12. loka
Palautukset: 30 päivää
180 päivän maksuturva
Yhteenveto
- 1. The upgraded version is smaller and more energy-saving. It integrates the advantages of traditional wireless modules to make the product smaller and consume less energy;
- 2. Shielding cover, strong anti-interference, the shielding cover is installed on the module, which greatly improves the anti-interference ability of the product;
- 3. Using SX1262+ESP32 chip, it fully supports the IoT development kit of the standard LoRaWAN protocol;
- 4. Rich interfaces, products can be programmed through standard libraries and simple development languages, and solution verification and product development can be quickly completed;
- 5. Supports three major wireless communication protocols, ESP32 chip, supports WIFI, BLE and LoRa wireless communication functions. It is applicable to various intelligent scenarios. It can be used as a gateway for Internet of Things products and can also be used to drive terminal products;
4X Wireless Stick Lite V3 Development Board SX1262+ESP32S3 LoRa Development Board 863-928MHZ Support WiFi Kuvaus
1. The upgraded version is smaller and more -saving. It integrates the advantages of traditional wireless modules to make the product smaller and consume less ;
2. Shielding cover, strong anti-interference, the shielding cover is installed the module, which greatly improves the anti-interference ability of the product;
3. Using SX1262+ESP32 chip, it fully supports the IoT development kit of the standard LoRaWAN protocol;
4. Rich interfaces, products can be programmed through standard libraries and simple development languages, and solution verification and product development can be quickly completed;
5. Supports three major wireless communication protocols, ESP32 chip, supports WIFI, BLE and LoRa wireless communication functions. It is applicable to various intelligent scenarios. It can be used as a gateway for Internet of Things products and can also be used to drive terminal products;
Product parameters:
Frequency band: 863-928MHZ
MCU chip: ESP32-S3FN8
LORA chip: SX1262
Maximum receiving sensitivity: -139dBm
LORA maximum output power: 211dBm
Hardware resources: 7xADC1; 9xADC2; 8xTouch; 3xUART; 2x I2C; 2xSPI
FLASH:8MB
Interface: Type-C, battery interface, LORA antenna interface, 2. 4G antenna interface (IPEX)
USB to serial port chip: CP2102
Battery type: supports 3.7v lithium battery charging and discharging (battery not included in product)
Sleep current: Less than 10 uA
WIFI speed: to 150Mbps
Output power: +21 dBm
Color: Black
Material: PCB
Package Contents:
4 x Development board
8 x Pin
4 x cable
8 x 433-510Hz antenna
Tiedot
| OPC | PYHXGWY |
|---|---|
| Brändi | Melitt |
| Koodit | 4711089204765 (EAN) |
| Tuote- ja turvallisuustiedot |
Tuotetiedot
| Height | 8cm |
|---|---|
| Width | 7cm |
| Length | 7cm |
| Weight | 0.116kg |
| Colour | Black |
| Material | PCB |
