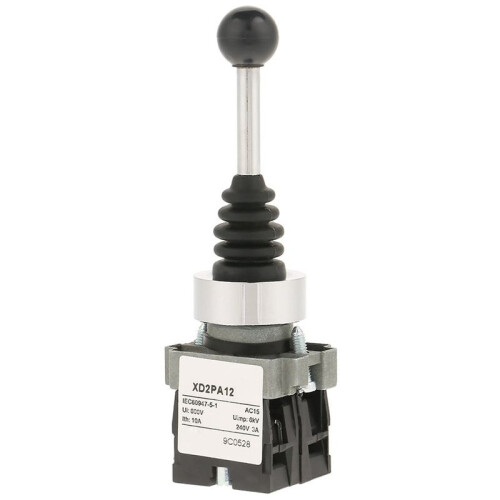

5X Joystick Switch XD2PA12 AC3000V Cross Switch Double Self-Locking Switch 2 Single Lever Switches

5X Joystick Switch XD2PA12 AC3000V Cross Switch Double Self-Locking Switch 2 Single Lever Switches Kuvaus

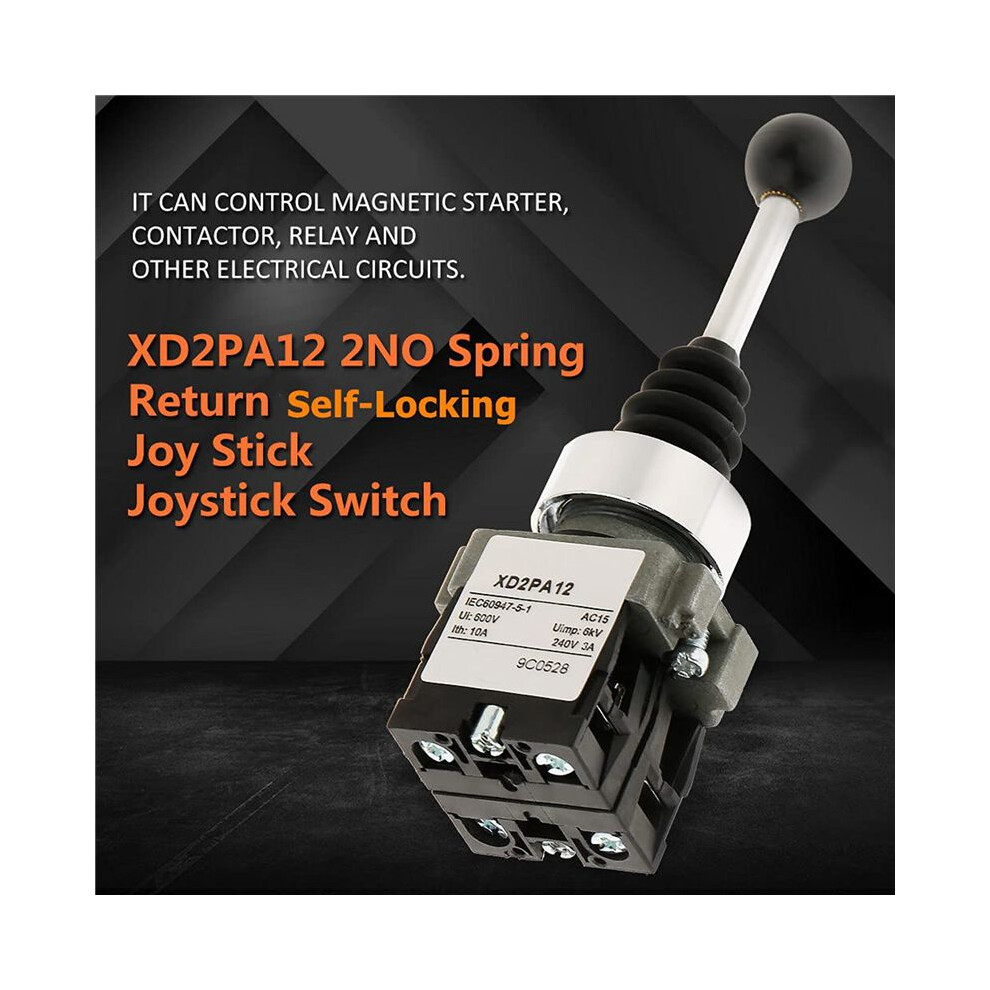

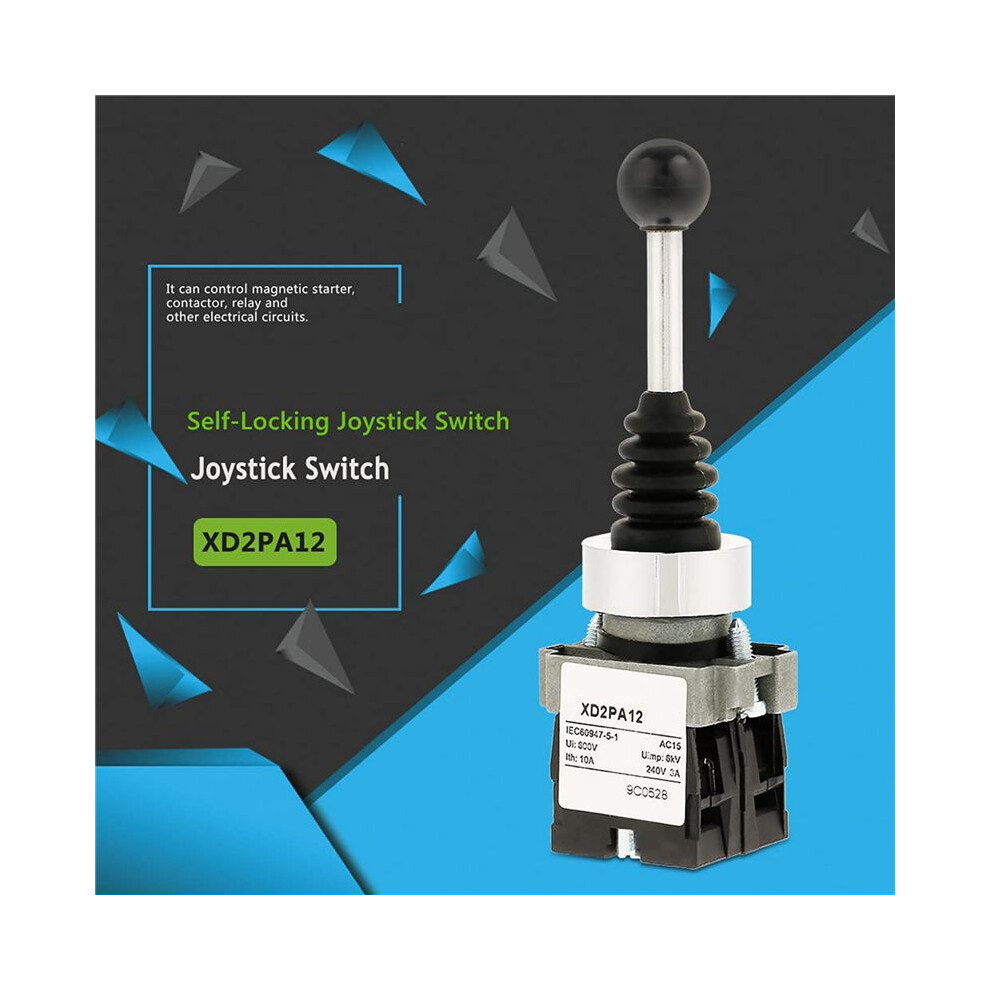

This instant joystick switch is widely used in industrial control AC 50Hz and DC circuits. It can control magnetic starters, contactors, relays and other circuits. The rubber sleeve is waterproof, oil-proof and dust-proof. The joystick switch is a momentary switch, 2NO type, so there are 2 normally open contacts. The switch is easy to assemble and operate, and has a long service life.
Model: XD2PA12
Rated voltage: 220V/380V
Nominal current: 5 A / 10 A
Installation opening: 22mm in diameter

Electrical life: more than 500,000 times
Mechanical life: more than 500,000 times
Standard operating environment:
Ambient temperature: -25~+55 degrees Celsius (no ice)
Working humidity: 45~85%RH (non-condensing)
Contact resistance: less than or equal to 50 m ohm
Insulation resistance: greater or equal to 100 ohm
Maximum dielectric strength: 3000 volts, AC 50 Hz
Vibration: 50Hz, amplitude: about 1 mm
Impact resistance: more than 10 m/s2 (about 10 G)
Protection level: IP55

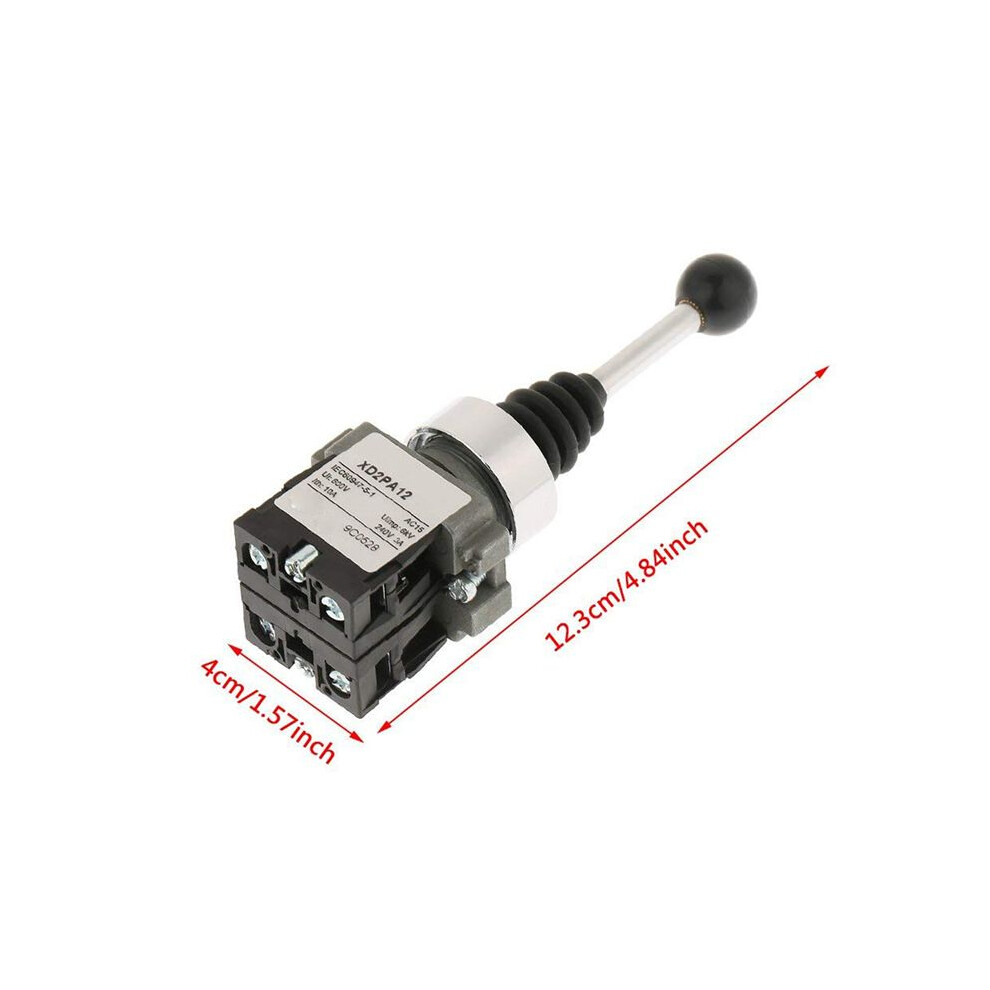

Overall dimensions: 12.3 x 4 cm
Weight: 620 grams
Colour: black
Material: metal
Product label words are random, Not accepting designation

Package Contents:
5 x Self-locking joystick switch
