6pc 10-65 Inch LED LCD Backlight TV Universal Boost Constant Current Driver Board Converters Full Bridge Booster Adapter

6pc 10-65 Inch LED LCD Backlight TV Universal Boost Constant Current Driver Board Converters Full Bridge Booster Adapter Kuvaus

100% new and high quality

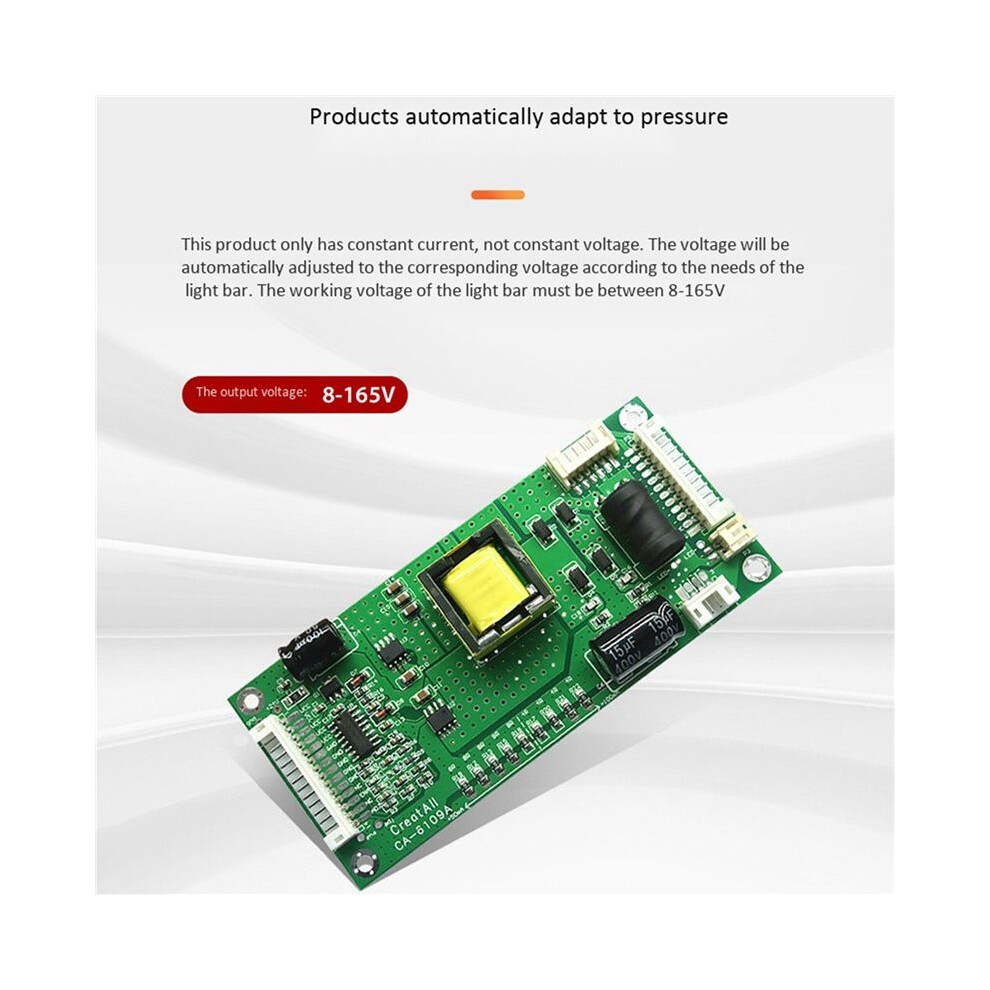

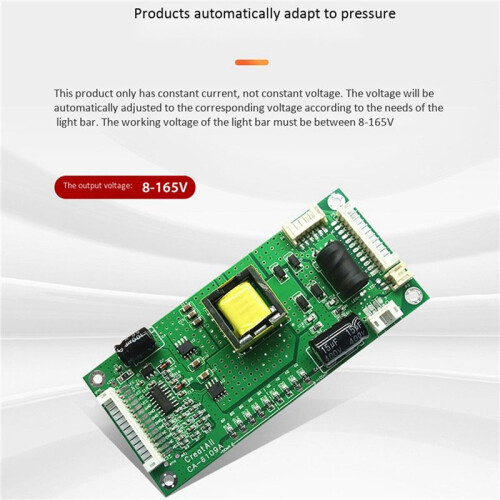

Power input voltage 12V-28V; Boost ratio 1: 7.5, 12V can be increased to 80V, increased from 24V to 160V.

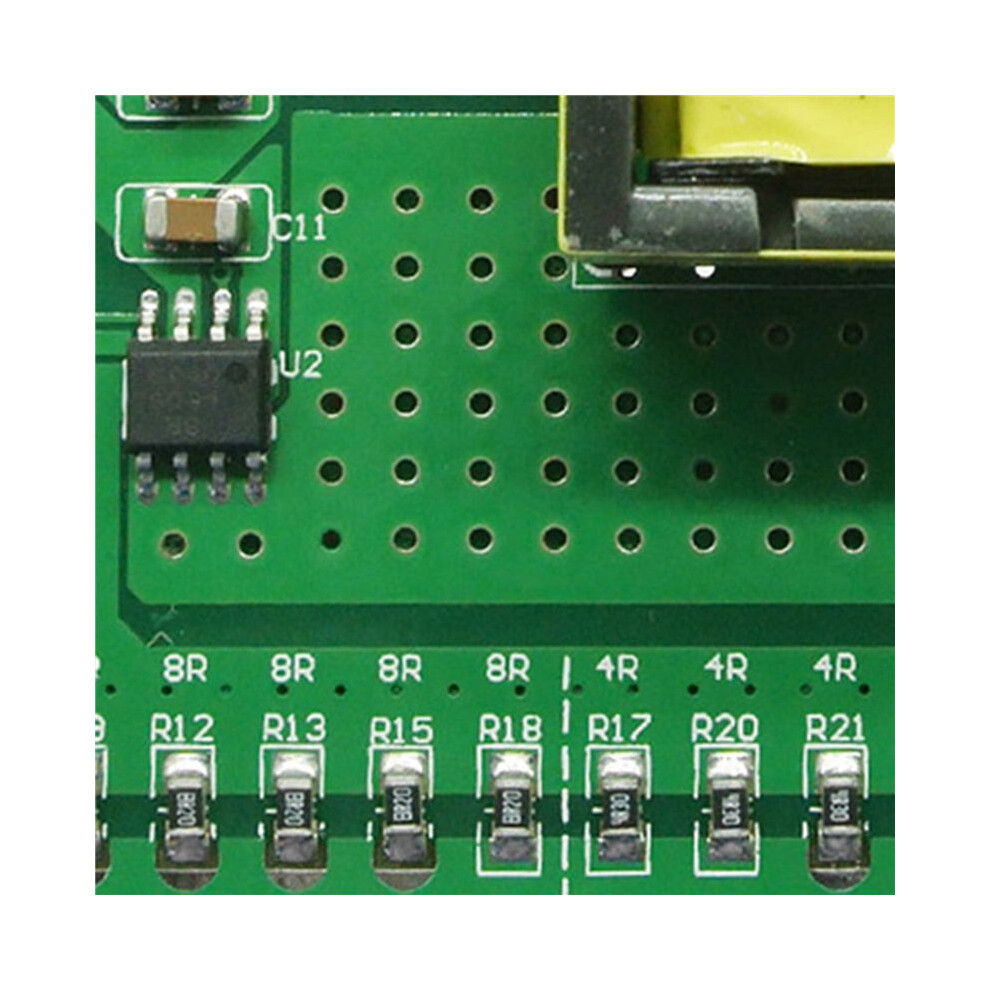

The LED lamp current defaults to 248mA, which can be set to 600mA via short the board.
Total output power is limited to 40W or less.
Optimized operating efficiency of transformer efficiency 85 C, temperature of 40 C increases 30 C. In reverse dimming mode, ADJ is the dimming port, ground is brightest, and high voltage is dimmed to extinction. ADJ is not allowed to hang, if not connected, it will connect directly to the ground.

According to the flag the board, connect vcc, gnd, in (activation), adj dimming, a total of four input , the output selects the positive and negative output of the LED.
Specification:
Model: CA-6019
Input voltage: 10-28V
Output voltage: 5-165V
colour: green
Material: plastic

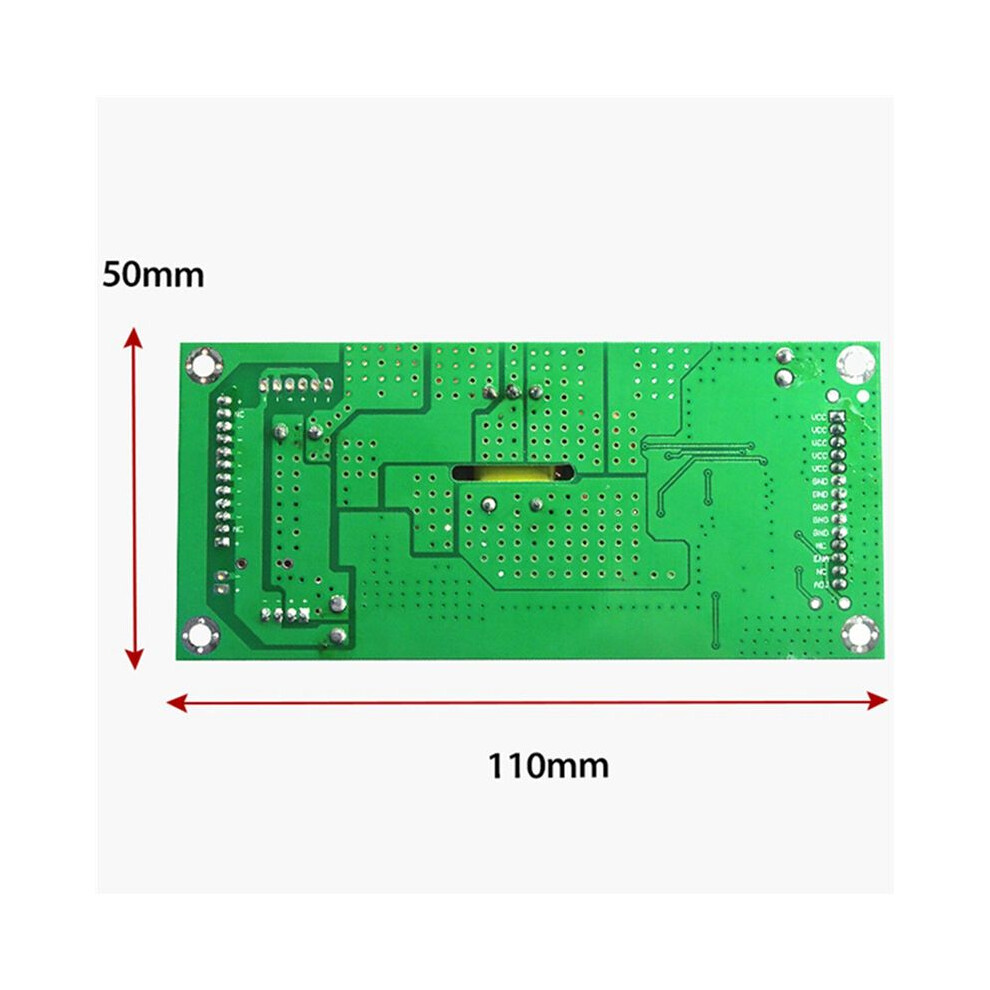

size: 110x50mm

Package Contents:

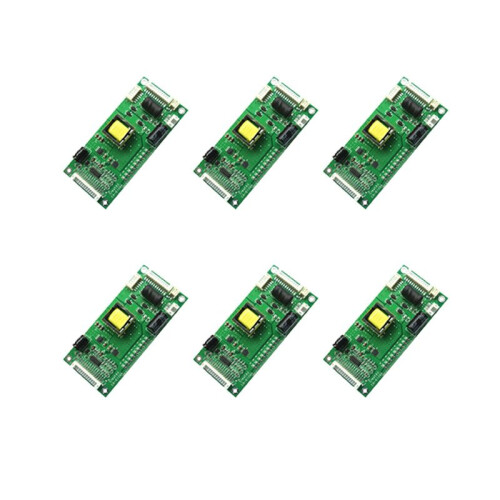

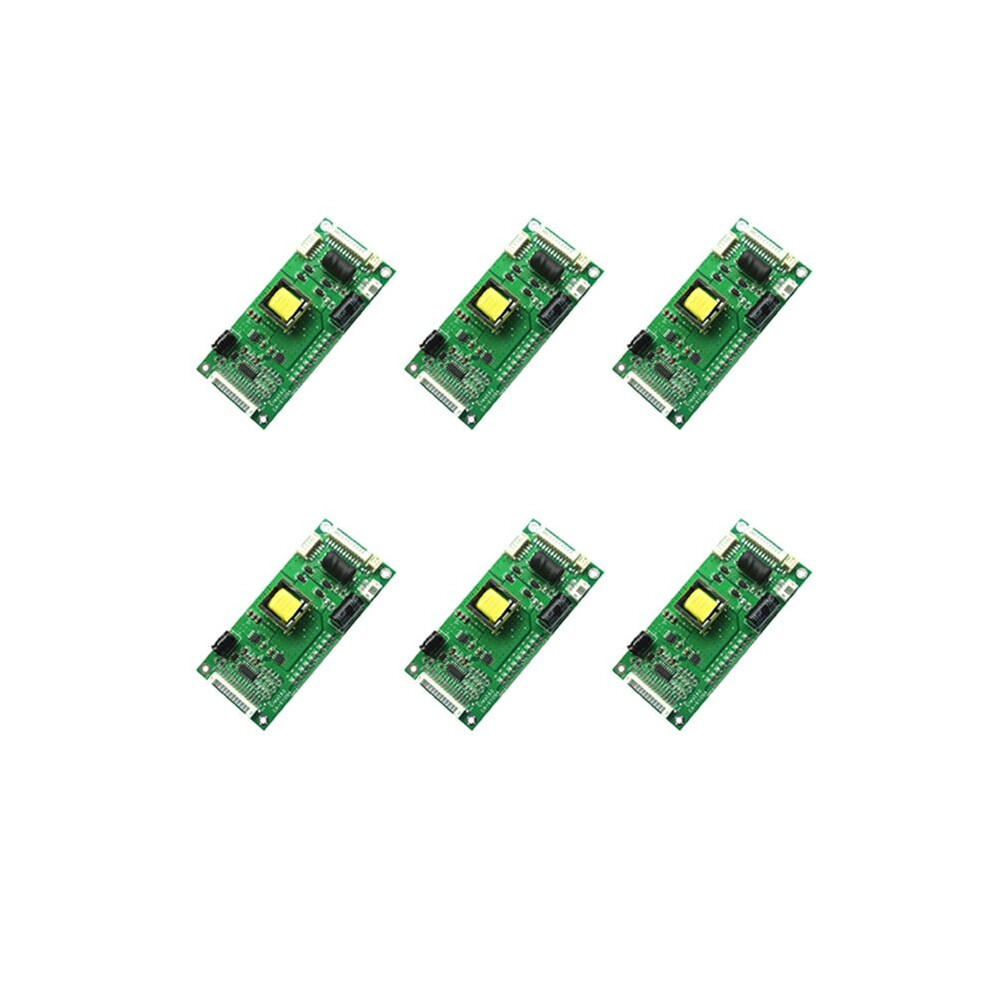

6 x Constant Current Driver Board
Notice:
1. The boot has a soft start and other protection, so the shutdown door must be connected to the floor when not in use. Disconnection is not recommended.
2. the opaque gate setting is 0 3 v, 0 v is the brightest, 2 2.5 v is already very dark and basically shielded near 3 v. At this point, Output 0 v)
