9 Axis Sensor Three Axis Acceleration Gyroscope Magnetic Field Attitude Angle Serial Port IIC Output for A

9 Axis Sensor Three Axis Acceleration Gyroscope Magnetic Field Attitude Angle Serial Port IIC Output for A Kuvaus

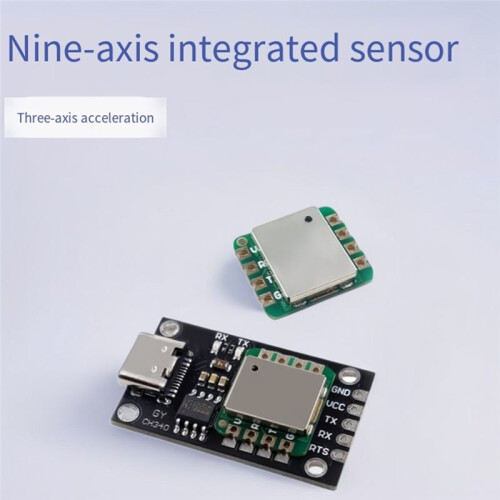

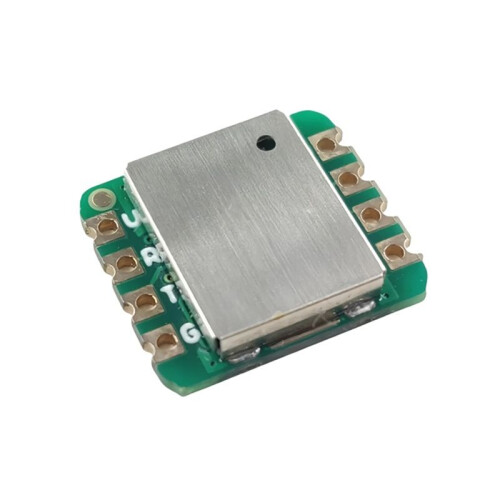

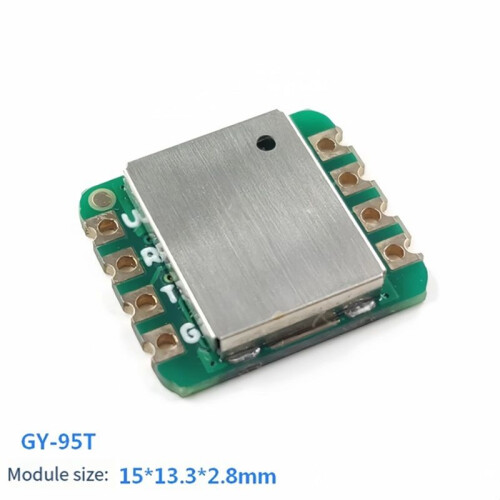

GY-95T AHRS 9-axis module electronic compass with tilt compensation module
Module size: 15mm x 13.3mm x 2.8mm
Communication mode, serial port/IIC
Power supply: 3v-5v 15ma
The maximum output update frequency is 200HZ

Resolution 0.01 degrees
Direct output: 1. Euler Angle (YAW ROLL PITCH), commonly known as Angle
2. Nine-axis sensor data (three-axis acceleration, three-axis gyroscope, three-axis magnetometer)
3. Four element output
Can set automatic output and query output mode, power failure save
Can be iic communication, bus connected to multiple modules
Magnetometer, course Angle does not drift
There is upper computer software
Existing data reading program: 51 MCU, STM32, for
Specifications: A:GY-95T
Color: Black
Material: PCB

Package Contents:
1 * Module
