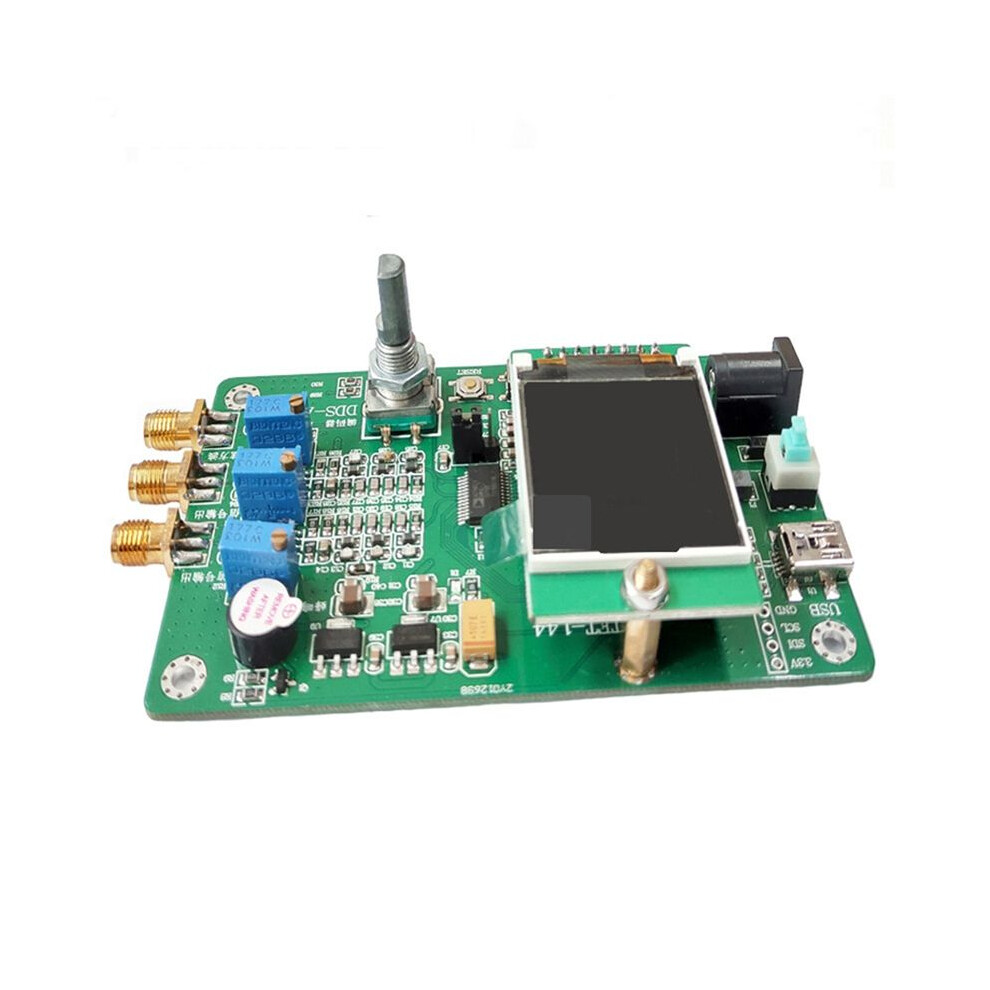

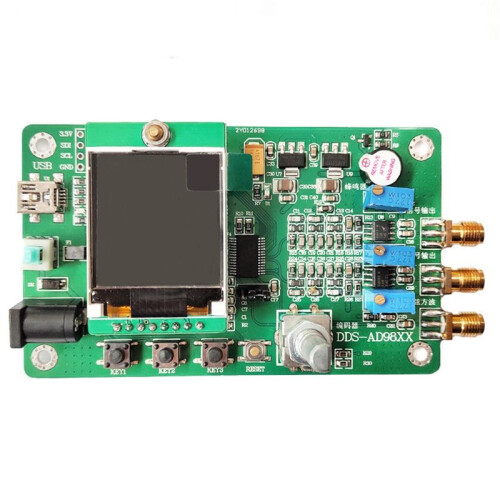

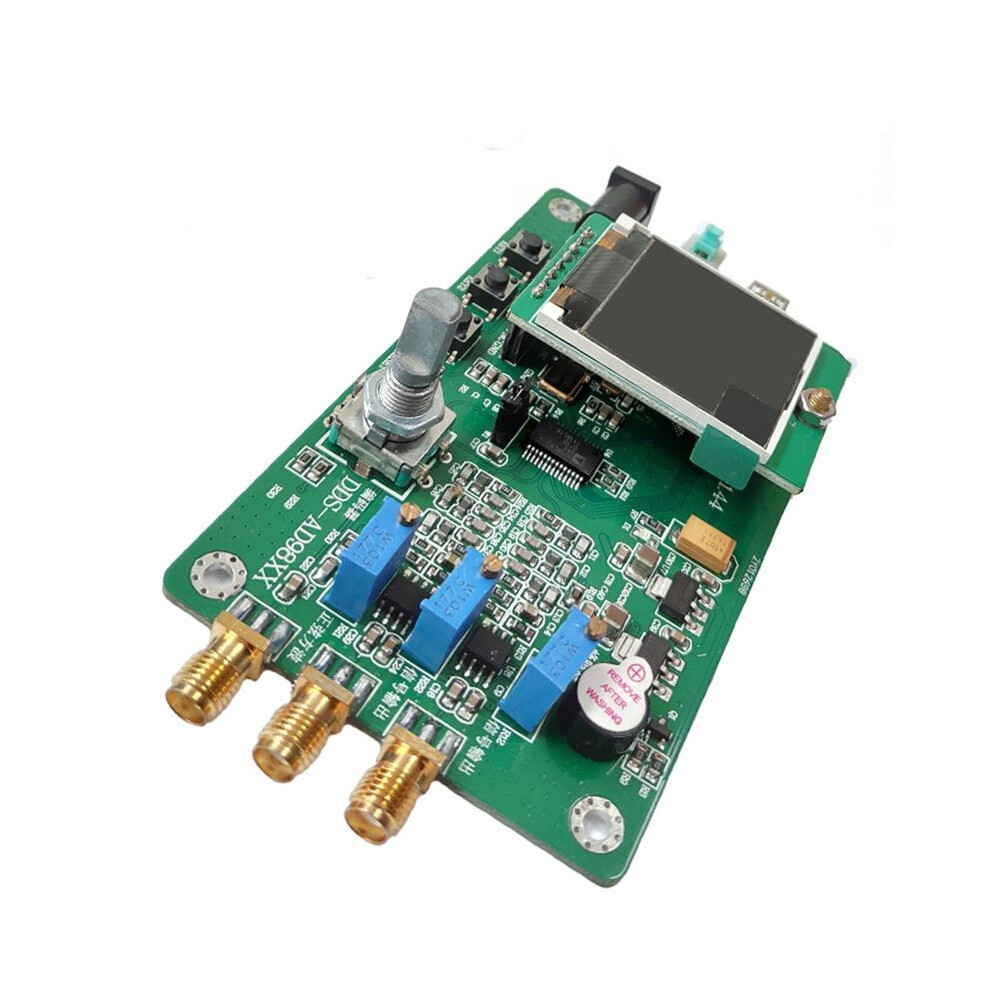

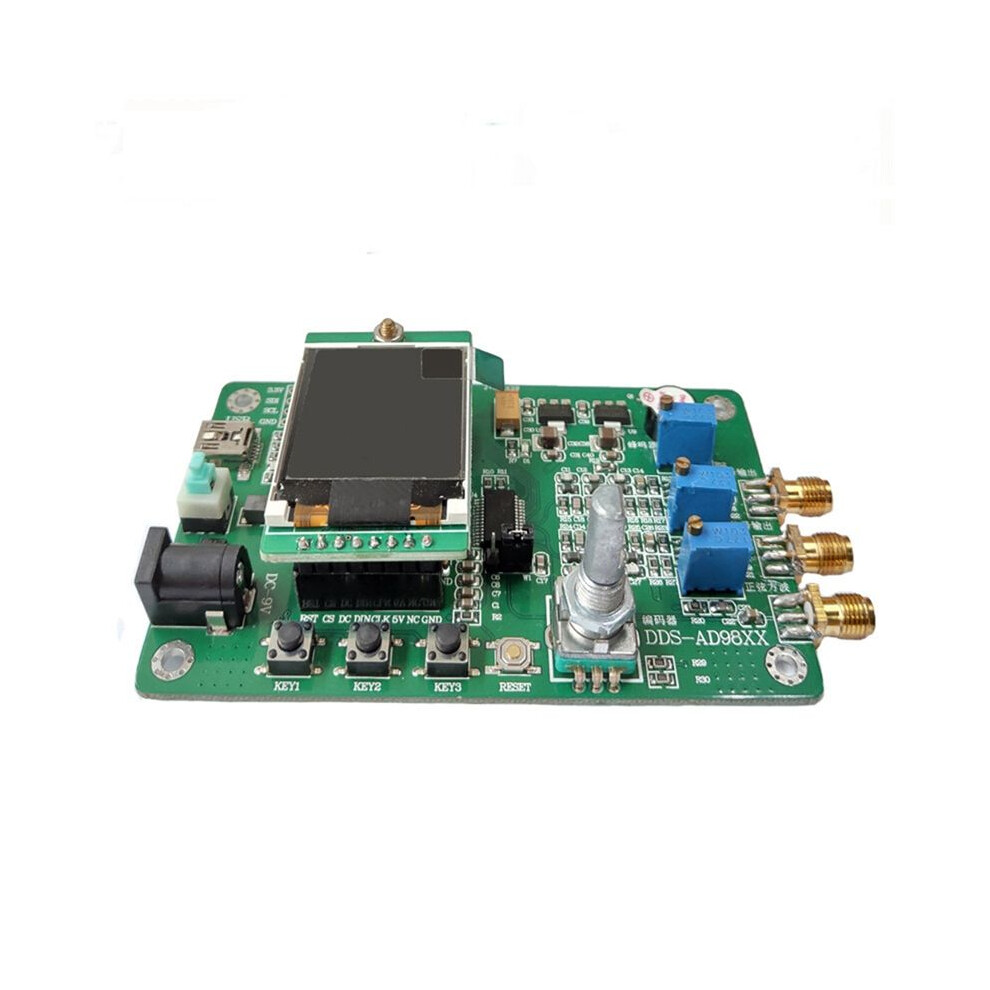

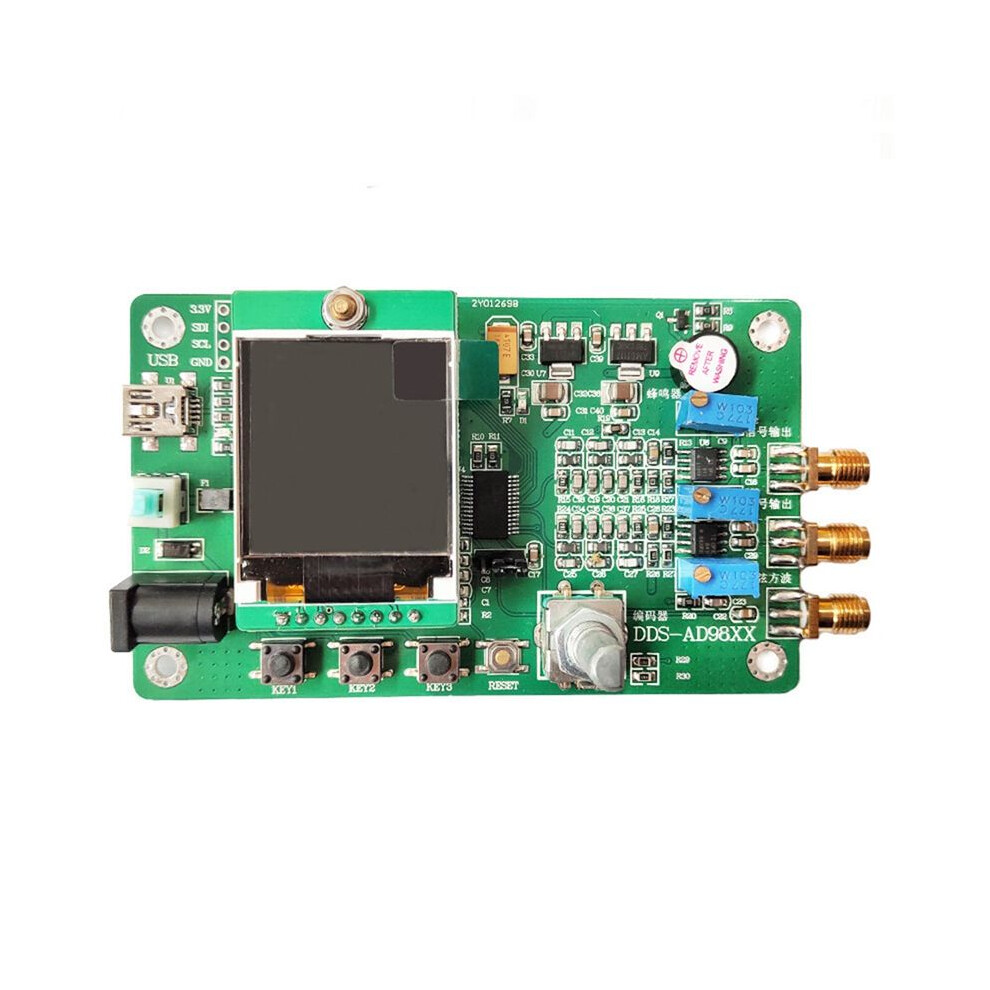

AD9851 High Speed DDS Module Function Signal Generator with LCD Send Program Compatible with 9850 Scanning Function

AD9851 High Speed DDS Module Function Signal Generator with LCD Send Program Compatible with 9850 Scanning Function Kuvaus

32-bit frequency tuner
5-bit phase modulation and migration capability
Ultra-small 28-pin SSOP package
2.7V to 5.25V single power supply
Power saving function: 4MW (2.7V)

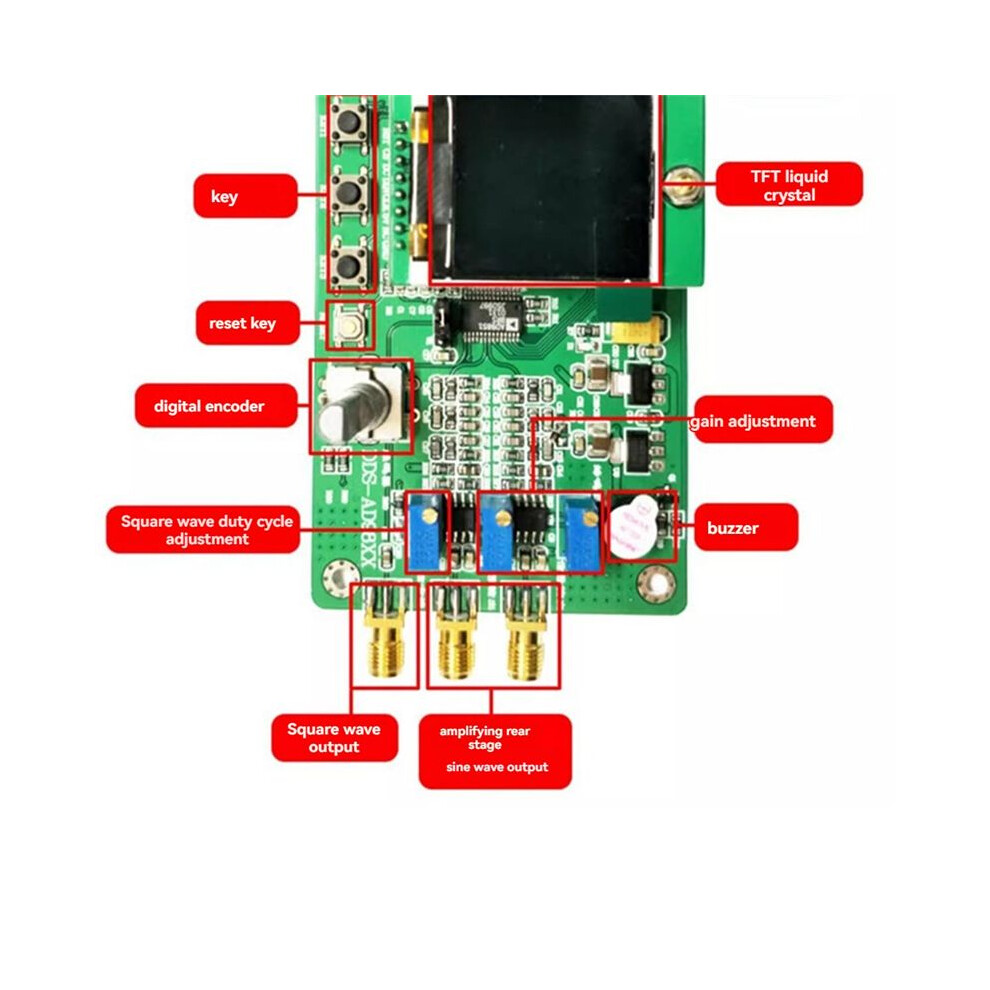

TFT LCD display, with keys, make the interface operation more humane, support sine wave, square wave transmission, square wave adjustable duty cycle, equipped with filter circuit and post-amplifier output port.
180MHZ clock rate, 10-bit DAC with 6X reference clock multiplier and simplified control interface of high-speed comparator with hysteresis characteristics: parallel or serial asynchronous loading format comparator jitter: less than 80PS value (20MHZ)
AD9851 is a highly integrated device, using advanced DDS technology, built-in a high-speed, high-performance digital-to-analog converter and comparator, which together constitute a digital programmable frequency synthesizer and clock generator.
When the precise clock source is used as the reference, AD9851 can produce a frequency stable phase programmable digital analog output sine wave.
The sinusoidal wave can be directly used as a frequency source or internally converted into a square wave suitable for agile clock generator applications.
Low power consumption: 555MW (180MHZ)
SFDR Greater than 43 DB (70 MHZ AOUT)
Name: AD9851 High Speed DDS Module
Power Supply: 7-9V(Recommended 7V)
Colour:Green
Material:plastic
Size:100mm x 60mm

Package Contents:
1 x Function signal generator
