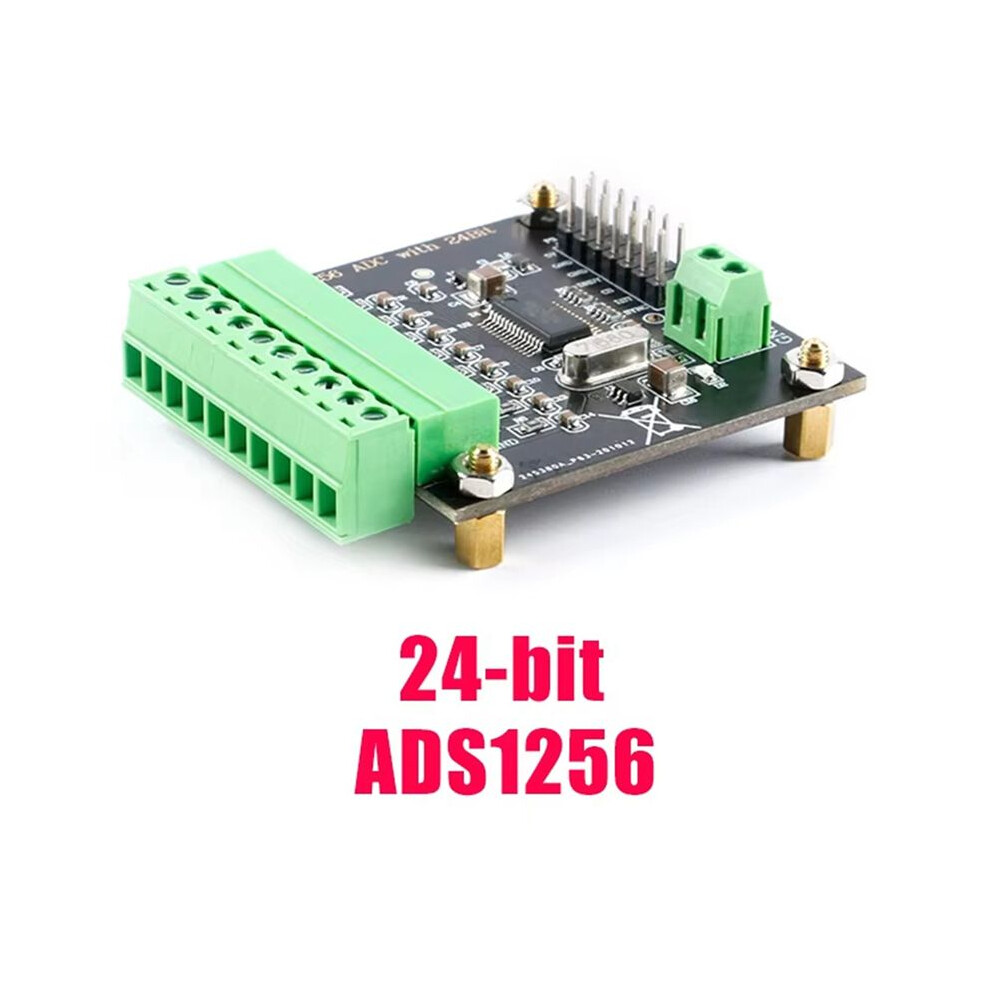

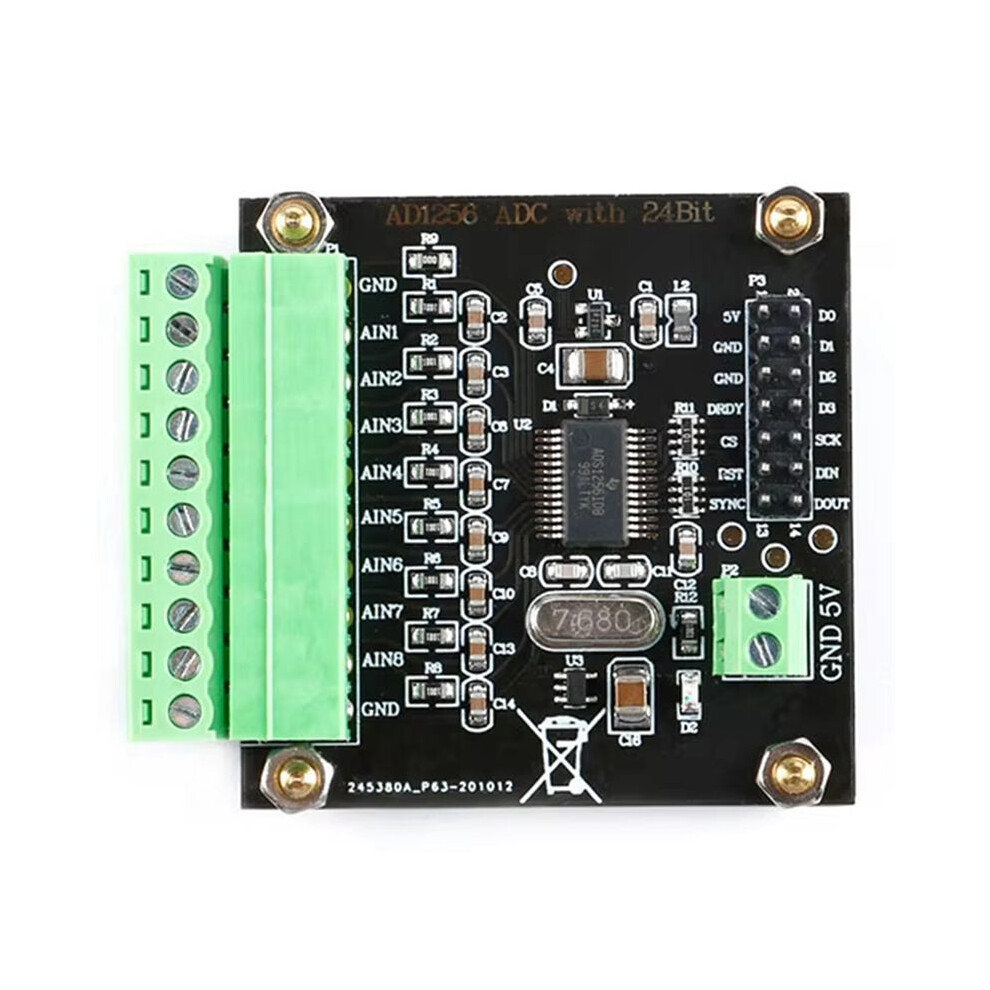

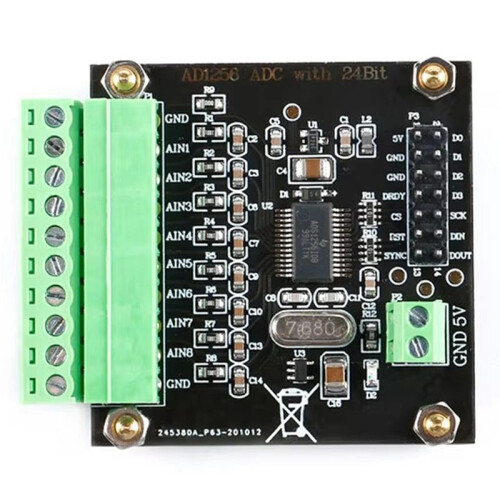

ADS1256 Analog to Digital Conversion Board Module 24-Bit ADC Data Acquisition Card High Precision Converter Board

ADS1256 Analog to Digital Conversion Board Module 24-Bit ADC Data Acquisition Card High Precision Converter Board Kuvaus

Module model: ADS1256
Module type: analog-to-digital conversion module
Module power supply: DC5V
Module current: 15mA (MAX)
Module communication protocol: SPI serial

Module provides routines: STM32F103RBT6
Routine platform: STM32F103X-M3; KEIL5 version source code
Module control signal level: 3.3V
Module input voltage range: 0-5V
Input impedance: 1M ohm
ADC resolution digits: 24 bits; effective bits 18 bits
Sampling rate: 30KSPS; single channel does not to 30K, the sampling rate decreases when using multiple channels
Number of input channels: 8-channel single-ended, 4-channel pseudo differential; -sampling
Module input interface: 3.81-10PIN terminal
Reference voltage: external 2.5V; external input reference for soldered SOT-23 package
PGA mode: 7; 1x, 2x, 4x, 8x, 16x, 32x, 64x
Output mode: 8-channel data serial
Module features: multiple; low noise analog front end, optional digital filtering, to 23 noise-free resolutions
Module application: multiple; industrial process control, motion signal acquisition, industrial signal acquisition
Module interface type: 3.81-10PIN socket, XH2.54 double-row pin data interface
Color: As Shown
Material: Electronic Component

Package Contents:
1 x Analog-to-digital conversion module
