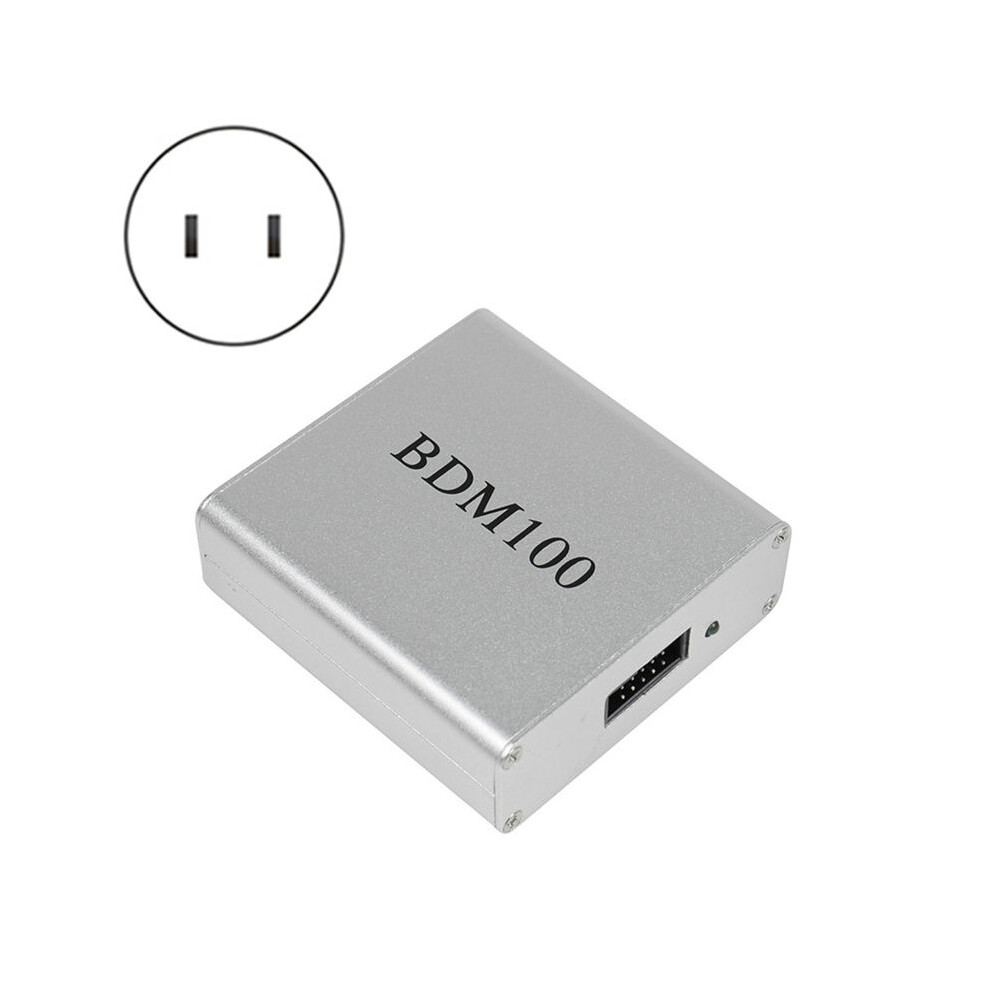

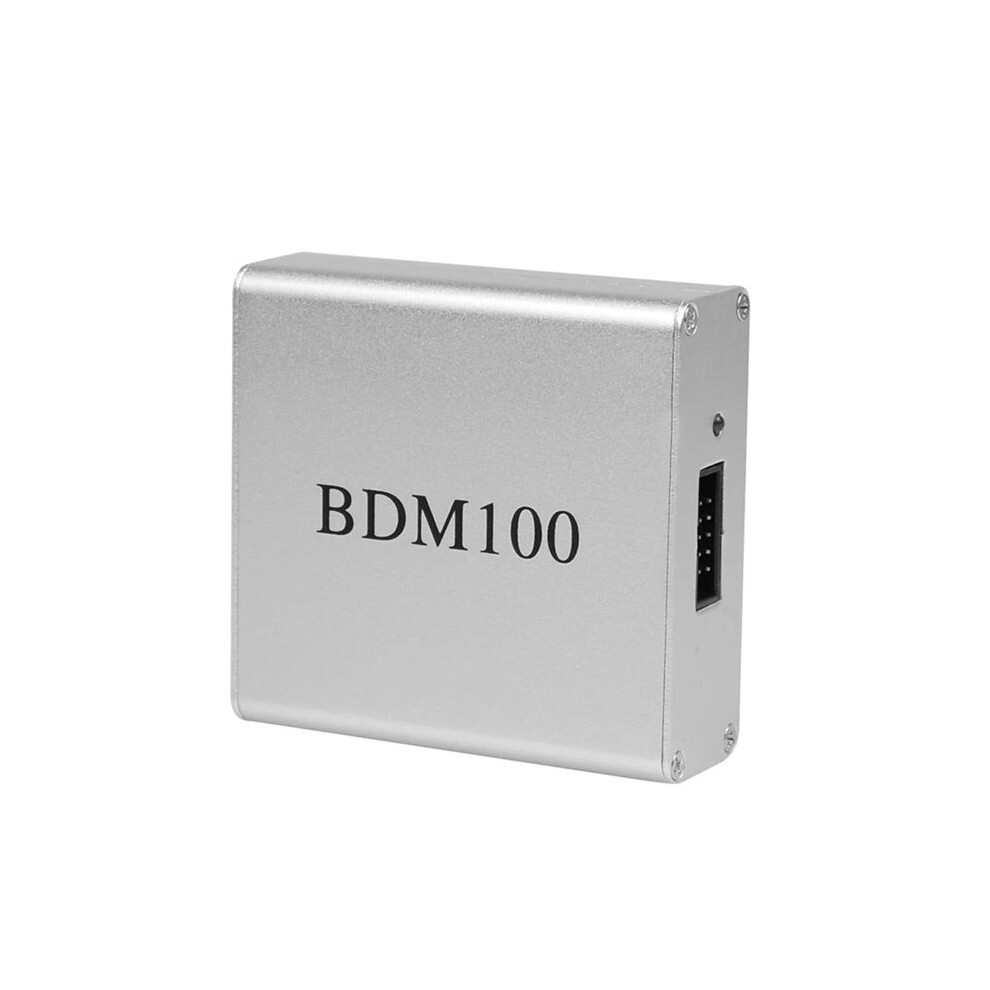

BDM100 Professional ECU Flasher Chip Tuning Programmer Interface ECU Flasher Code Reader OBDII Diagnostic Tool US Plug

BDM100 Professional ECU Flasher Chip Tuning Programmer Interface ECU Flasher Code Reader OBDII Diagnostic Tool US Plug Kuvaus

BDM100 is a universal reader/programmer (it does not require our RACE software necessarily) that allows the user to read and program files in the ECU supplied with for MPC5xx processor (essential).
BDM 100 requires the ECU to be open, " the bench", as the reading/programming operations are realized by linking a flat cable to specific area the ECU (the tool, the other side, is linked to the USB port of a computer).
BDM 100 allows also to create perfect copies of the whole software of an ECU (after having read the ECU software).

The software allows to read and program the WHOLE ECU content of:
29BL802 SSOP eprom file (or ROM memory with maps if eprom physically not present)
for MPC5xx Processor file
Serial Eprom content.
Please note that even in the case of the ECU blocking, due to the wrong checksum recalculation, the ECU can always be reprogrammed and then retrieved (if the before software has been previously stored).
Plug Type:US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so .
Voltage:DC12V
Color:Silver
Material:plastic

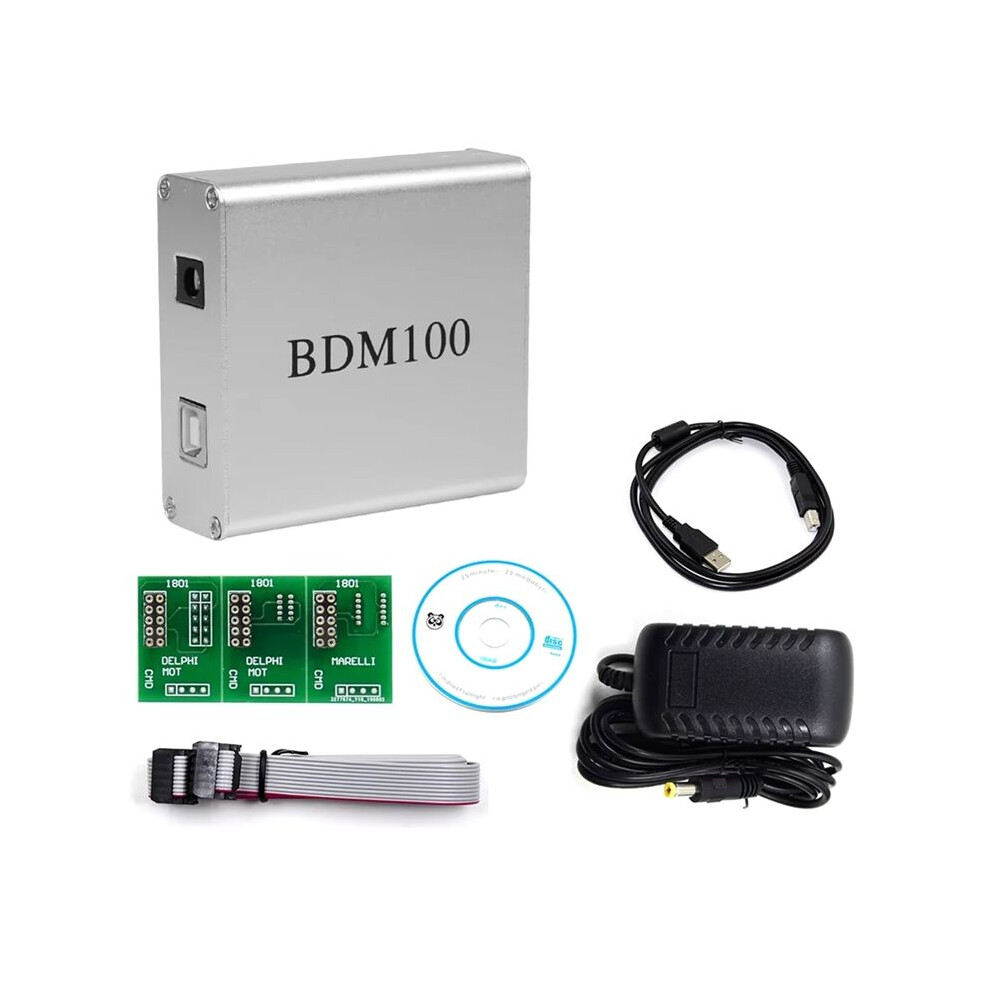

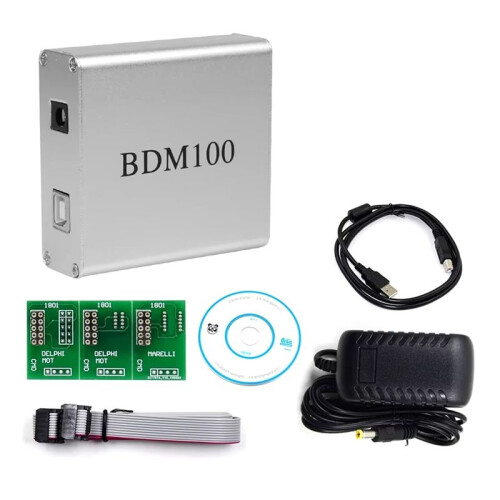

Package Contents:
1 * BDM 100 interface
1 * USB cable
1 * Power cord
