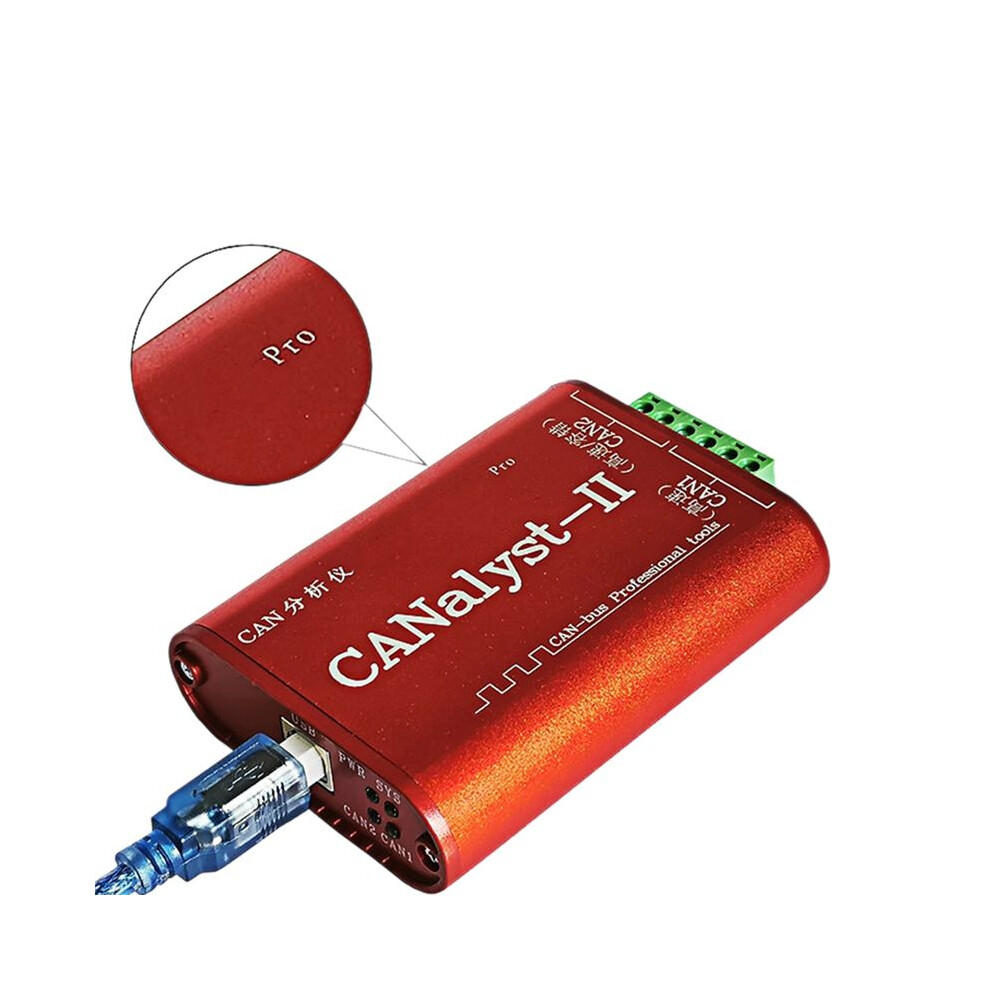

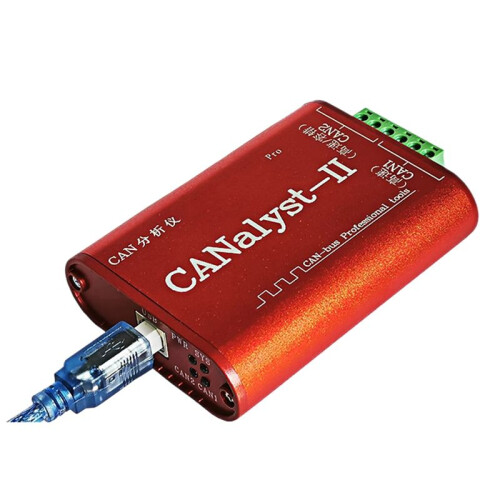

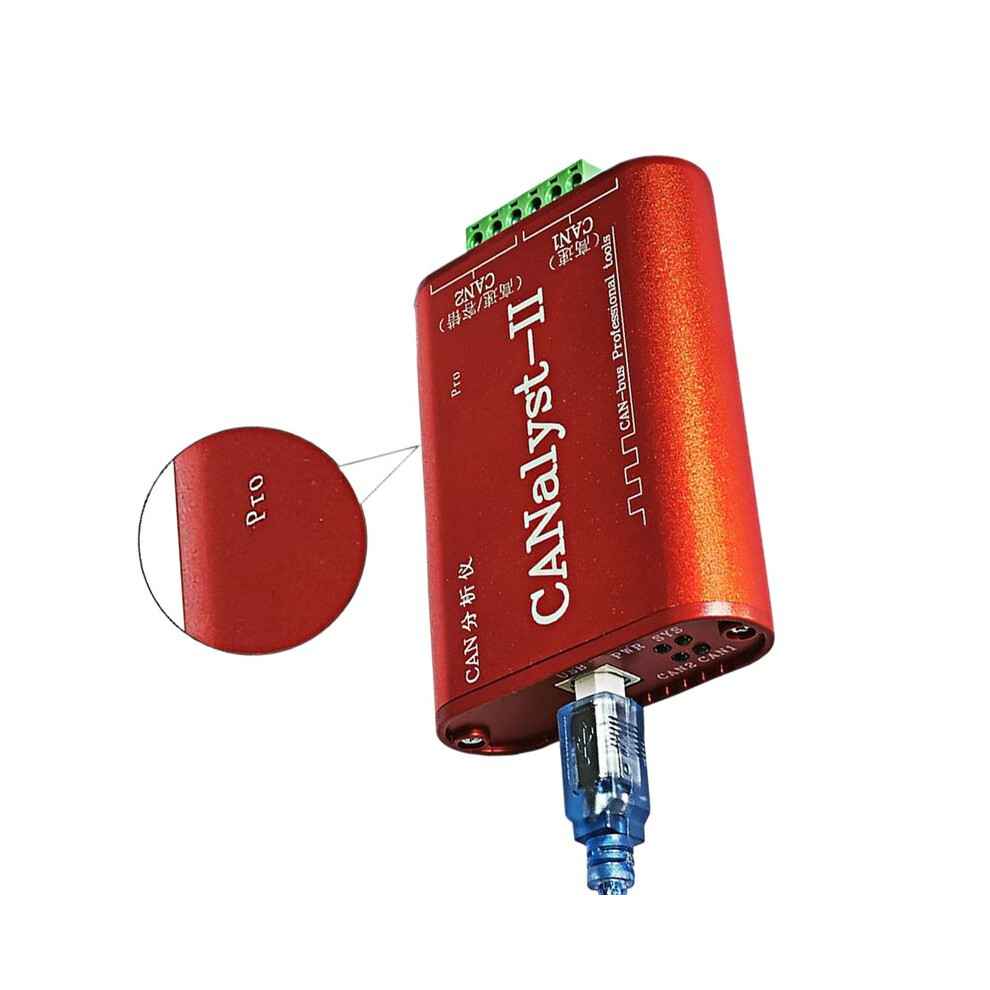

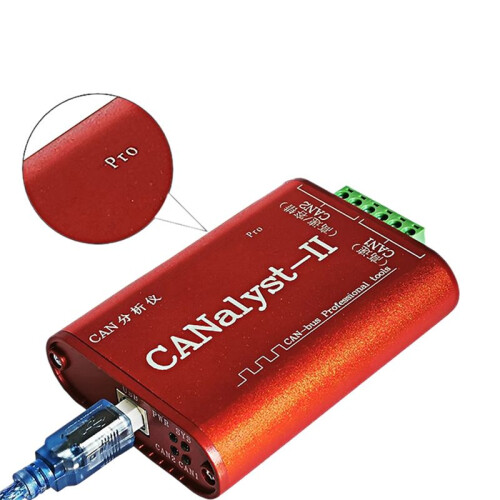

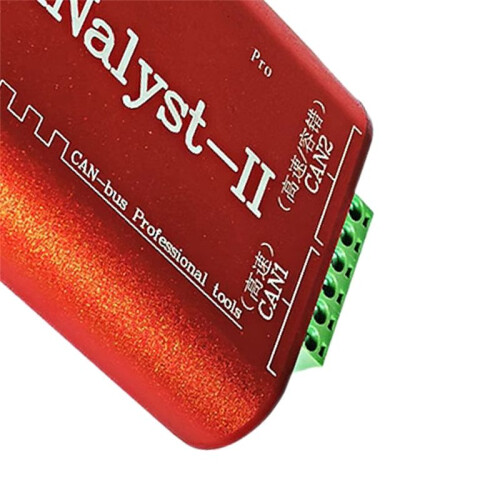

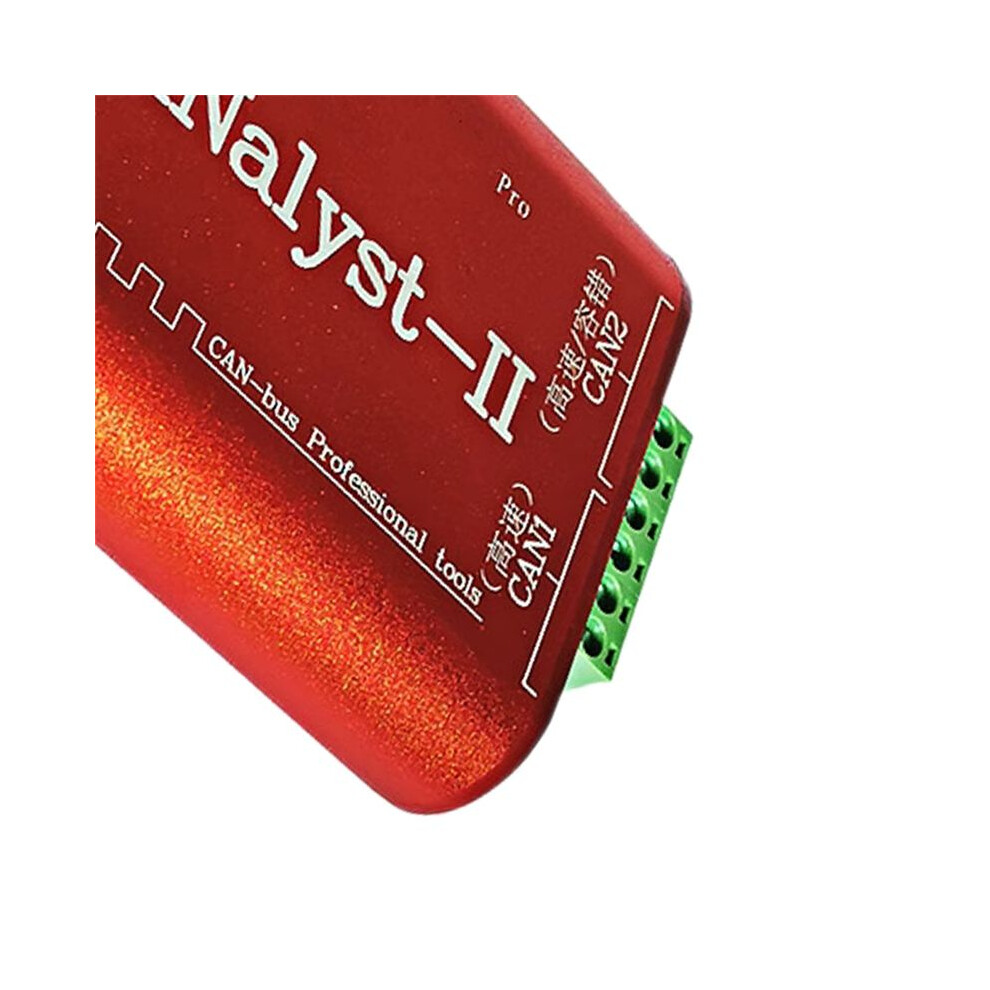

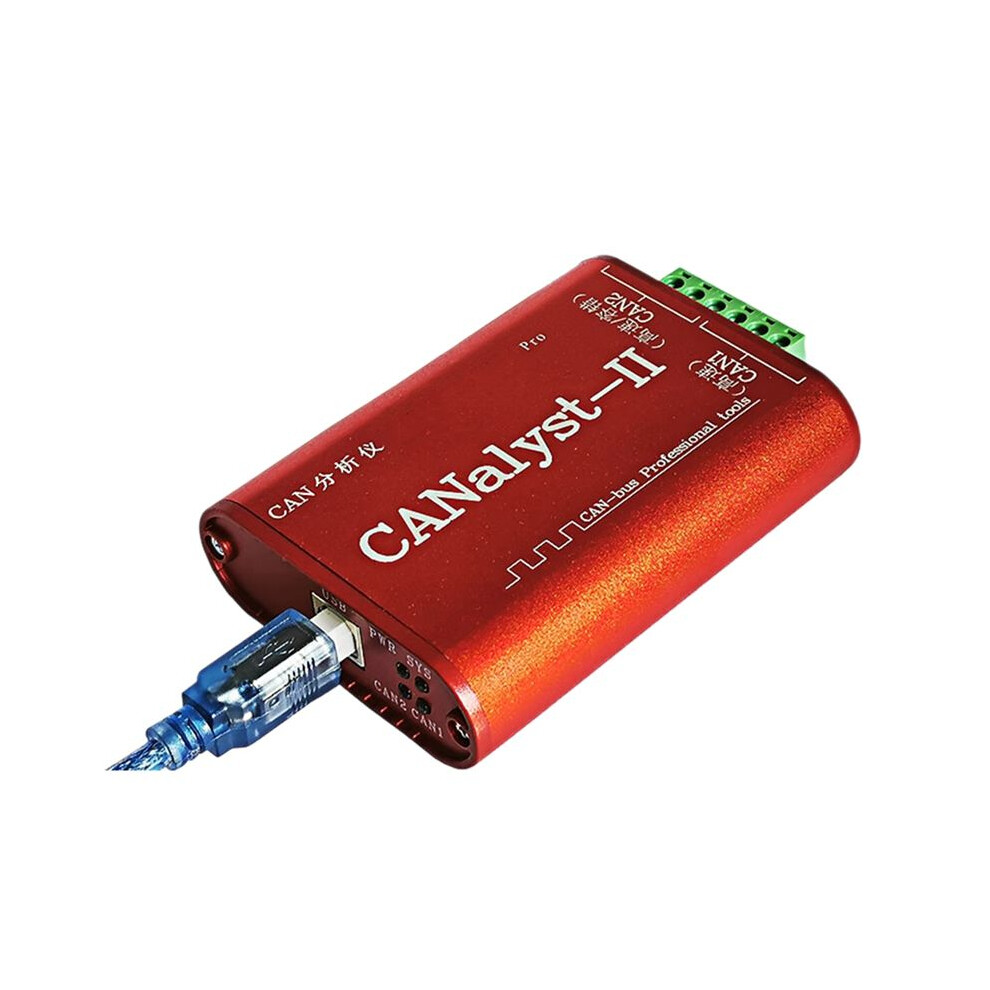

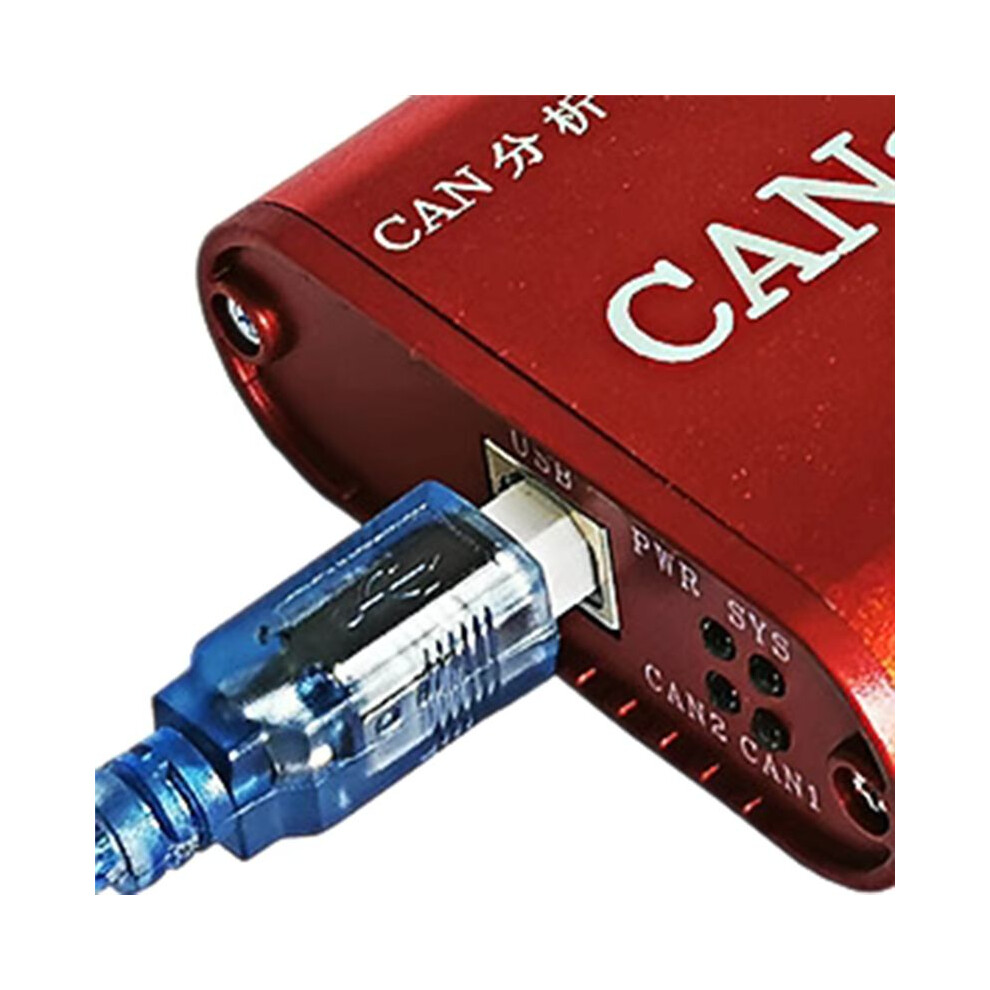

CAN Analyzer CANalyst-II PRO CANOpen J1939 USBCAN-2II Converter Compatible with ZLG USB to CAN USBalyst-II

CAN Analyzer CANalyst-II PRO CANOpen J1939 USBCAN-2II Converter Compatible with ZLG USB to CAN USBalyst-II Kuvaus

Protocol conversion between USB and CAN bus; CANalyat-ll analyzer has 2 CAN interfaces; USB interface supports USB2.0 and is compatible with USB1.1; supports CAN2.0A and CAN2.0B protocols, standard frames and extended frames; supports bidirectional transmission, CAN sending and CAN receiving;
Supports data frames and remote frame formats; CAN controller baud rate is optional between 10Kbps-1Mbps and can be configured by software; CANalyst-ll analyzer: CAN bus interface uses high-speed magnetic coupling isolation and isolated - power supply; three-terminal isolation (isolation between USB bus and CAN bus, isolation between CAN1 and CAN2);
Supports relay function, transparent transmission function, CAN1 and CAN 2500V isolation between 2 CAN channels; Traffic: Two CAN channels (when running simultaneously) can receive 8500 frames/s and send 8500 frames/s respectively; Two channels receive 8500 frames/s at the same , and the USB speed can reach 17000 frames/s, without frame loss)
The internal CAN send buffer capacity is 1000 frames per channel (automatic retransmission if sending fails), and the CAN receive buffer capacity is 2000 frames per channel;
USB bus directly powered, no external power supply required; CANalyst-ll analyzer, isolation module insulation voltage: 2500V; operating temperature: -40~850; shell size: 93 x 70 x 24.3mm. Product compatibility: Function library is compatible with Guangzhou Zhou Ligong Company ZLG-USBCAN interface adapter.

CANalyst-l analyzer can use the provided CANTools tool software to directly configure, send and receive the CAN bus.
Users can also refer to the provided DLL dynamic link library and VC/VB routines to write their own applications and conveniently develop CAN system application software products.
When using the CANalyst-l analyzer for secondary software development, you do not need to understand the complex USB interface communication protocol at all.
