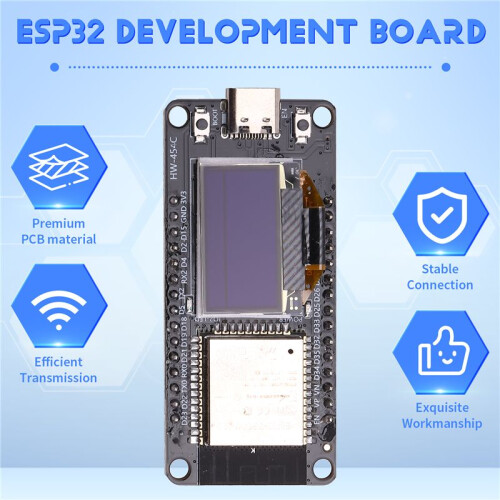

ESP32 ESP-WROOM-32 WIFI Development Board Module CH340 with 0.96 OLED Display for ESP32 OLED Type C

ESP32 ESP-WROOM-32 WIFI Development Board Module CH340 with 0.96 OLED Display for ESP32 OLED Type C Kuvaus

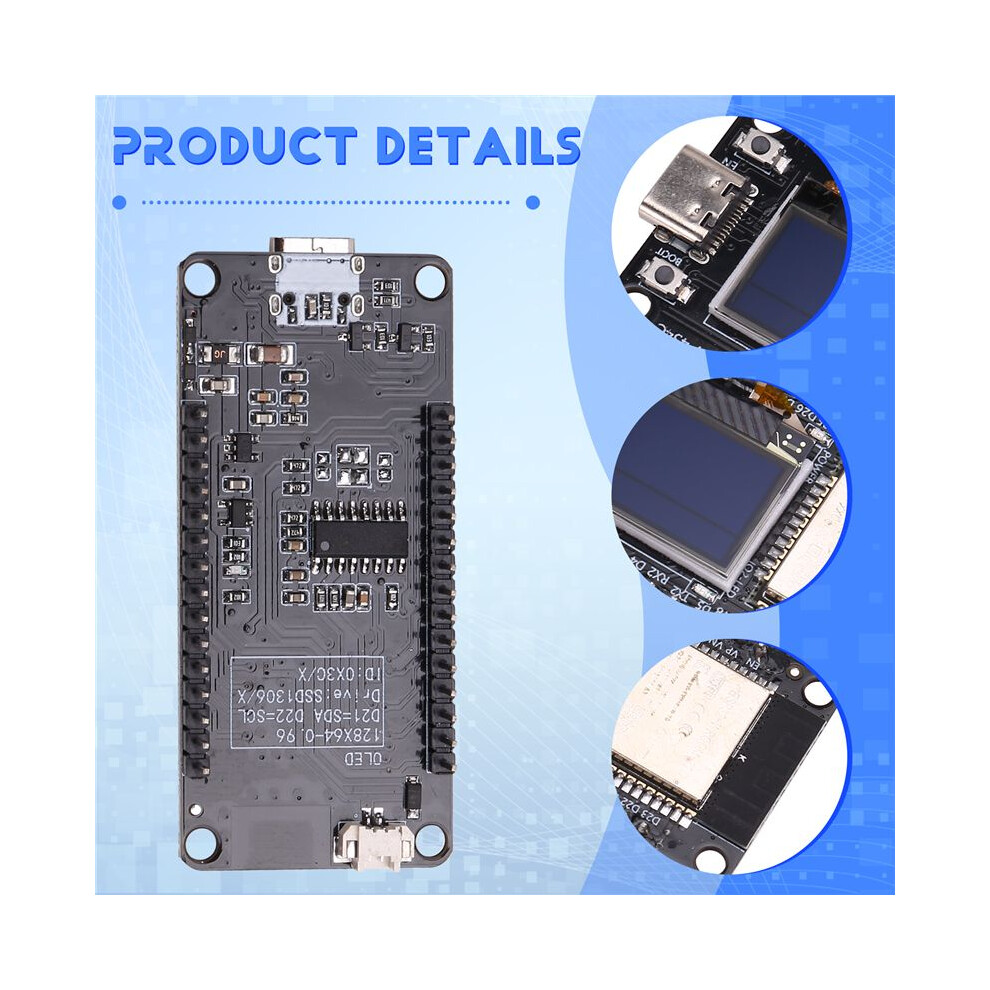

The board uses 12c to connect to the OLED display via the SDA (D21/GPIO21) and SCL (D22/GPIO22) pins. The 12c address of the OLED display is 0x3co
Module body ESP-WROOM-32 module, ESP32 0.96inch OLED board has all the functions of the traditional ESP32 Devkit V1 module, has exactly the same peripheral , seamlessly integrates with the 0.96-inch OLED display, the display has a high resolution of 128x64 and SSD1306 driver, and is compatible with the 12C interface.
The module is the ESP-WROOM-32 development board
802.11b/g/WifFi+BT module;

Low-power dual-core 32-bit CPU, can be used as an application processor;
The main frequency is to 240MHz, and the computing power is to 600DMIPS; built-in 520KB ; supports UART/SPI/I2C/PWM/DAC/ADC and other interfaces; supports openOcD debugging interface;
Supports multiple sleep modes, and the current is as low as 6.5uA in deep sleep; embedded Lwip and FreeRTOS;
Support STA/AP/STA+AP mode;
Support Config/AirKiss one-click network configuration;
Universal AT commands, easy to use;
Support local serial port upgrade and remote upgrade (FCT).
Specification:Type C
Colour:Black
Material:PCB+PVC

Package Contents:
1 x ESP32 Development Board
