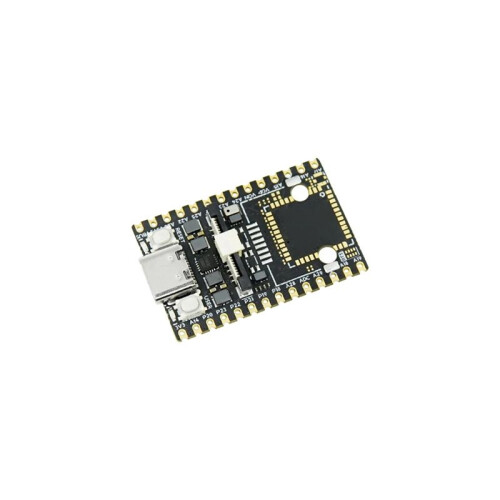

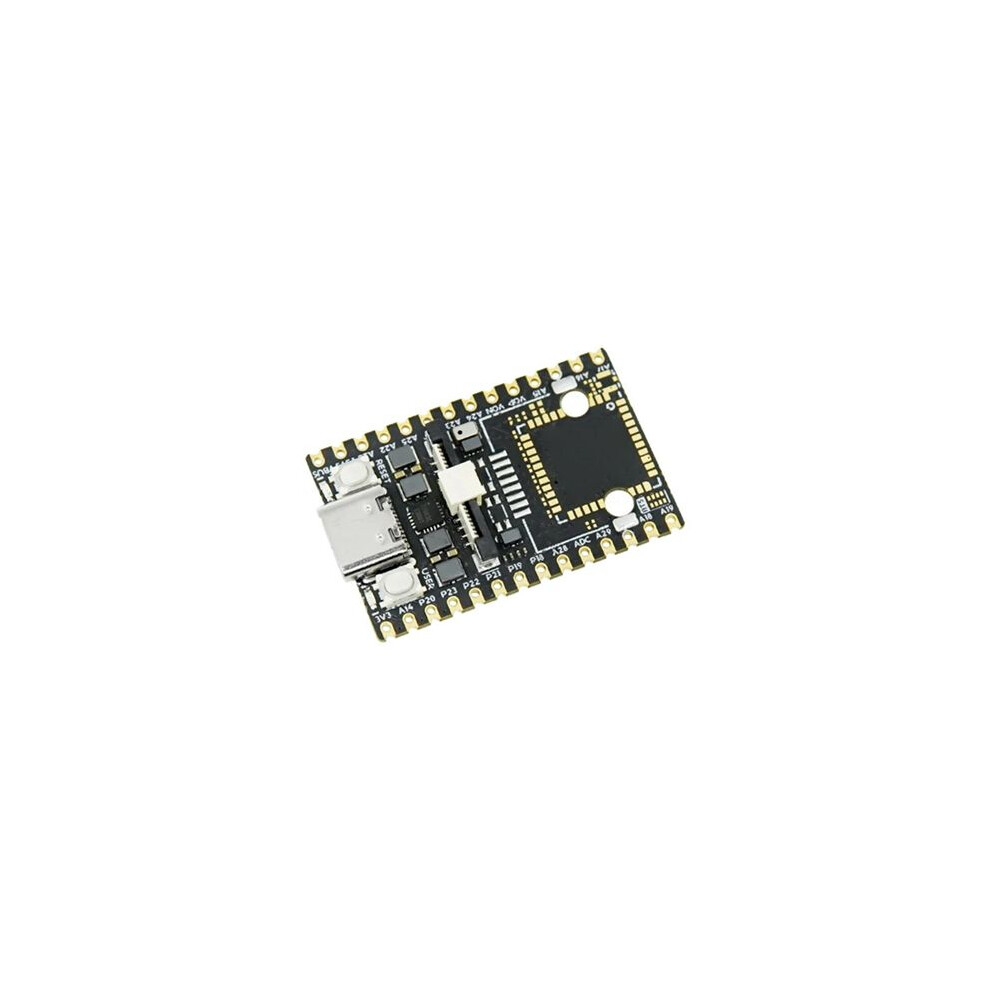

For LicheeRV Development Board SG2002 WIFI6 Ethernet 2Gbit AI Visual RISCV B

For LicheeRV Development Board SG2002 WIFI6 Ethernet 2Gbit AI Visual RISCV B Kuvaus

Dual-core powerful core 1GHz RISC-V C906/ ARM A53 large core optional 700MHz RISC-V C906 co-processor
Direct plug-in breadboard/SMD dual-use
Perfectly supports Linux and QT development
In the size (22x36mm), almost all the peripheral resources needed by developers are put in, and the price and configuration are far superior to the previous generation ARM-based LicheeZero
LicheeRV will be an important stop in the wave of RISC-V ecological popularization

CPU: SG2002
Large core: 1GHz RISC-V C906/ARM A53 choose one
Small core: 700MHz RISC-V C906
Low power core: 25~300M8051
NPU: 1TOPS INT8, supports BF16
Memory: 2Gbit (256MByte) DDR3 inside
Storage: Choose one of TF card/ NAND to start (the SDNAND pad is under the TF card slot)
Camera: 4lane MIPI CSI input, supports split dual channels
Display: 2lane MIPI output, standard 31pin interface, supports 6pin capacitive touch screen
Audio: Onboard analog silicon microphone, 1W speaker amplifier
Wireless connection: W/WE version supports 2.4G/5.8G dual-band WiFi6+BLE5.4
Wired connection: E/WE suffix version supports 100M Ethernet interface
USB: 1 x USB2.0 OTG Type-C
IO interface: 2x14pin2.54 pin interface, spacing 800mil, can be directly plugged into the breadboard
LEDs and buttons: 1xPower LED, 1xUser LED 1xRST button + 1xBOOT button
Randomly packed in small plastic boxes or static bags, , don't accept the specified
Colour:Black
Material:PCB
type:B: LicheeRV--Basic

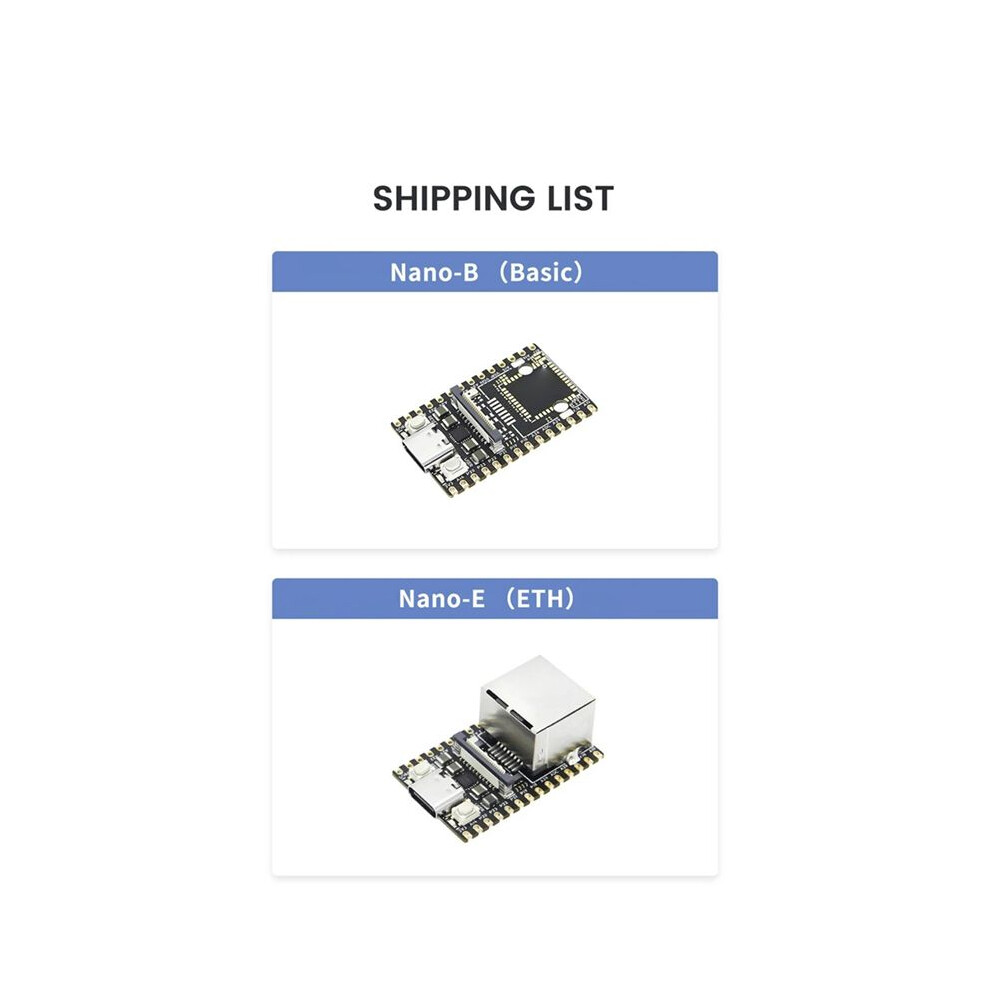

Package Contents:
1 x Development Board
