For Raspberry Pi 5 Power Supply Expansion Board with Various Power Input Output Interface for Jetson STM32 Robot

For Raspberry Pi 5 Power Supply Expansion Board with Various Power Input Output Interface for Jetson STM32 Robot Kuvaus

1.Comes with PD power supply protocol, suitable for Raspberry Pi 5, and compatible with for Jetson , K210, STM32 and other development boards.
2.Supports 6-24V voltage input and 5V/5A voltage output.
3.Can be stacked with for Raspberry Pi 5 through screw copper posts.
4.Onboard three input interfaces: KF301-2P pitch 5.08mm, XH2.54-2Pin, DC5.5x2.5.
5.Onboard three output interfaces: Type-C, PH2.0-2P, DC5.5x2.1, 6Pin.

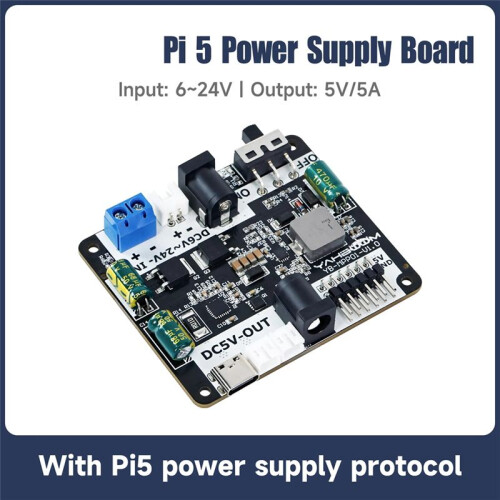

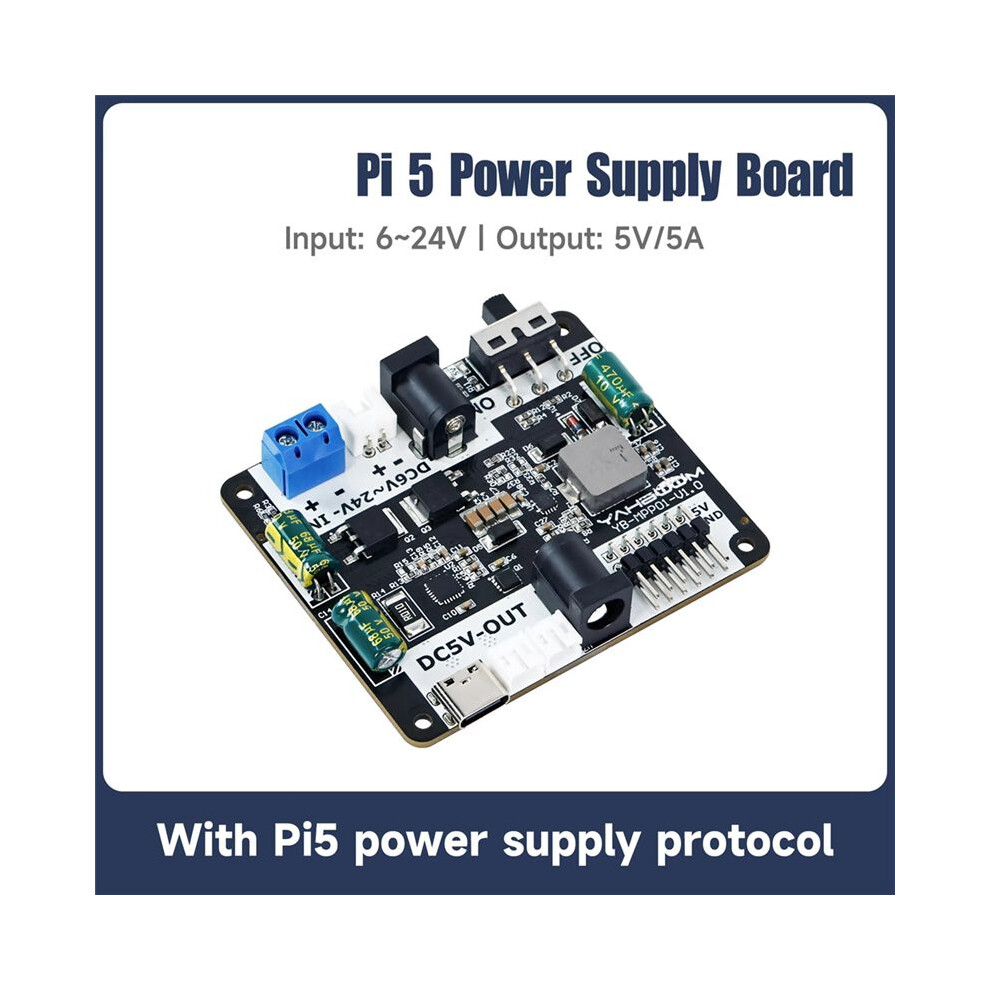

This is power supply expansion board tailor-made for Raspberry Pi 5. Integrating multiple types of input and output and efficient voltage stabilization technology, it can ensure that the input power is stably adjusted to the 5V/5A output, perfectly meeting the power needs of the for Raspberry Pi 5. Effectively eliminating potential low-voltage operation risks, and avoiding USB interface current limitation.

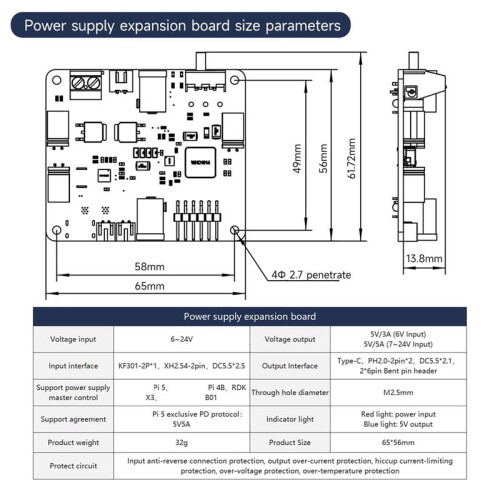

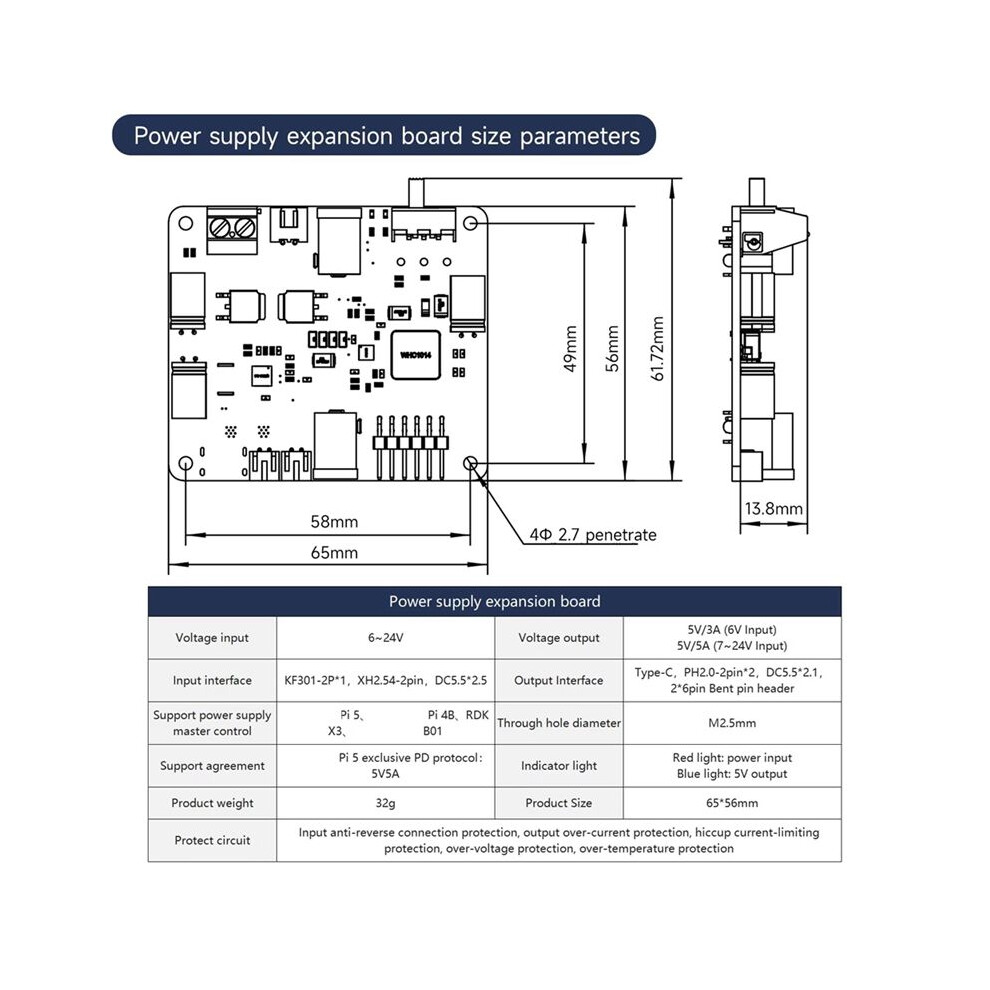

have designed fixed holes for this expansion board, which can be stacked directly the for Raspberry Pi 5. The overall height is suitable for cars, robots and other mobile platform projects.
Color: Black
Material: PCB

Package Contents:

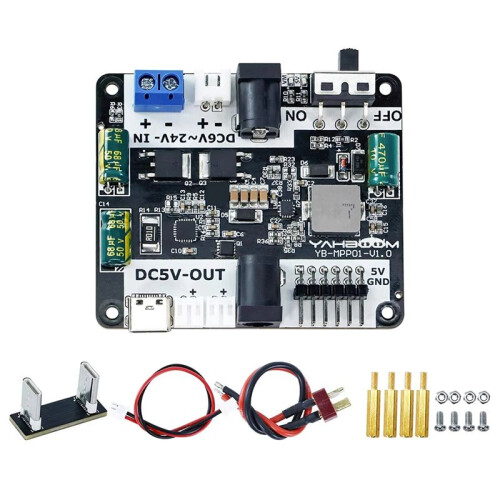

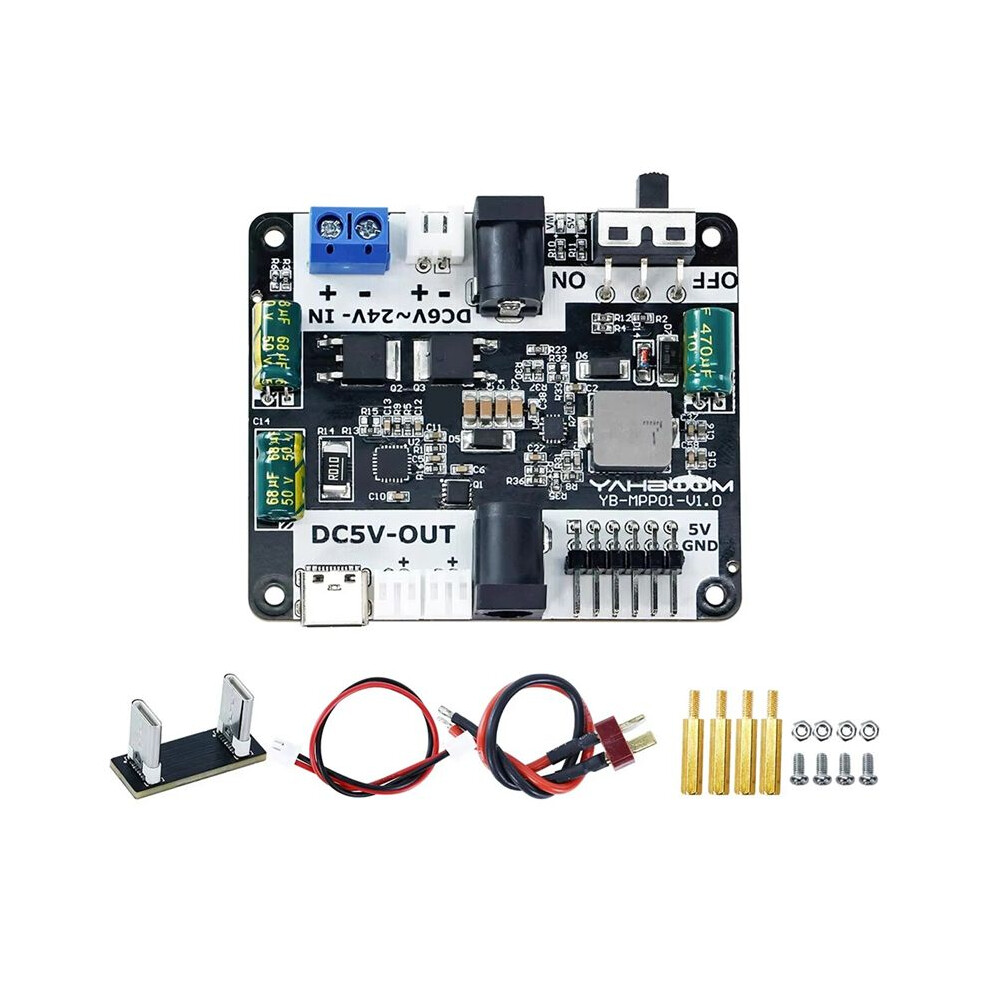

1 set x Robot step-down power supply board
