Lm2596 Converter Module - Adjustable Step Down Power Module Step Down Converter

Lm2596 Converter Module - Adjustable Step Down Power Module Step Down Converter Kuvaus

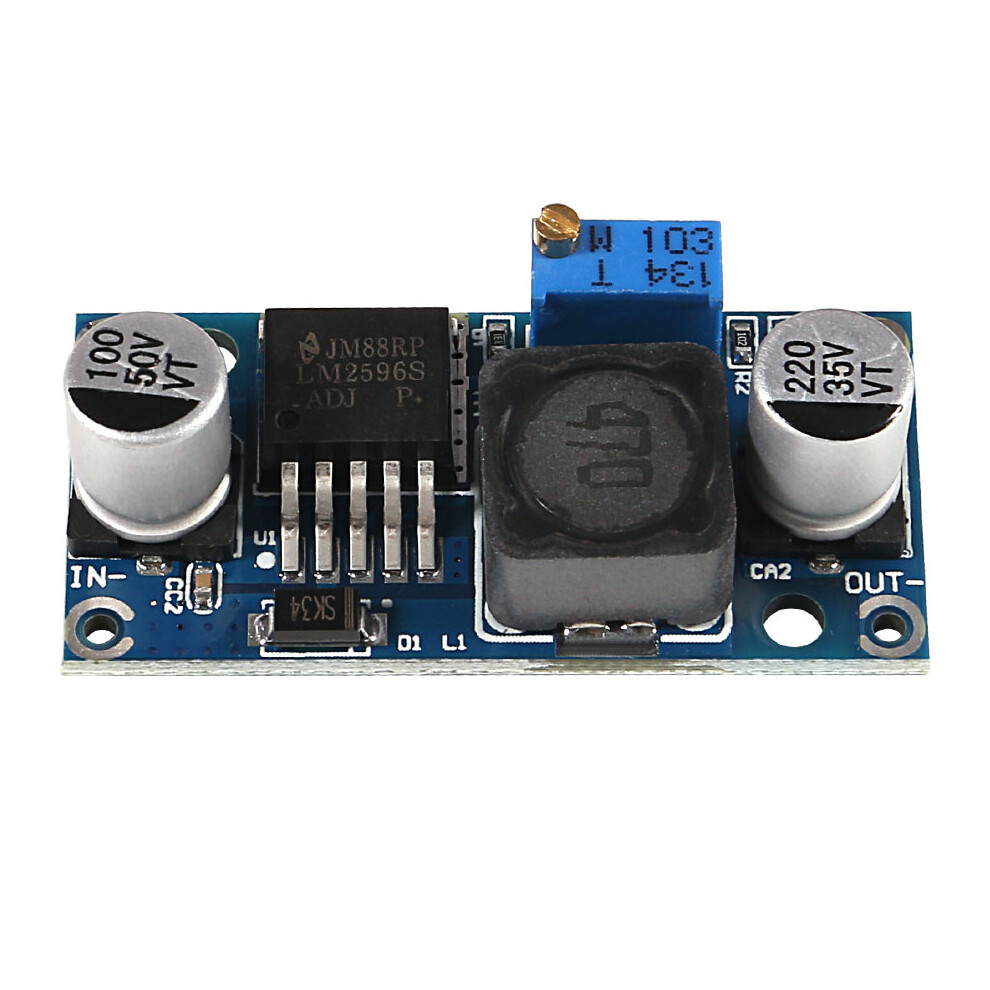

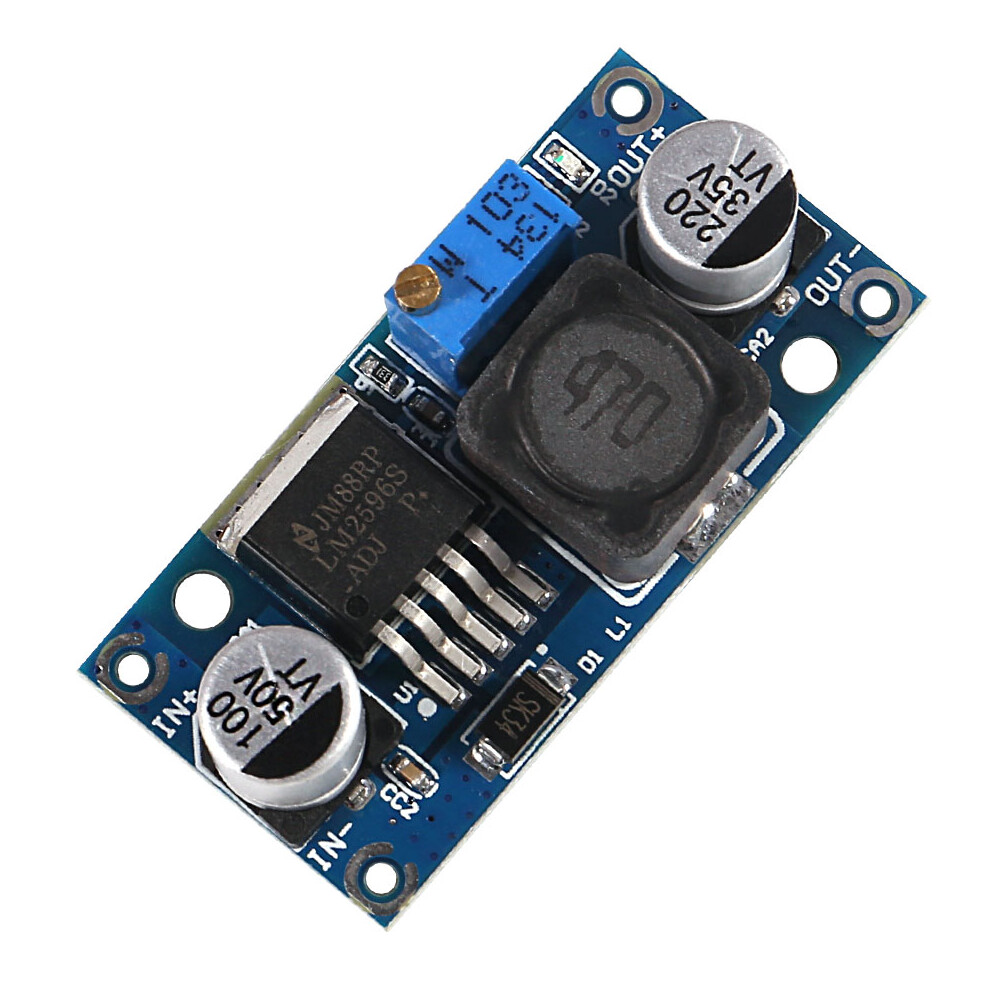

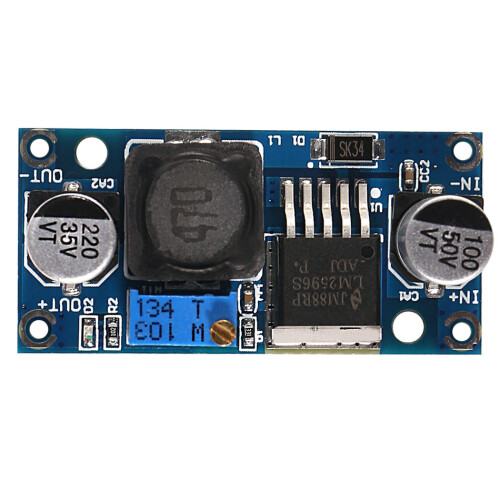

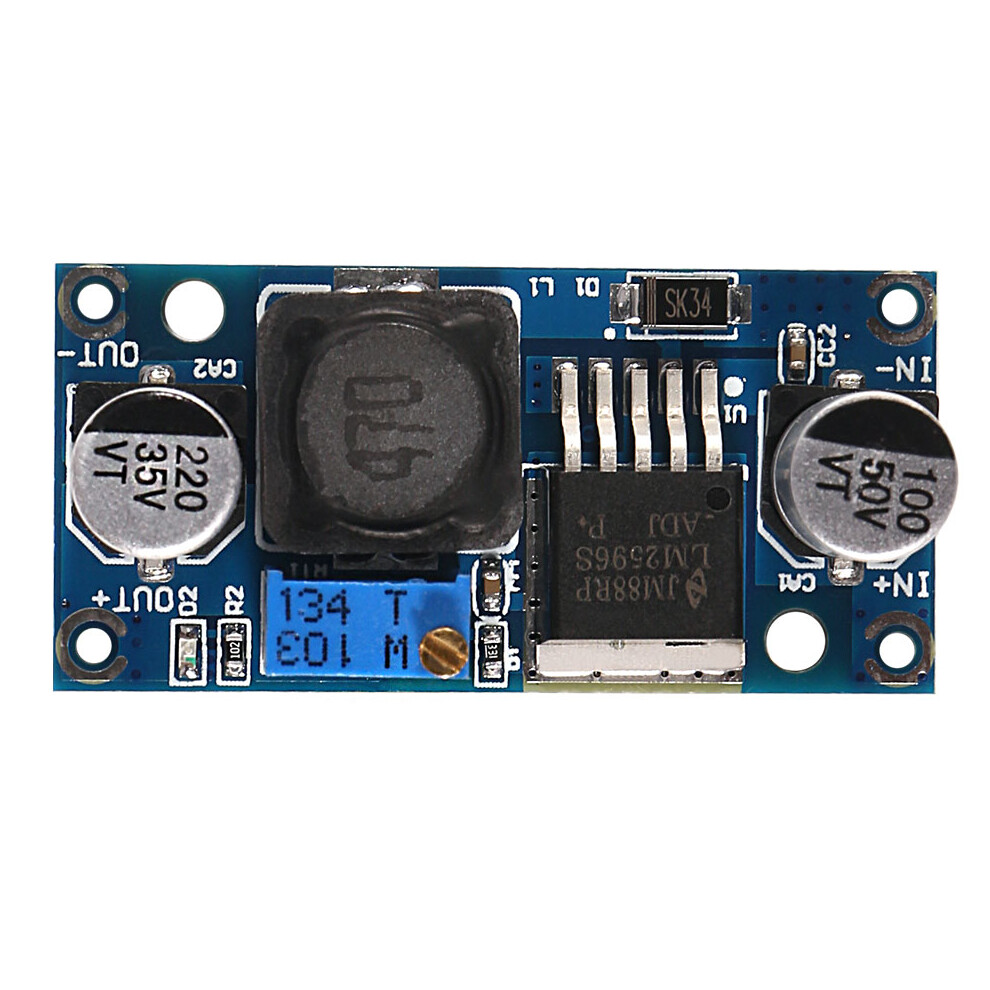

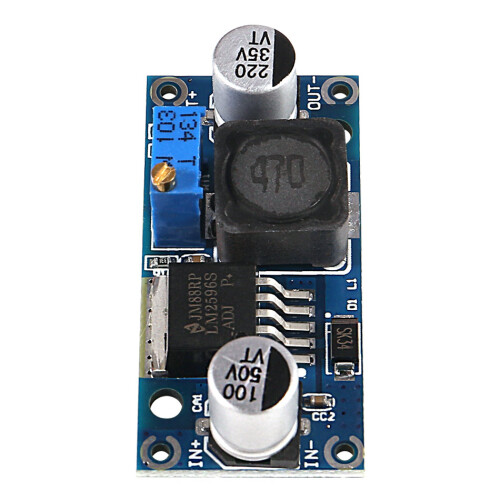

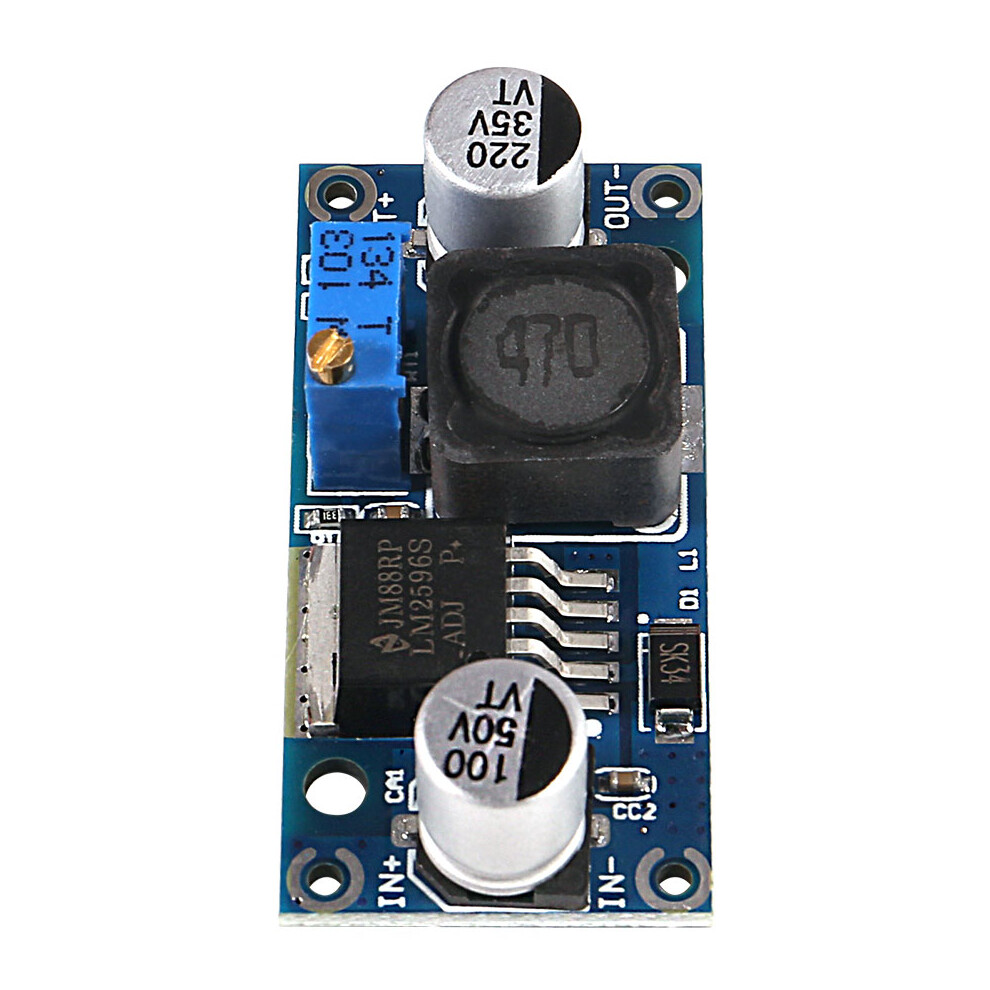

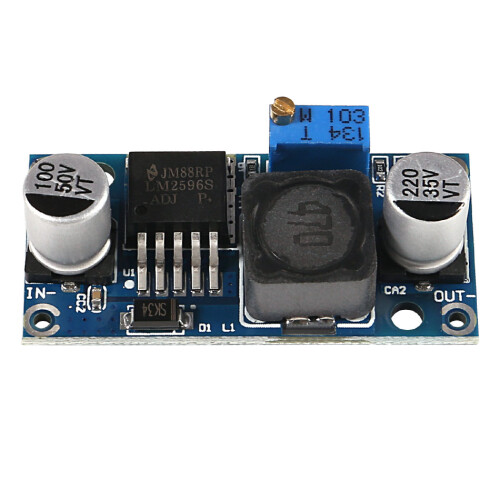

This is a - buck converter module that can convert 3.2V-35V to 1.25V-35V with a maximum current of 3a.
The step-down converter module is used to reduce the voltage. Therefore, make sure that the input voltage is at least 1.5 V higher than the output voltage.
The efficiency of the step-down module is very high, which is useful for the pull-down voltage.
It is recommended that the current be below 2.5A for long periods of . If it is greater than 2A (power more than 10 W), the heat dissipation will be changed.
The - module converter is widely used in the low voltage system supply, 6V, 12V, 14V, 24V battery charging and regulated power supply.

Type: power module
Model: LM2596 Step-Down Module
Input voltage: 4V-35V
Output voltage: 1.23 V - 30 V.
Output current: 3A (maximum)
Conversion efficiency: 92% (maximum)
Output ripple: less than 30 mV
Switching frequency: 150kHz
Working temperature: -45 Celsius + 85
Power supply (3-40 V), the power indicator lights and the module works normally.
Adjust the potentiometer knob (usually clockwise to improve, counterclockwise to rotate down) and use a general expression to monitor the voltage required for the output voltage.
Caution: As this is a step-down module, it is recommended to work for a long with a current of less than 2.5 A and to add a heat sink (output power greater than 10 W). Maintain the minimum difference of 1.5V to ensure stable performance.
Colour

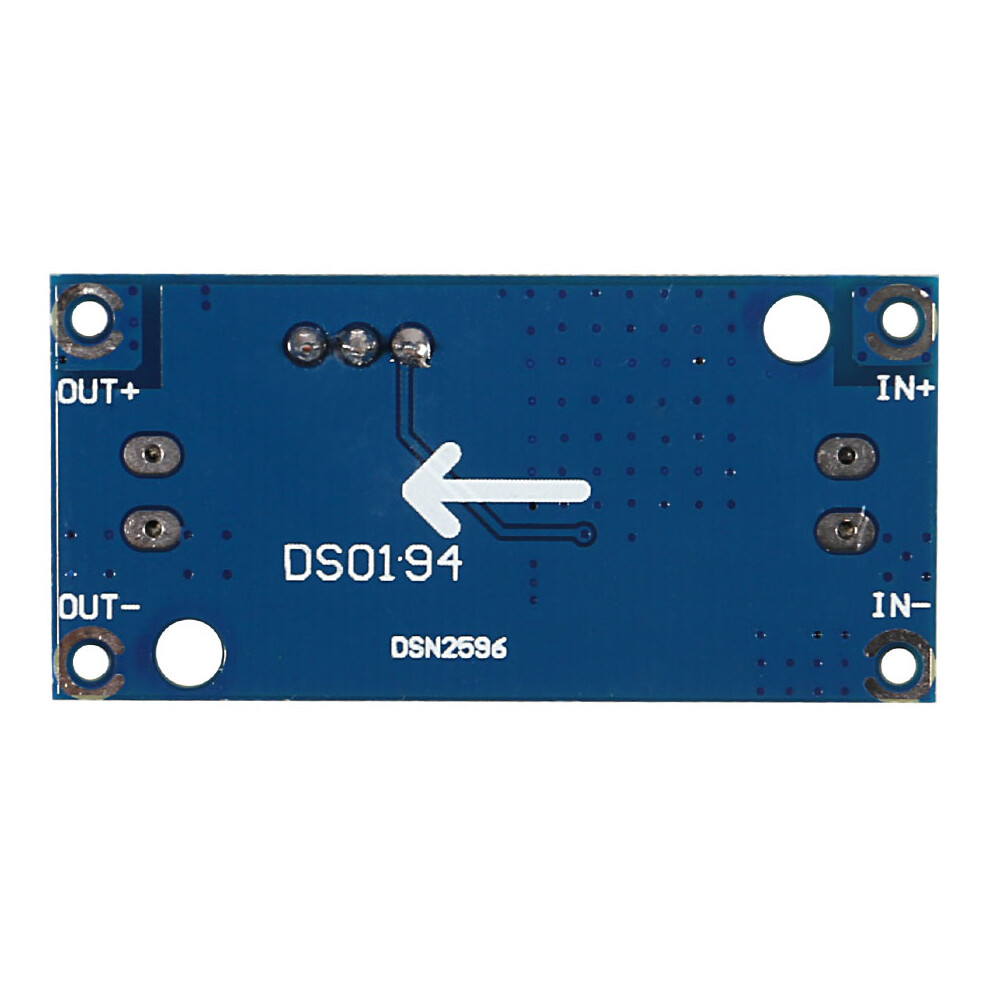

Material: printed circuit board
Size: 4.3 x 2.1 x 1.4 cm

Package contents:
1 * Buck converter
