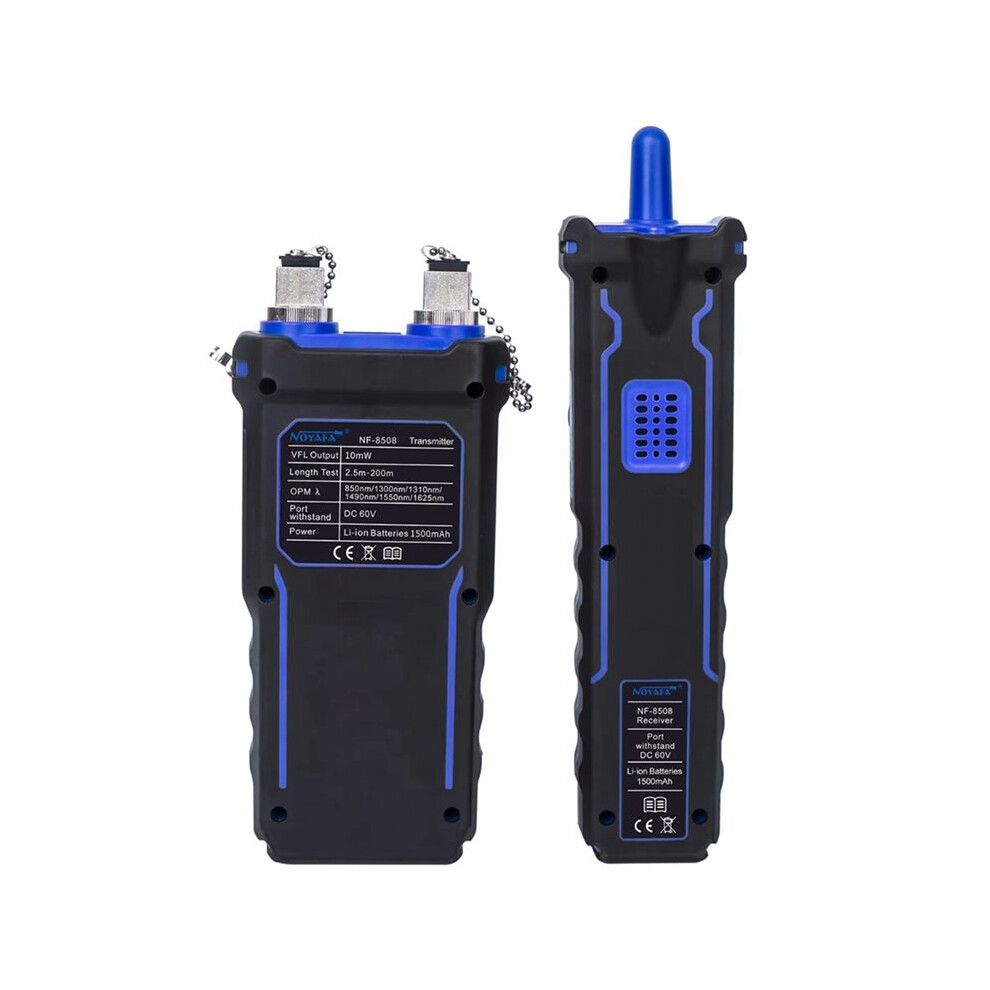

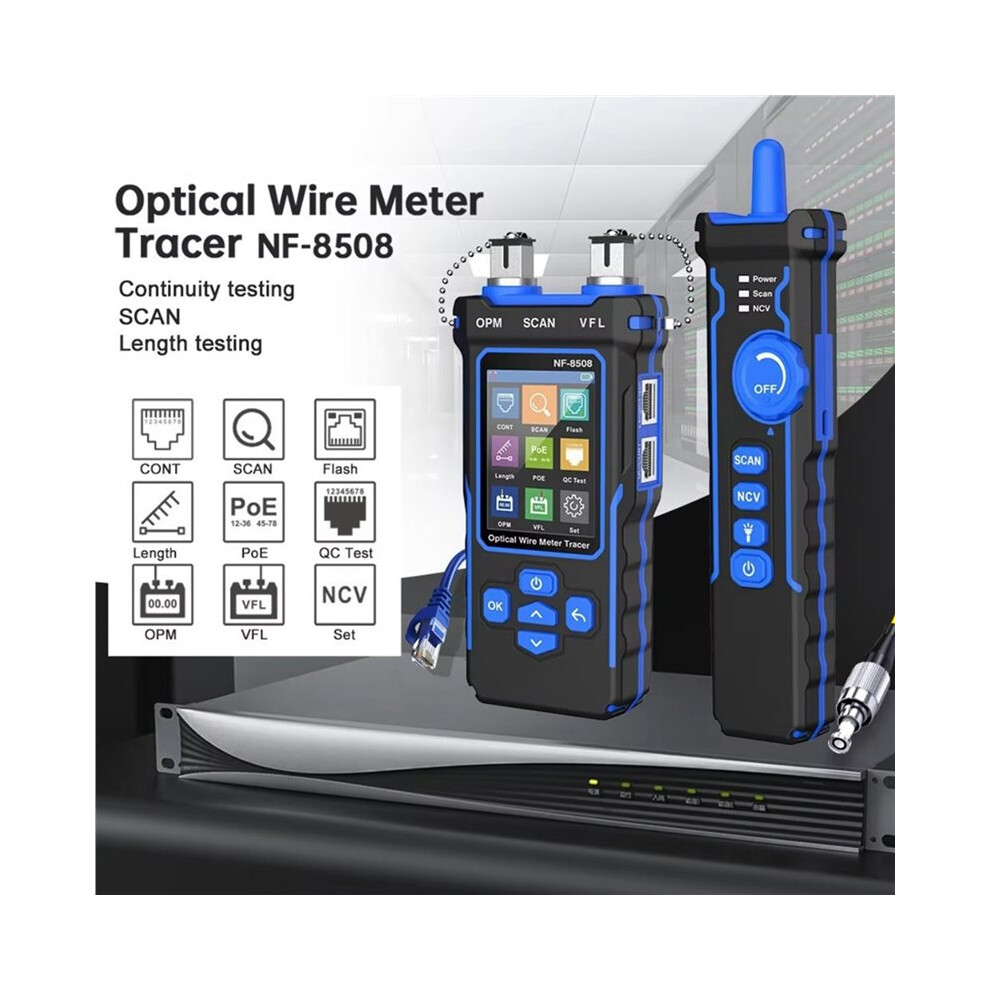

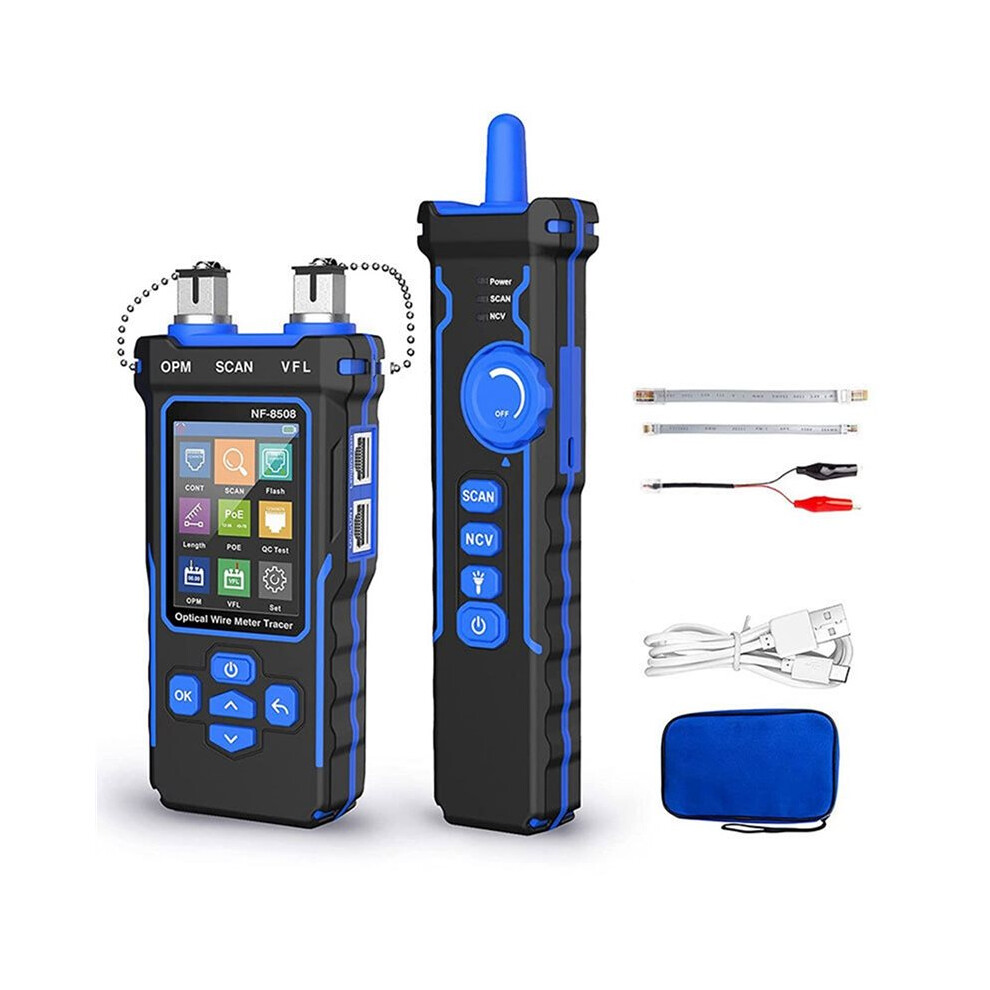

NOYAFA NF-8508 Network Cable Tester Rechargeable Network Finder Wire Tracker Tester PoE Checker Optical Wire Meter

NOYAFA NF-8508 Network Cable Tester Rechargeable Network Finder Wire Tracker Tester PoE Checker Optical Wire Meter Kuvaus

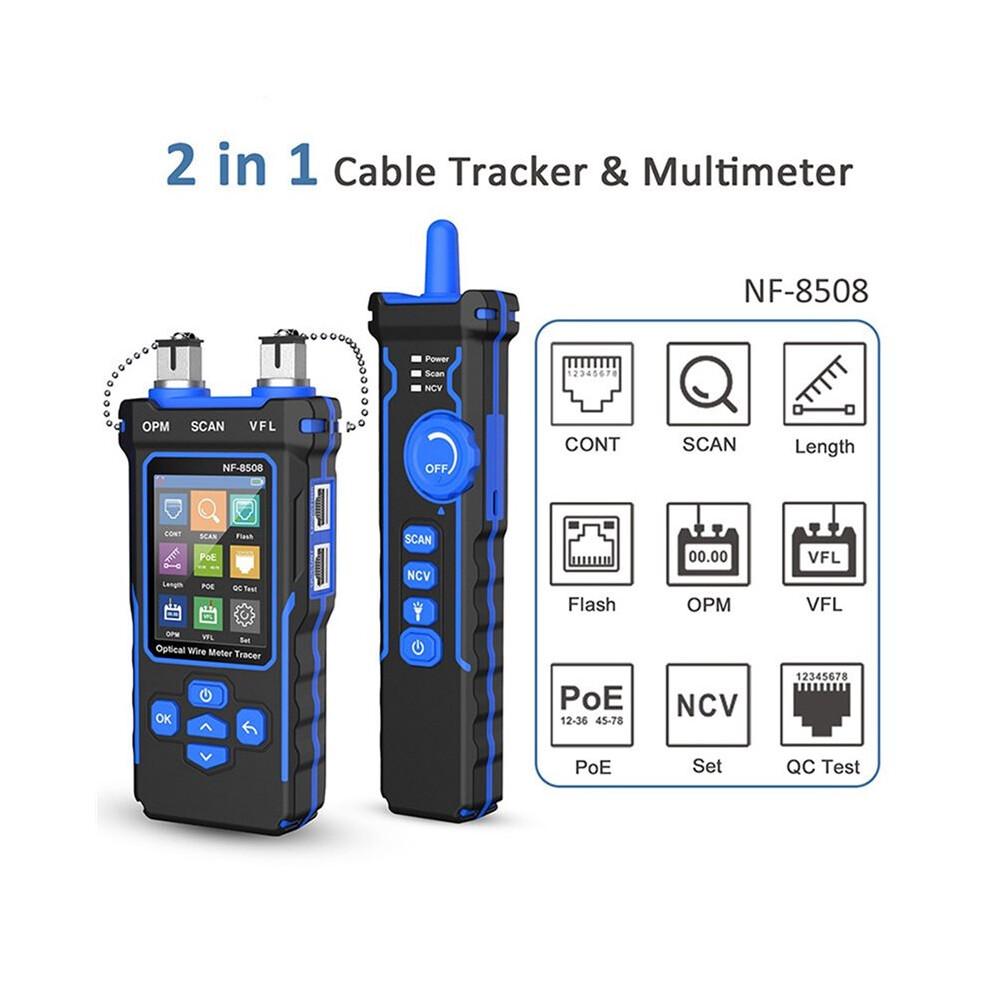

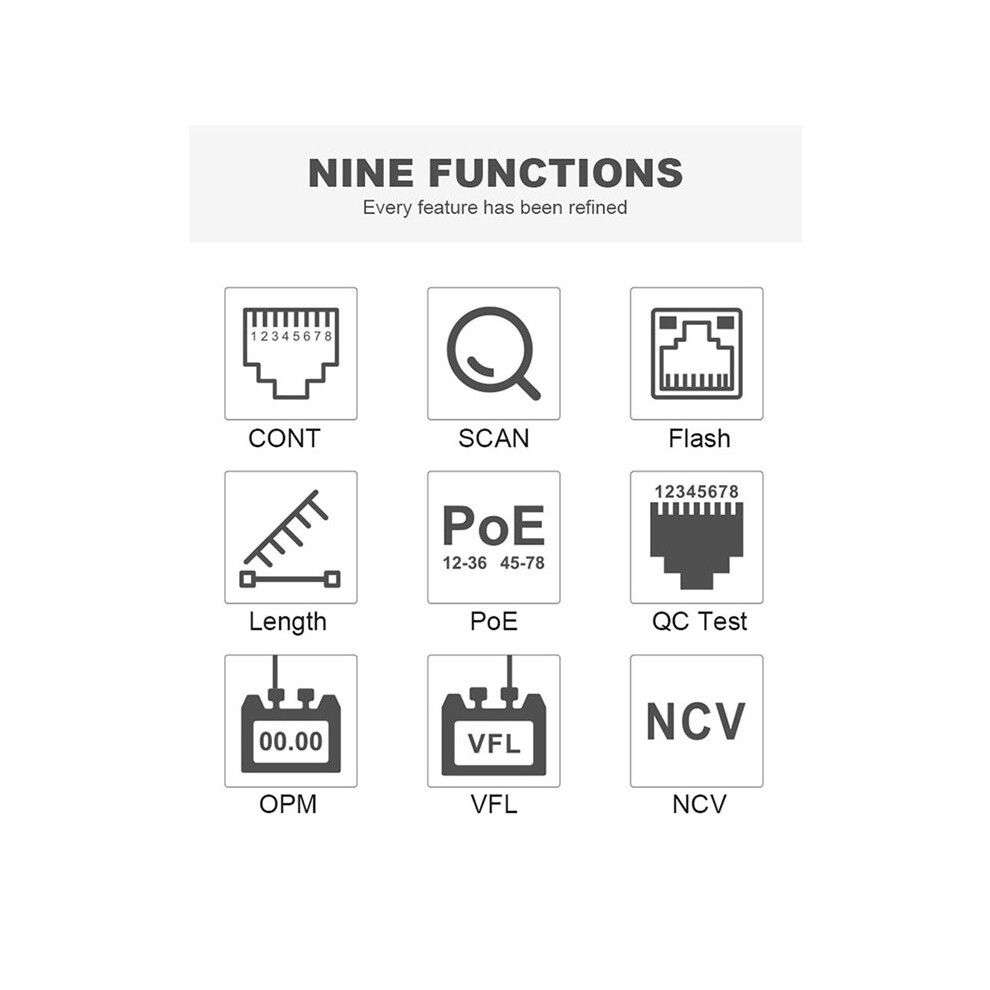

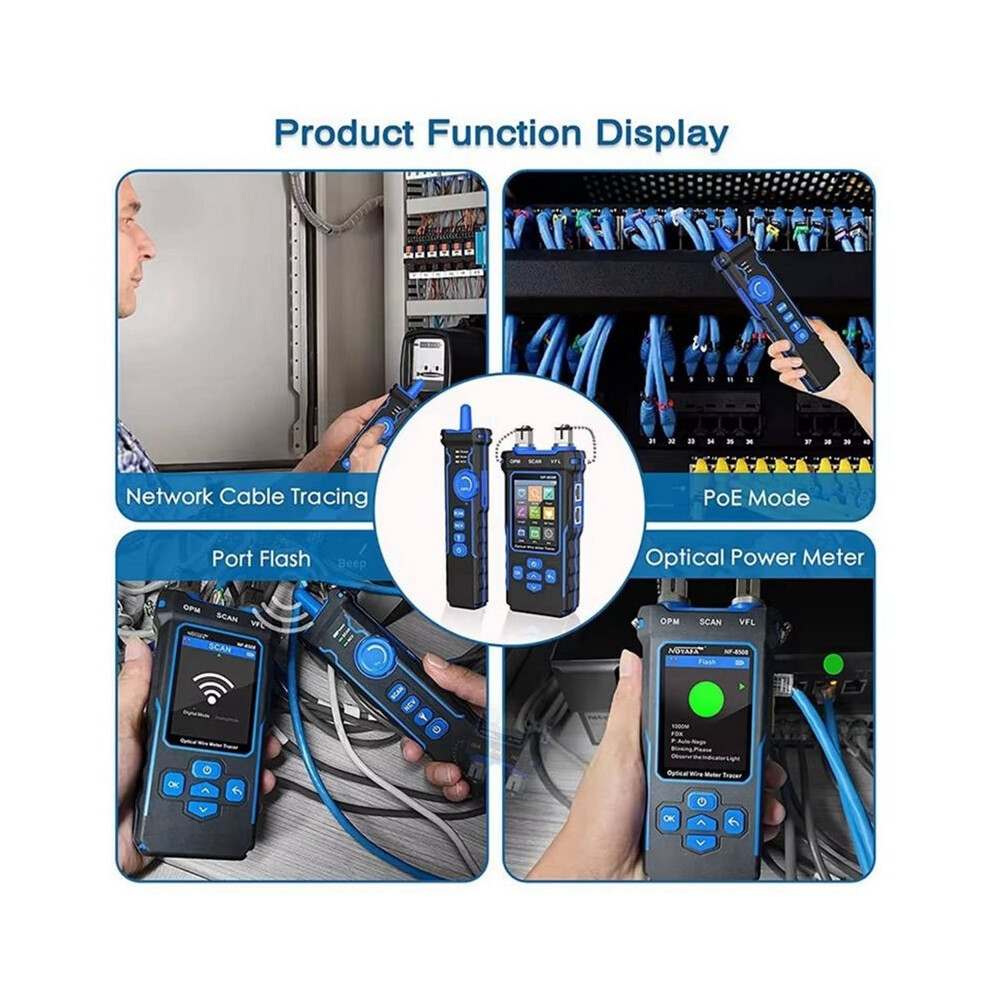

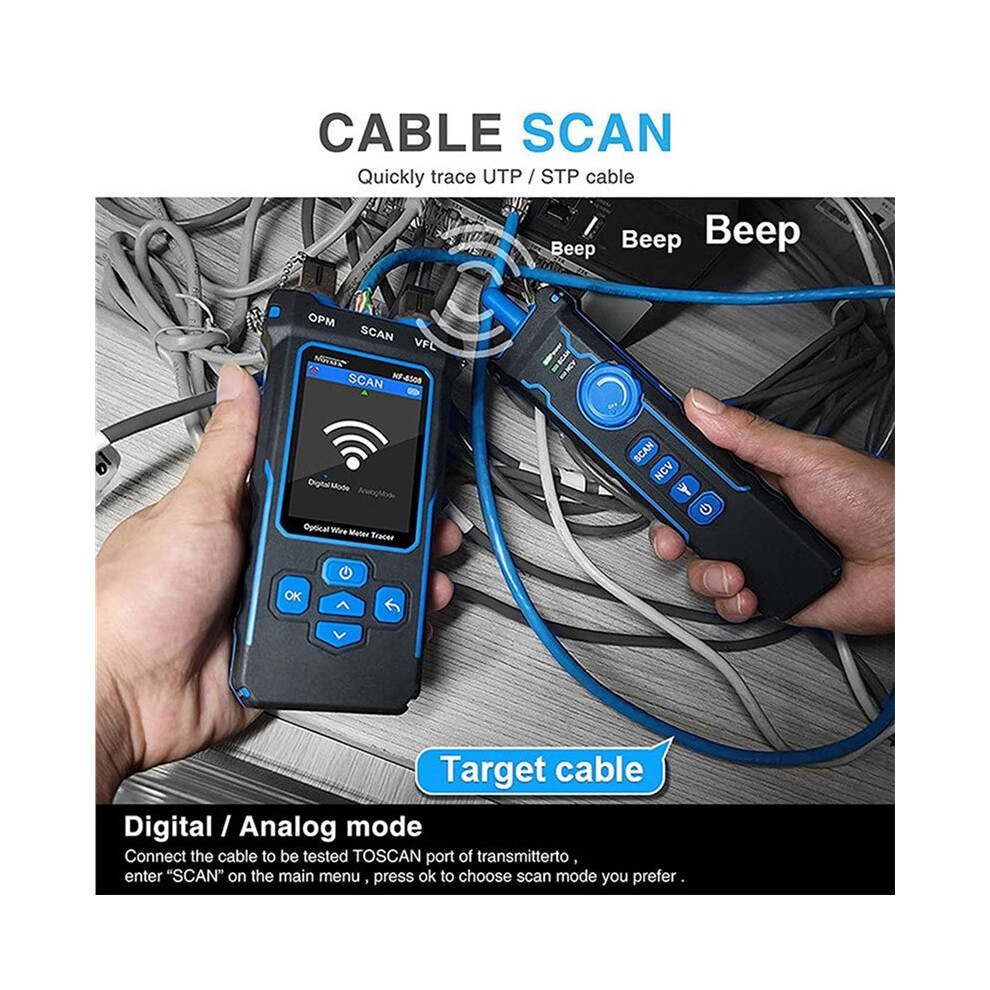

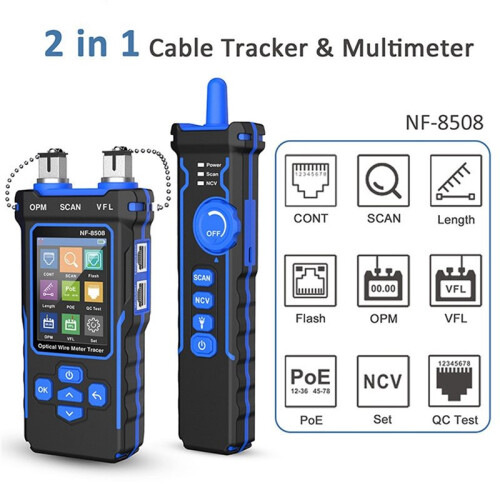

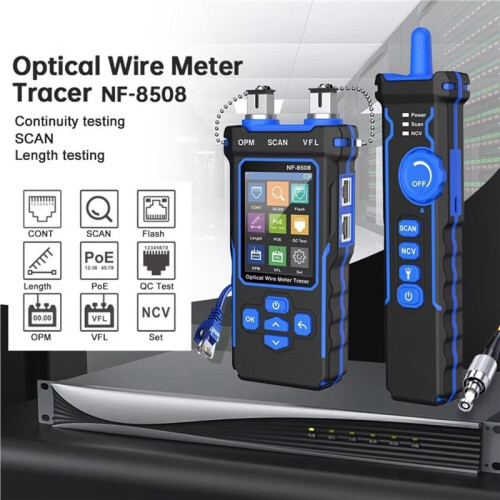

Transmitter Testing Function: including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal , OPM(optical power meter) and VFL(visual fault location) function. POE Test: automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and nonstandard device.
Optical Power Meter: 850/1300/1310/1490/1550/1625nm wavelength switching; unit switching at dBm, dB, or mw, uw, nw; and REF . Visual Fault Location Function: detect and locate fiber breaks, as well as problems such as poor connections, fiber bends or cracks. Receiver Function: sensitivity adjustment, 300m no-load shielded network cable/non-empty shielded network cable, NCV detection, lighting function, etc.

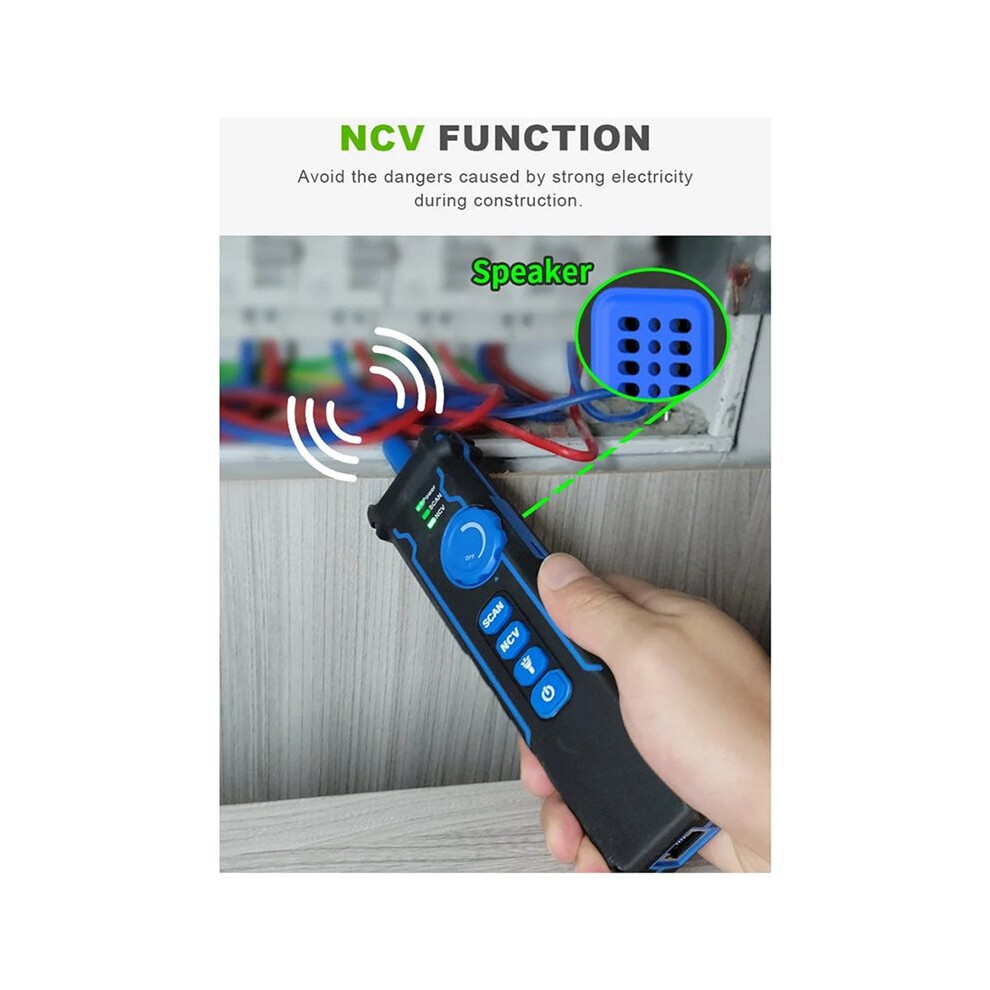

Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring. Illuminate Function: the receiver designed with lamp for auxiliary lighting the working areas during operation. Battery Operated: both the transmitter and the receiver are built-in with 1500mAh polymer battery, no need to change batteries, type-C charging, with charging indicator and low battery indicator.
Other Settings: backlight brightness(level 1/2/3), backlight (MAX/1min/30S/15S), auto-off (15min/30min/1h/2h/off), red light flash under VFL function(fast flashing/slow flashing/). Wide Applications: suitable for the network engineering and maintenance work of telecommunication, computer, other metal conductor, etc.

Cable Type: CAT5/CAT6
Voltage: 60V

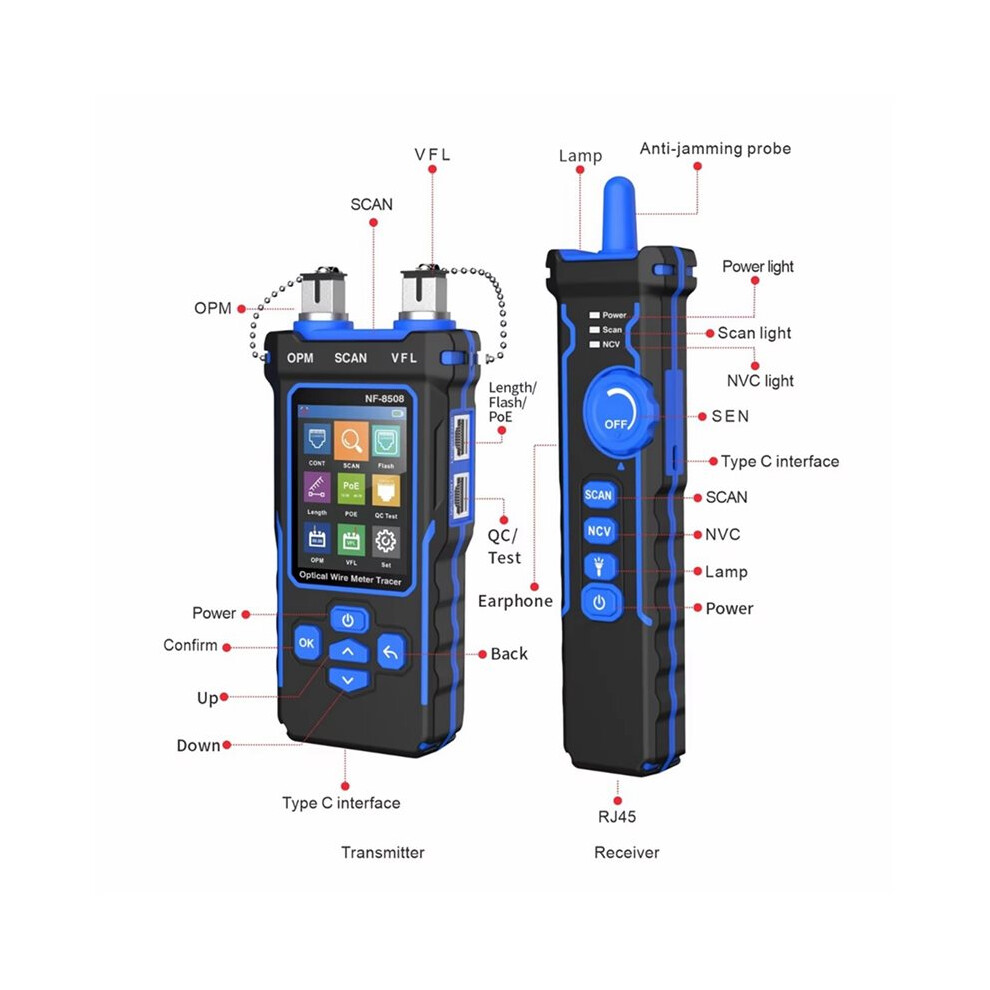

TRANSMITTER:
Wiremap Port: RJ45
Remote Continuity: 300m
Cable Sequence and Fault Test: Yes
STP/NTP: Yes
Short Circuit Reminder: Yes
Anti-jamming and Normal Mode: Yes
Audio Transmission Frequency: 455KHz
Audio Transmission Distance: RJ45 300m
NVL: 10mW
Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)
Crimping: RJ45-8 cores, min lengt
