NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 1100-Meter Long-Distance with Antenna 1Set

NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 1100-Meter Long-Distance with Antenna 1Set Kuvaus

If you want to make your wireless communication system with low cost, this Wireless Transceiver module is the most suitable module to choose! It can achieve a good balance between wireless transition performance and cost!

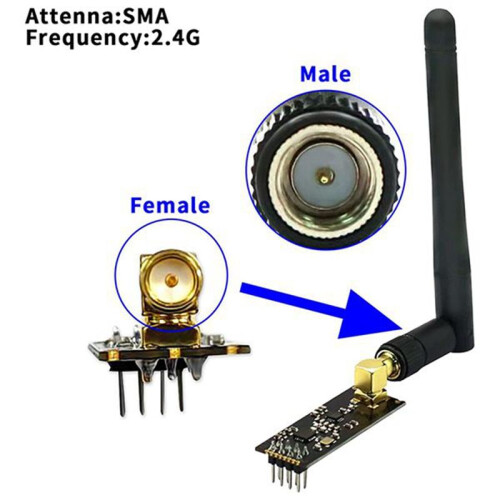

You can easily make it with your own MCU/ARM//AVR/STM32 system! What's more, this NRF24L01+ module is designed with power amplifier and SMA antenna, this allowed you the wireless communication to 800+ meters! (No barrier)
A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible via the SPI connection. Configurable parameters include channel frequency (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
The -chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs that allow for direct connection of SPI pins to the (compatible with) for arduinoIDE.
Internal filtering results in high margins of meeting RF regulatory standards. The module radio uses Gauss Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC).

The module contains an Interrupt Request (IRQ) pin that can be used to wake the host microcontroller, (ex: for ArduinoIDE), from sleep when the module receives a transmission providing great savings in battery power devices.
Range: 800+ meters of sight
Frequency: 2.4GHz - 2.5GHz
Working Voltage: 3-3.6V Max
Max Current: 115mA
Multi-frequency: 125 frequency
Quantity:1Set
Color:Black
Material:PCB+Plastic+Metal

Package Contents:

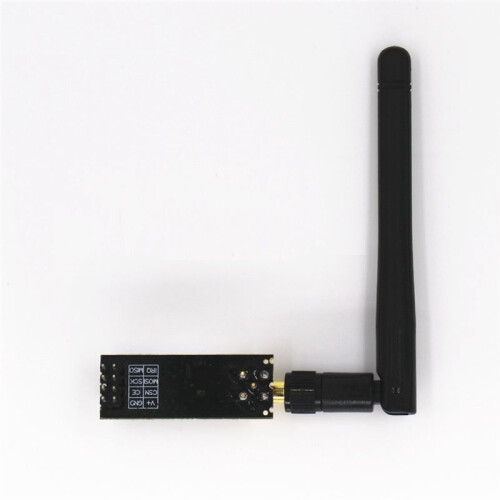

1 * Wireless Module
1 * Antenna
