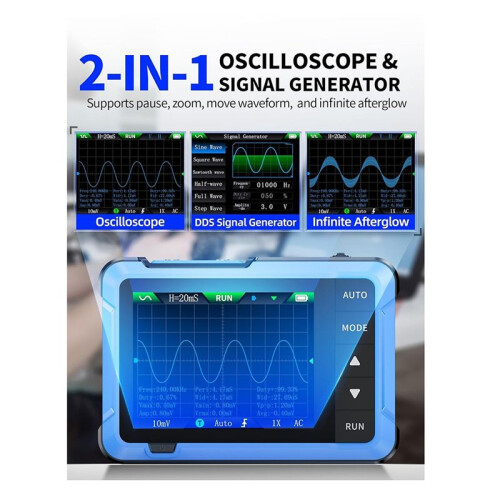

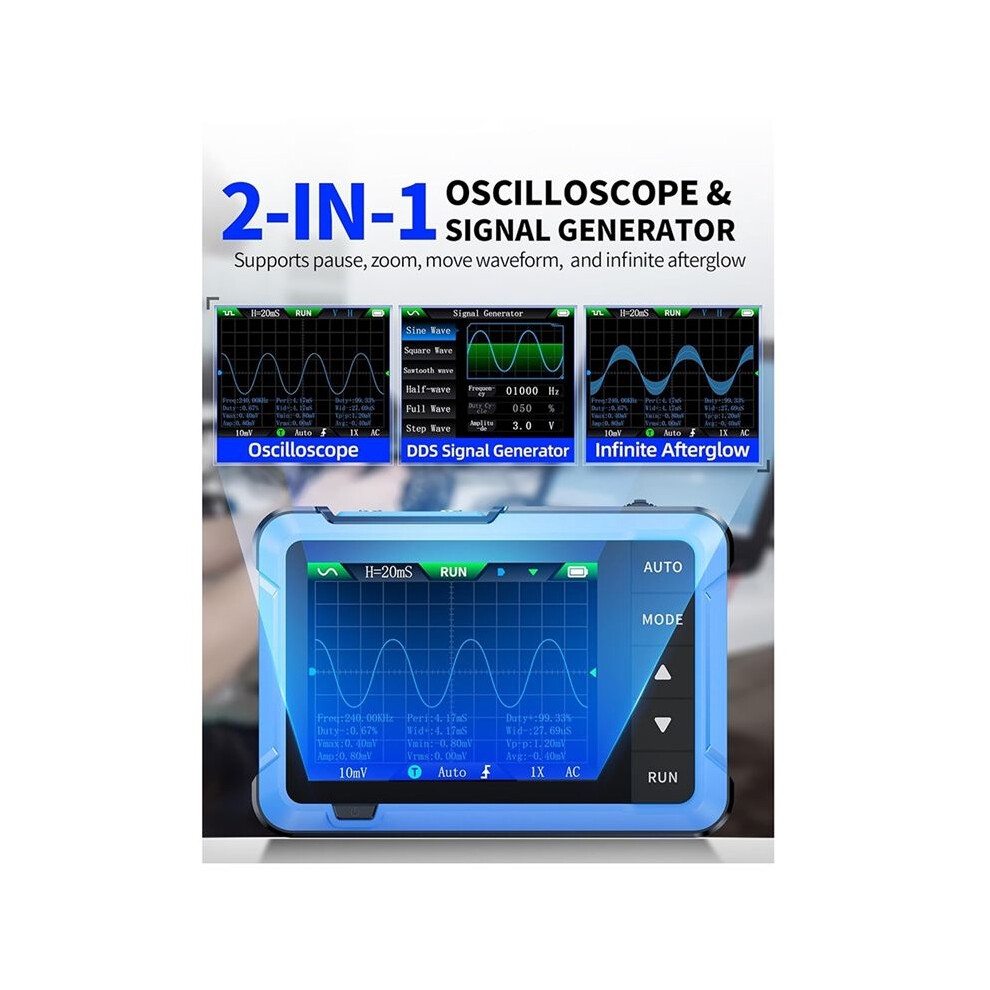

Oscilloscope/DDS Signal Generator 2-in-1,2.8 Inch TFT,10MHz Bandwidth, 48MS/S Sampling Rate, Trigger Function Auto/Nomal

Oscilloscope/DDS Signal Generator 2-in-1,2.8 Inch TFT,10MHz Bandwidth, 48MS/S Sampling Rate, Trigger Function Auto/Nomal Kuvaus

DSO-510 handheld oscilloscope is upgraded from DSO152 oscilloscope, 10 MHz high bandwidth, 48 MS/s high sampling rate, 50 ns-20 S base range. Voltages to 400 V can be measured.
The digital portable oscilloscope supports the level of display and the infinite afterglow, which can accurately capture the signal features. It supports waveform scaling, suspension, movement and image saving and exporting functions.

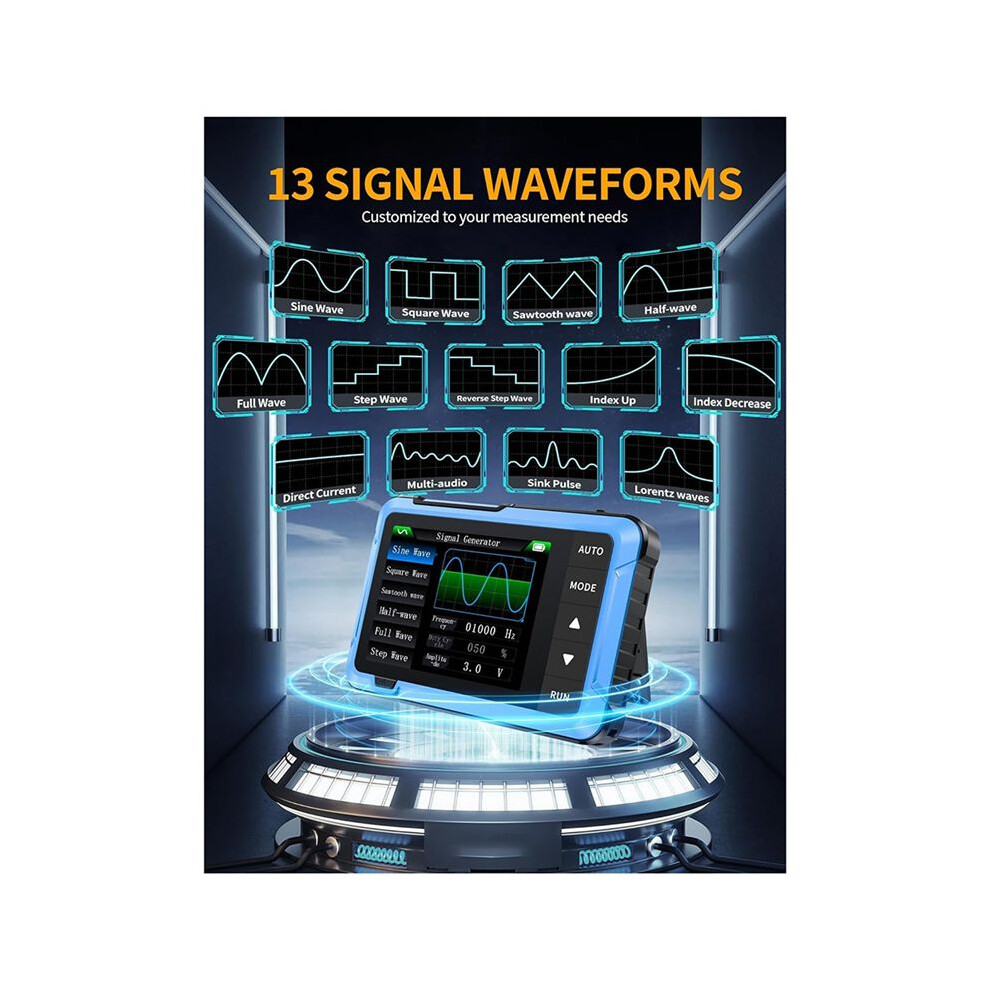

DSO-510 can output 13 kinds of waveforms, and the maximum waveform output frequency is to 50 KHz, which can meet the needs of diversified signal simulation and improve the efficiency of testing and analysis.

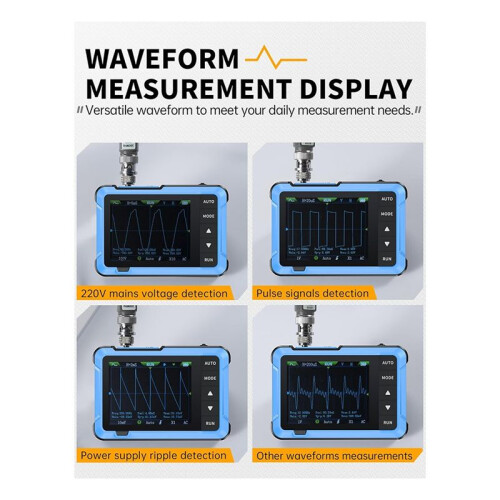

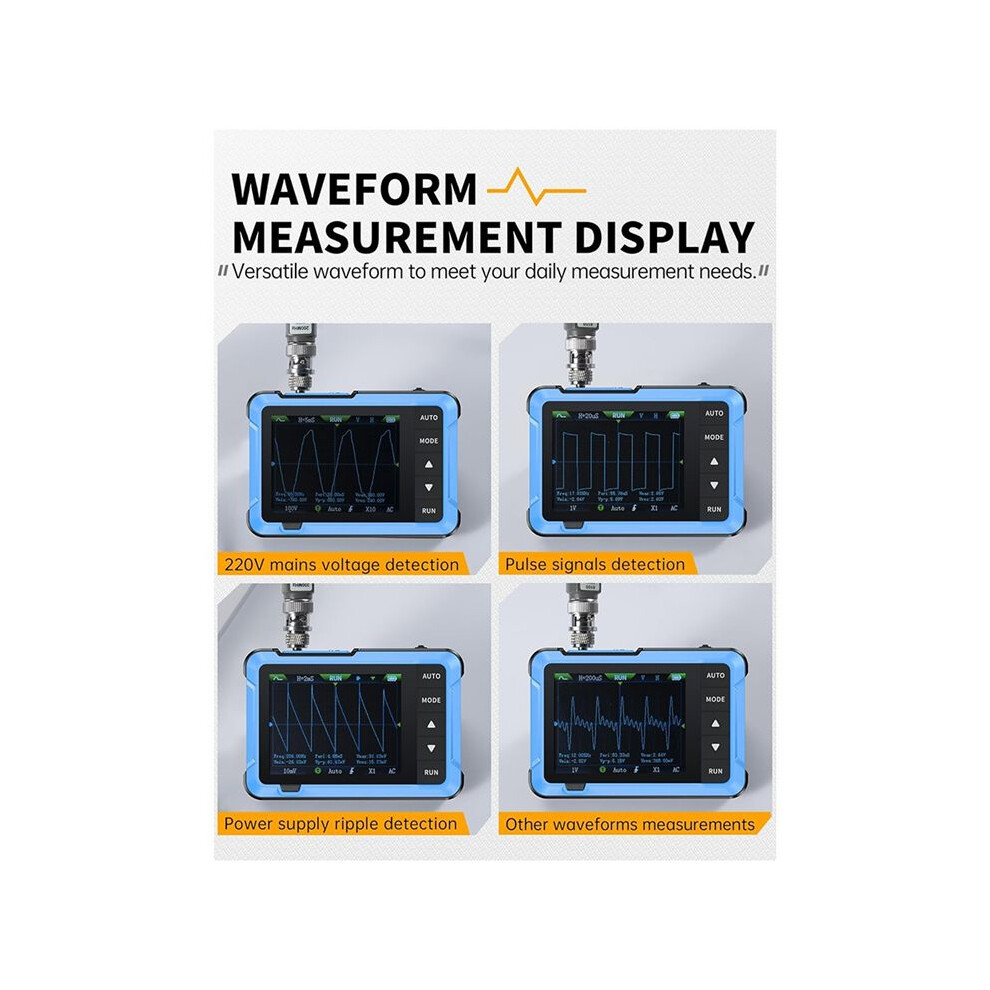

Suitable for periodic analog signals and non-periodic digital signals. 2.8-inch HD LCD display, 320*240 resolution, which is clear and easy to observe. The one-key AUTO function can automatically optimize the measurement parameters.
The automotive oscilloscope has a built-in 1000mAh high-quality lithium battery and supports Type-C interface charging to ensure worry-free long-term use.

Colour:As Shown
Material:Metal

Package Contents:
1set * oscilloscope
