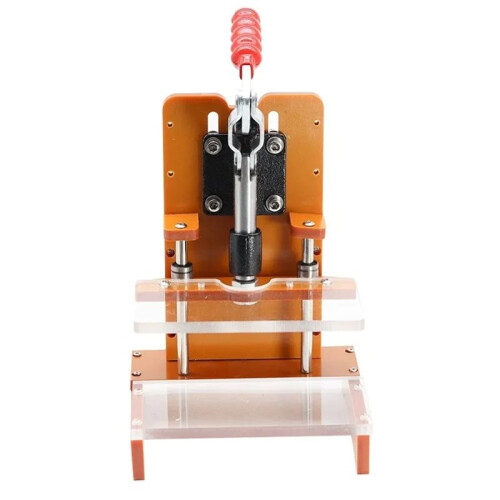

PCBA Test Circuit Board Fixture Tool, Universal Test Frame for Quality PCB Testing

PCBA Test Circuit Board Fixture Tool, Universal Test Frame for Quality PCB Testing Kuvaus

Material Excellence: Crafted from high-grade plastic, this PCBA test fixture tool ensures durability and reliability for all your metalworking needs. Ideal for rigorous testing environments, it's designed to withstand the demands of continuous use while maintaining precision.
Advanced Design: Featuring a combination type structure, this test rack is tailored for versatile PCB testing. Originating from Mainland China, it embodies meticulous engineering to accommodate various circuit board sizes and complexities, enhancing your testing efficiency.
Safe and Eco-Friendly: Committed to safety and environmental standards, the Onkel.J Universal Test Frame contains no high-concern chemicals. It's a responsible choice for professionals seeking eco-conscious testing solutions without compromising quality.
DIY Compatibility: Perfect for DIY enthusiasts and professional metalworkers alike, this stereo frame test jig facilitates easy and accurate testing of PCBA. Whether it's for hobby projects or industrial applications, it provides the precision you need to diagnose and execute your work effectively.

Description/Features:

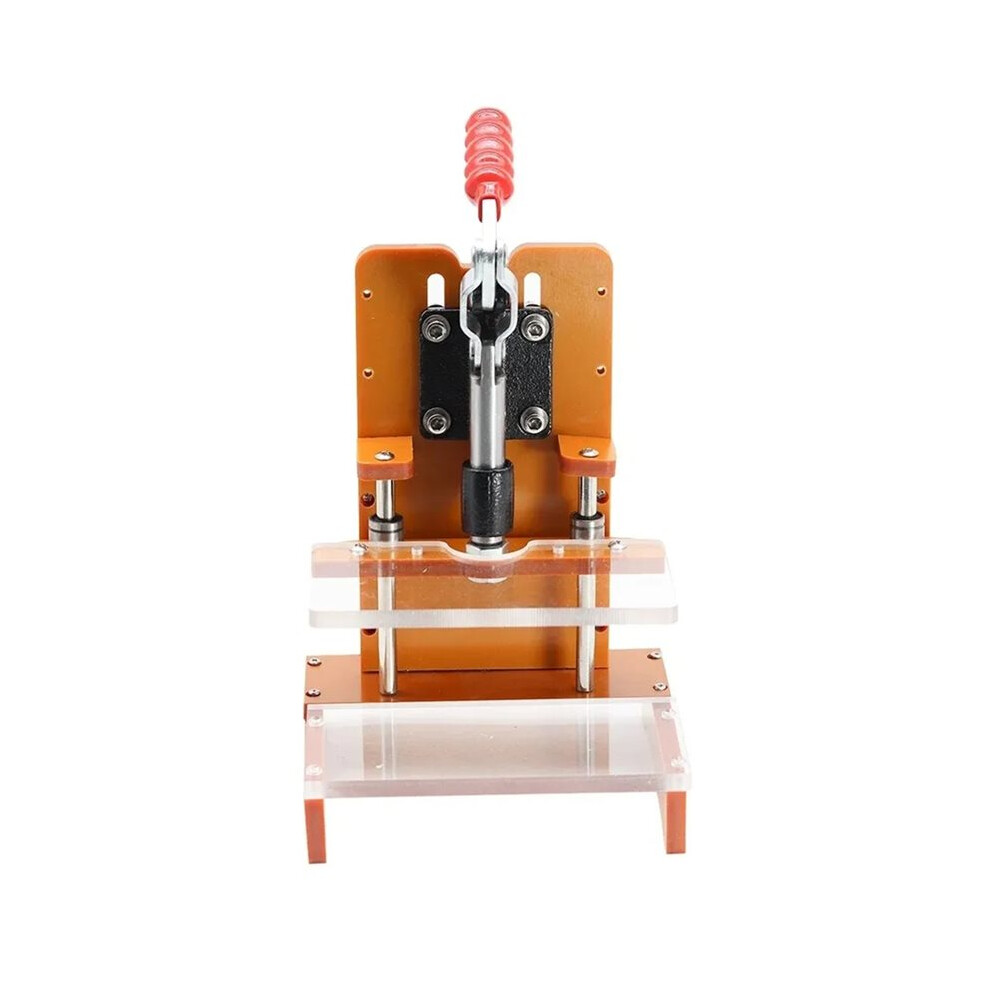

The device is constructed using high-grade Class A bakelite material, ensuring robustness and longevity. It features a quick clip mechanism with a stroke of 42MM for efficient operation. Both the pressure plate and carrier plate are crafted from durable acrylic, providing a clear view and sturdy support.

Specifications:
Main Material: Class A bakelite
Quick Clip Stroke: 42MM
Pressure Plate Material: Acrylic
Carrier Plate Material: Acrylic
Effective Working Area of Carrier: 150x85MM
Adjustable Distance from Platen to Carrier: 28-70MM
Optional Accessories: Test meter frame
Color: As Shown
Material: Metal

Package Contents:
1* Test fixture
