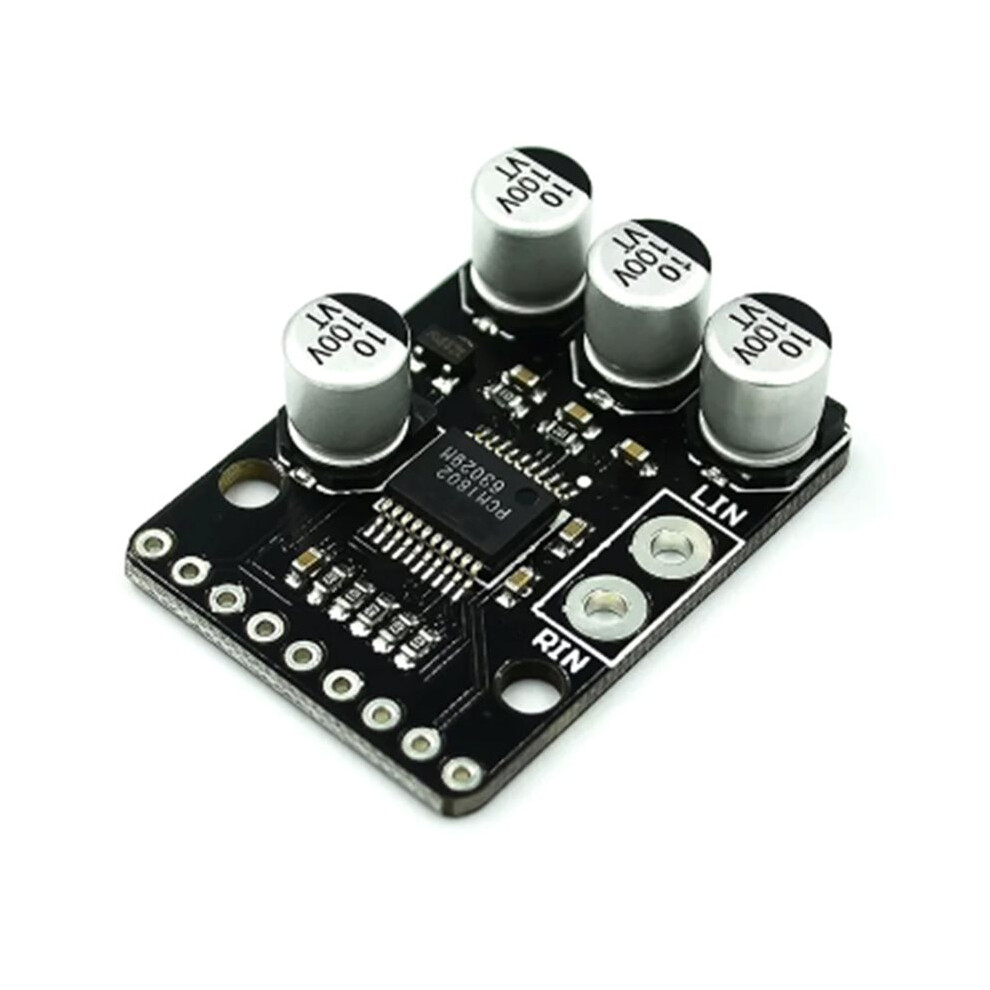

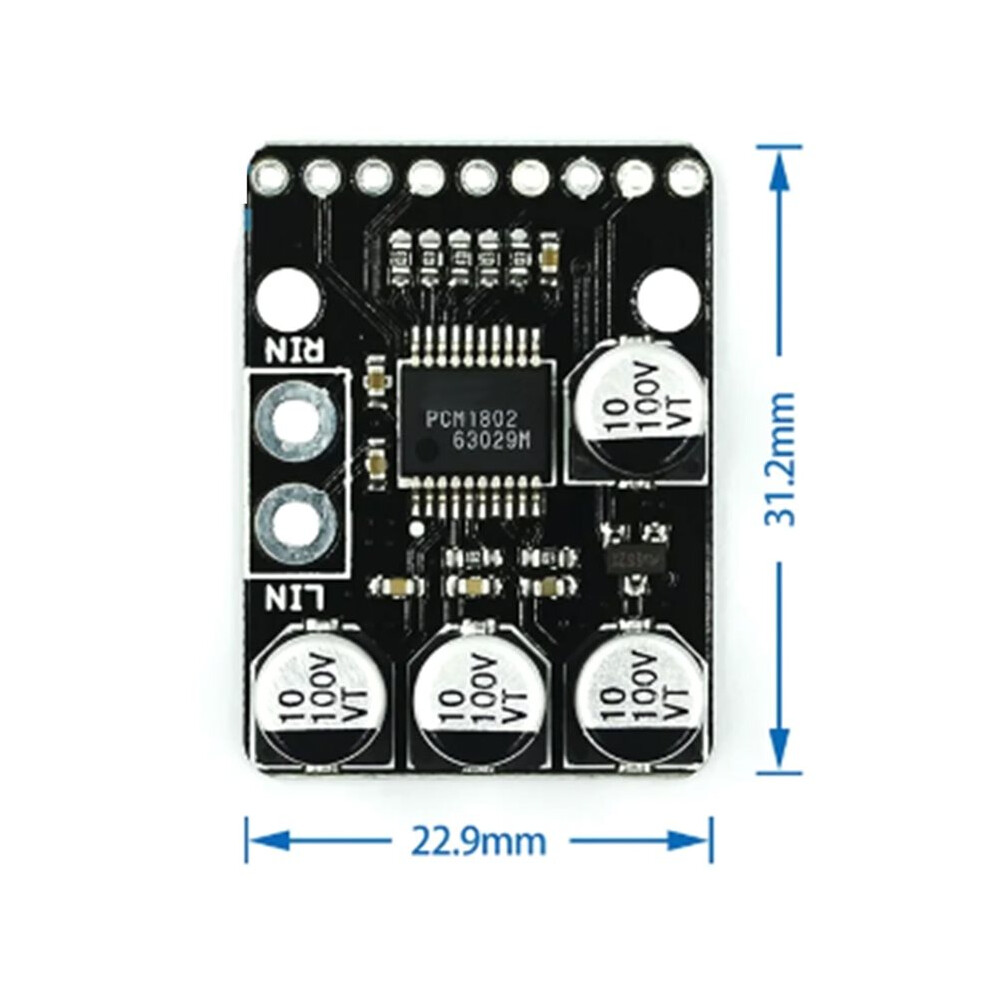

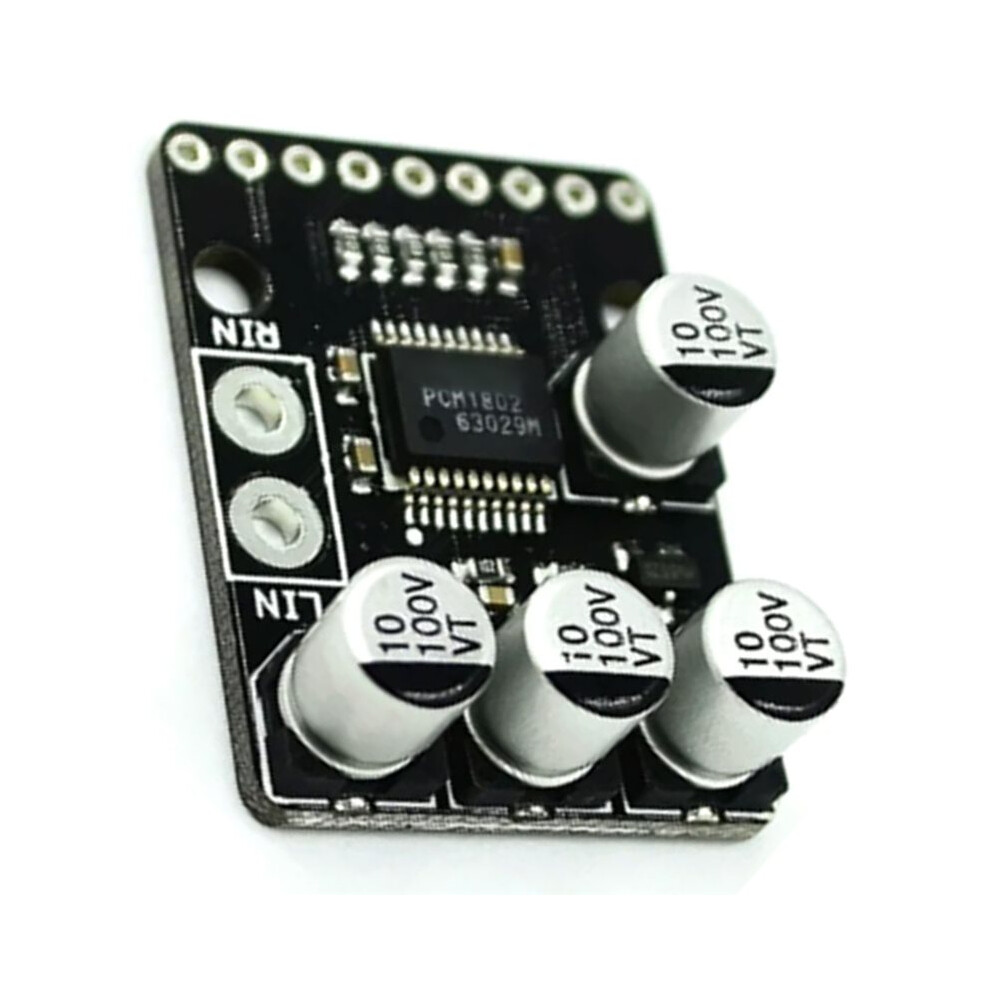

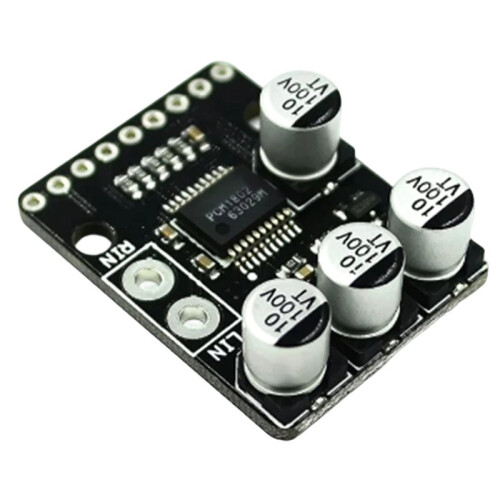

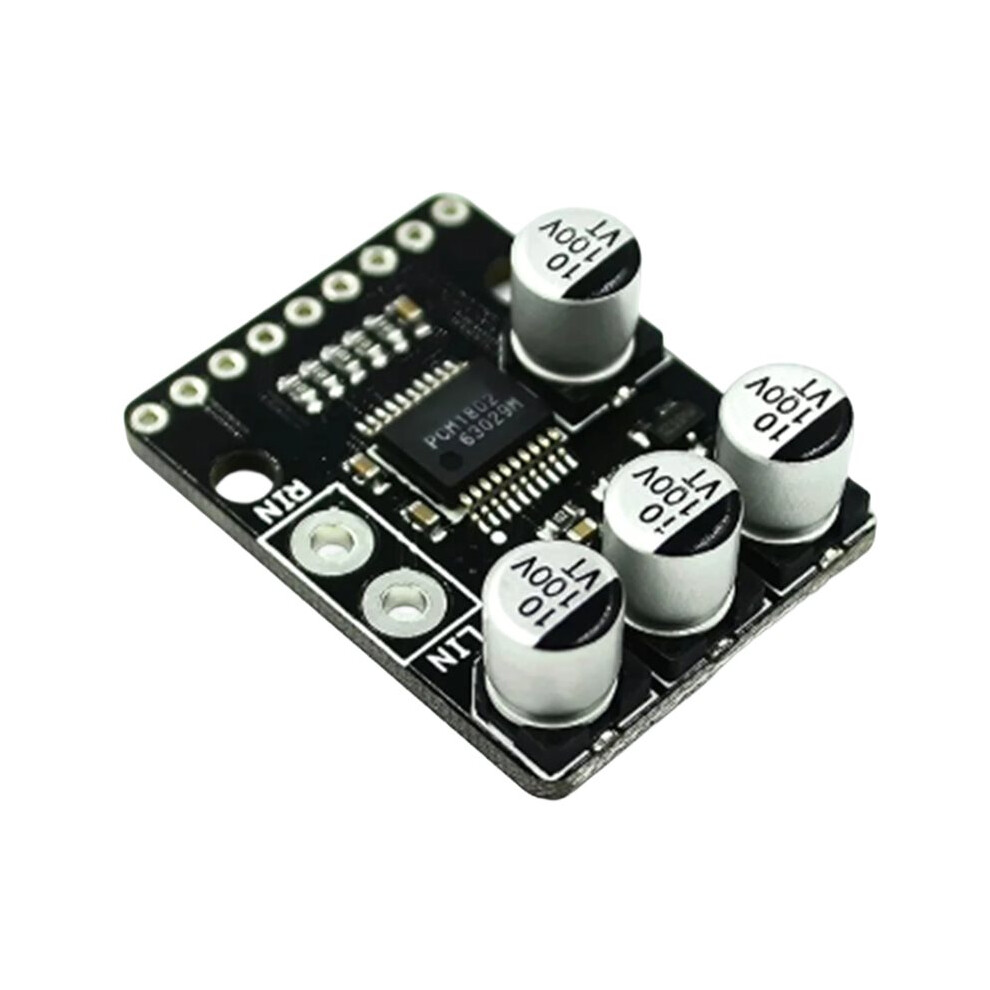

PCM1802 Audio Stereo A/D Converter ADC Decoder 24bit 96kHz Digital PCM AV Amplifier Player Board ANALOG-INPUT Module

PCM1802 Audio Stereo A/D Converter ADC Decoder 24bit 96kHz Digital PCM AV Amplifier Player Board ANALOG-INPUT Module Kuvaus

SINGLE-ENDED ANALOG-INPUT;24-BIT,96-kHz STEREO A/D CONVERTER;24-Bit Delta- Stereo A/D Converter · AV Amplifier Receiver;Single-Ended Voltage Input: 3 V p-p · MD Player;Antialiasing Filter Included · CD Recorder;
Oversampling Decimation Filter · Multitrack Receiver;Oversampling Frequency: '64,'128 · Electric Musical Instrument;Pass-Band Ripple: 0.05 dB;Stop-Band Attenuation: -65 dB;The PCM1802 is a high-performance,low-cost,
-Chip High-Pass Filter (HPF): 0.84 Hz single-chip stereo analog-to-digital converter with (44.1 kHz) single-ended analog voltage input. The PCM1802
High Performance uses a delta- modulator with 64- or 128-timesTHD+N: 96 dB (Typical) oversampling,and includes a digital decimation filter and high-pass filter (HPF),which removes the SNR: 105 dB (Typical) component of the input signal.
Master/Slave Mode Selectable sensitive consumer applications where good perform;Data Formats: 24-Bit Left-Justified; 24-Bit ance,5-V analog supply,and 3.3-V digital supply;I2S; 20-,24-Bit Right-Justified operation is required. The PCM1802 is fabricated;

Sampling Rate: 16 kHz to 96 kHz using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.System Clock: 256 fS,384 fS,512 fS,768 fS;Dual Power Supplies: 5 V for Analog,3.3 V for Digital
Color: Black
Material: plastic

Package Contents:
1*PCM1802 Audio Stereo A/D Converter
