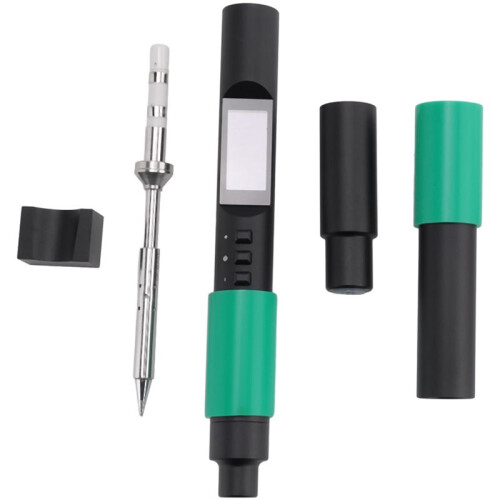

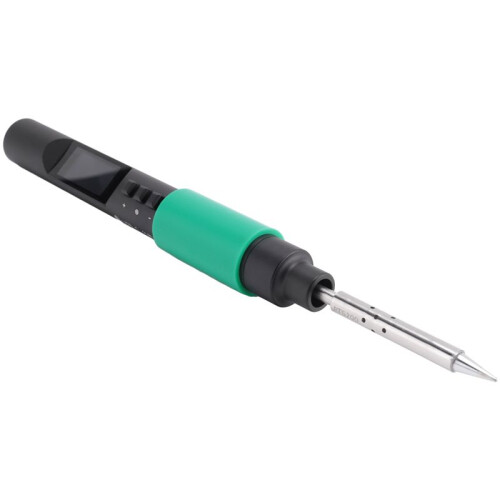

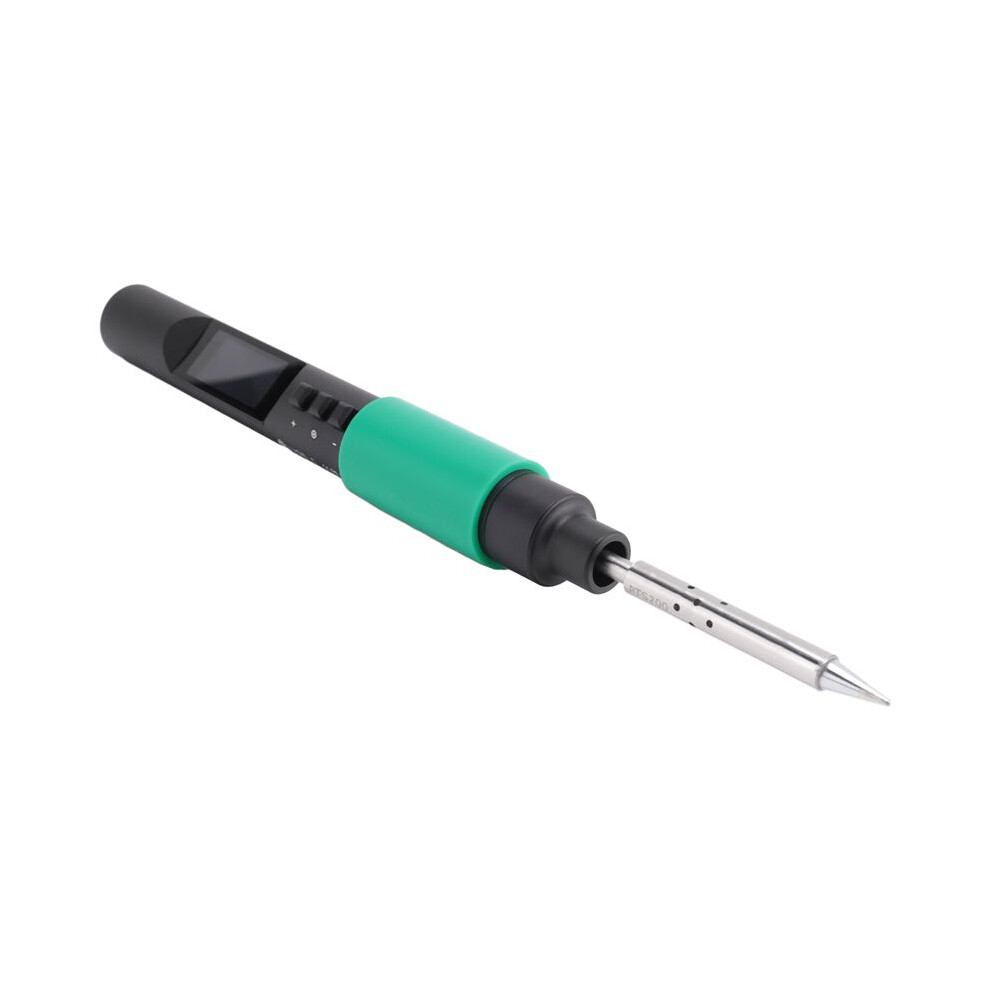

PTS200 V2 PD 100W Electric Solder Iron Portable Fast Heating Tin Open Source Support PD3.0 Firmware Upgrade, B2 Tip

PTS200 V2 PD 100W Electric Solder Iron Portable Fast Heating Tin Open Source Support PD3.0 Firmware Upgrade, B2 Tip Kuvaus

1. Support to 100W power output, It only takes 8 seconds to heat to 450 degrees, ultra-fast tin melting!
2. Supports PD3.0 and QC2.0 QC3.0 protocols, with a wide range of compatibility. It can be powered by a fast charging and a charging bank; Support power supply (requires self prepared to USB-C cable)
3. Uses ESP32 MCU, open source software. Users can DIY their own firmware, and we will continue to update new firmware for them.
4. Support one-button heating mode, making your welding work easier and more efficient
5. CNC metal body, ergonomically designed, sturdy and reliable, with good heat dissipation.

6. The 0.96-inch OLED high-definition large screen can display rich content
7. Built-in precision gyroscope, combined with software algorithms to achieve high sensitivity automatic sleep function

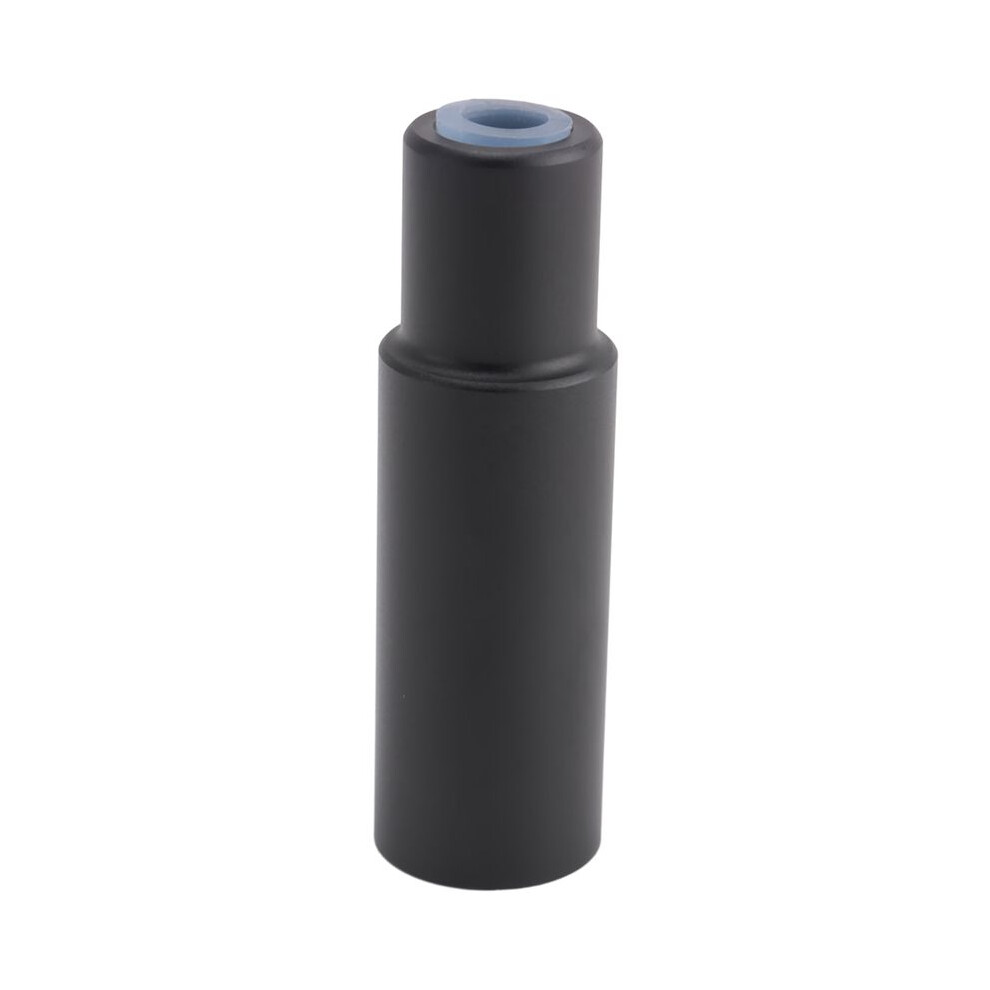

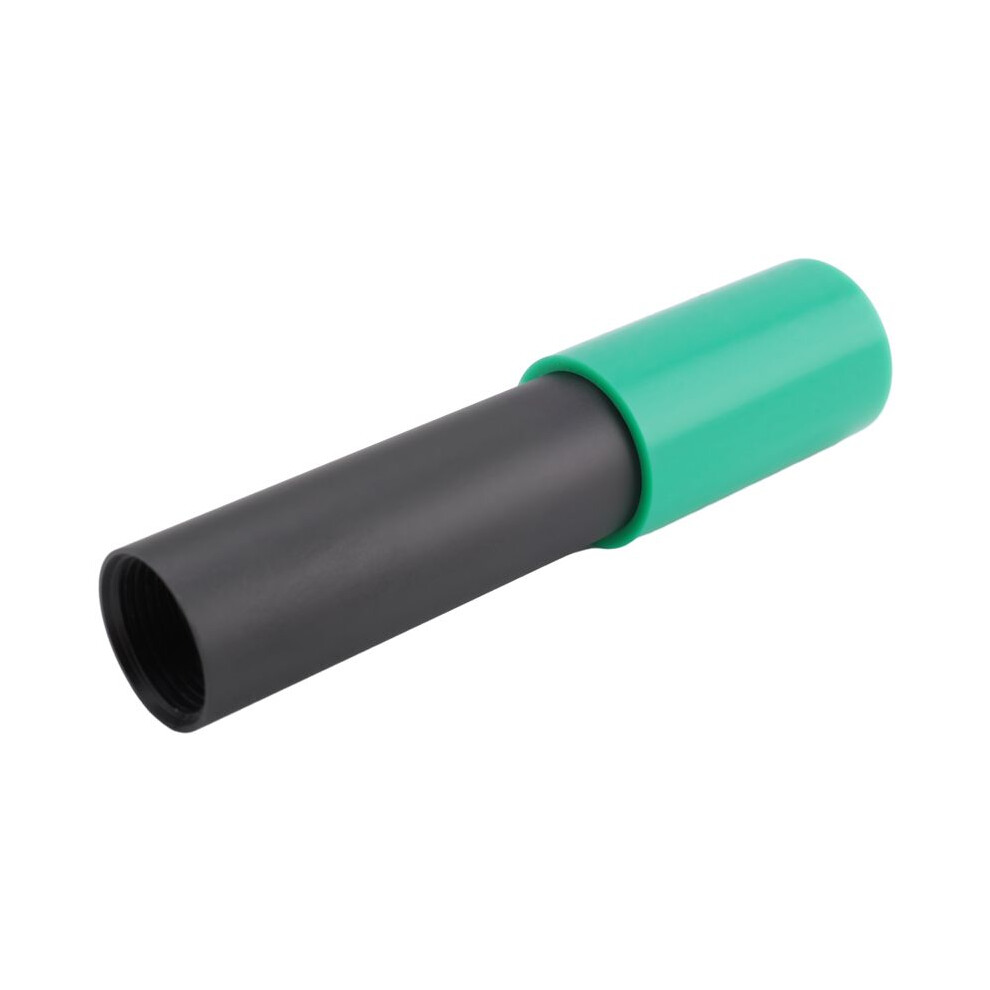

8. By using different fasteners, the T12/TS100/TS101 heating core can be compatible, making it very convenient to use.
9. You can name the soldering and use the multi segment calibration function to calibrate the current soldering temperature curve.
10. Adjustable inspiration level for awakening the machine; Adjustable sleep
11. Support large font mode; Support for switching between Chinese and English.
Parameters:
Screen: 0.96 inch OLED
Power and data interface: TYPE-C
Total length when installing TS welding : 188mm
Total length when installing T12 welding : 232mm
Weight of PTS200 V2: about 48g
Maximum output power: 100W (depending the power supply you use)
Temperature control range: 50-450 degrees
Temperature stability value: 5%
Resistance value of soldering iron : 4 Ω (customized heating core)
PD Input voltage: 9V 2A/12V 1.5A /15V 3A / 20V5A
Colour:black
Material:Metal
tip type:B2 Tip

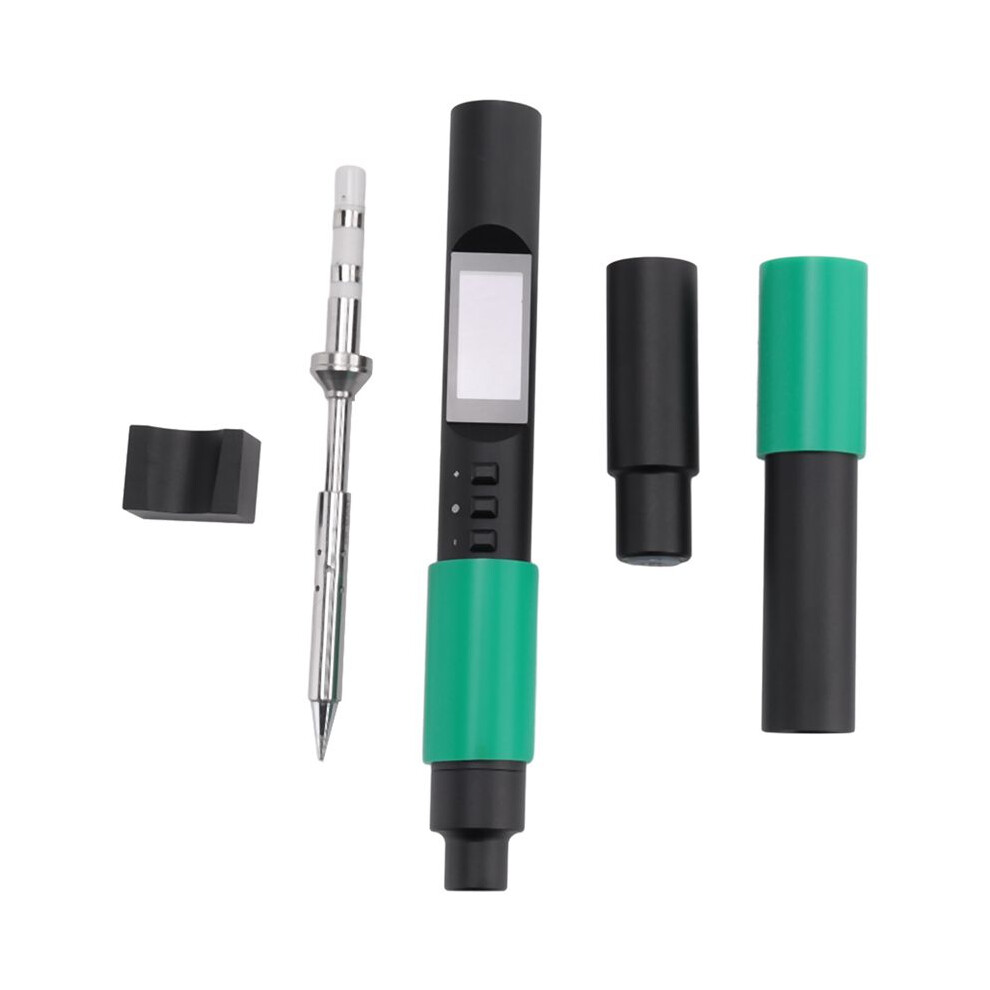

Package Contents:
1 x PTS200 V2 soldering iron with tip
1 x metal protection cap
1 x fast
