Puzzle Unit 8x8 RGB LED Matrix(WS2812E) Unit-Puzzle Multi-Color Light Control Unit

Puzzle Unit 8x8 RGB LED Matrix(WS2812E) Unit-Puzzle Multi-Color Light Control Unit Kuvaus

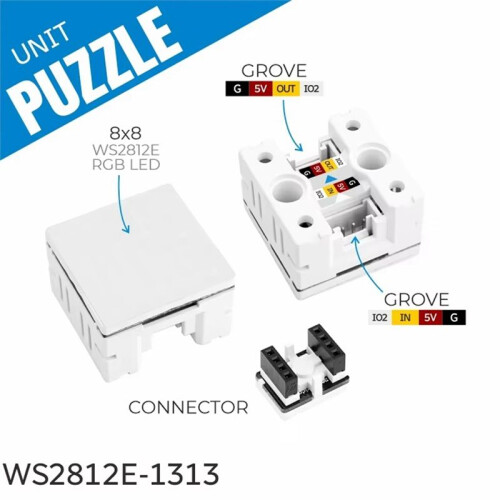

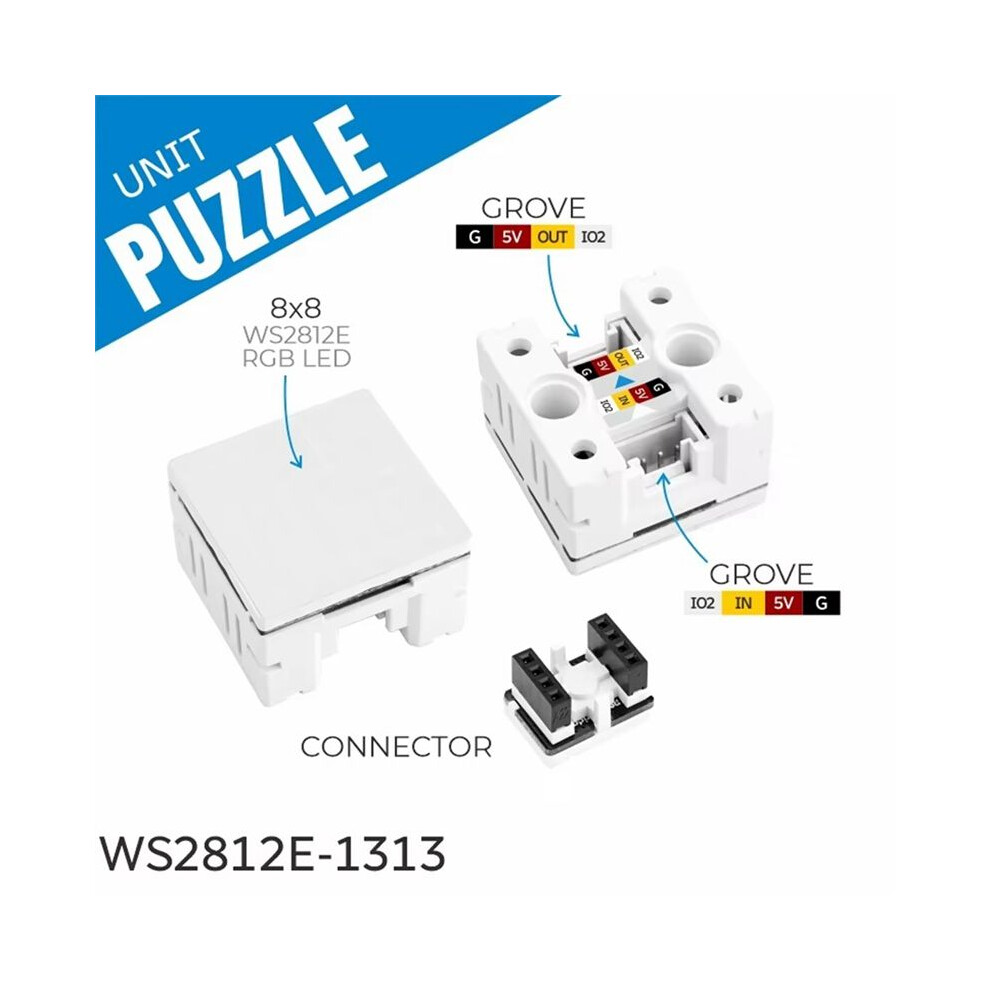

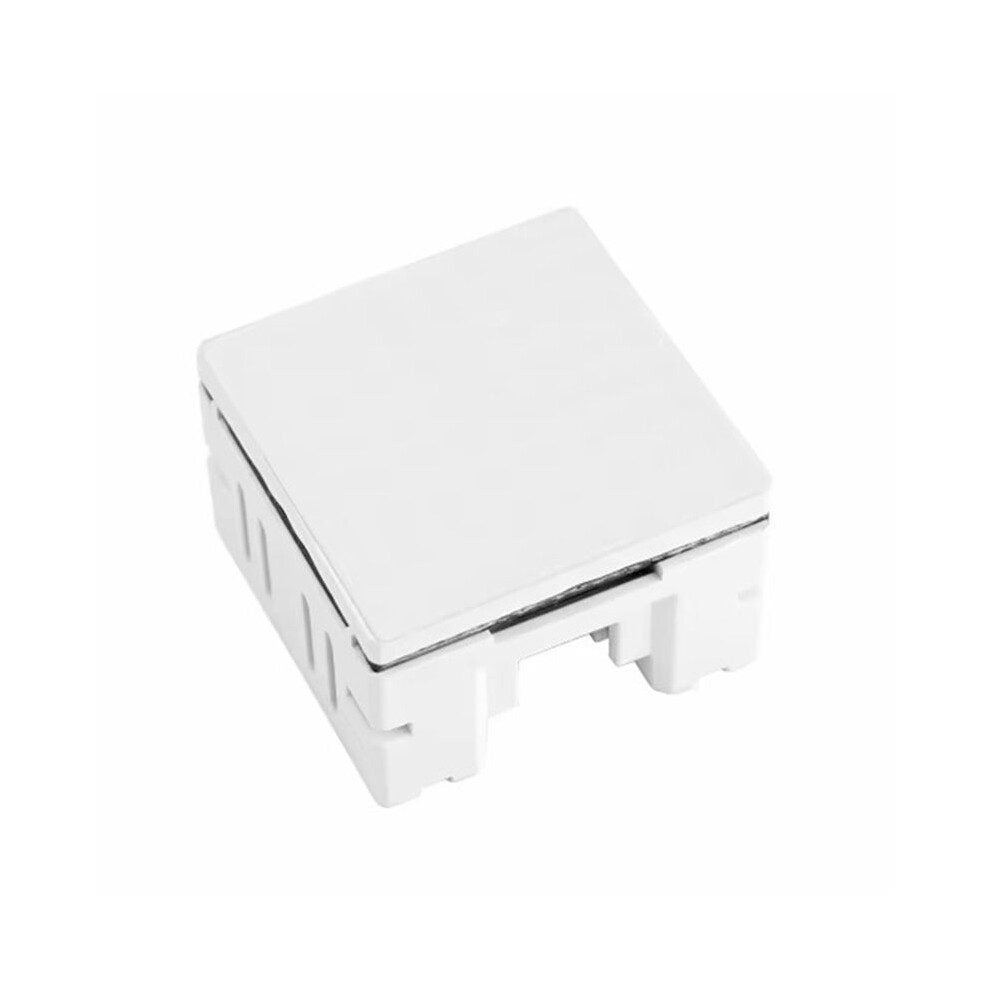

Unit-Puzzle is a multi-color light control unit consisting of an 8x8 RGB array made of 64 WS2812E RGB LEDs. Each LED is separated by an isolation structure to prevent interference between adjacent lights, ensuring the light effect is clearer and purer.

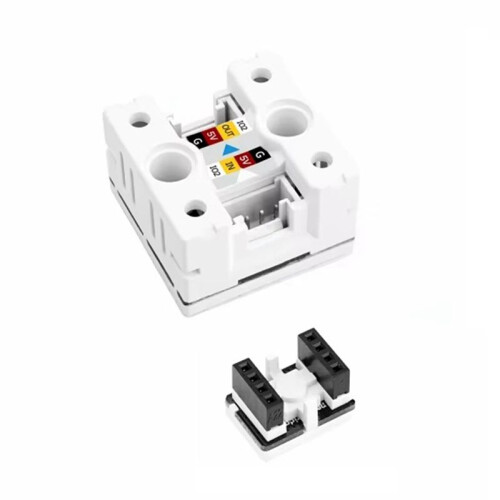

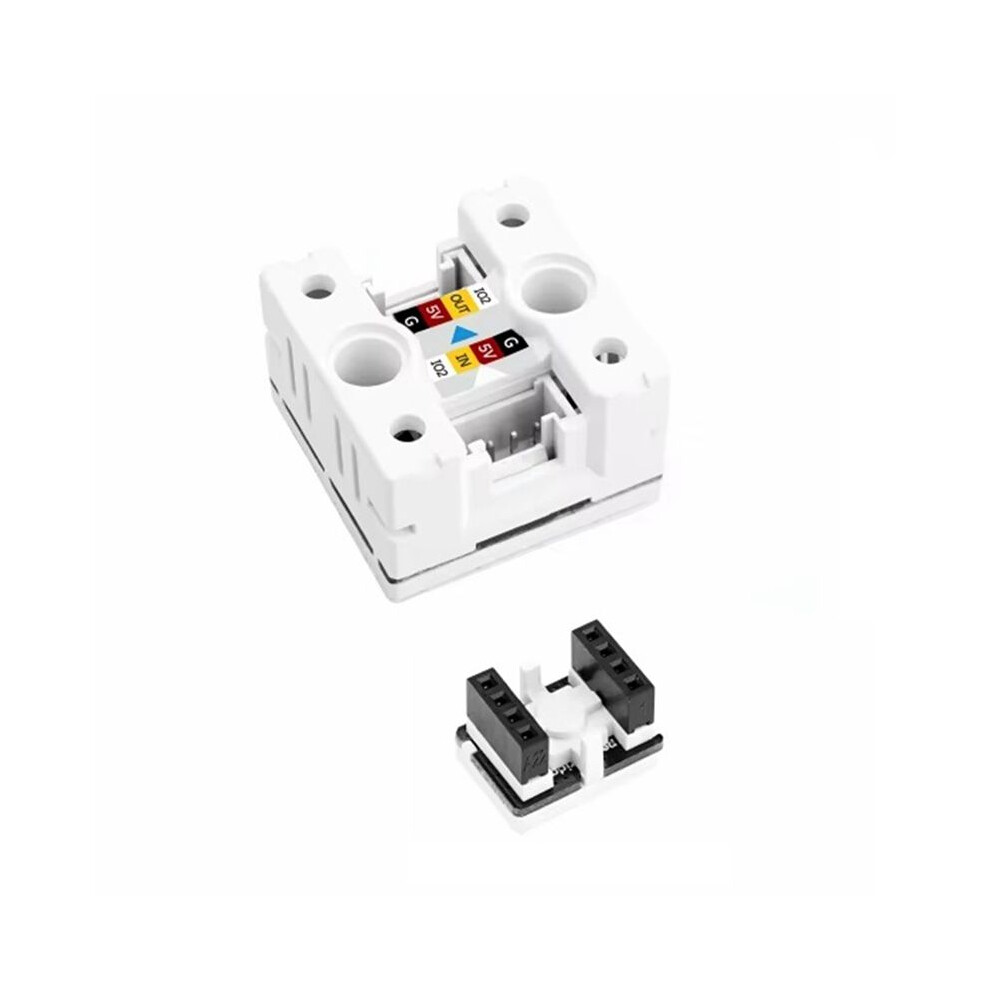

The product features two onboard Grove connectors-one for input signal and the other for output, with a connecting piece included for linking multiple Puzzle units to extend the lighting display area.
The Grove interface also includes an IO port for connecting other M5 devices, such as a potentiometer, to enable more interactive control functions.
Unit-Puzzle is compact, easy to install, and features an M2 mounting hole the bottom for secure fixing. This product is suitable for applications such as lighting, decorative displays, and interactive installations.
LED Brightness: Continuous high brightness may cause damage; it is recommended to use 10% brightness to reduce heat and power consumption.

Specifications:
8x8 WS2812 RGB LED matrix
Grid isolation design
Dual Grove connectors
2x -compatible holes
Programming platforms: for , UIFlow, ESP-IDF, etc.
Color: White
Material: Plastic
Applications:
lighting
Decorative displays
Interactive installations
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.

Package Contents:
1x Unit-Puzzle
1x Expansion connector
1x HY2.0-4P Cable
