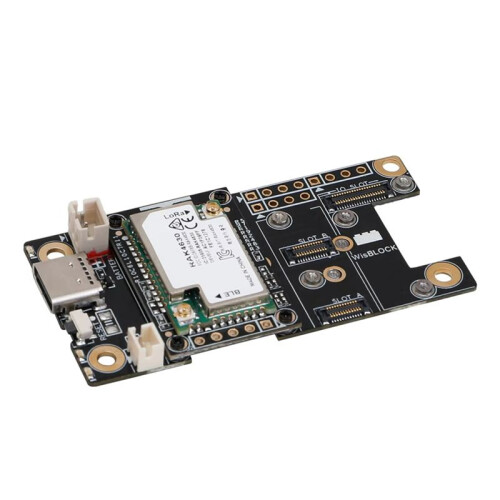

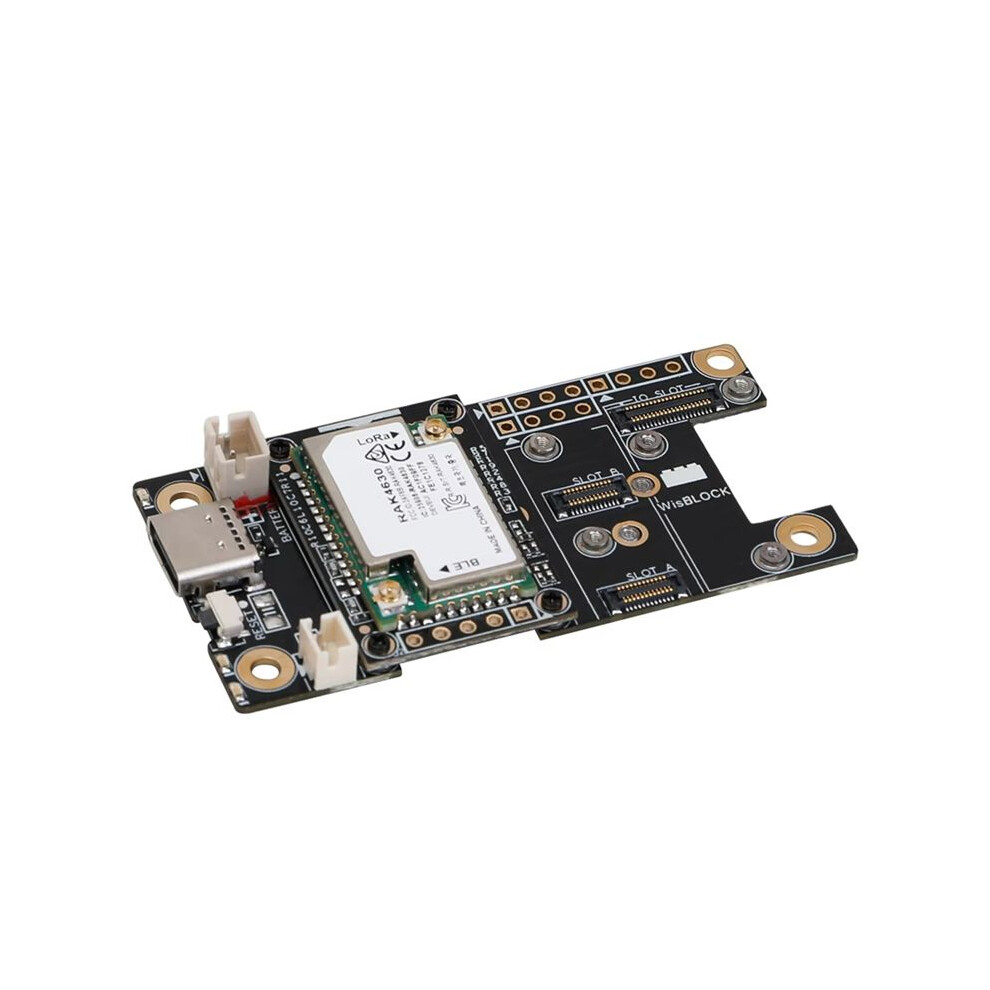

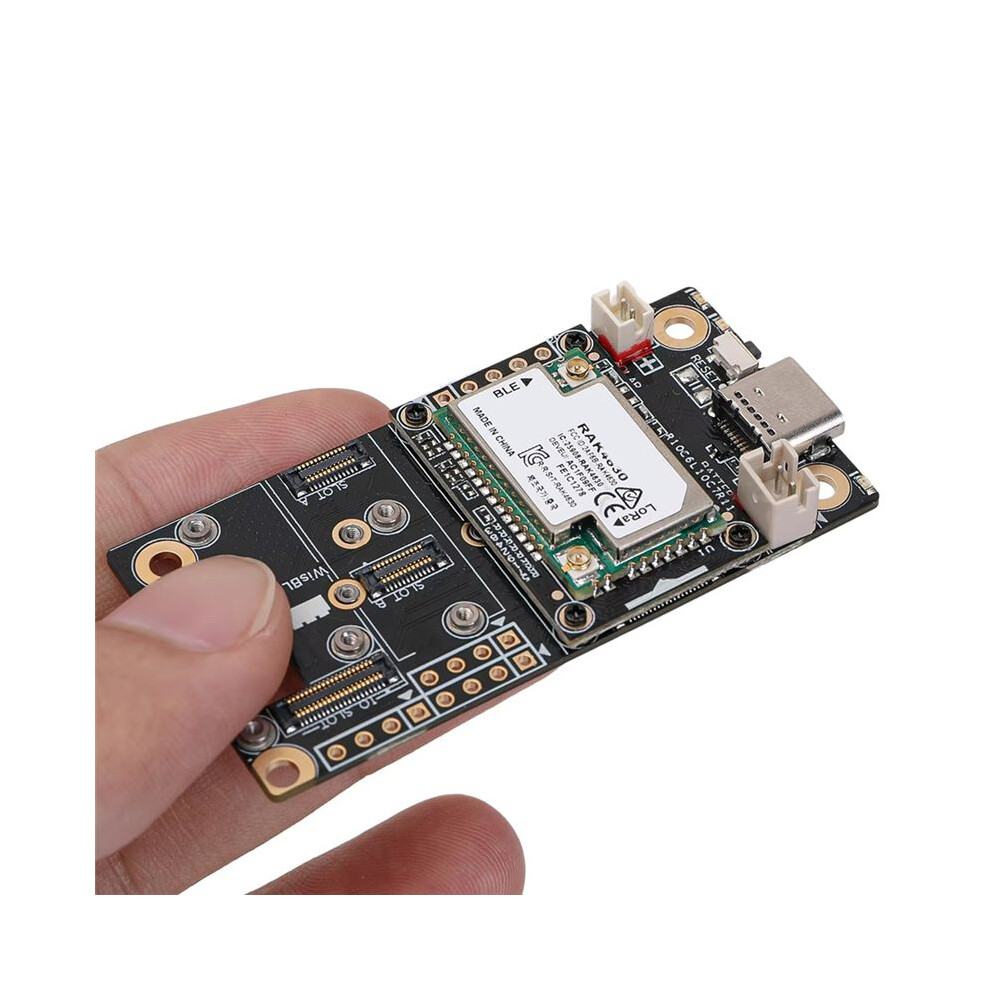

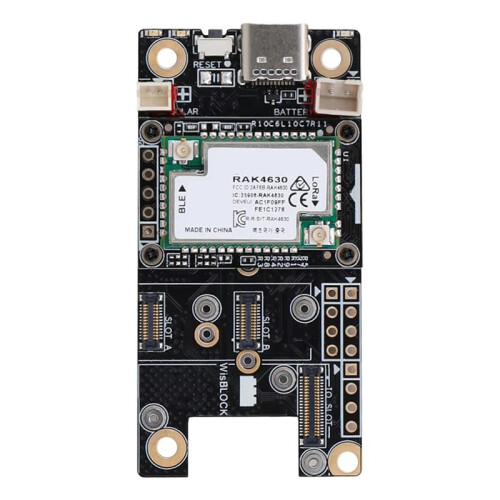

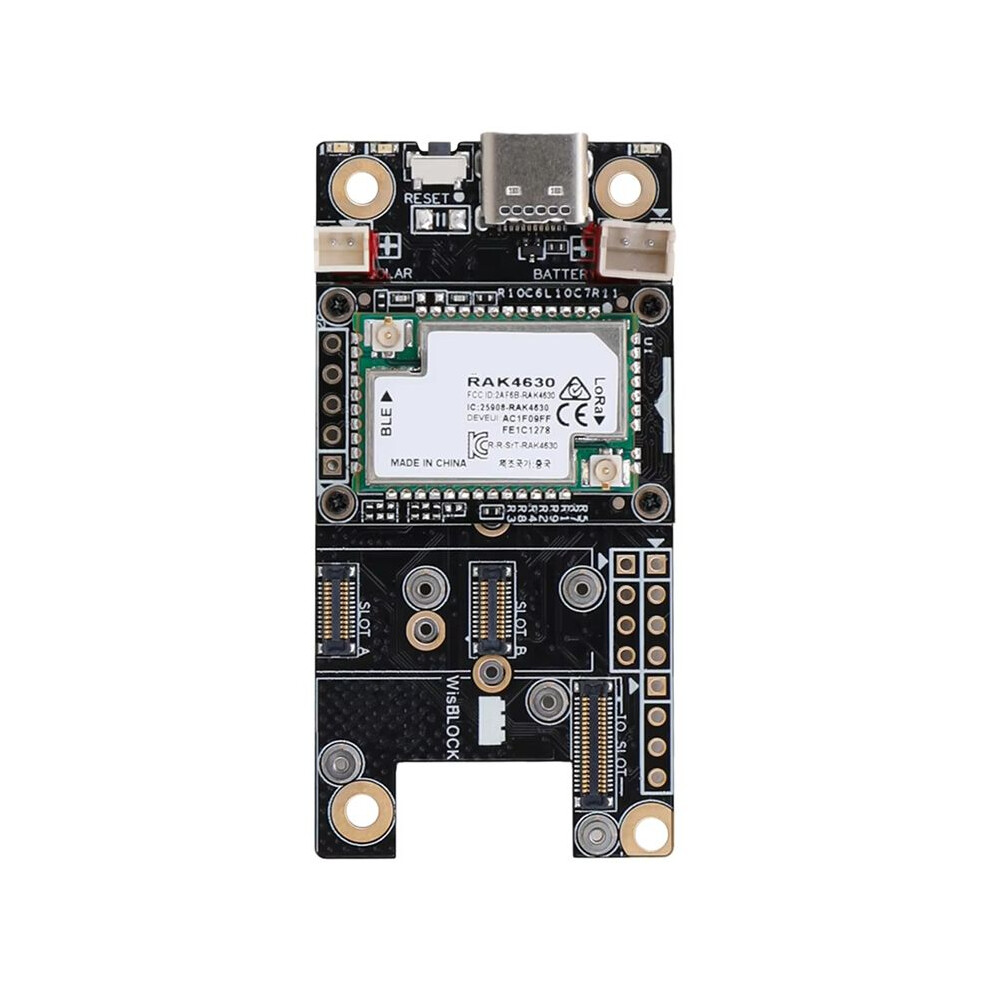

RAK4631 Meshtastic for LoRaWAN Wireless SX1262 LoRa Module RAK19007 Base Board

RAK4631 Meshtastic for LoRaWAN Wireless SX1262 LoRa Module RAK19007 Base Board Kuvaus

Supports multiple IDEs for easy integration and development: The RAK4631 can be easily programmed through the for IDE or other IDE extensions. It also has a version RAK4631-R configured with the low-code development platform RUI3, which allows users to develop customized firmware via RUIAPI and also send AT commands via USB, UART or .
Multiple Connection Methods, Multiple Scenario Applications: With communication features such as LoRa and , the RAK4631 module is suitable for a variety of applications in the IoT field, such as home, building automation, and personal health monitoring.
LoRa point-to-point communication with low power consumption and high transmission efficiency: The module is compliant with LoRaWAN1.0.2 protocol and supports LoRa point-to-point communication. In sleep mode, power consumption is as low as 2.0 uA; in transmission mode, LoRa output power is to 22 dBm, and output power is to 4 dBm, making it a cost-effective communication solution.

Processor
NordicnRF52840 Ultra Low Power MCU
32-bit ARM Cortex-M4 CPU
Semtech SX1262
64 MHZ CPU Clock
LoRa Features
Compliant with LoRaWAN 1.0.2 protocol
LoRaPA booster mode with 22 dBm output power; 7.8KHz to 500KHz
7.8KHz to 500KHz bandwidth low power wireless system
Operating bands:EU868, CN470, US915, AS923, AU915, KR920, IN865
Temperature range:-40-+85
Supply voltage: 2.0-3.6 V
Dimensions: 20 mm x 30 mm
Electrical Characteristics:
Item / Power Consumption / Conditions
Tx Mode LoRa@20 dBm / 125 mA / LoRa@ PA BOOST&BT Sleep
Tx Mode LoRa@17 dBm / 92 mA / LoRa@ PA BOOST&BT Sleep
Tx mode BT@4 dBm / -9 mA / BT Tx mode &LoRa sleep
Rx mode [email protected] Kbps / 17 mA / LoRa@ Rx mode &BT sleep
Rx Mode BT@2 Mbps / 11.5 mA / BT Rx Mode &LoRa Sleep
Sleep Mo
