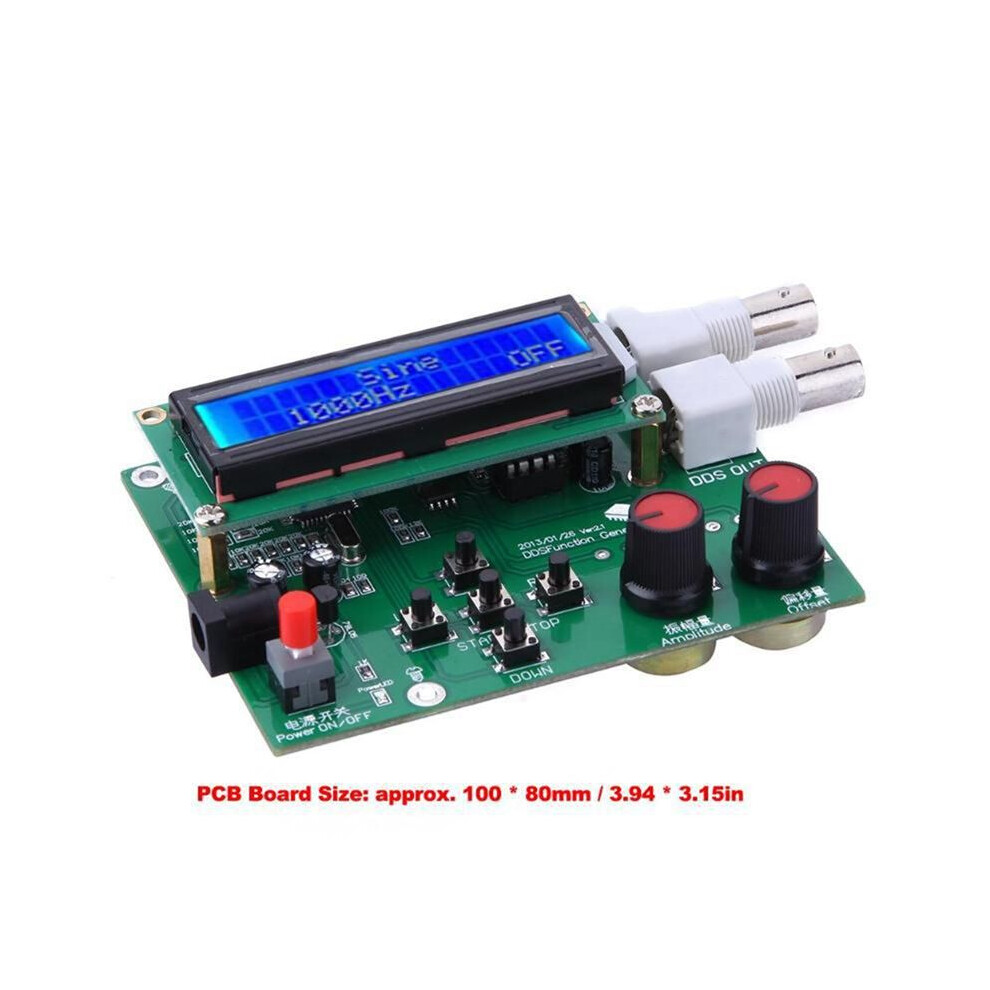

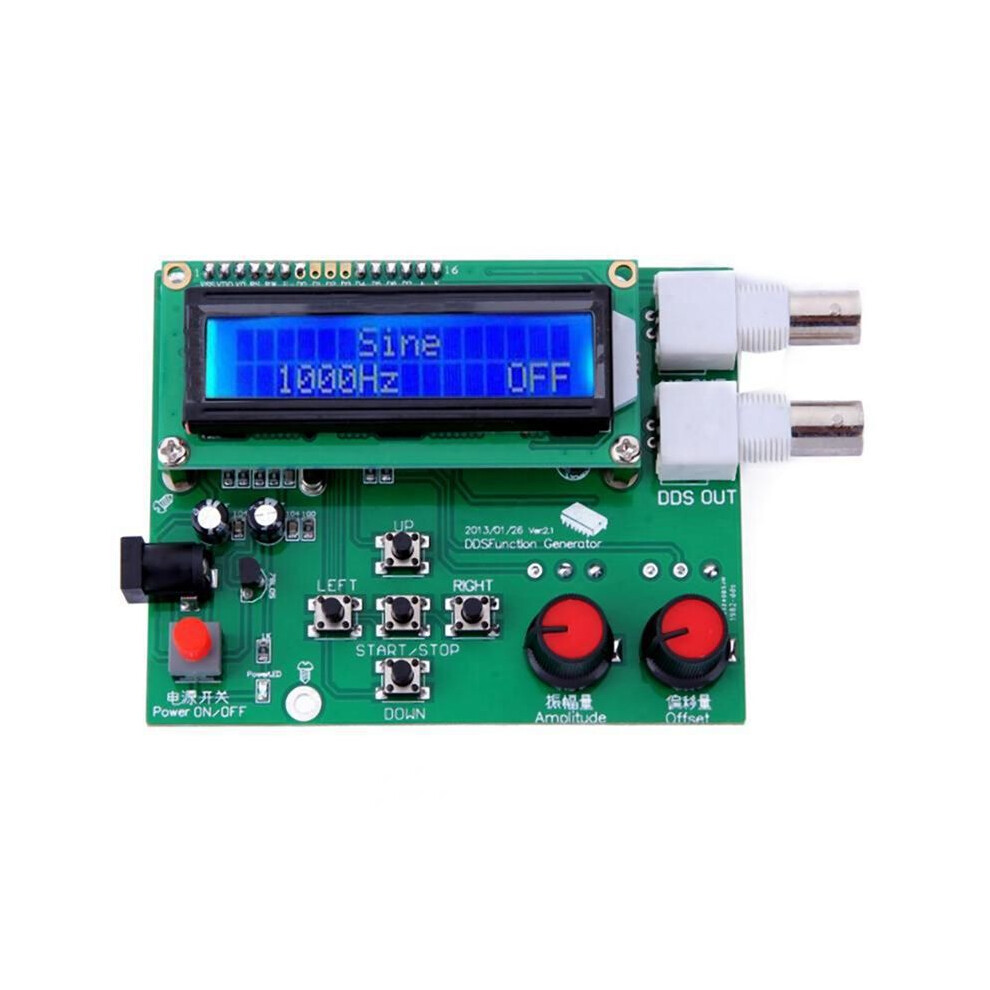

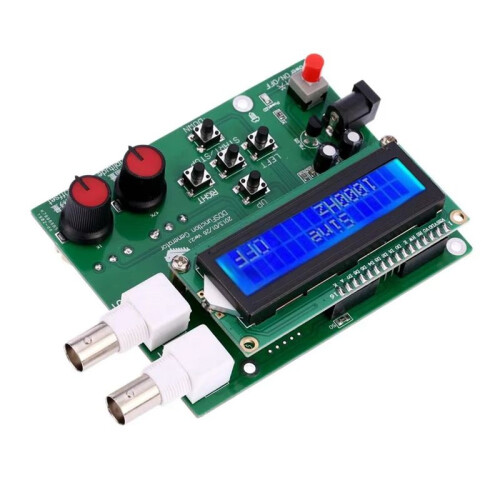

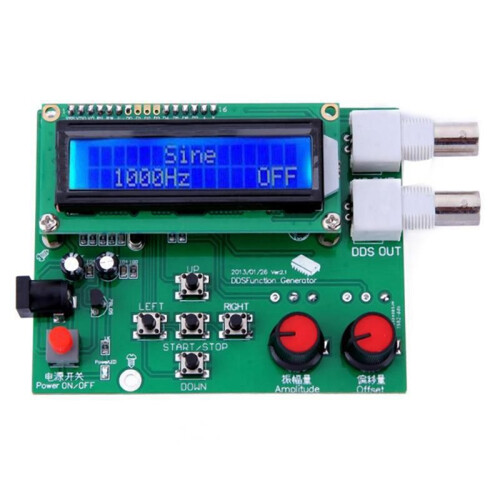

Signal Generator Pulse Frequency DDS Function Signal Generator DIY Kit Module 1Hz-65534Hz Syntezator with LCD Display

Signal Generator Pulse Frequency DDS Function Signal Generator DIY Kit Module 1Hz-65534Hz Syntezator with LCD Display Kuvaus

Operating voltage: DC7-9V; DDS frequency range: 1HZ-65534Hz.
Display: 1602 LCD
High-speed frequency (HS) output to 8MHz
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave

Section into the value:1,10,100,1000,10000 Hz
The power automatically restore the last used configuration
Offset:0.5pp-5Vpp
Amplitude amount:0.5Vpp-14Vpp

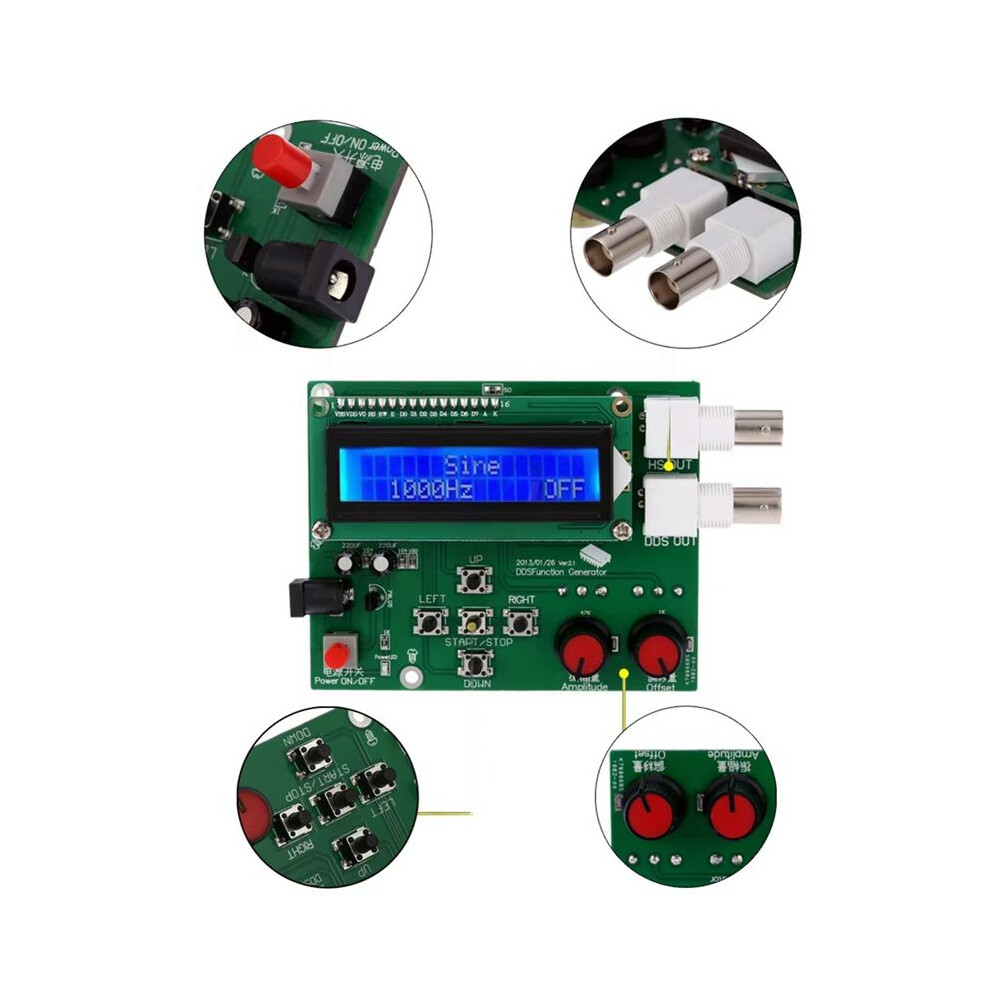

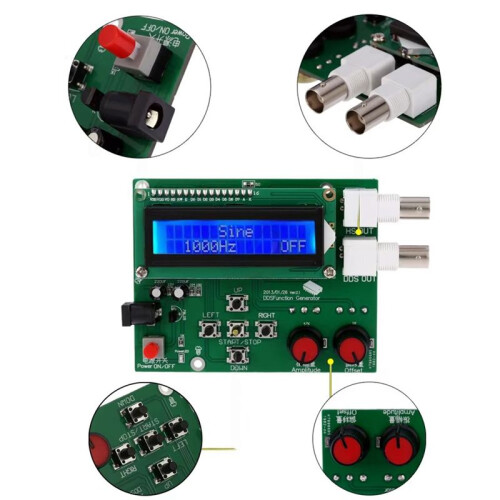

Key Functions:
The output waveform select
The DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / RUN the output stop / start.
"" key waveforms order:
ECG = electrocardiogram wave (in the OFF state, the "left" and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
Rev Sawtooth = reverse sawtooth
SawTooth = sawtooth
Triangle = triangle wave
Square = square wave
Color:As Shown
Material:Electronic Component

Package Contents:
1 * DDS function signal generator module
