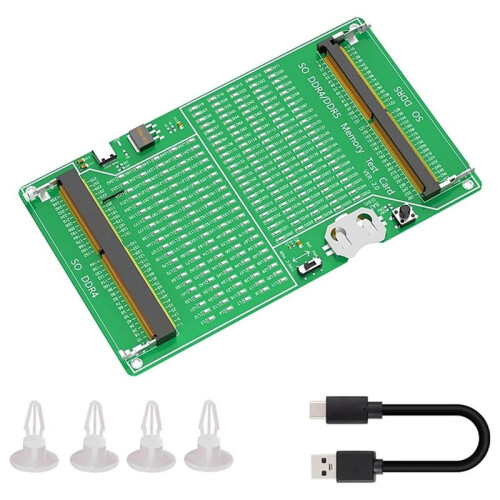

SO DDR4/5 Memory Tester Laptop Memory Test Diagnosis Adapter PCB Circuit Testing Tool Memory Tester Tool

SO DDR4/5 Memory Tester Laptop Memory Test Diagnosis Adapter PCB Circuit Testing Tool Memory Tester Tool Kuvaus

Applicable Scene: SO DDR4/DDR5 memory test card is suitable for Laptop computer DDR4/DDR5 memory.
Computer Memory Failures: The failures of computer memory are mainly due to poor contact of the gold pins, wear and tear of the gold pins, broken PCBs, damage to the data exclusion, open and short circuits in the video memory, and poor memory performance, etc.
LED Indicators: LED indicators are used to test all data lines of the memory, and the normal brightness is regarded as normal. When a hardware fault occurs in the loop of these data lines, bright or no light is abnormal.
Uses: If the test indicator flashes, it means that the gold pin is in poor contact. If there is no indicator light, it means that the hardware has an open circuit failure. Check the wear of the gold pin, whether the exclusion is damaged, and whether the PCB is disconnected.

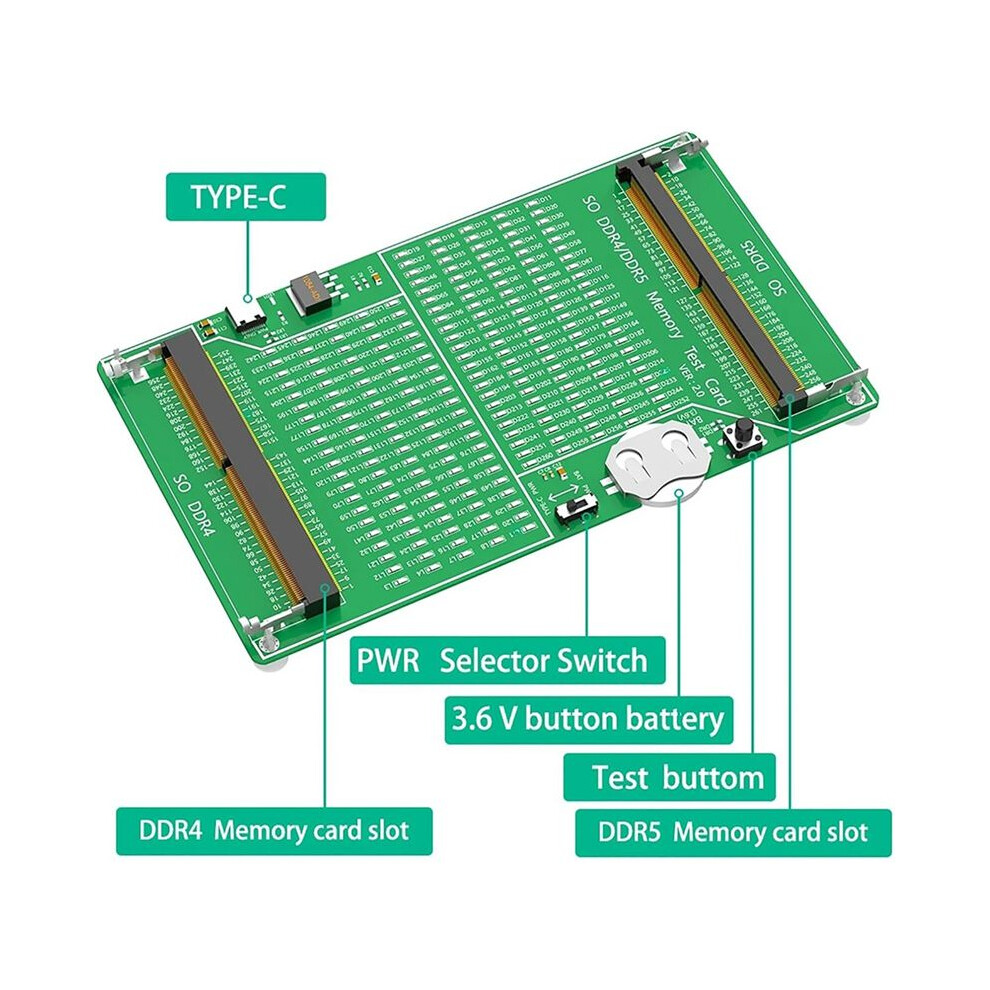

Easy To Use: Insert the CR2032 battery into the battery holder of the test card, or connect the type C cable , and then insert the memory card to test.

Due to different batches, the printed words the product will be different, which does not affect use.
Name:DDR4/5 Memory Tester
Type:Hard Drive Adapters
Application:Applicable to laptop DDR4/DDR5 memory
Colour:Green
Material:PCB

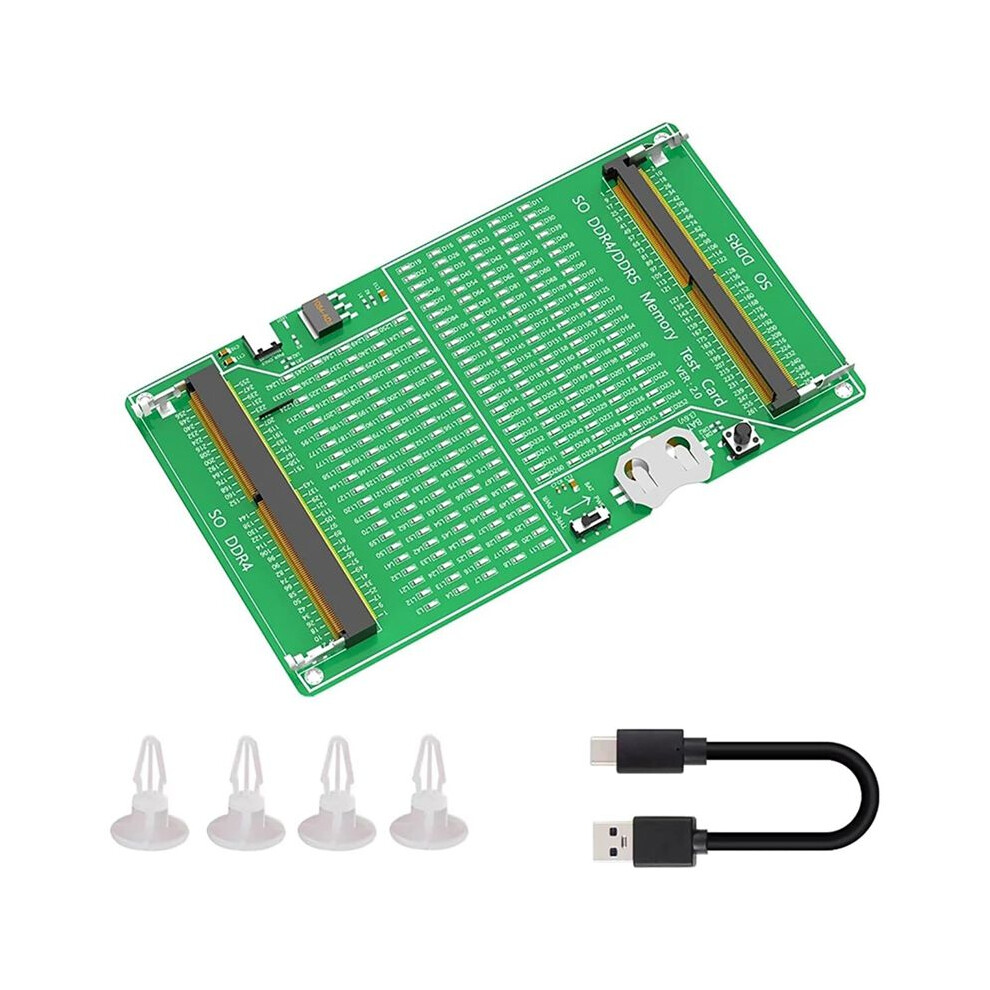

Package Contents:
1 * SO DDR4/5 Memory Tester
1 * Type C cable
4 * PCB Spacer
