STM32 2.1S OLED T12 Solder Iron Temperature Controller Welding Tools Electronic Soldering Wake-Sleep Shock 110-240V(B)

STM32 2.1S OLED T12 Solder Iron Temperature Controller Welding Tools Electronic Soldering Wake-Sleep Shock 110-240V(B) Kuvaus

DIY requirements and risks: DIY technical requirements,the soldering station does not provide the circuit diagram and schematic diagram,after purchase contact to obtain the installation wiring diagram,therefore,the proposed rookie,bird please consider,I can only provide welding related guidance,all devices ,Once welded,will not be returned,DIY risk Participants to assess their own ability and risk,problems and risks themselves. STM32-OLED digital display T12 soldering station simple instructions
First, the main function of welding station and performance characteristics:1, temperature range 150 ~ 480
2, the thermocouple cold junction temperature automatic compensation range-9-99 (to be more accurate).3, PID temperature control, temperature stability 2 (no load).
4, can save 5 groups of temperature.5, can save the temperature of each calibration parameters, support all types of T12 , and there are six custom , can shield the less common (in the menu tip management allows you to use the ).
6, the automatic standby ( 1-60 minutes can be set).7, automatic sleep (soft shutdown) ( 1-60 minutes can be set).8, the latest version 2.1S comes with clock, voltage display, cut-off voltage settings and other functions.

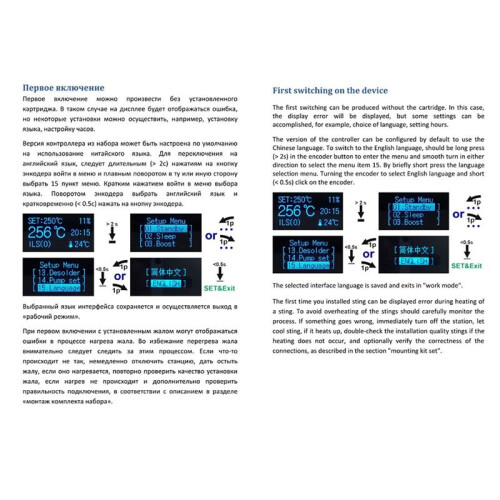

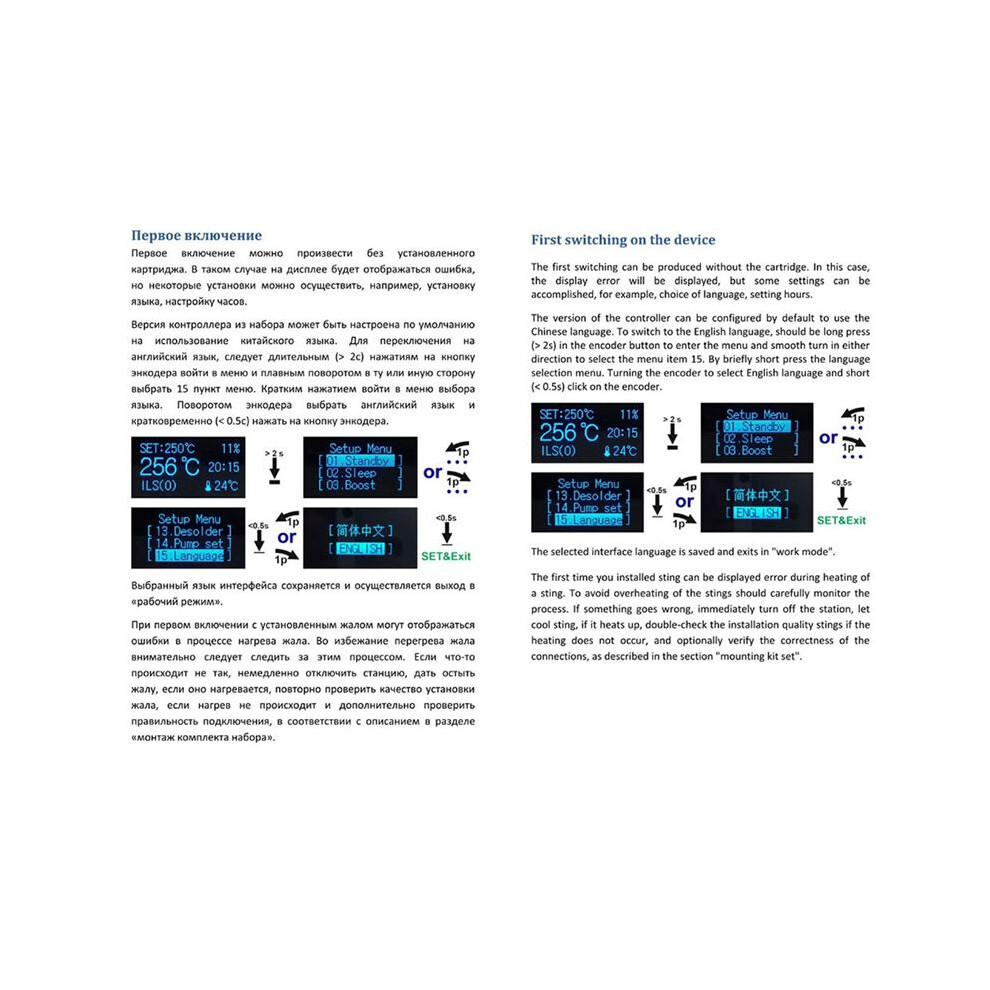

Second, the main operation: 1, under normal circumstances, 1 second continuous counter-clockwise rotation below 3 cells into the standby (default 200 degrees (150-300 degrees can be configured) state, if the set temperature is below 200 degrees directly into sleep.
1.1 Standby state, 1 second continuous counter-clockwise rotation 3 lattice sleep (soft shutdown), sleep (soft shutdown) state, short press the encoder to enter the working state.
1.2 Standby mode, press the encoder or clockwise rotation to restore the working state.Out of a menu.
2, under normal circumstances, 1 second clockwise rotation 3 consecutive grid into the power to enhance the current temperature +50 degrees (10-
