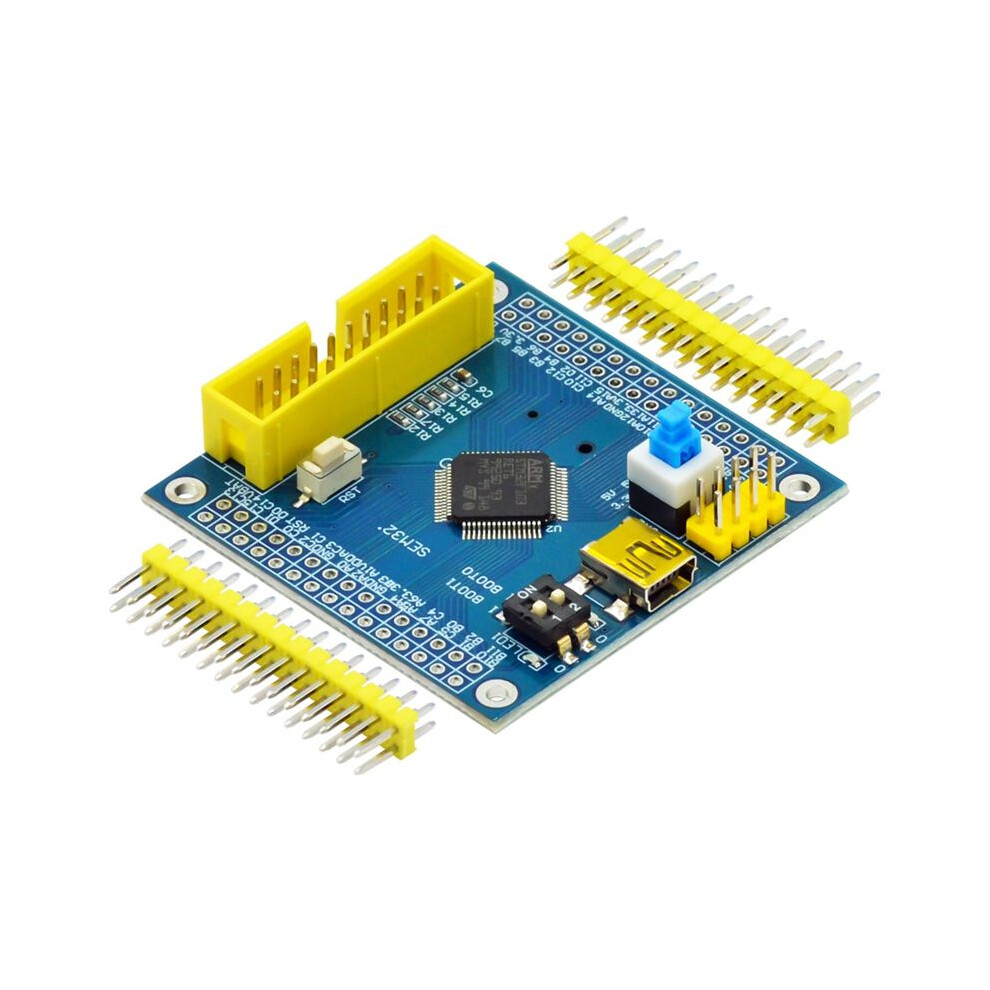

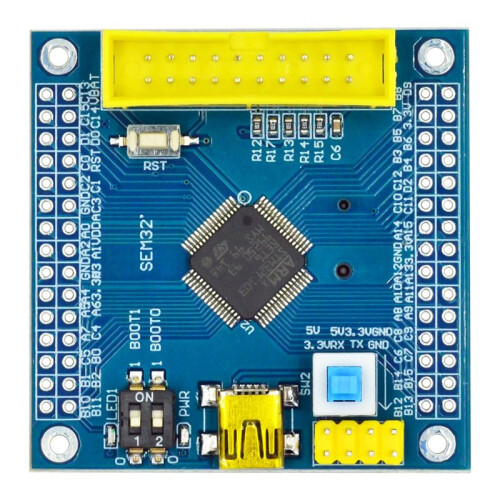

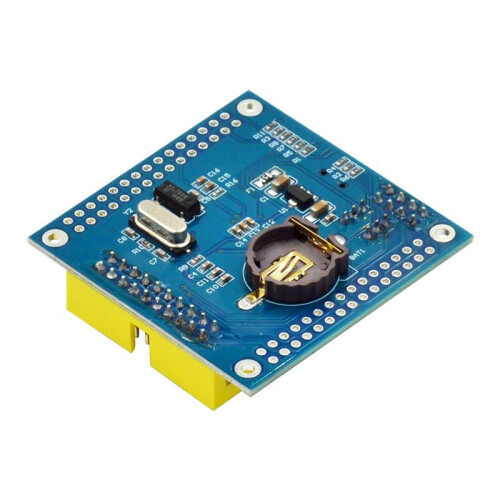

STM32F103RET6 ARM STM32 Minimum System Development Board Module for Minimum System Board STM32F103C8T6 Upgrade

STM32F103RET6 ARM STM32 Minimum System Development Board Module for Minimum System Board STM32F103C8T6 Upgrade Kuvaus

Product parameter
Model: STM32F103RET6
Kernel: ARM 32-bit Cortex-M3 CPU
Size: 50 x 50mm
Adjustment mode: JTAG/SWD

1, ARM 32-bit Cortex-M3 CPU to 72MHz. Operating frequency
2, 512K bytes of program memory (ROM), 64K bytes of power 32KHz RTC oscillator
3, embedded factory calibrated 8MHz and 40KHz RC crystal oscillator, with calibration function of 32KHz RTC oscillator
4, power /power off reset (POR/PDR), programmable voltage detector (PVD)
5, 2.0~3.6 volt power supply and 1/0 pin
6, sleep, shutdown and standby mode, VBAT for RTC backup mail (inch power supply)
7, 2 12-bit analog converter, lus conversion ( to 21 input channels) Conversion range: 0 to 3.6V, triple sampling and hold function, internal temperature sensor,
8, 7-channel DMA controller, supported peripherals, timer, ADC DAC, SPI, 12C and USART
9, Serial single- debugging (SWD) and JEAG interface, Cortex-M3 embedded tracking module (ETM)
10, 51 multifunctional bidirectional 1/0 port, 1/0 port can be mapped to 16 external interrupts, and almost all can tolerate 5V signals
11, 3 general timers, 1 strengthening timer
12, to 2 12C interfaces (support SMBus/PMBus)
13. to 3 USART interfaces
14, to 2 SPI interfaces (18M bits/second), 2 reusable
15, CAN interface (2.0B active)
16, USB 2.0 full speed interface
color:
Material: PC+metal
Different batches may have different appearance, which does not affect use.

Package Contents:
1 x Development Board Module
