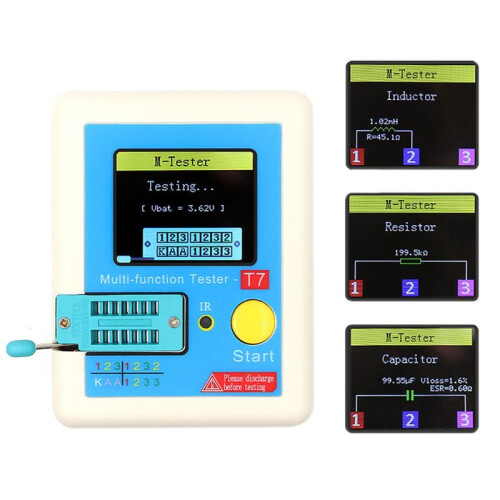

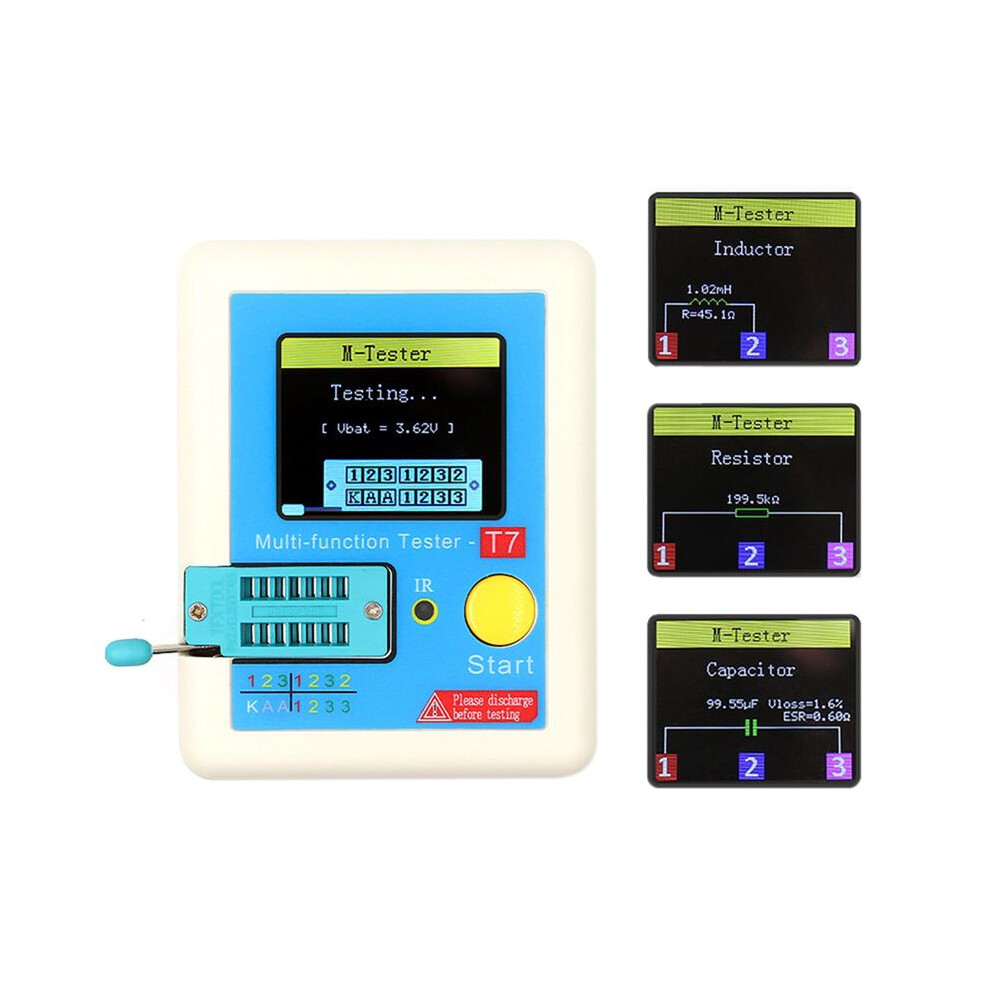

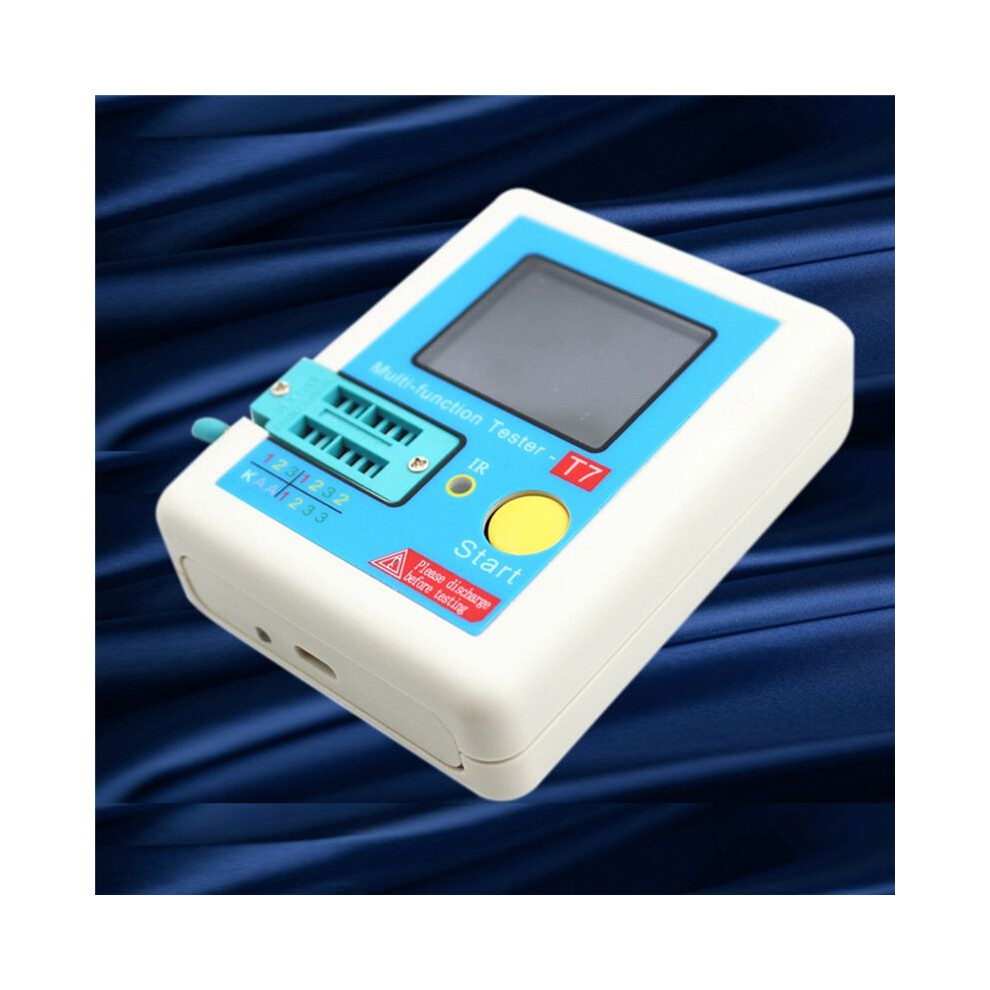

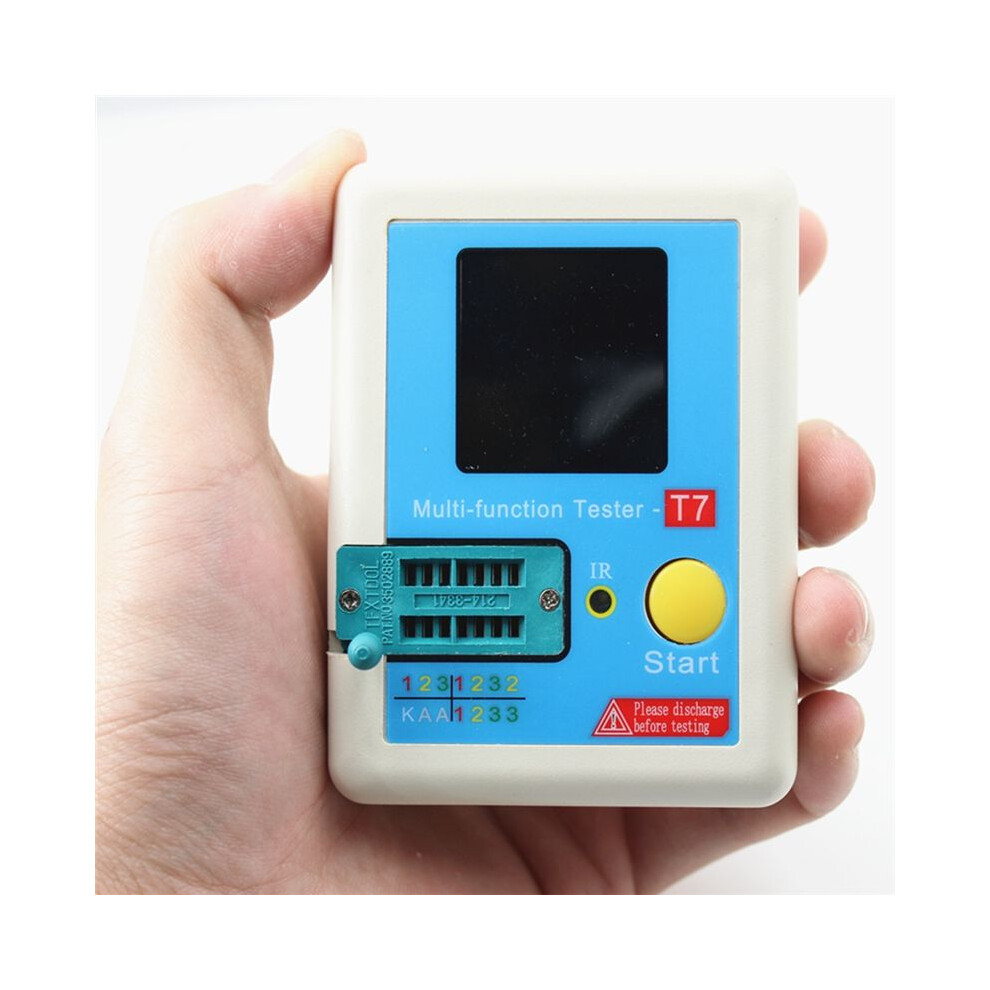

-T7 High Speed Transistor Tester Full Color Graphic Display Multi-Function Portable Tester

-T7 High Speed Transistor Tester Full Color Graphic Display Multi-Function Portable Tester Kuvaus

Features: 1. It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.It can also be used to detect infrared wave forms.
2. It also can detect zener diode and has the function of self-calibration.One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
3. After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
4. Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display the back light TFT screen clearly.
5. Not like the usual black and white display, this detector will show results in color.

Specifications:
Display: 3.5inch TFT Screen
Diode Range: Less than 4.5V
Zener Diode: Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT Less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery ( INCLUDED)
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use

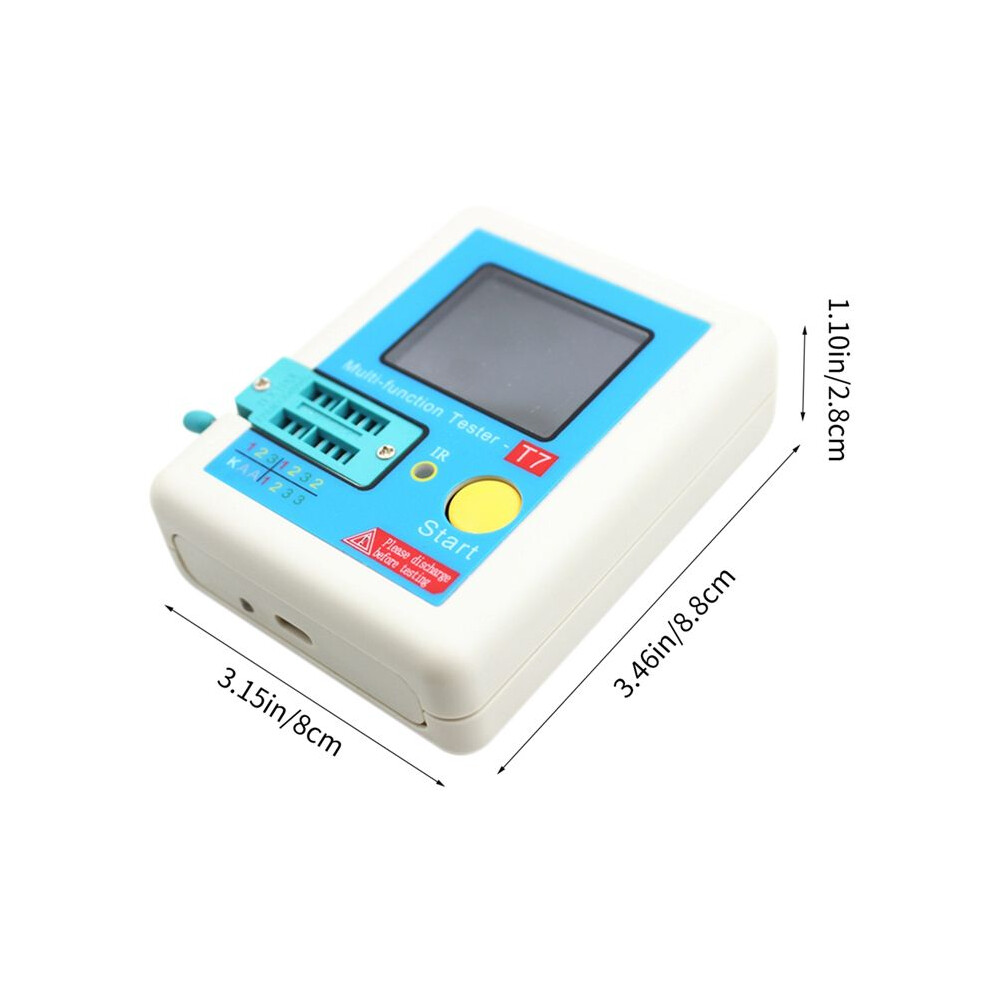

size: 8.8 x 8 x 2.8cm
Material: Plastic
colour: As shown

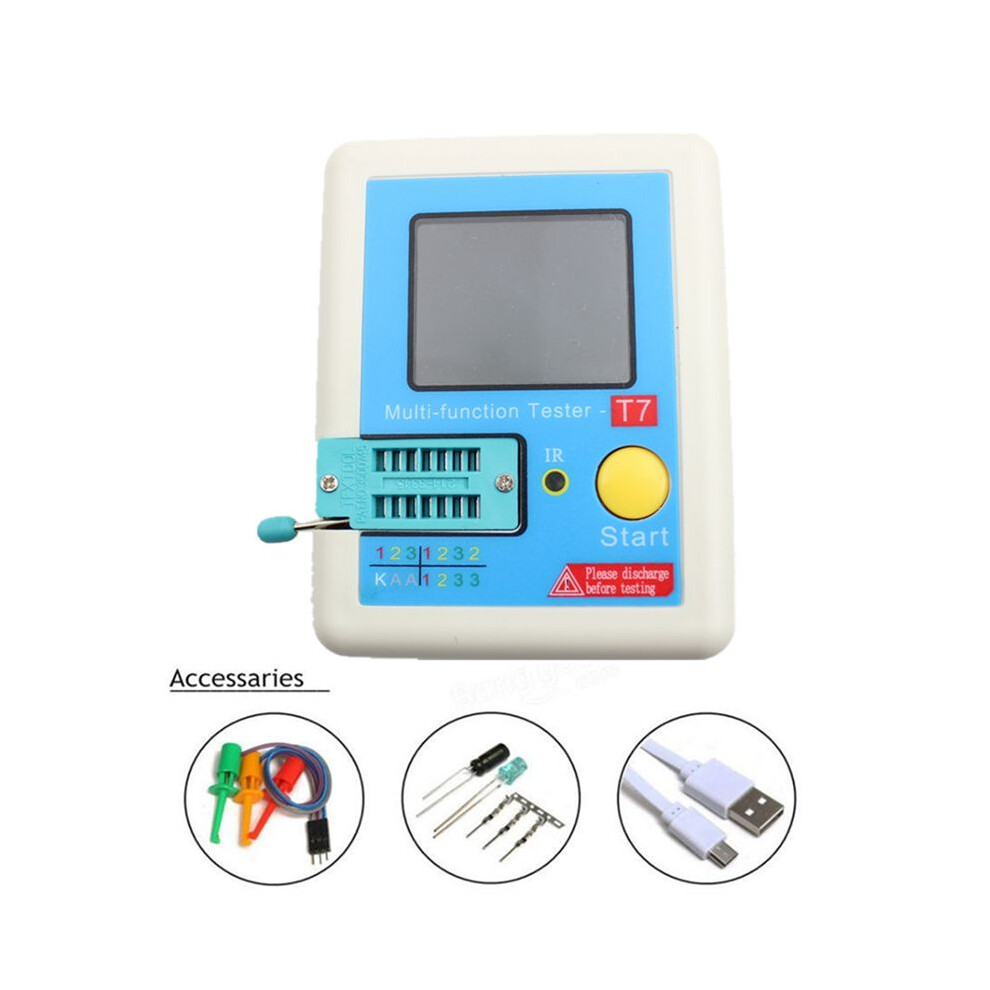

Package Contents:
1 x transistor tester
1 set wires
