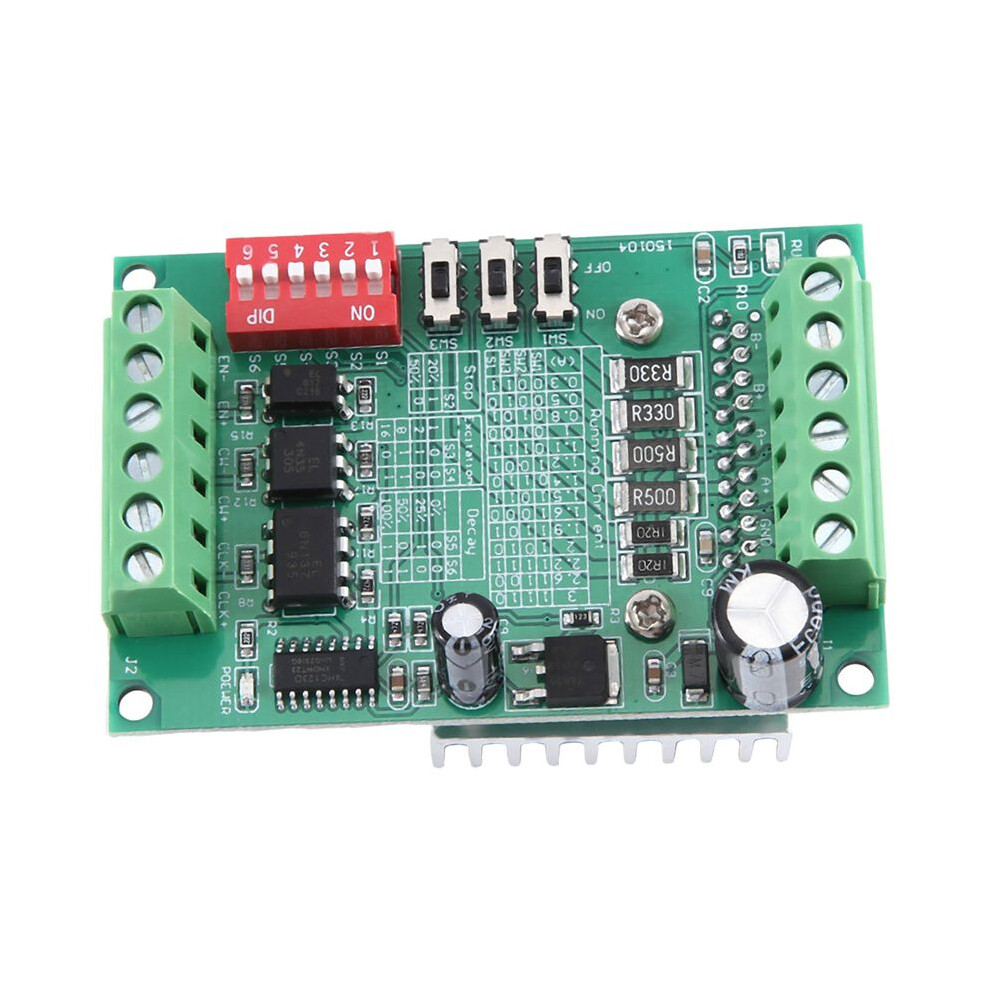

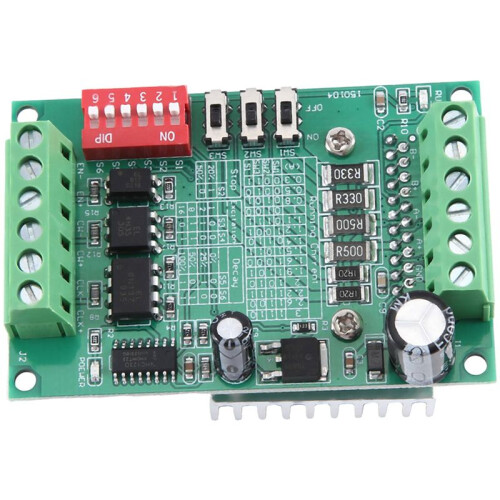

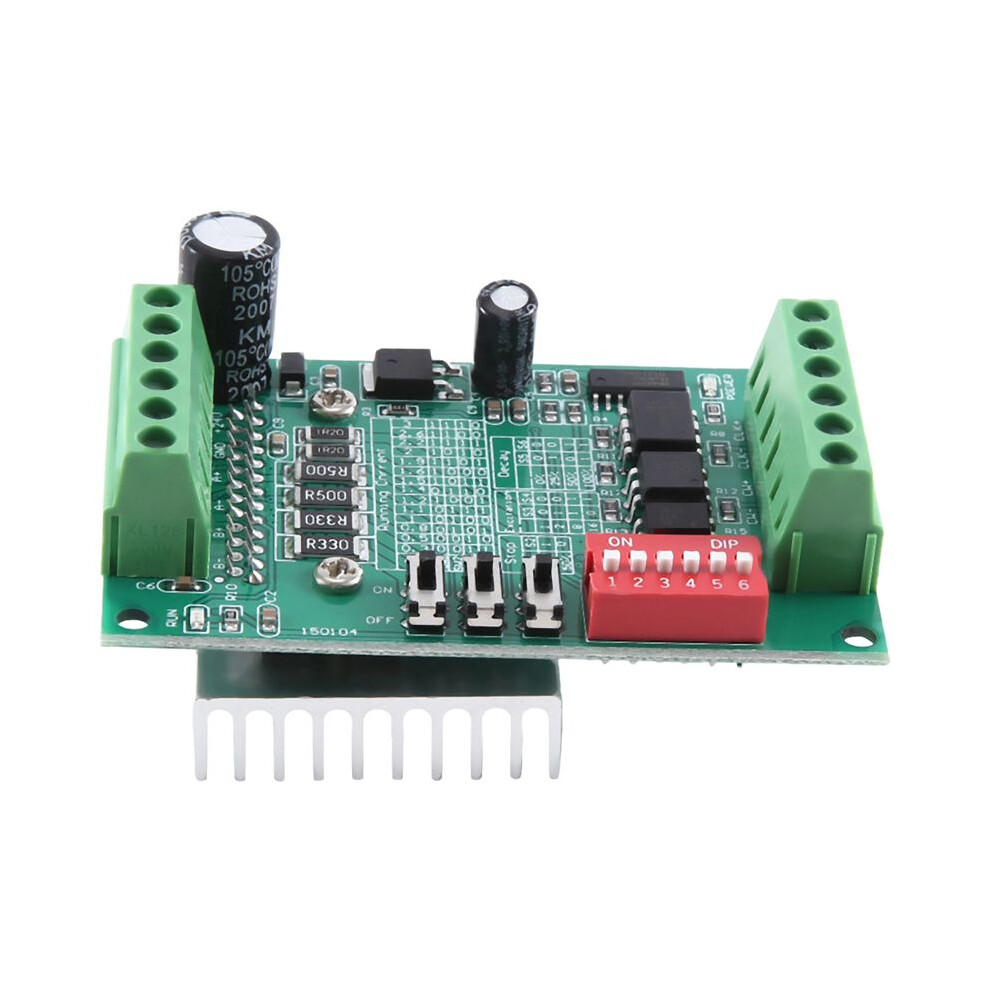

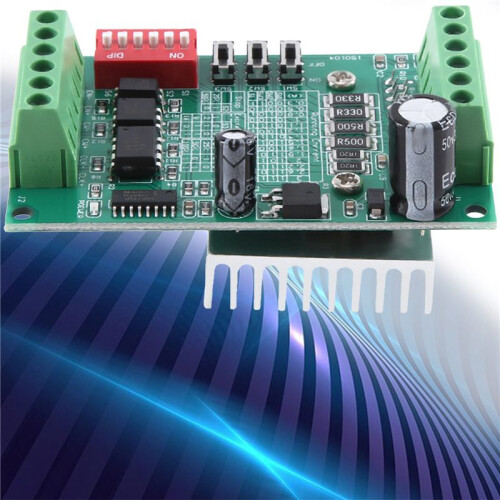

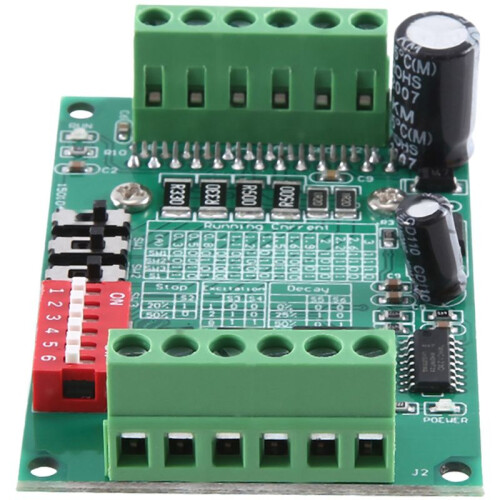

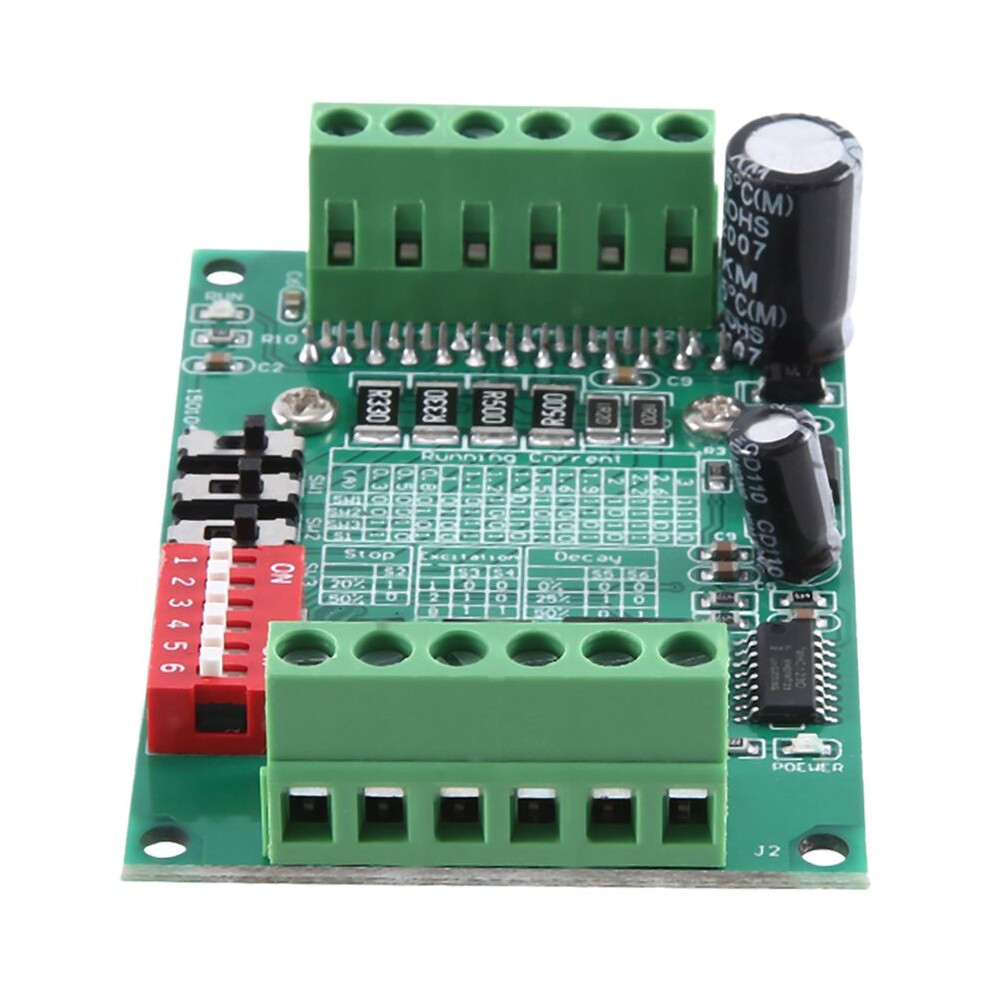

TB6560 3A Stepper Motor Driver 10-Speed Current Multi-Function Stepper Motor Driver Board Single Axis Controller

TB6560 3A Stepper Motor Driver 10-Speed Current Multi-Function Stepper Motor Driver Board Single Axis Controller Kuvaus

1. The Current Level Can Be Adjusted Step By Step To Meet Your Various Application Needs.
2. Automatic Half-Flow Adjustable.
3. Adopt 6N137 High-Speed Optical Coupler To Ensure High-Speed Synchronization.
4. Plate Printing Setting Instructions, It Can Be Operated Without Instructions.

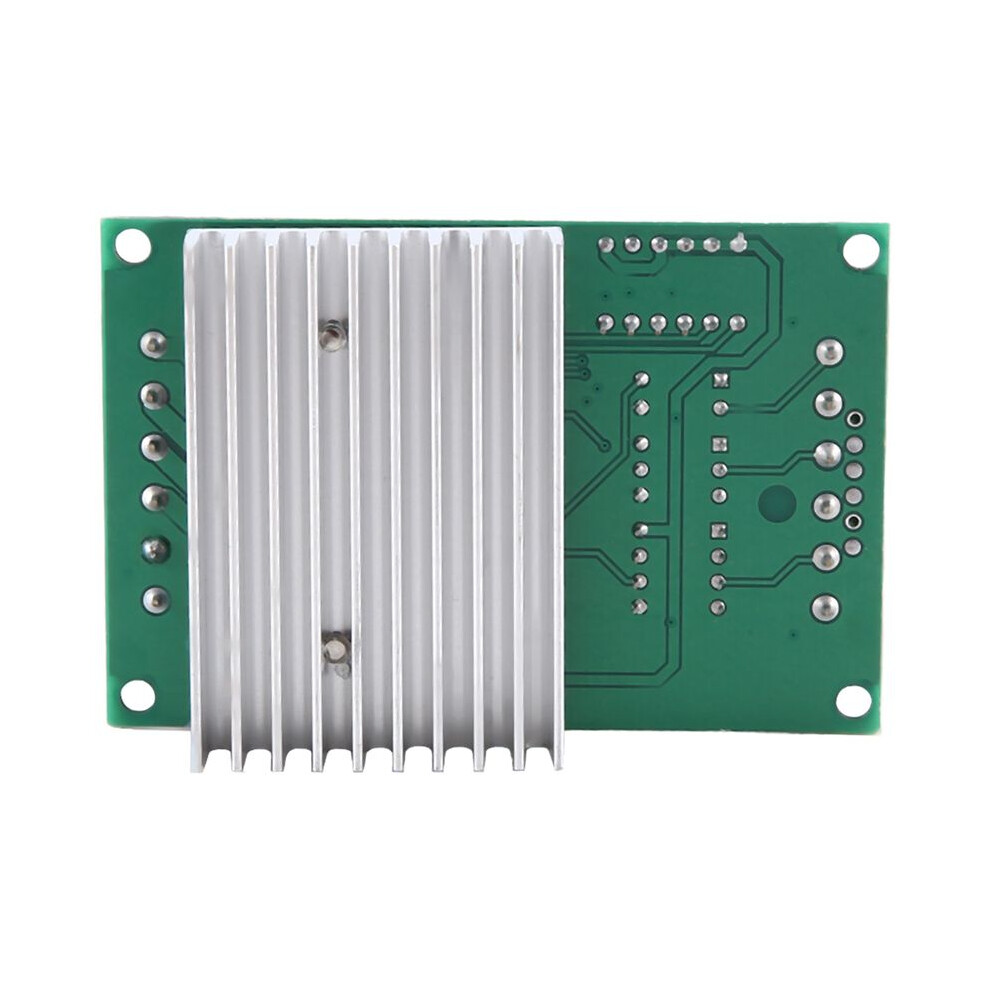

5. Thick And Close-Toothed Radiator Is Used For Good Heat Dissipation

Working Voltage 10V-35V. It Is Recommended To Use Switching Power Supply 24V Power Supply.
Adopt 6N137 High-Speed Optical Coupler To Ensure High-Speed Synchronization.
TB6560AHQ New Chip Is Adopted, Which Has Low-Voltage Shutdown, Overheating Shutdown And Overcurrent Protection Circuits To Ensure Optimal Performance.
Rated Maximum Output: 3A, Value 3.5A.
Suitable For Two-Phase/Four-Phase/Four-Wire/Six-Wire Stepper Motors Within 42, 57 Steps Within 3A, Not Suitable For Stepper Motors Exceeding 3A.
Automatic Semi-Flow Function.

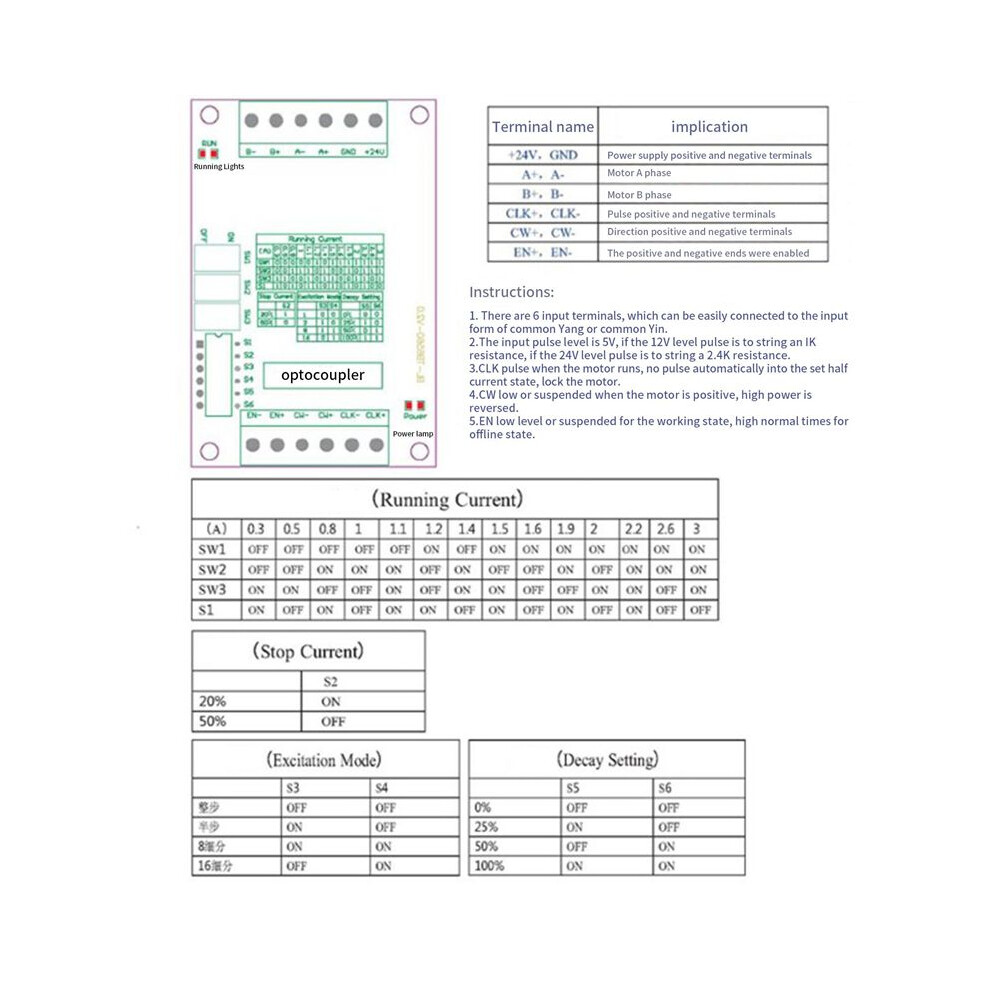

Subdivision: Full Step, Half Step, 1/8 Step, 1/16 Step, Maximum 16 Subdivisions.
Colour:As Shown
Material:PCB

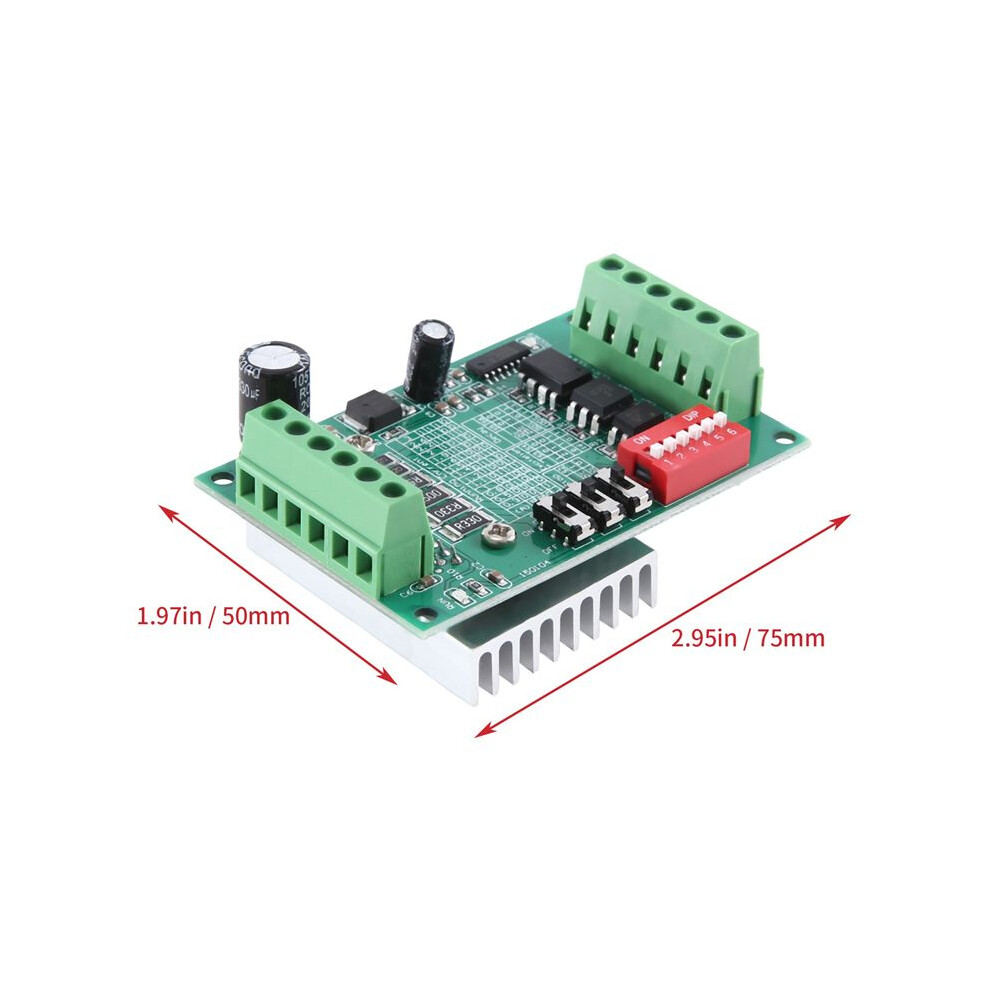

Size:about 50 x 75 x 35mm(Width*Length*Height)

Package Contents:
1 Set Of Motor Driver Motherboard Accessories
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
The Wiring Should Be Checked Repeatedly Before Being Powered . Connecting The Wrong Wire May Burn Out The Chip! The Set Current Should Not Exceed The Rated Current Of The Motor
