UD11A03 Data Cable Detection Board USB Cable Tester for IOS Android Type-C Short Circuit -Off Switching Test Tool

UD11A03 Data Cable Detection Board USB Cable Tester for IOS Android Type-C Short Circuit -Off Switching Test Tool Kuvaus

Quickly detect data anomalies. Quick detection of data and off: the light is when the power is normal, and when the light is off, the power is abnormal.
The detection board is small, light and easy to carry.
All 4 indicator lights are , then the data is normal (double- type-c data requires all 5 indicator lights to be ).

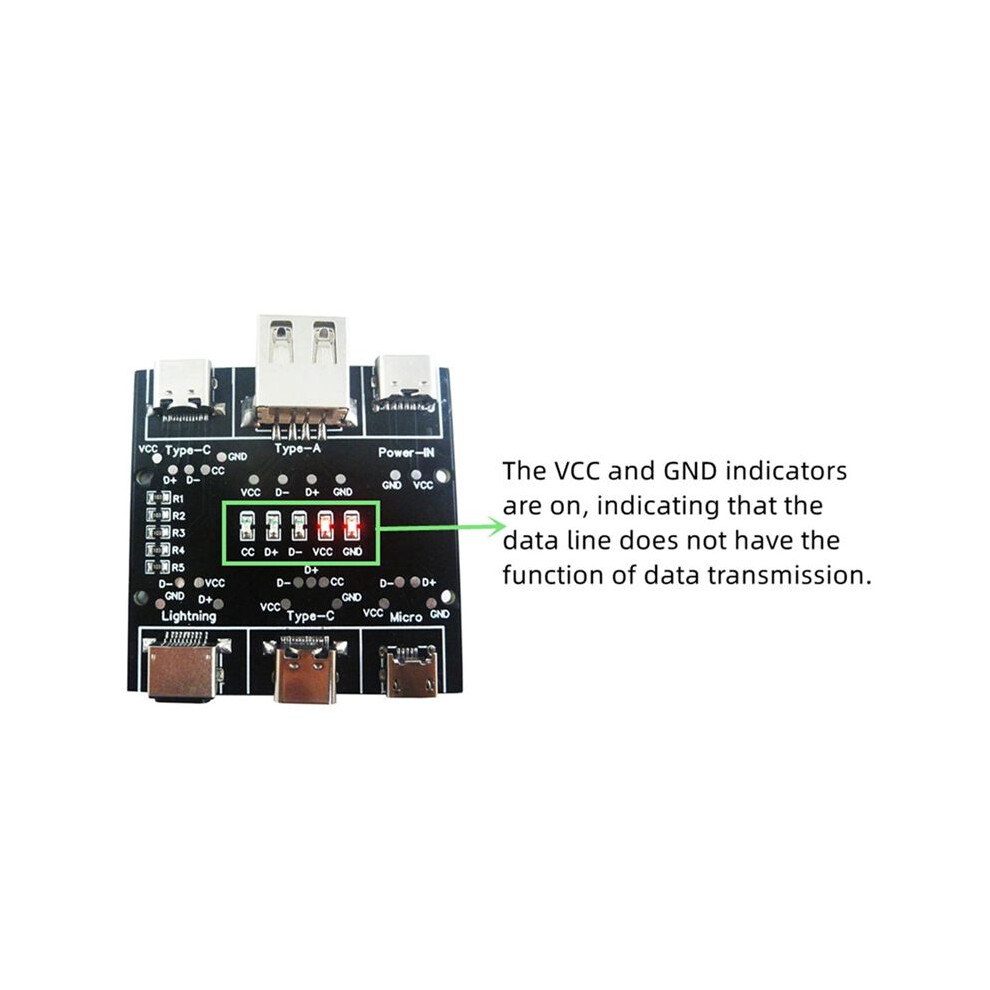

If VCC or GND is not lit, it indicates that the charging function of the data is abnormal. D+ or D- is off, indicating that the data transmission function is abnormal.

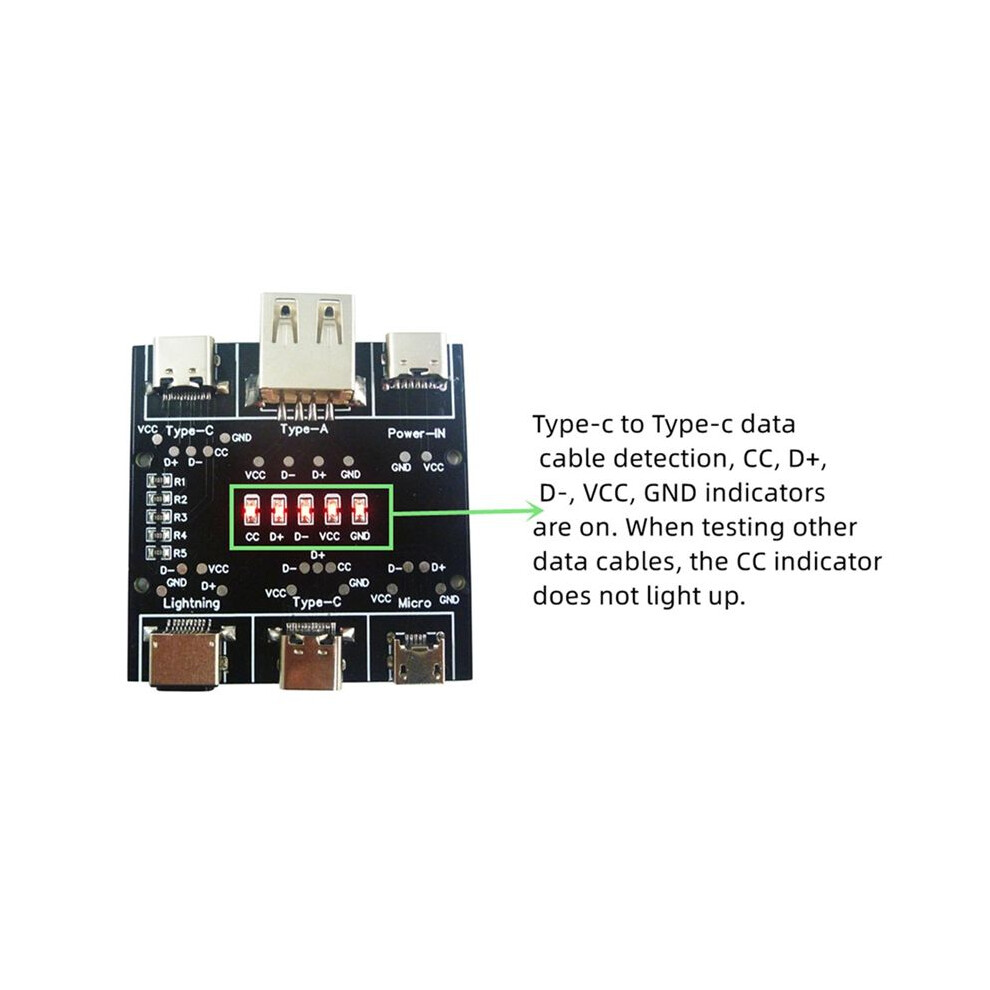

CC is dedicated to double- type-c data detection. When testing other data lines, the light will not turn .

Working power: 5V(TYPE-C Input)
Working current:10-20MA
Model :UD11A03 (compatible with DT3)

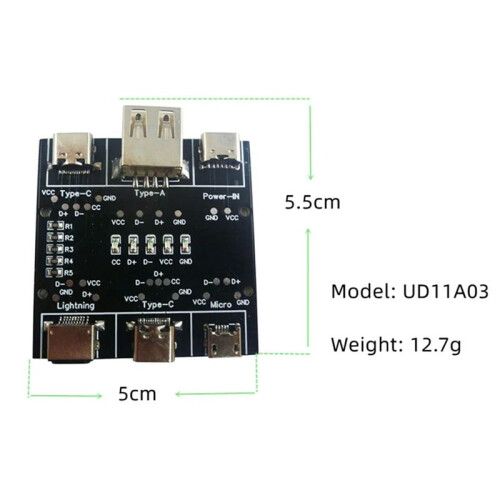

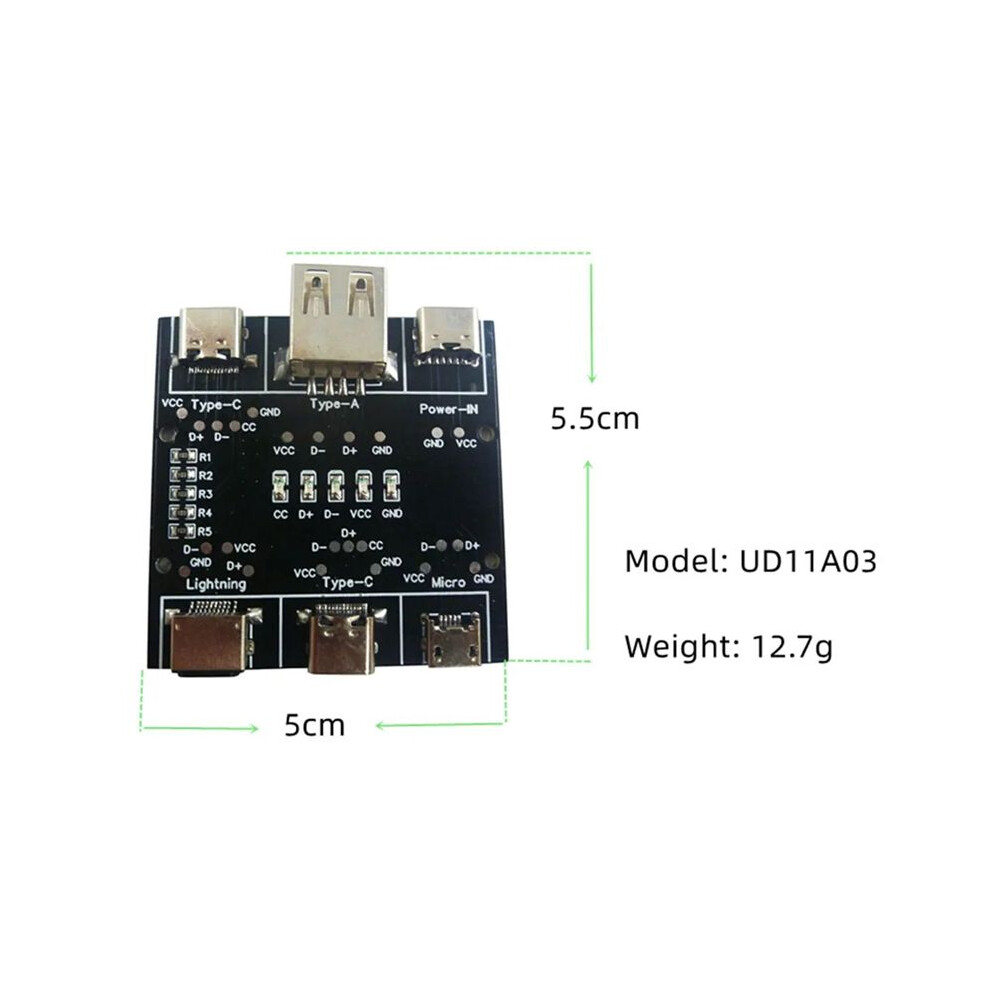

Weight:12.7g
Instruction of The Tester:
1. Use the Type-c charging cable to plug into the Power-IN interface to supply power to the PCB board.

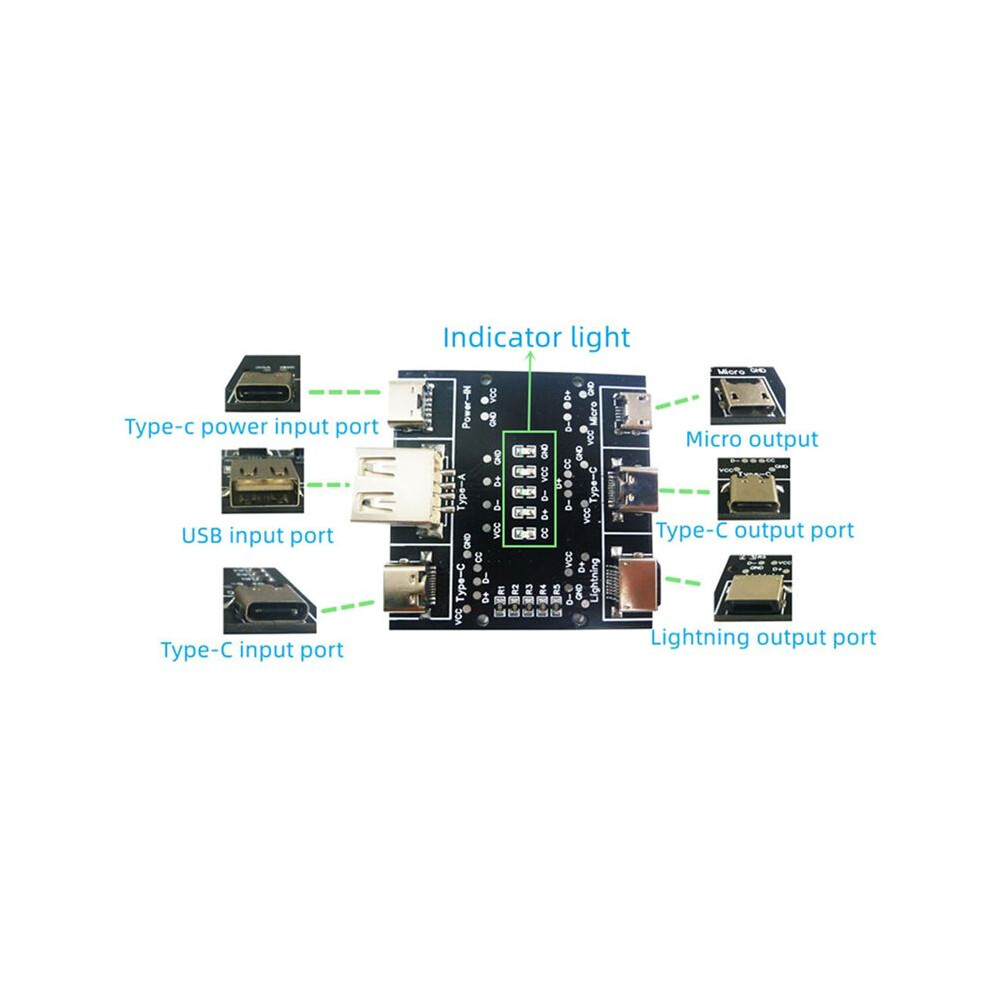

2. Insert one end of the data cable to be tested into the corresponding input port, and the other end into the corresponding output port.
3. Observe the indicator light.
Indicator light description:

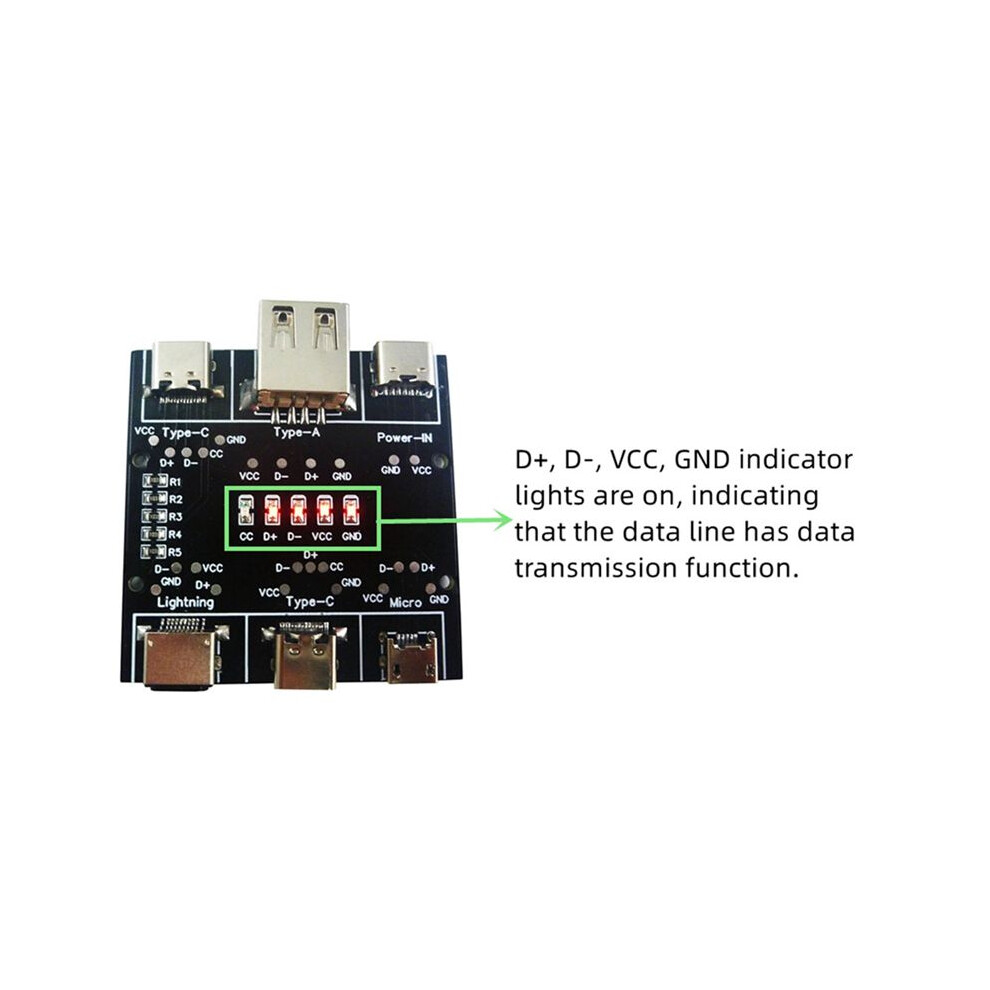

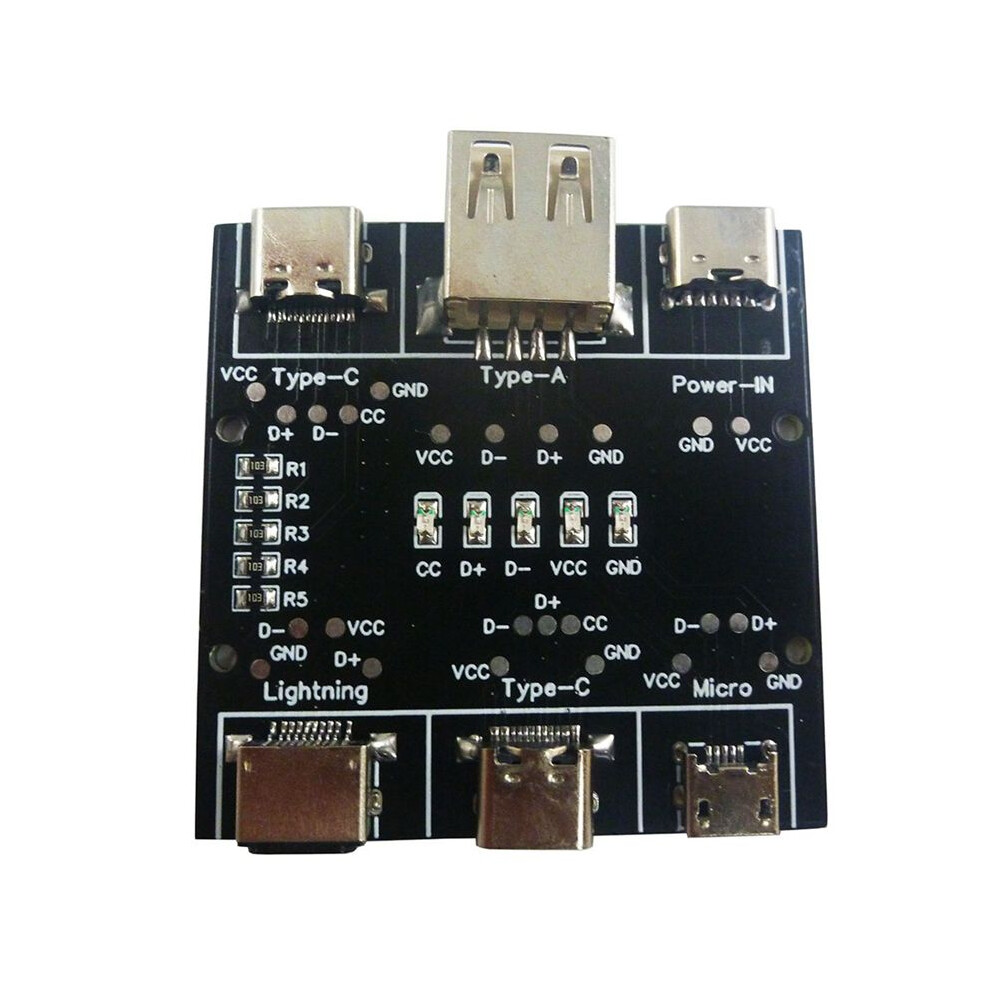

1 D+, D-, VCC, GND indicator lights are , indicating that the data has data transmission function.
Notice:
During the test, except for the Power-IN port, the input and output of the test data , other cannot be connected to the data , otherwise the test result will be affected.
Colour:Black
Material:PCB+Metal

Package Contents:
1 * USB Cable Tester
