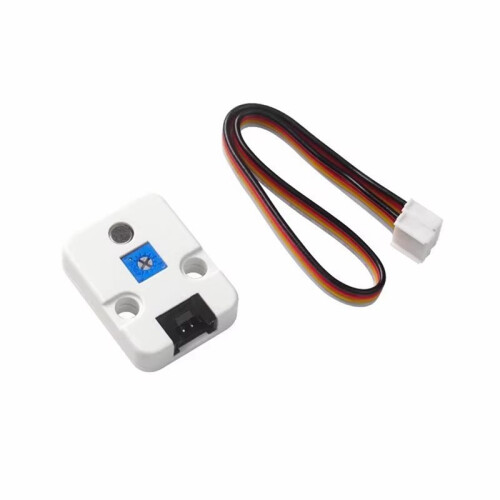

Unit MIC Microphone Unit Sound Sensor Omnidirectional Electret Microphone MAX4466
Varastossa
Miksi tulet rakastamaan ostoksia OnBuyssa:
- Ansaitse Cashback jokaisesta ostoksesta – käytä se heti seuraavaan tilaukseesi
- Ilmainen toimitus – miljooniin tuotteisiin sivustolla
- Asiakkaat rakastavat meitä – 126,000 arvostelua arvosanalla “Erinomainen”
OnBuyn myymien tuotteiden hinnat sisältävät ALV:n.
Korottomat maksuvaihtoehdot saatavilla
Katso koko tuotekuvaus ja tiedot
Toimitus: Prioriteetti (Ilmainen) | ma 15. - ma 22. kesä
Myyjä: LLhappy
Palautukset: 30 päivää
180 päivän maksuturva
Yhteenveto
- Microphone Unit is a sound sensor with a built-in omni-directional electret microphone.
- The signal is amplified and output by microphone preamplifier max4466. The amplifier can effectively suppress power supply noise and common mode noise, and the output signal has high sound recovery and can be used in noisy environments.
- The unit can not only output analog signals, but also output digital level signals. The built-in LM393 double voltage comparator can set the comparison voltage threshold by adjusting 10K adjustable resistance.
- The sensor is very suitable for acoustic electrical conversion, audio recording / sampling, FFT acoustic feedback, voice switch and other projects..
- MAX4466 MIC
Unit MIC Microphone Unit Sound Sensor Omnidirectional Electret Microphone MAX4466 Kuvaus
Microphone Unit is a sound sensor with a built-in omni-directional electret microphone.
The signal is amplified and output by microphone preamplifier max4466. The amplifier can effectively suppress power supply noise and common mode noise, and the output signal has high sound recovery and can be used in noisy environments.
The unit can not only output analog signals, but also output digital level signals. The built-in LM393 double voltage comparator can set the comparison voltage threshold by adjusting 10K adjustable resistance.
The sensor is very suitable for acoustic electrical conversion, audio recording / sampling, FFT acoustic feedback, voice and other projects..
Product Features
Audio record/sample
Built-in microphone preamplifier MAX4466
Omnidirectional, 52dB sensitivity
Digital output and analog signal
Built-in dual independent precision voltage comparator and adjustable resistor, threshold adjustable
Development platform: , UIFlow (Blocky, Python)
HY2.0-4P interface
Two -compatible holes
Applications
FFT Spectrum Display
Audio Sample / Record
Voice
Color: White
Material: plastic

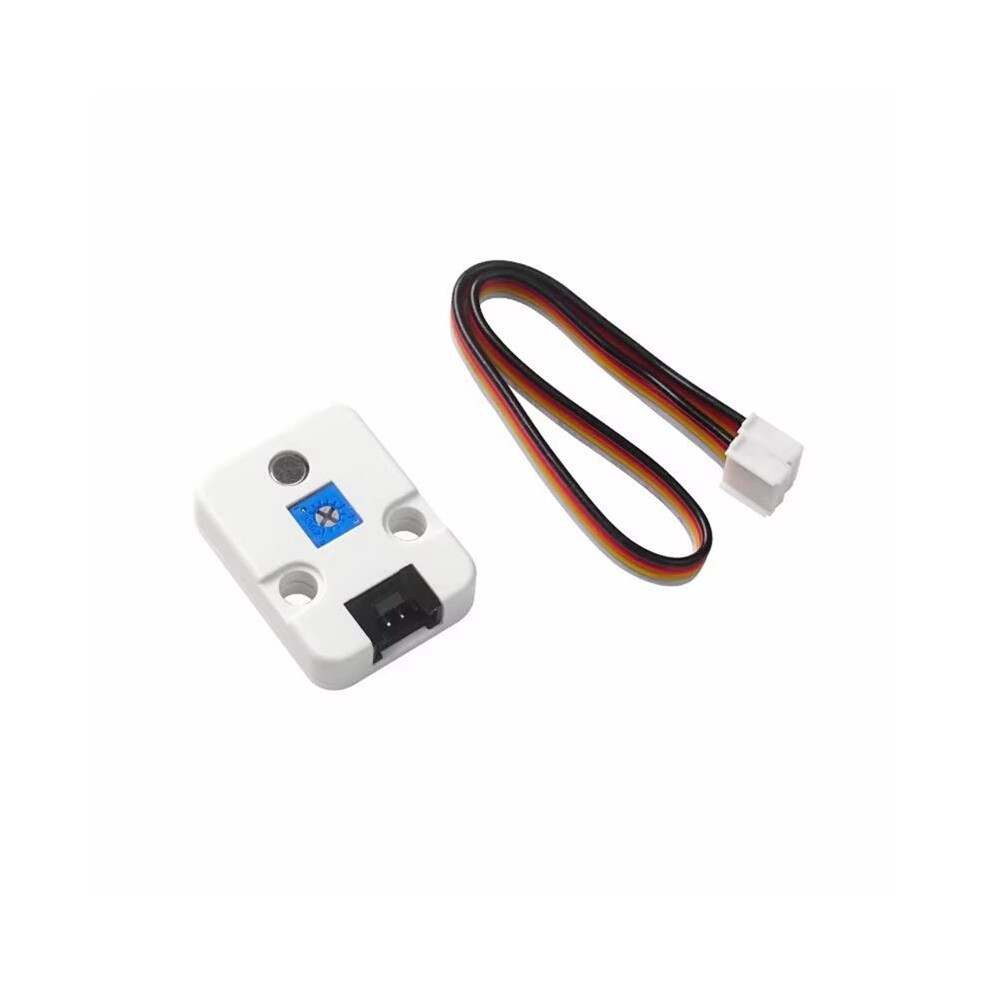

Package Contents:
1x Microphone Unit
1x Grove Cable
Tiedot
| OPC | PV8767Y |
|---|---|
| Brändi | Zandonà |
| Koodit | 4711140136592 (EAN) |
Tuotetiedot
| Height | 1cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.01kg |
| Colour | White |
| Material | Plastic |
