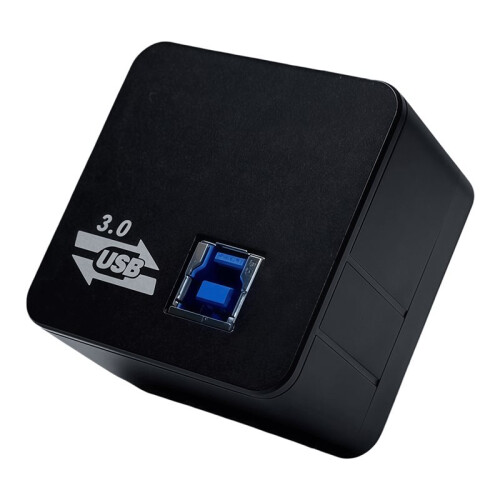

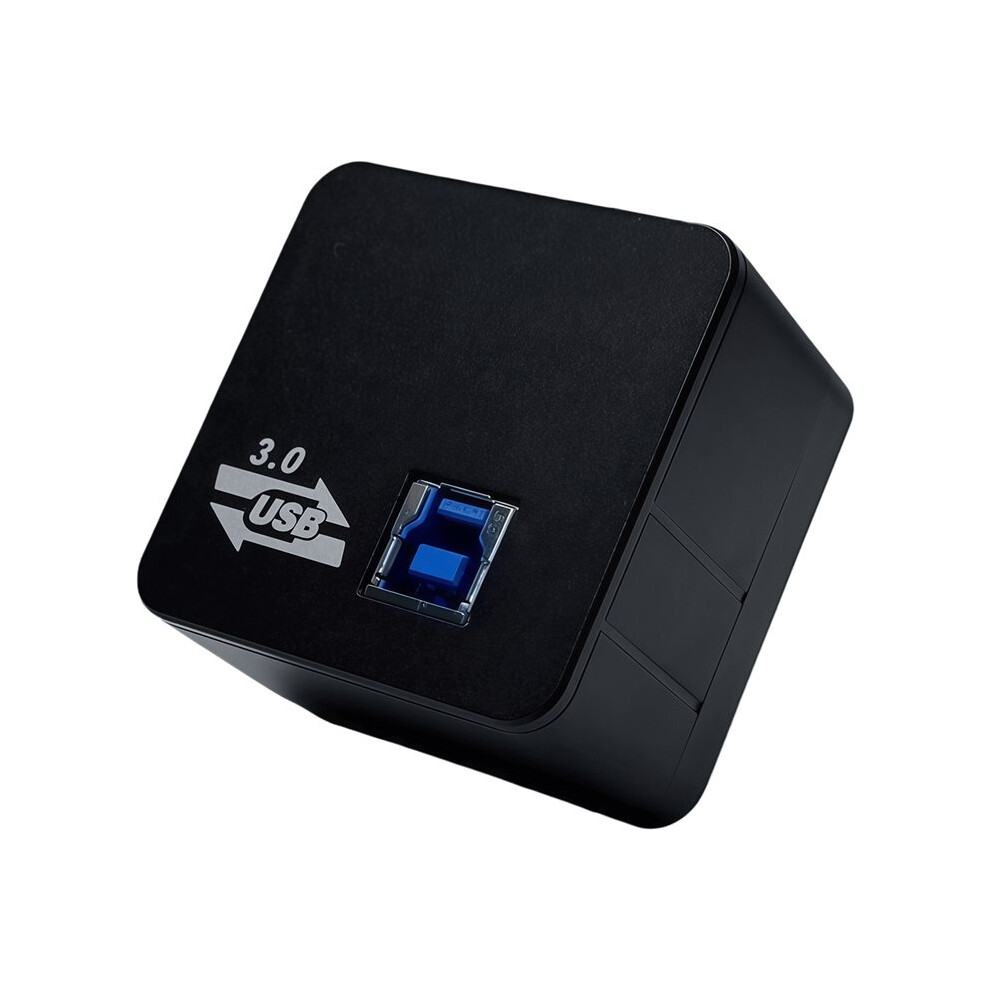

USB3.0 5MP Medical Imaging Microscope C-Mount Camera Digital Eyepiece Industrial Lab PCB Inspection Video Microscopy

USB3.0 5MP Medical Imaging Microscope C-Mount Camera Digital Eyepiece Industrial Lab PCB Inspection Video Microscopy Kuvaus

High-speed USB3.0 interface, to 625 MB/s. Large area array CMOS scan image sensor. Support for static and dynamic image capture. Exposure : any adjustable. 8bit uncompressed image data, software implementation Bayer color conversion plug and installation. Support Windows 2000, XP, WIN7 WIN10 operating system. The image is stable and reliable, after a long period of rigorous testing performance indicators.
Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.
Video Output:USB3.0; Sensor:5.0MP, 1/2.5 inch; Sensor: IMX335 Sensor; Sensor Size:1/2.5 inch; Maximum Resolution:2592 x 1944; Pixel Size:2.2 x 2.2μm; Target Size:1/2.5inch; Exposure Mode:Rolling Shutter; Signal to Noise:35dB; Dynamic Range:64dB; Sensitivity:2V/Lux.S
Frame Rate MJPG :2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS; Frame Rate YUV422:2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS
Adjustable Parameters:Brightness, Contrast, Saturation, Sharpness, Gamma, White balance, Exposure, Gain

Measuring Function:Straight , Circle, Rectangle, Angle, Broken , etc
Image Output:USB3.0 UVC
Hardware Interface:Micro-USB3.0 Cable
Working Temperature:Environment Temperature-20 ~ 70
Storage Temperature:-40 ~ 85
Image adjustment:Brightness, contrast, saturation, color temperature,Gamma,White balance,Sharpness
Image Quality Adjustment:Exposure, gain, color adjustment
Camera function:Mirror, flip, freeze, black and white
UI interface:Support user-friendly mouse and touch operation
Photo, video:Support 1920 x 1080 image capture and 1080P video
Storage:Instant photo and video
