VRX-3301 3.1-3.7GHz Bandwidth Video Input Module FPV Wireless Video Receiver Module VRX Video Transmission for FPV

VRX-3301 3.1-3.7GHz Bandwidth Video Input Module FPV Wireless Video Receiver Module VRX Video Transmission for FPV Kuvaus

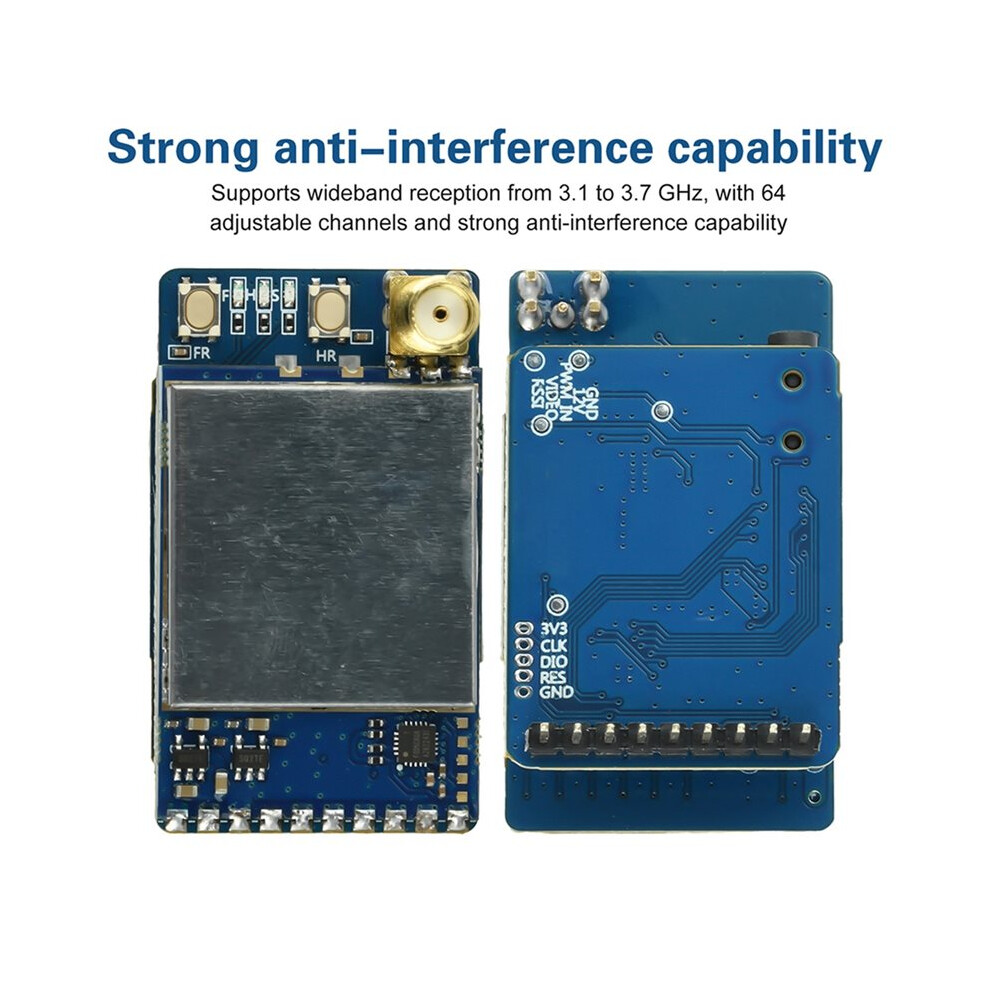

1. Supports wideband reception from 3.1-3.7GHz, 64 adjustable channels, strong anti-interference capability

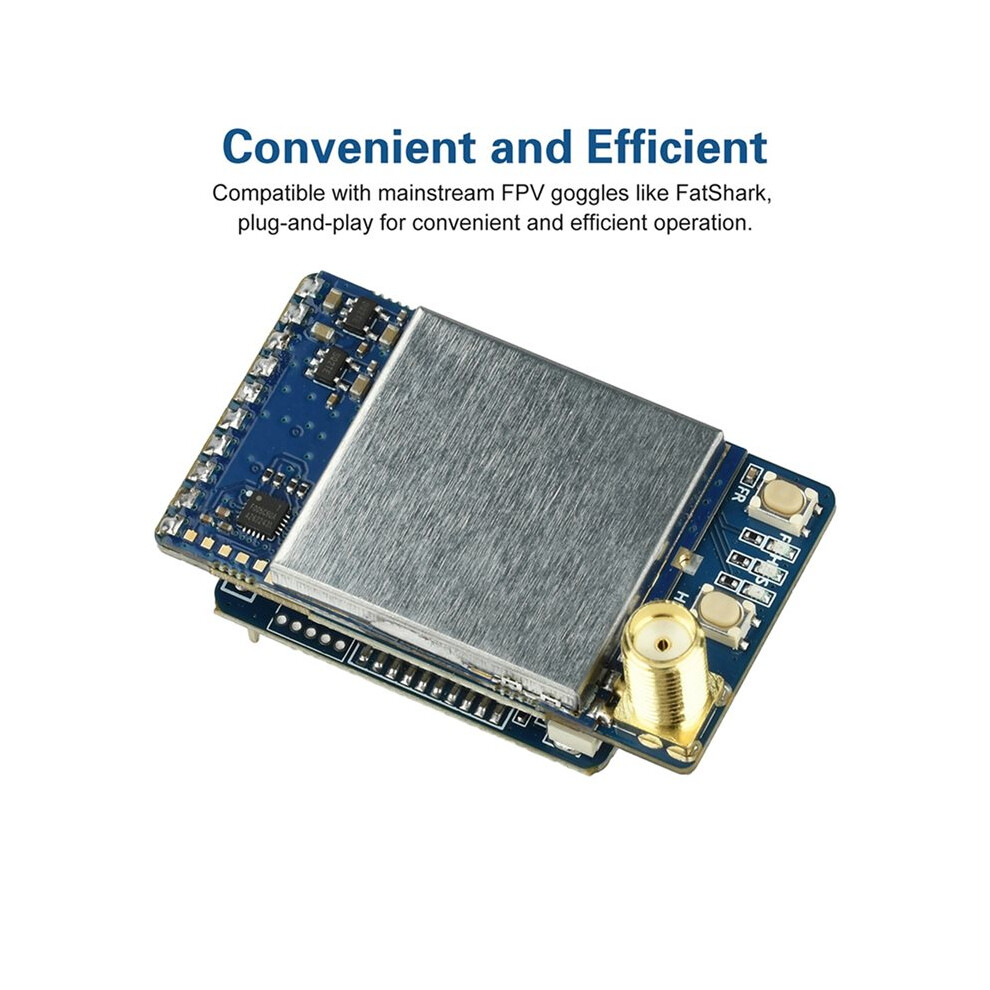

2. Compatible with mainstream FPV goggles like FatShark, plug-and- for convenience and efficiency
3. High sensitivity at -95dBm, stable signal, clear and smooth long-distance video transmission

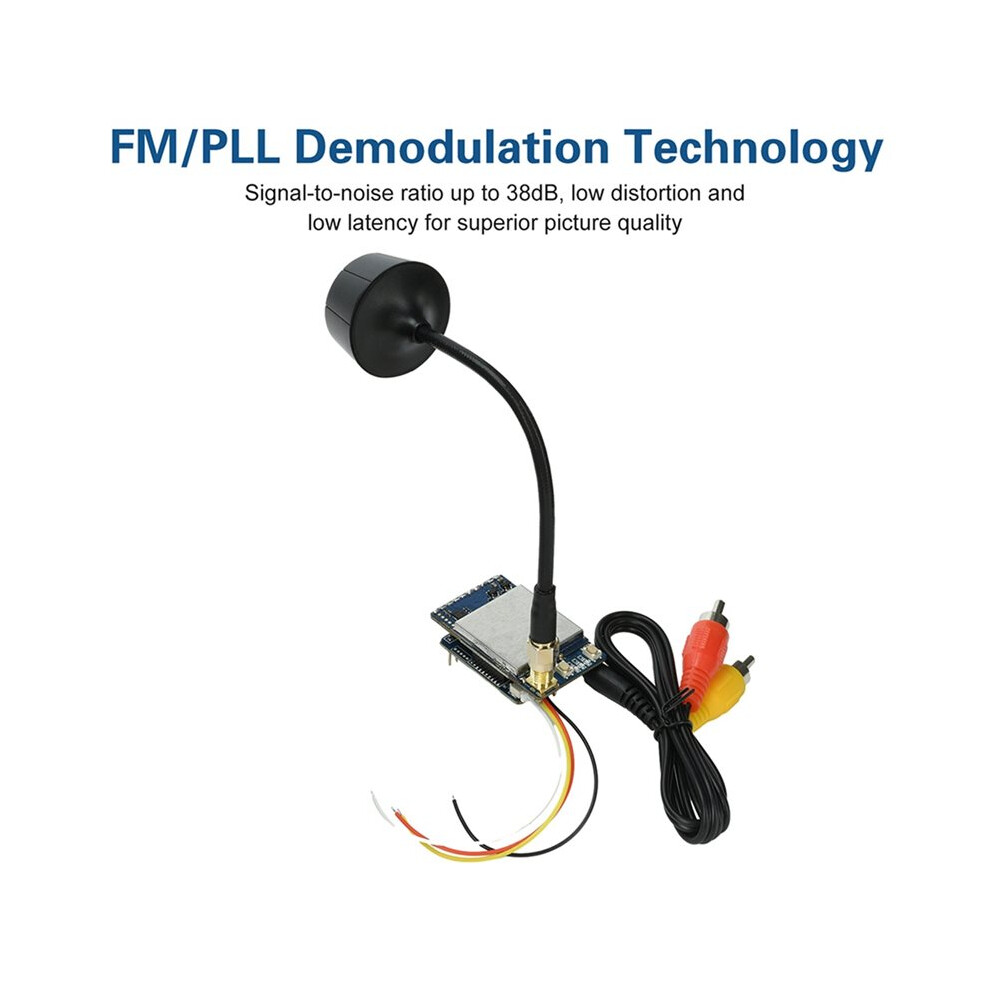

4. FM/PLL demodulation technology, signal-to-noise ratio to 38dB, low distortion and low latency video quality

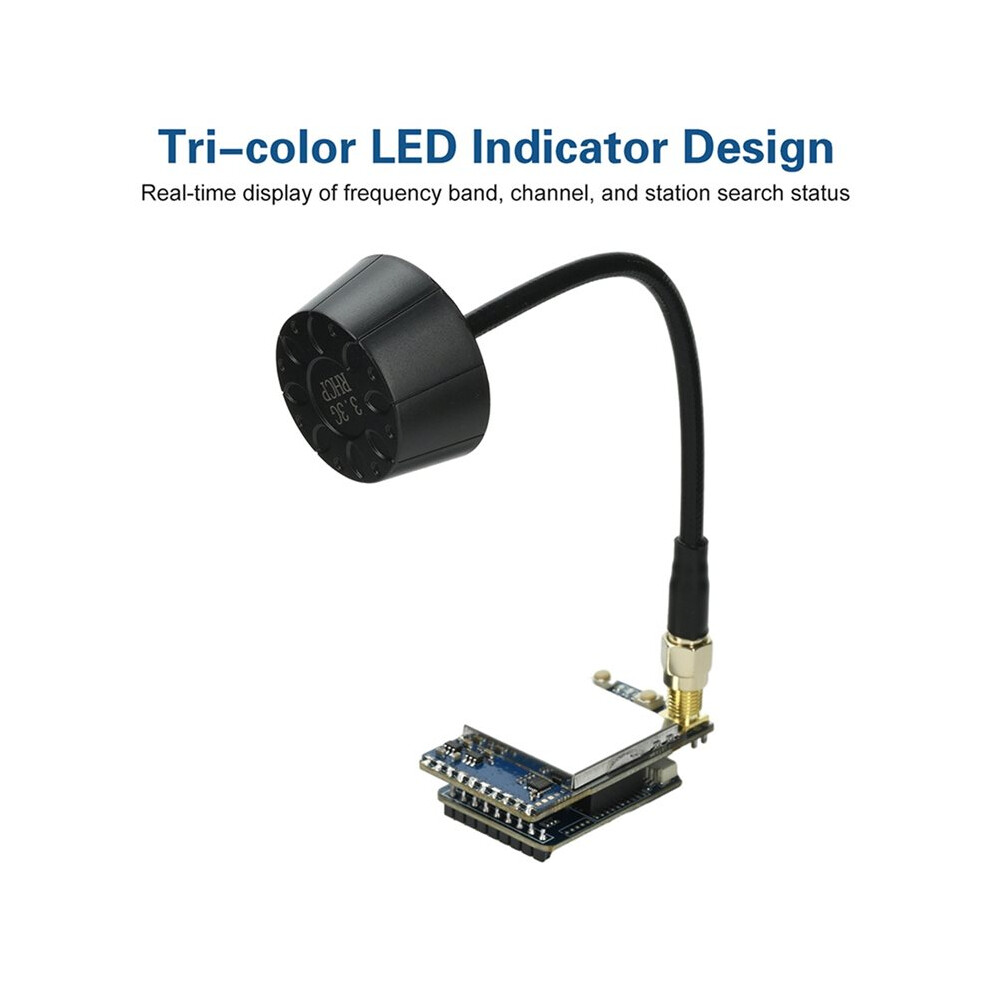

5. Three-color LED indicator design displays real- band, channel, and channel-search status

Parameter:
Product Name: Video Transmission Analog Receiver Module
Channels: 64-CH
Supply Voltage: 5-36V
Current Consumption: 250mA Max
Operating Environment: -10~+65 ºC, 85%RH
Storage Temperature: -30~+85 ºC
Application: Used with FPV goggles, compatible with Skyzone goggles
Indicator Lights: 3 indicator lights (Green, , Red)
Indicator Light Descriptions:
1. Green LED: Flash count indicates current frequency band
2. LED: Flashing indicates automatic channel search in progress
3. Red LED: Flash count indicates current channel

Radio Frequency (RF):
Receive Frequency Range: 3100~3700MHz
Input VSWR: 2:1
Demodulation Method: FM/PLL
Intermediate Frequency (IF): 480MHz
Receive Sensitivity: -95dBm

Video Characteristics:
Video Output Impedance: 75Ω, Typ.
Video Output Level: 1Vp-p, Typ.
3dB IF Bandwidth: 16.5MHz
Signal-to-Noise Ratio (S/N): 38dB, Min
RSSI Output Voltage (-30dBm to -90dBm): 1.3V to 0.7V
Color: As Shown
Material: plastic

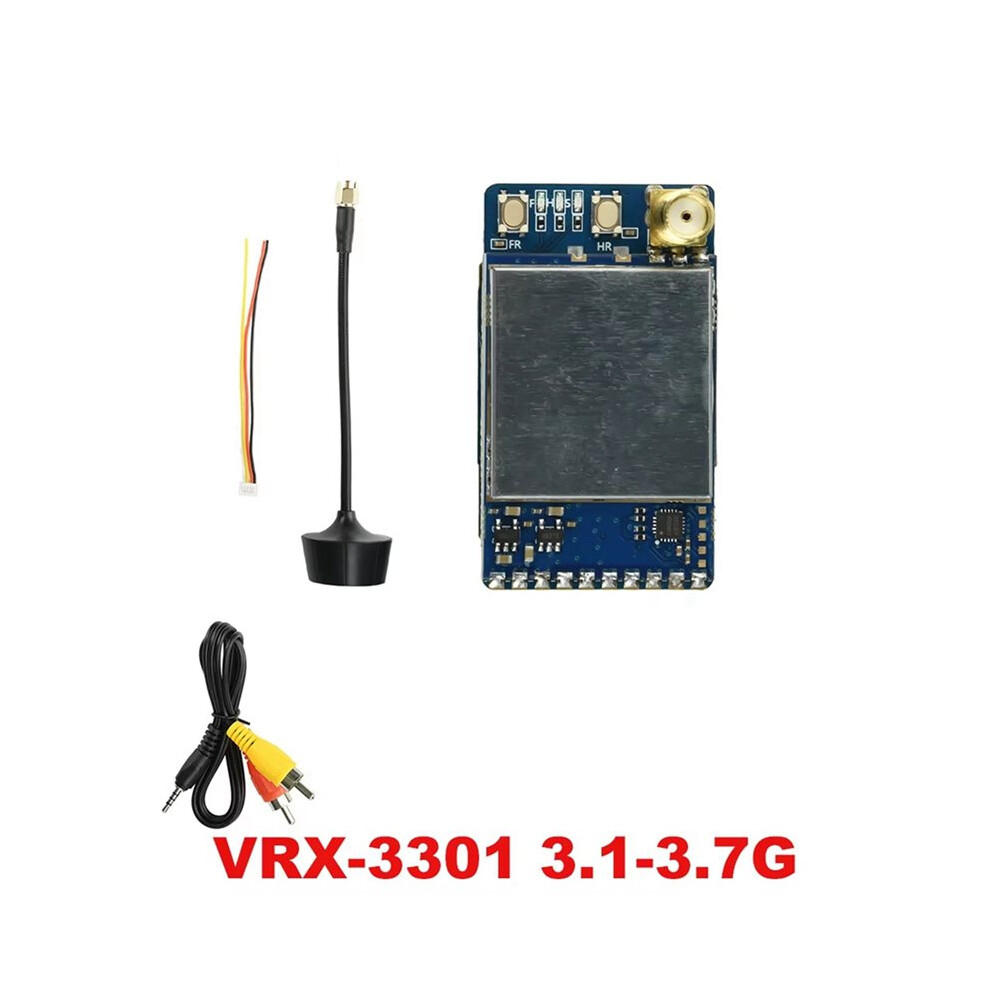

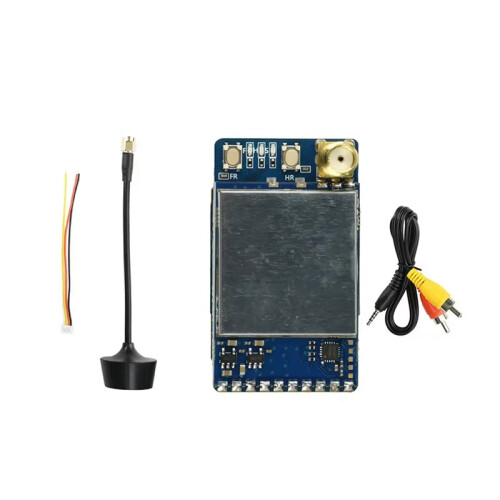

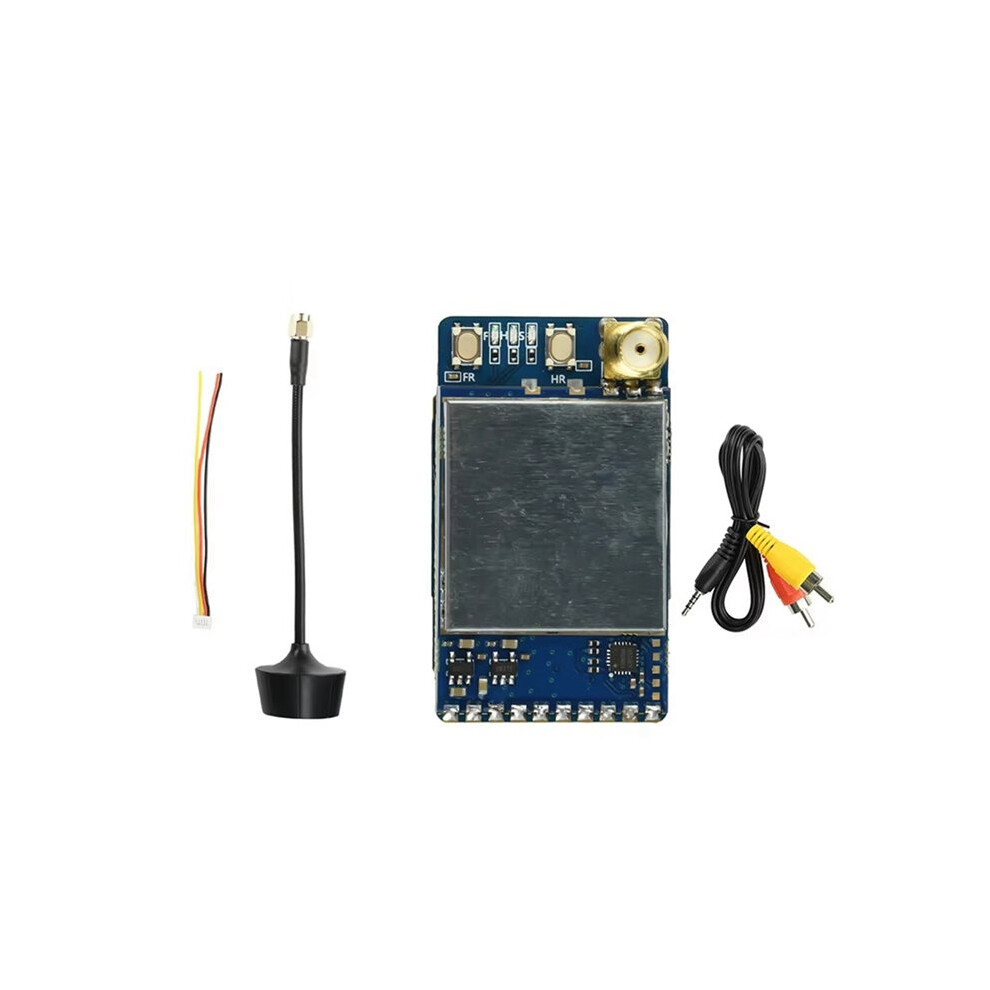

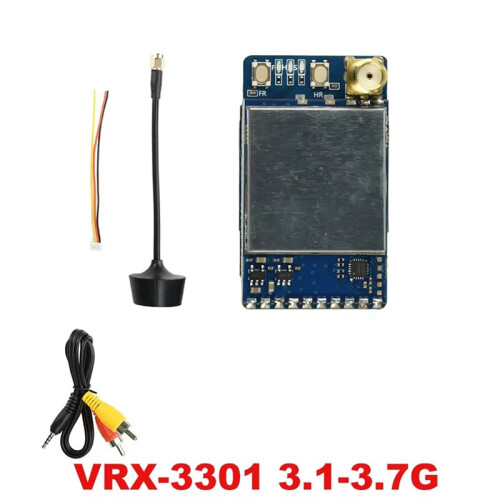

Package Contents:
1*Module 1*Antenna 2*Cables
