Waveshare Barcode Scanner Module 2D Codes Scanner Module Barcode Scanning Module Barcode QR Code Reader

Waveshare Barcode Scanner Module 2D Codes Scanner Module Barcode Scanning Module Barcode QR Code Reader Kuvaus

The Barcode scanner module series products are barcode two-dimensional code scanning recognition modules.
Through the image intelligent recognition algorithm, it can quickly and accurately read the one-dimensional code and two-dimensional code paper or the screen, and supports multiple barcode formats.
The module is equipped with USB and UART interfaces, which can be directly connected to a computer or integrated into various embedded devices.

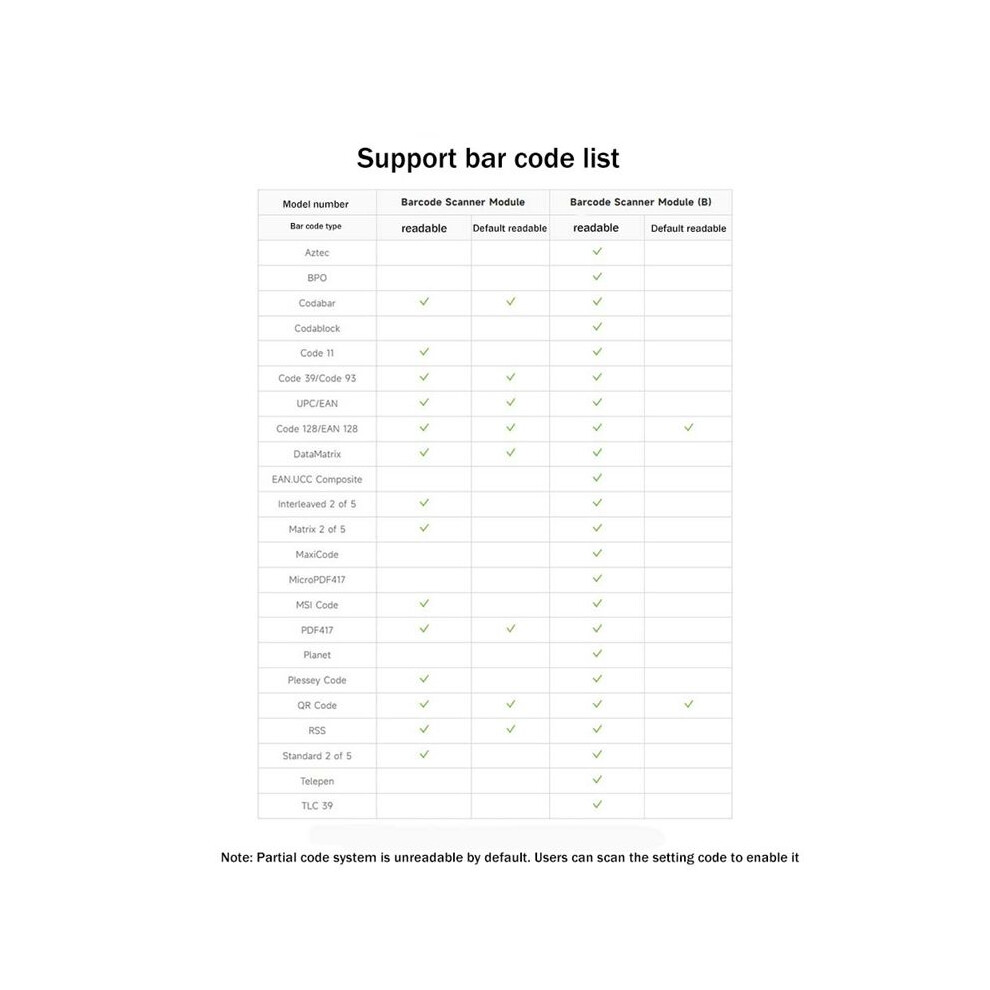

Barcode scanner Module can support recognition of more barcode formats.
Easy to operate and durable.

Resolution: 648*488
Scanning angle: pitch 60, tilt 65, rotate 360
Scan mode: induction scan, continuous scan, button scan (default)
Communication interface: USB keyboard mode (default), USB virtual serial port, UART serial port light source white light illumination, red light aiming (both visible light)
Light source: white light illumination, red light aiming (both visible light)
Voltage: 5V
Working current: 5V
Current standby current: 58MA
Working temperature: -20~+60C
Temperature Storage temperature: 30~+70C
Colour:
Material:PCB

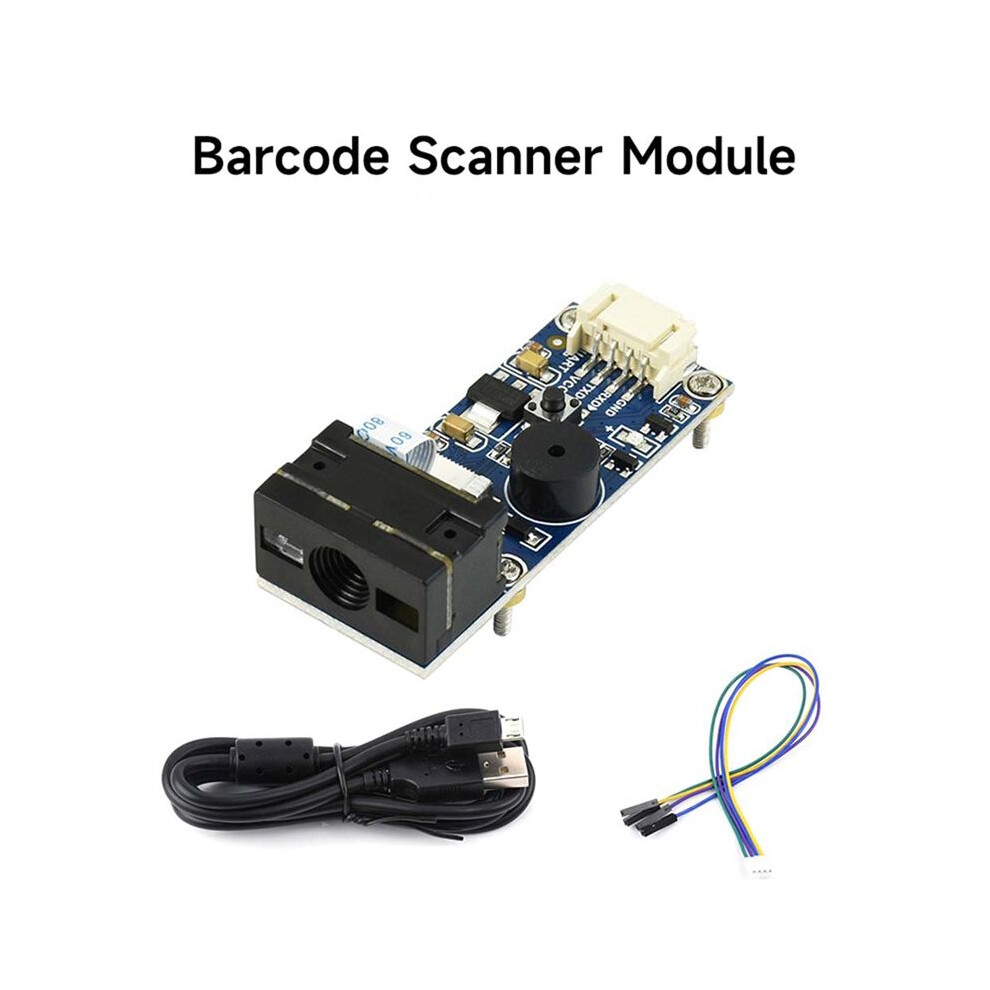

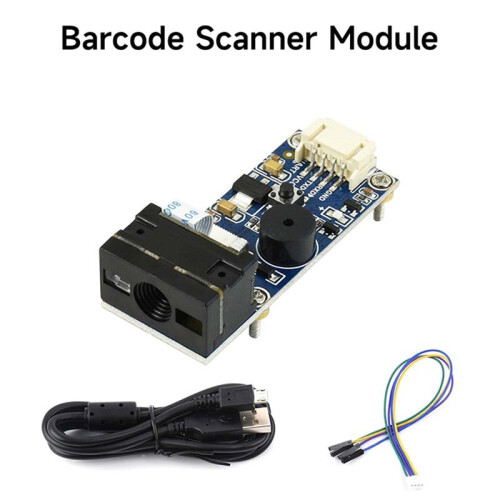

Package Contents:
1 x Module
1 x USB Cable
1 x PH2.0 4PIN Cable
