Waveshare Core1262- LoRa Module Remote Communication SX1262 Anti-Interference LoRa Chip Module for Sub GHz Band

Waveshare Core1262- LoRa Module Remote Communication SX1262 Anti-Interference LoRa Chip Module for Sub GHz Band Kuvaus

1. The new generation SX1262 has higher power efficiency than the traditional SX1278, and has a long transmission distance
2. Applicable to Sub GHz frequency band, combined with gateway access ECS to form LoRa/LoRaWAN network
3. Applicable to industrial, home, data collection and other application scenarios

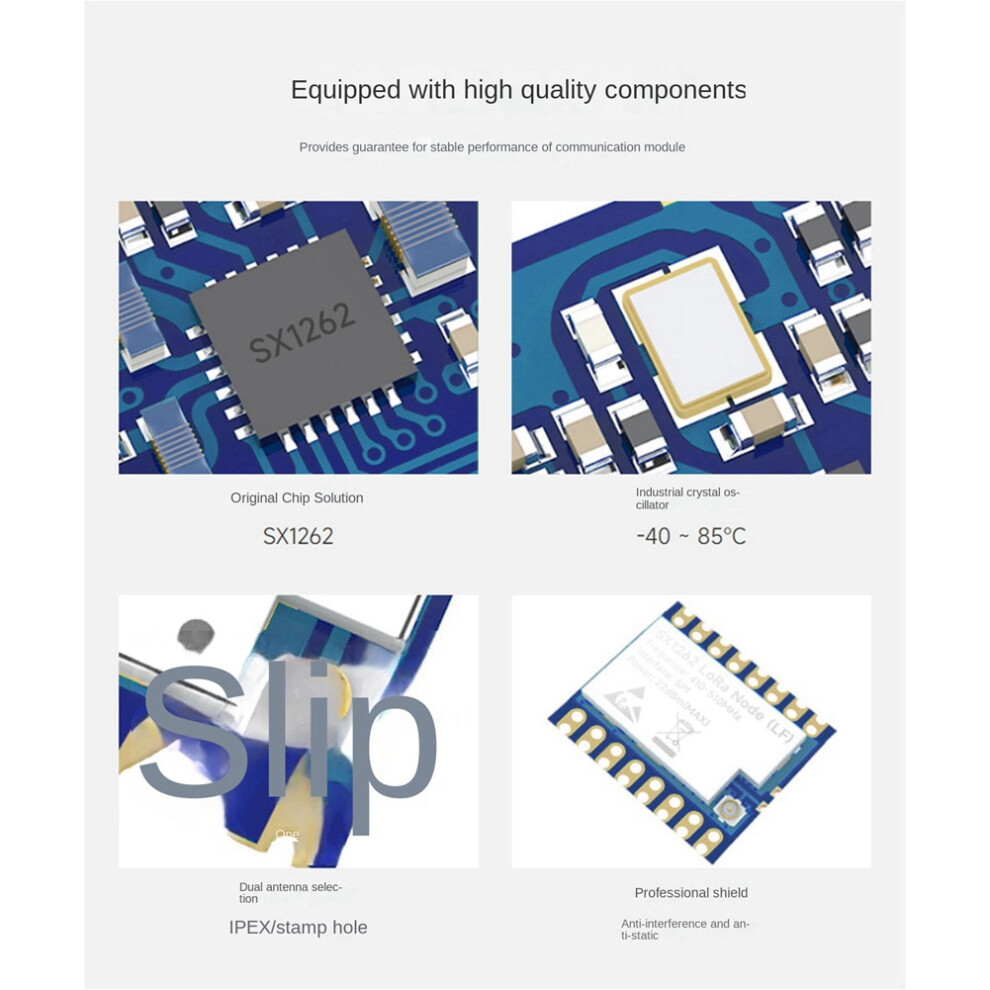

4. High quality components such as TCXO are used for stable operation under harsh conditions

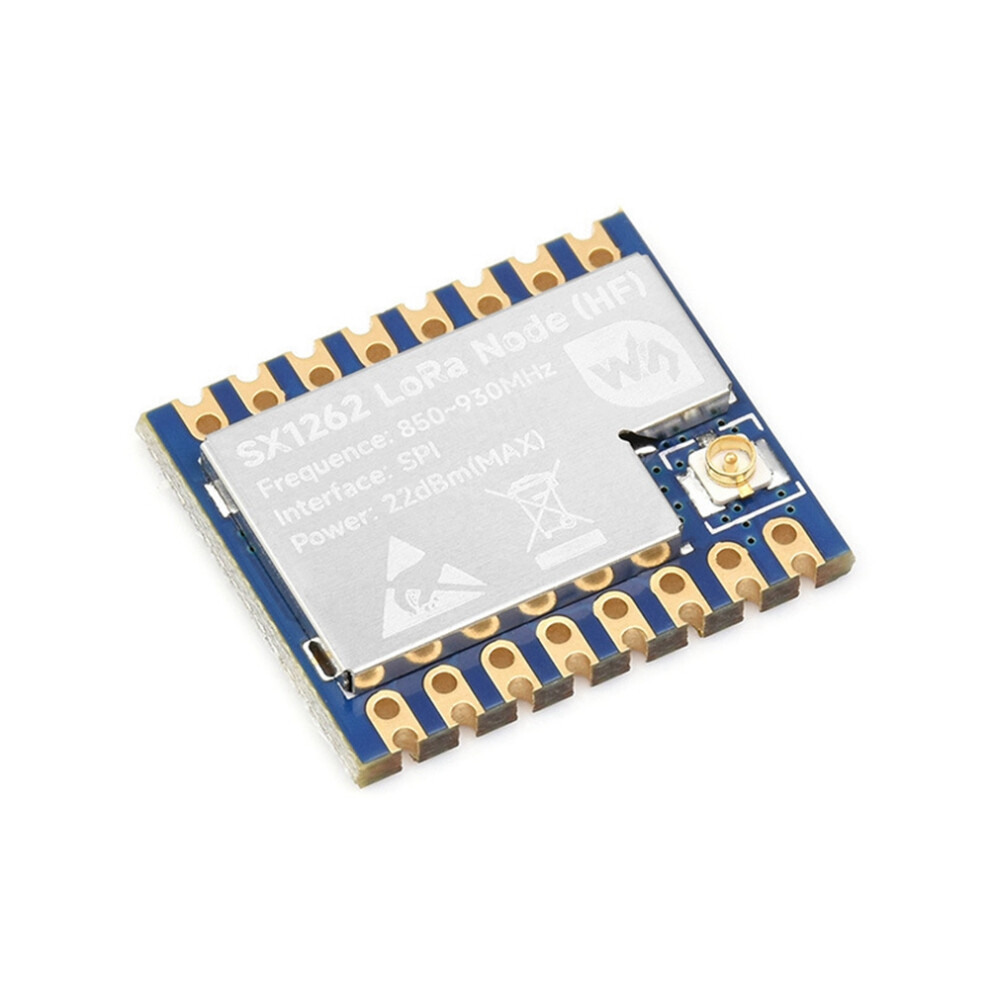

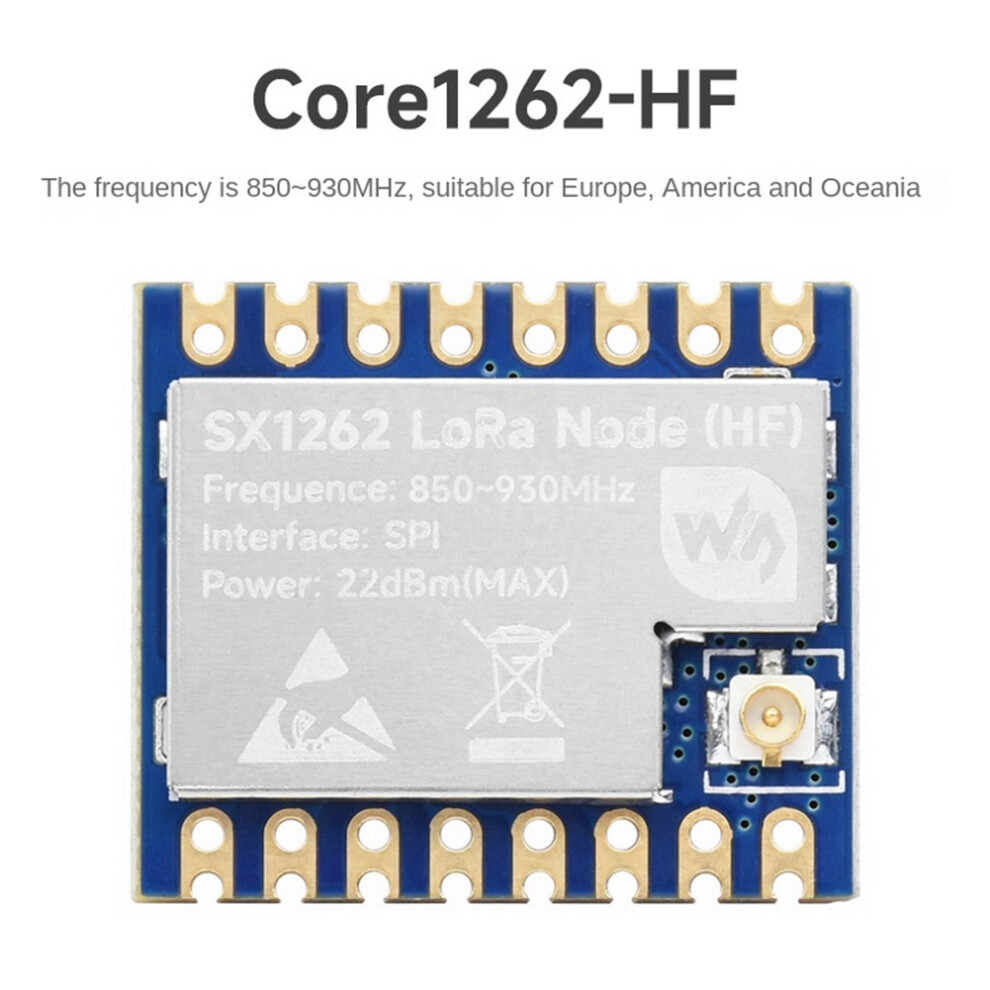

5. Version: Core1262-: version frequency is 850~930MHz, applicable to Europe, America and Oceania;

RF chip: SX1262
Working frequency band: : 850~930MHz;
Signal modulation: LoRa/(G) FSK
Communication rate: LoRa: 0.018~62.5Kbps
(G)FSK:0.6 ~ 300Kbps
Transmission power: [email protected]
Spread spectrum factor: SF5~SF12
Working voltage: 3.3V
Module current consumption:
: Emission current: 45mA@14dBm , receiving current: 5.3mA@125KHz

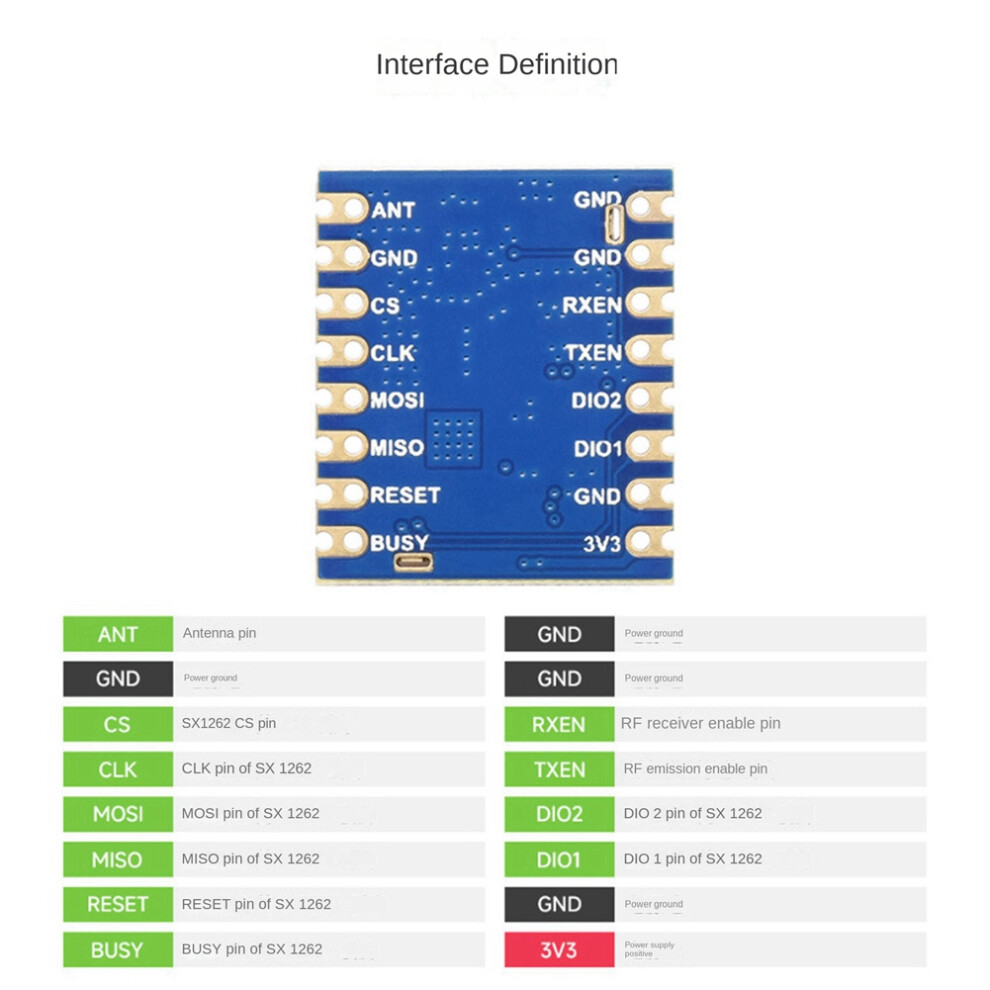

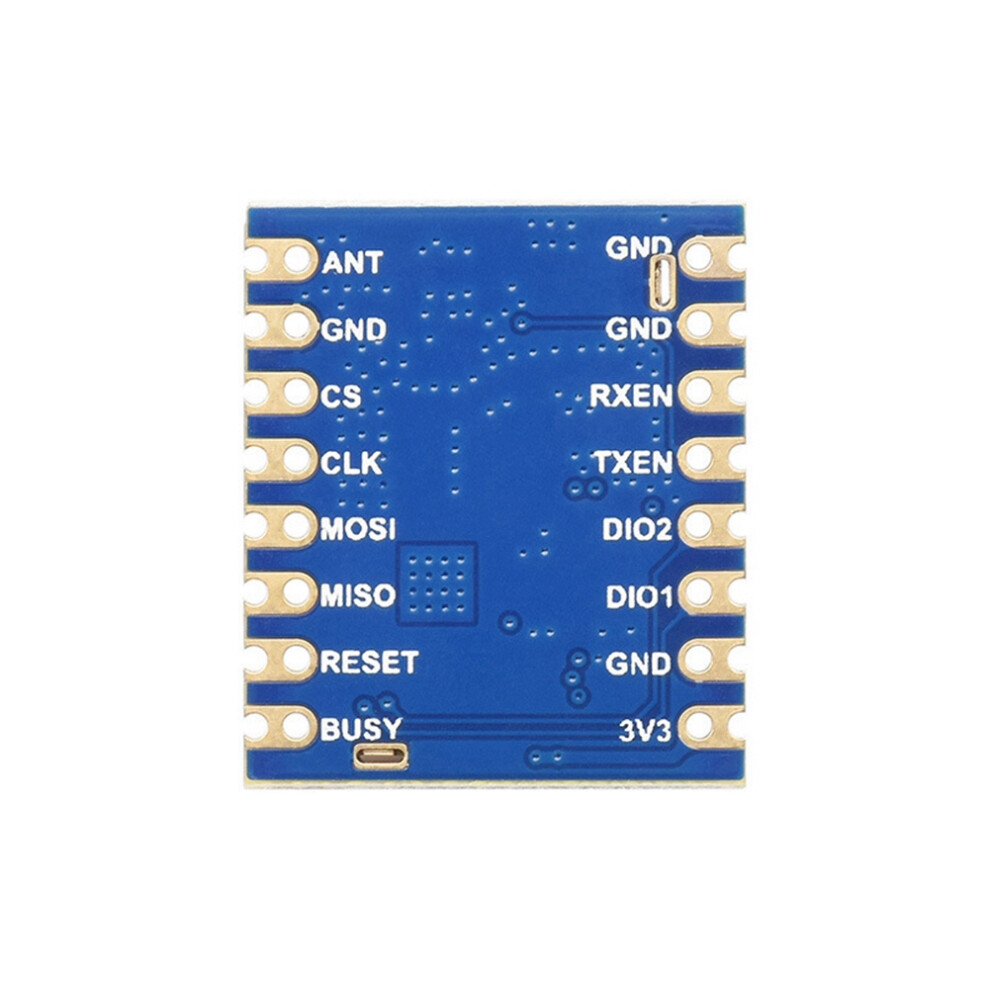

Communication interface: SPI
Operating temperature: 0~85
Interface type: stamp hole/row , spacing 2.54mm
Size: 21.00 x 52.00mm
Colour:
Material:PCB

Package Contents:
1 x Core1262- Module
