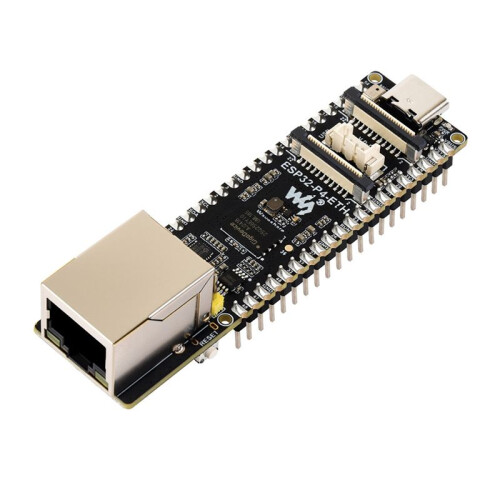

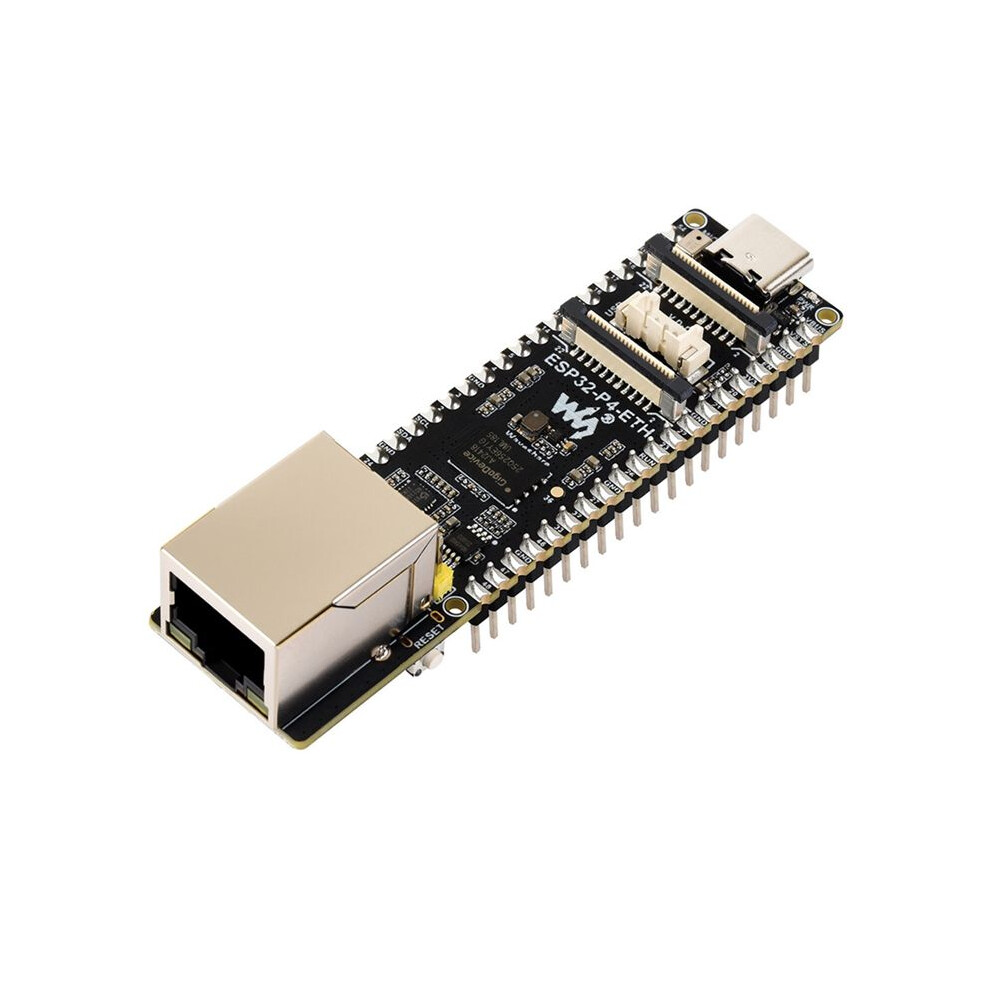

Waveshare ESP32-P4-ETH Development Board Based ESP32-P4 with RJ45 100Mbps Ethernet Port Support AI Deepseek

Waveshare ESP32-P4-ETH Development Board Based ESP32-P4 with RJ45 100Mbps Ethernet Port Support AI Deepseek Kuvaus

High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors
128KB ROM, 16KB LP ROM, 768KB L2MEM, 32KB LP , 8KB TCM
Powerful image and voice processing capabilities, including image and voice processing interfaces such as a JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H.264 video encoder
32MB PSRAM embedded within the chip package, and 32MB external NOR Flash integrated
Common peripheral interfaces such as MIPI-CSI, MIPI-, USB 2.0 OTG, Ethernet, SDIO 3.0, card slot, microphone and speaker terminals are provided the board

2x20 pin headers provide 27 remaining programmable GPIOs
Security mechanisms include secure boot, flash encryption, hardware encryption accelerator, and hardware random number generator. Hardware access protection is also supported, enabling access privilege management (APM) and privilege separation.
Color:As Shown
Material:PCB

Package Contents:
1 * Development Board
