Waveshare Industrial Grade ESP32-S3 6CH WiFi Relay Module Supports WiFi//RS485/ Interface Relay

Waveshare Industrial Grade ESP32-S3 6CH WiFi Relay Module Supports WiFi//RS485/ Interface Relay Kuvaus

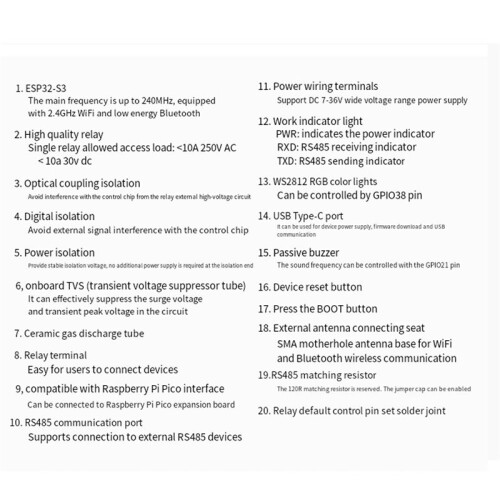

Based the ESP32-S3 microcontroller, it is equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of to 240MHz.
Integrated 2.4GHz WiFi and LE dual-mode wireless communication, with superior radio frequency performance

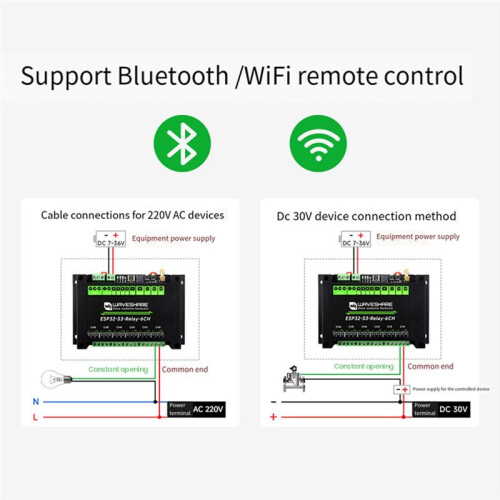

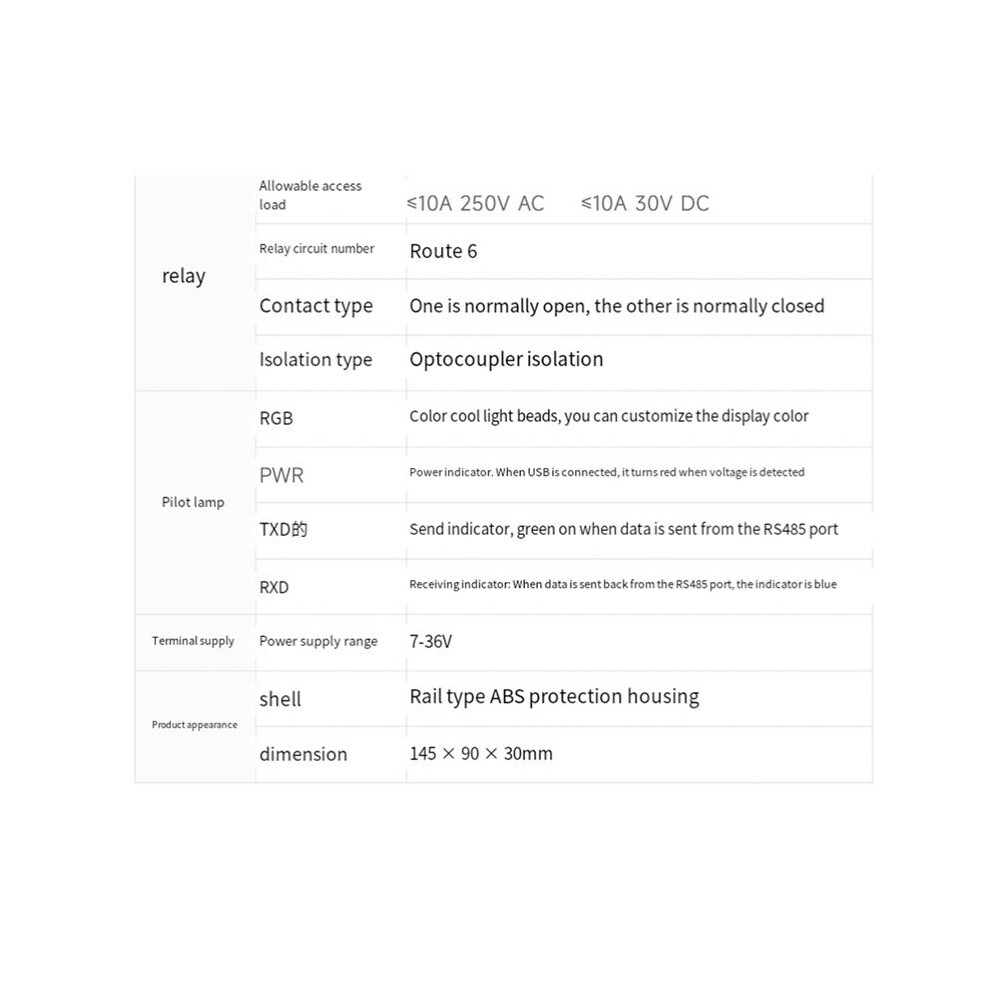

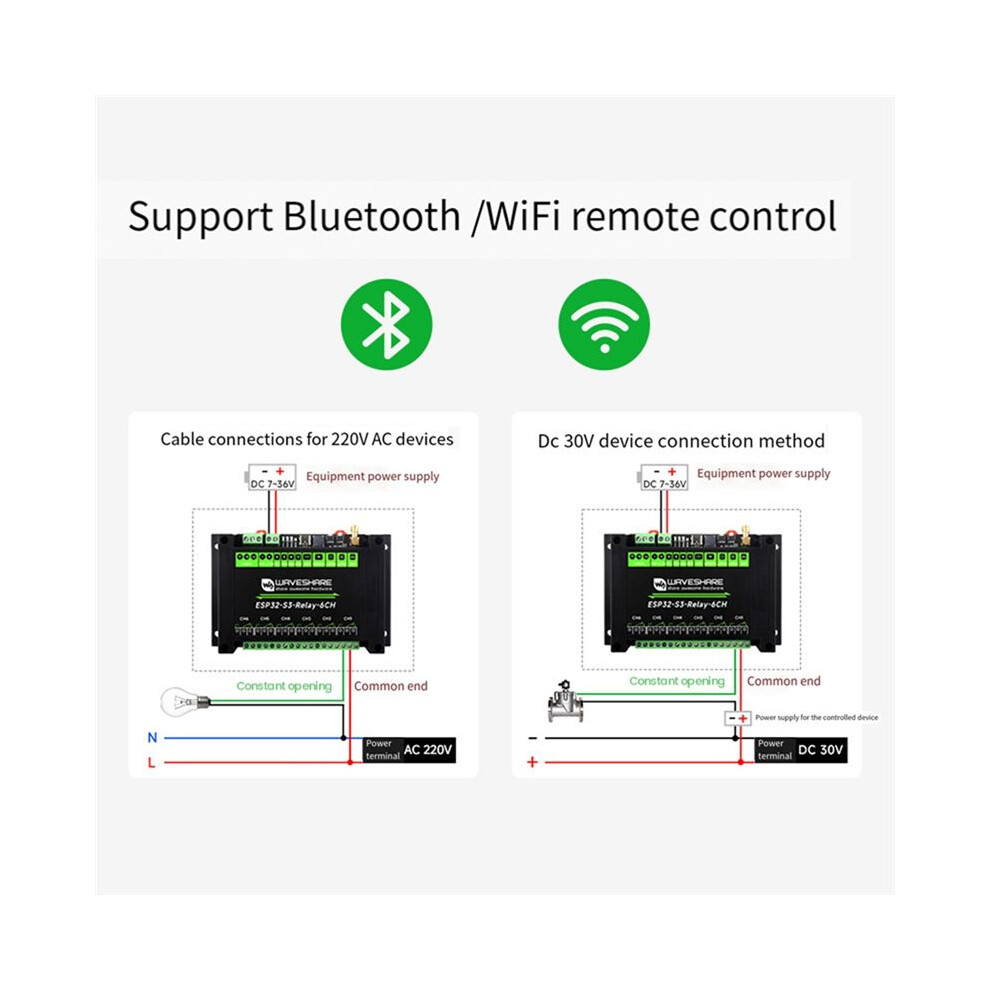

Use high-quality relays to allow access to loads: less than equal 10A 250V AC or less than equal 10A 30V

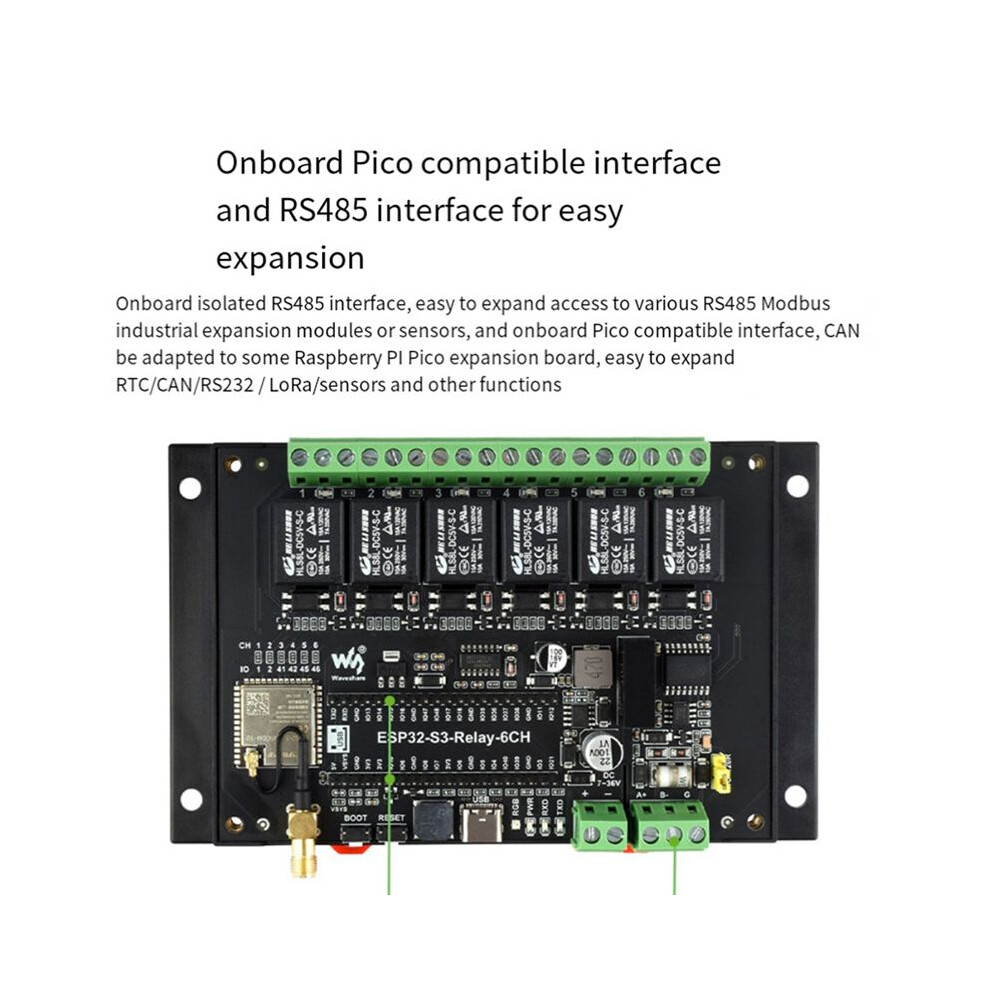

The onboard isolated RS485 interface facilitates external expansion and access to various RS485 Modbus industrial expansion modules or sensors.

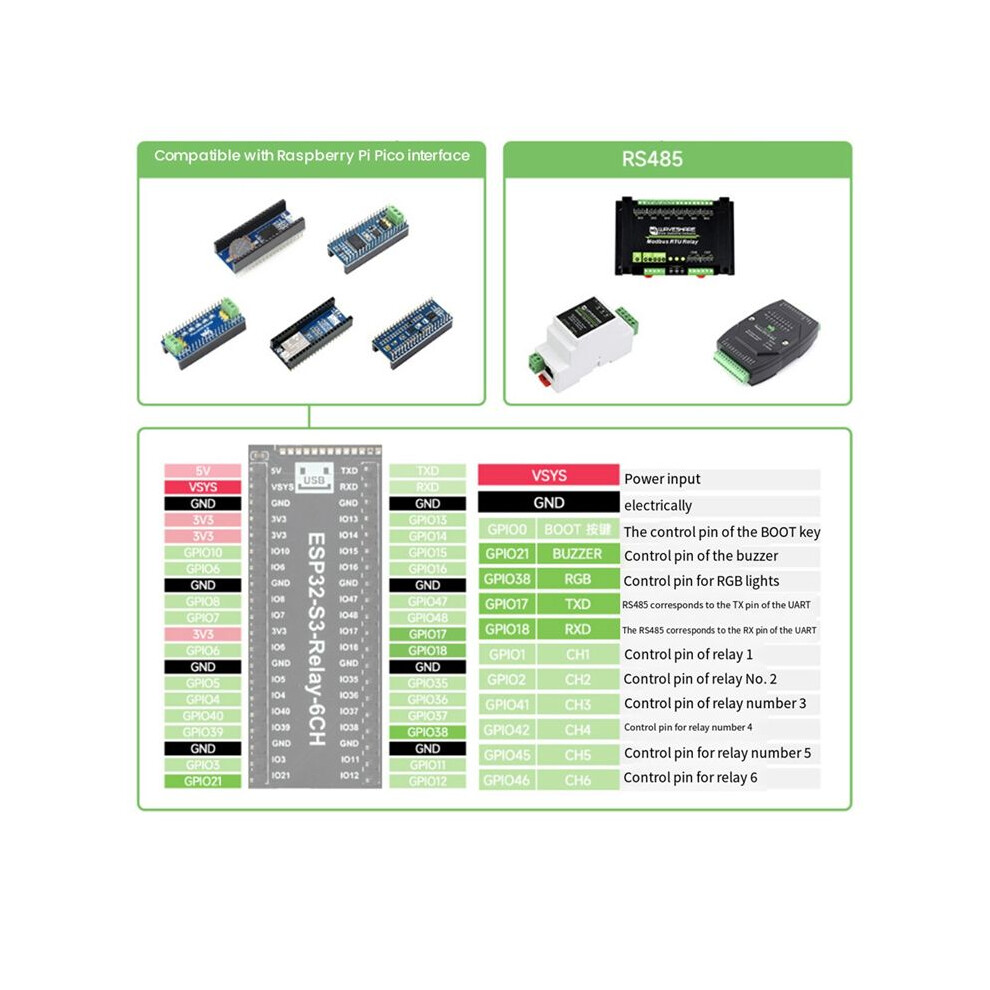

The onboard compatible interface can be adapted to some for Raspberry Pi expansion boards to facilitate the expansion of RTCI/CAN/RS232/LoRa/sensor and other functions.

Onboard USB Type-C interface can be used for power supply and download debugging, convenient for development and use
There is a terminal block power supply interface the board, which supports a wide voltage range of 7-36V, making it convenient for industrial power supply.
Onboard optocoupler isolation prevents the relay from being connected to an external high-voltage circuit from interfering with the control chip
Onboard digital isolation to prevent external signals from interfering with the control chip
Onboard integrated power isolation provides stable isolation voltage and no additional power supply is required at the isolation end.
Onboard buzzer, RGB lights, and power and RS485 transceiver indicators make it easy to sense the operating status of the device

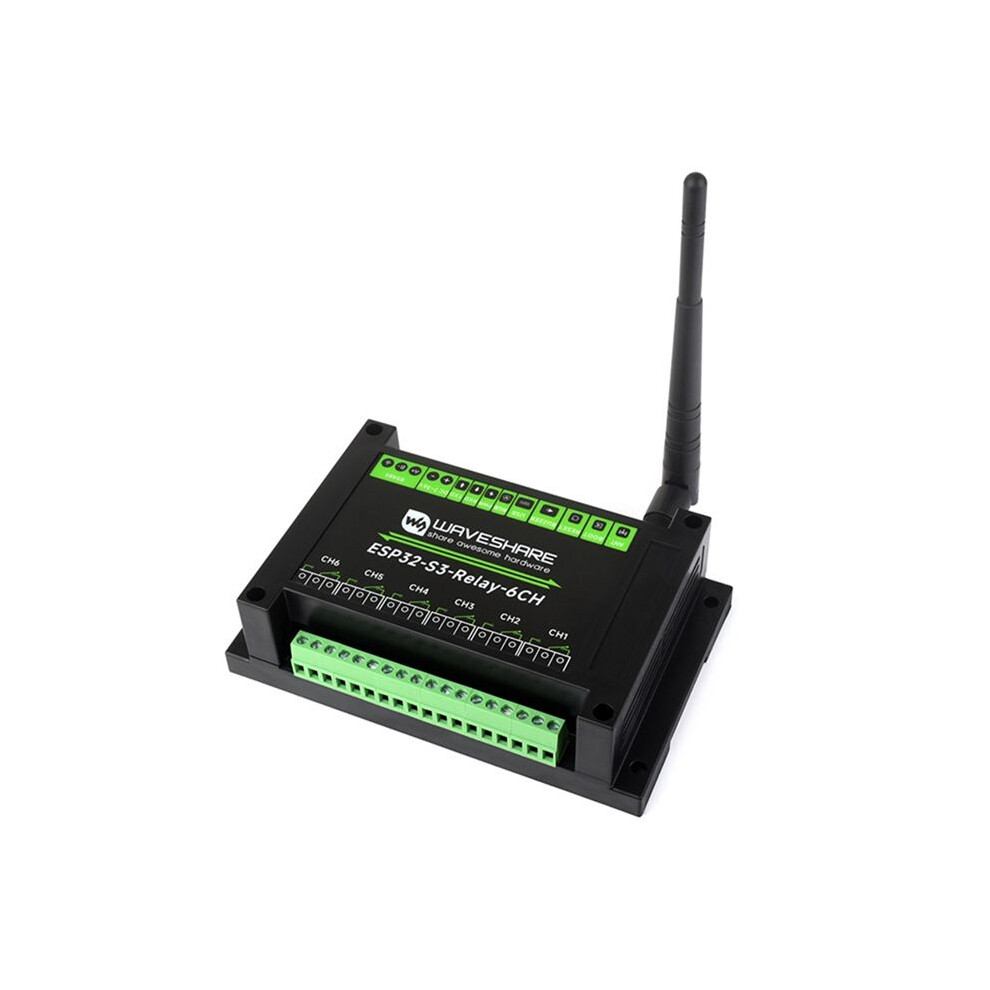

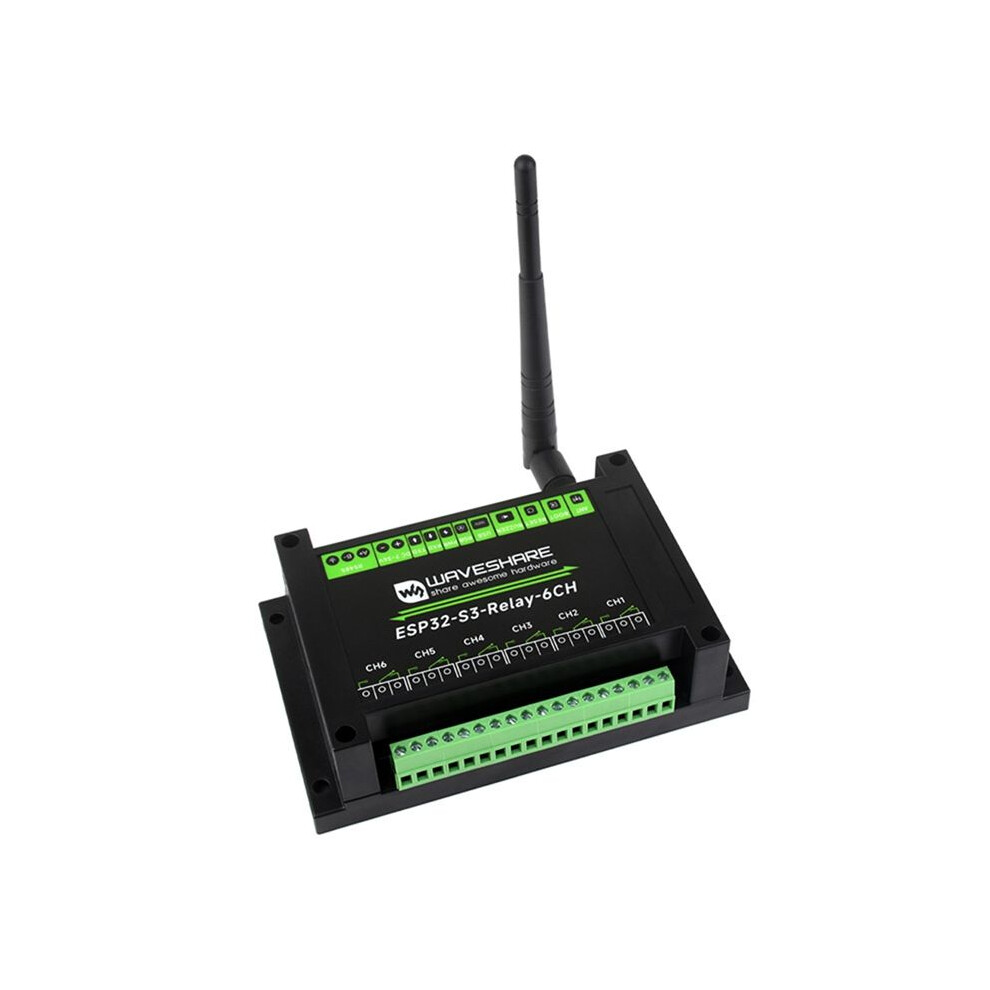

Rail-type ABS protective shell, easy to install and use, safer with shell
Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.
Colour:Black
Material:ABS

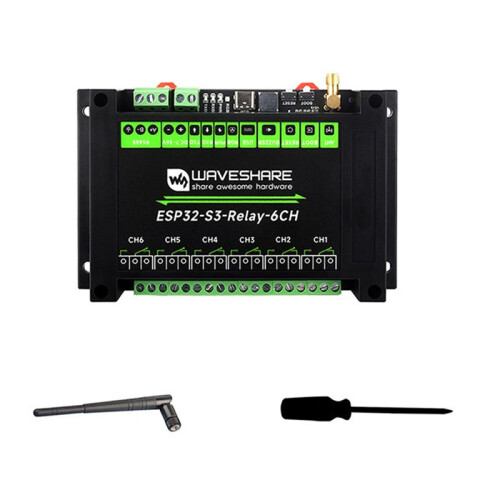

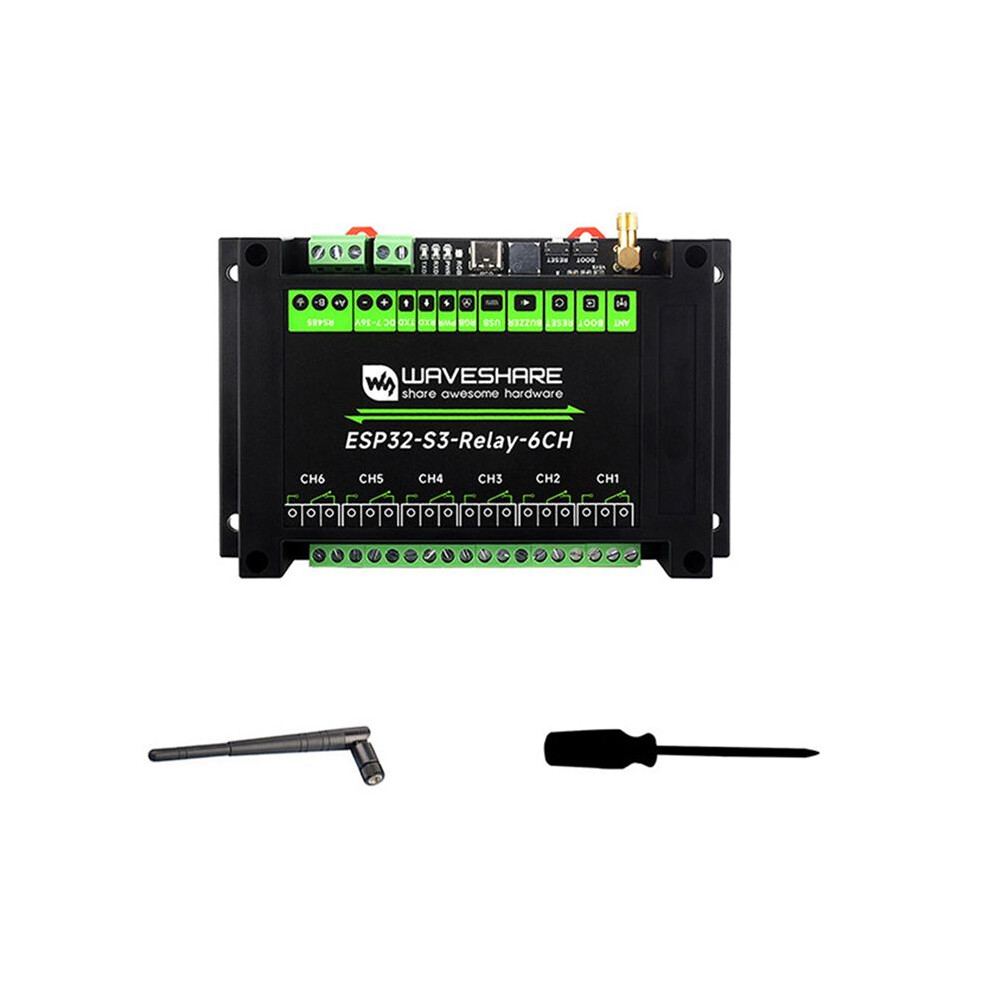

Package Contents:
1 * ESP32-S3-Relay-6CH
1 * Antenna 2.4G 4DB SMA inner pin
1 * Screwdriver
