Yhteenveto
- The CAN FD to RS232/RS485 converter is a DIN-rail-mountable bidirectional CAN FD to RS232/RS485 converter. It features high speed, low latency, stable performance, ease of use, and a high cost-effectiveness. It supports five data conversion modes: transparent, transparent with ID, standard protocol, Modbus, and custom header and trailer. It interconnects CAN and serial devices and is compatible with CAN FD and CAN 2.0A/2.0B protocols.

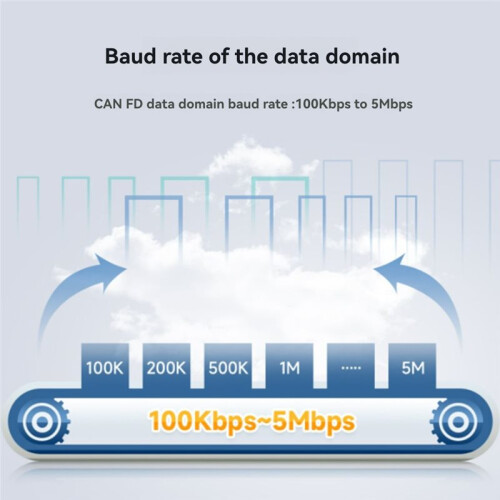

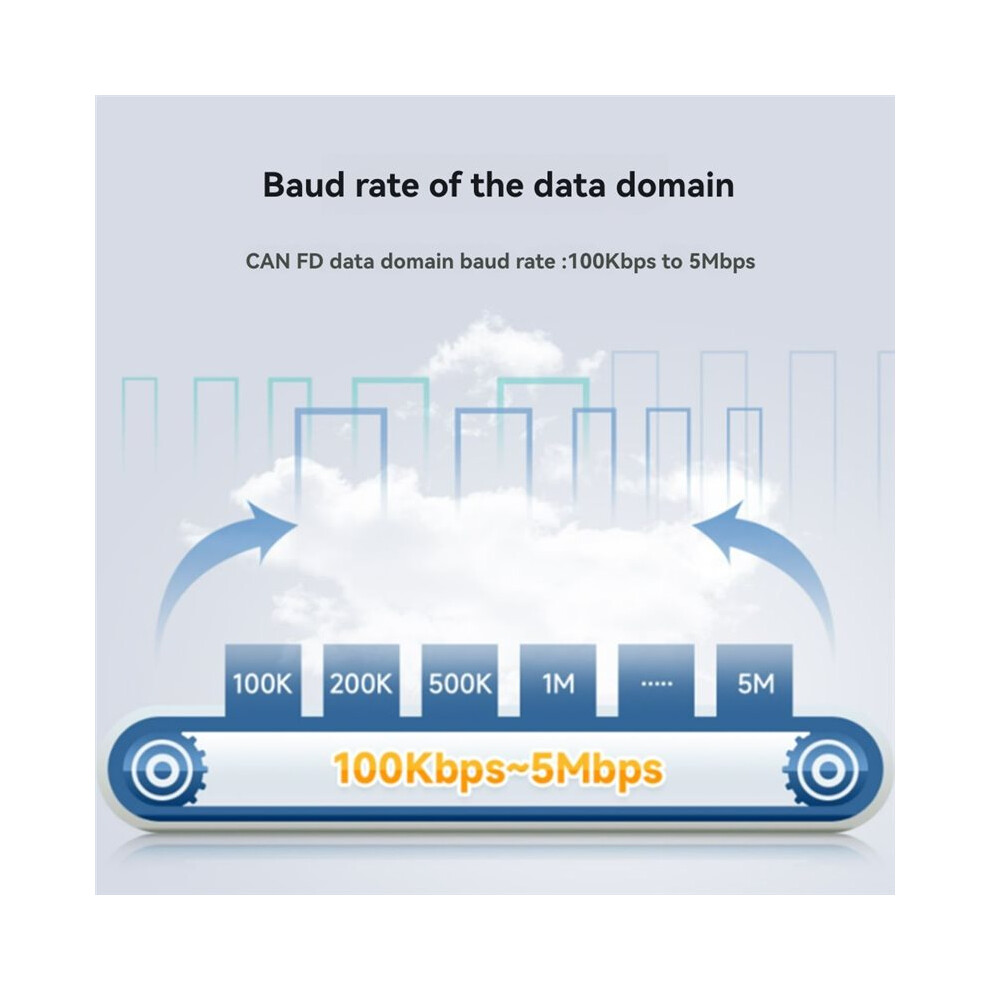

- It features an industrial-grade design, stable operation in an operating temperature range of -40°C to 85°C, and supports a wide power supply range of 9V to 36V. Its arbitration domain baud rate ranges from 5Kbps to 1Mbps, and its data domain baud rate ranges from 100Kbps to 5Mbps.
- The device supports PC software configuration, comes with a built-in 1200Ω bus resistor (with DIP switch for quick access), and supports DIN-rail mounting, making configuration and installation easy and efficient.
- Protocol Converter
- CAN FD Converter
Waveshare Protocol Converter Support CAN FD Protocol Five Conversion Modes Industrial Performance Support DIN-Rail Mounting Kuvaus
The CAN FD to RS232/RS485 converter is a DIN-rail-mountable bidirectional CAN FD to RS232/RS485 converter. It features high speed, low latency, stable performance, ease of use, and a high cost-effectiveness. It supports five data conversion modes: transparent, transparent with ID, standard protocol, Modbus, and custom header and trailer. It interconnects CAN and serial devices and is compatible with CAN FD and CAN 2.0A/2.0B protocols.
It features an industrial-grade design, stable operation in an operating temperature range of -40C to 85C, and supports a wide power supply range of 9V to 36V. Its arbitration domain baud rate ranges from 5Kbps to 1Mbps, and its data domain baud rate ranges from 100Kbps to 5Mbps.
The device supports PC software configuration, comes with a built-in 1200Ω bus resistor (with DIP for quick access), and supports DIN-rail mounting, making configuration and installation easy and efficient.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color:White
Material:ABS
Package Contents:
1 * Converter
Tiedot
| OPC | PWQHMJC |
|---|---|
| Koodit | 6032142844406 (EAN) |
| Tuote- ja turvallisuustiedot |
Tuotetiedot
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.13kg |
| Colour | White |
| Material | ABS |
