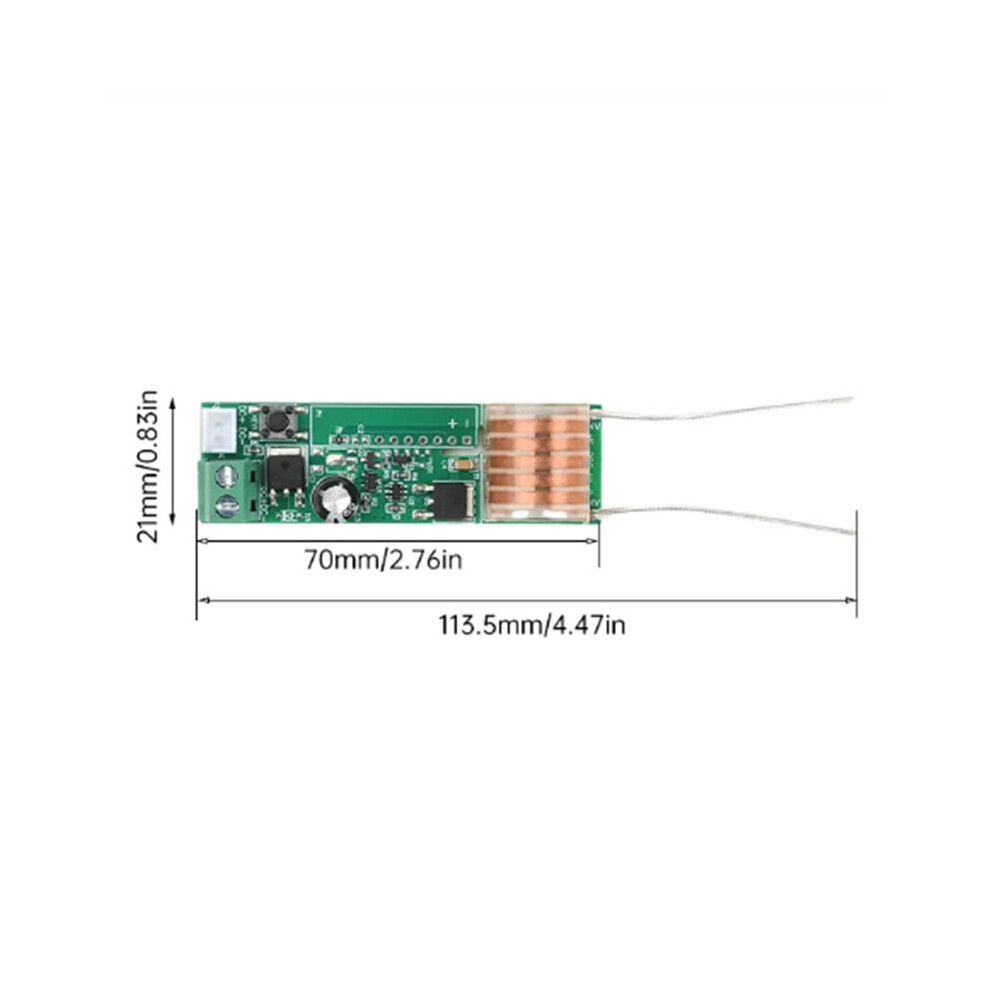

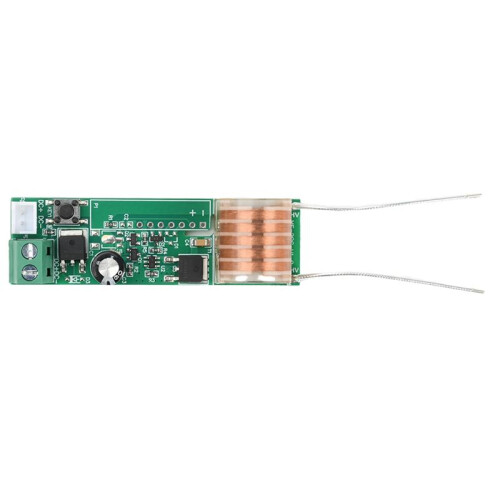

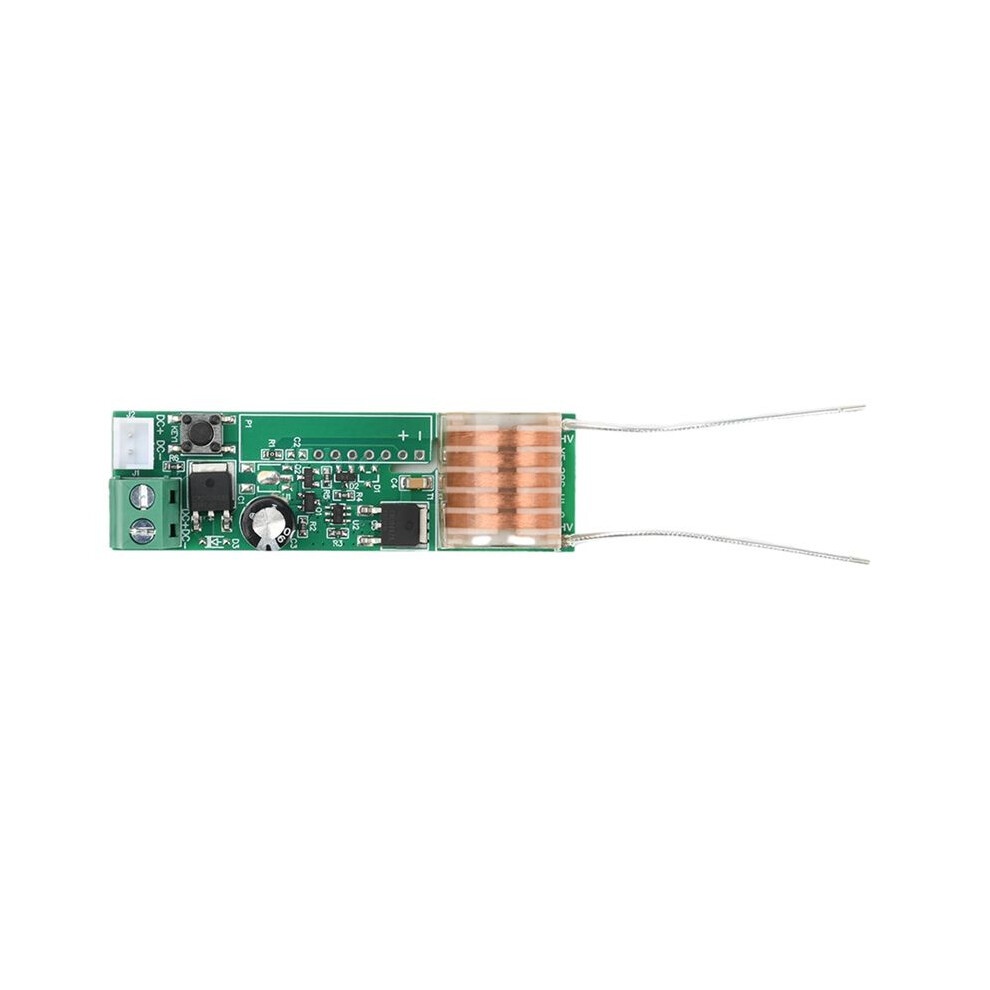

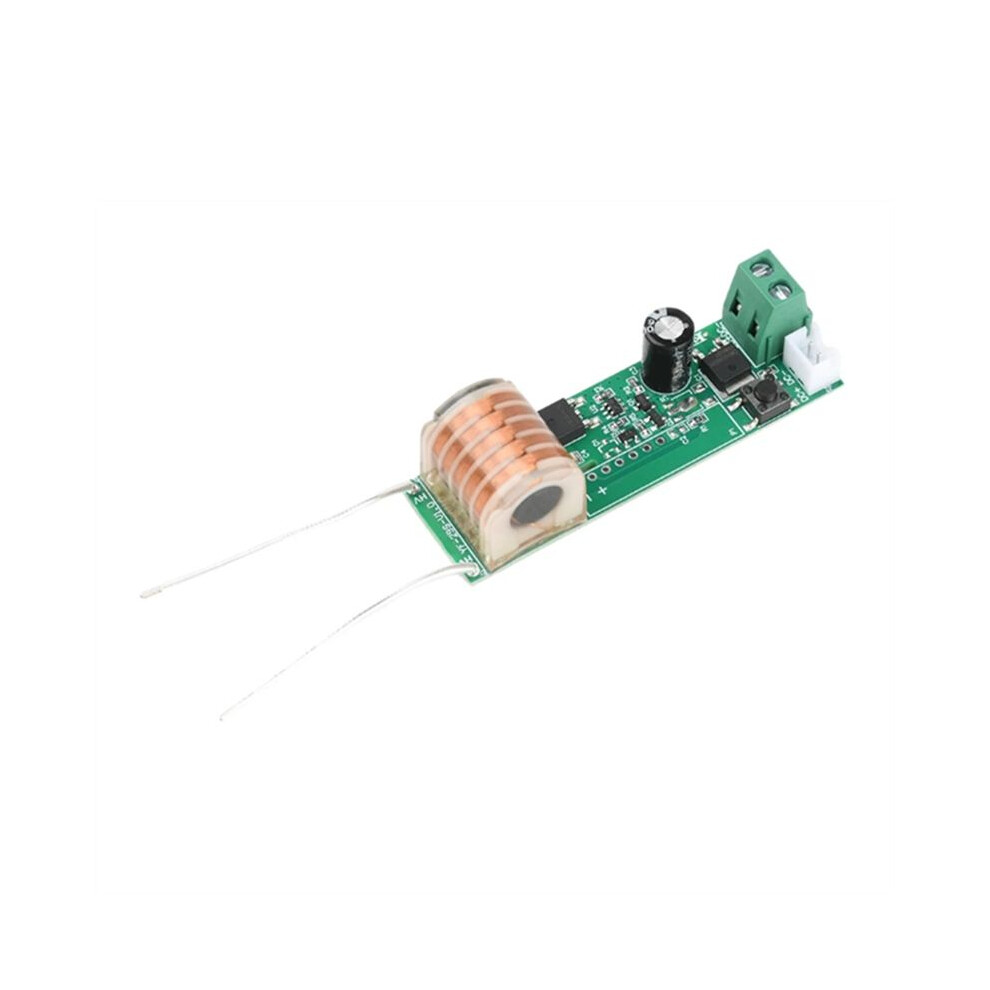

YF-29S Pulse Arc Igniter High Voltage Package Drive Board Arc Cigarette Ignition Igniter Module Electronic Lighter Kit

YF-29S Pulse Arc Igniter High Voltage Package Drive Board Arc Cigarette Ignition Igniter Module Electronic Lighter Kit Kuvaus

1. 4-10V wide voltage input, output to 15KV, strong ignition performance
2. high-temperature arc stabilization, silent operation, easy to ignite paper and cigarette smoke
3. Resin encapsulated transformer design, high security, support long-term continuous work
4. Equipped with anti-reverse connection protection function, keypad/remote control operation is convenient, safe and reliable
5. The discharge needle adopts high temperature resistant iron metal, the tip structure concentrates the , and the discharge is highly efficient

Product Name: Pulse Arc Igniter
Supply voltage: 4-10V
Output power: Less than 2A
Output voltage: about 15KV
Working : recommended within 1-30 seconds
Arc distance: 5-8mm
Description:
This product input terminal connected to 4-10V, secondary high-voltage output is not connected to high-voltage rectifier diodes and capacitors, the output of the two-stage end can produce Less than 0.8 cm long high-temperature arc, no crackling sound, but the temperature is very high, you can easily and instantly point the paper to point the smoke, and even a very fine wire burned sparks (such as junior high school chemistry test when a fine wire burning scene in oxygen, but not as intense as in oxygen). The transformer has been encapsulated in resin, high security, can be long-term reliable continuous work, but it is recommended that each cigarette light energized not more than 1 minute, pay attention to heat dissipation.
Uses: secondary school science experiments, electronic instruments, negative ion generator, science small production. This circuit produces a stable high-frequency arc when working, the temperature is very high, can easily ignite combustible materials, so some people call it a plasma lighter.
Color:Green
Material:PCB
