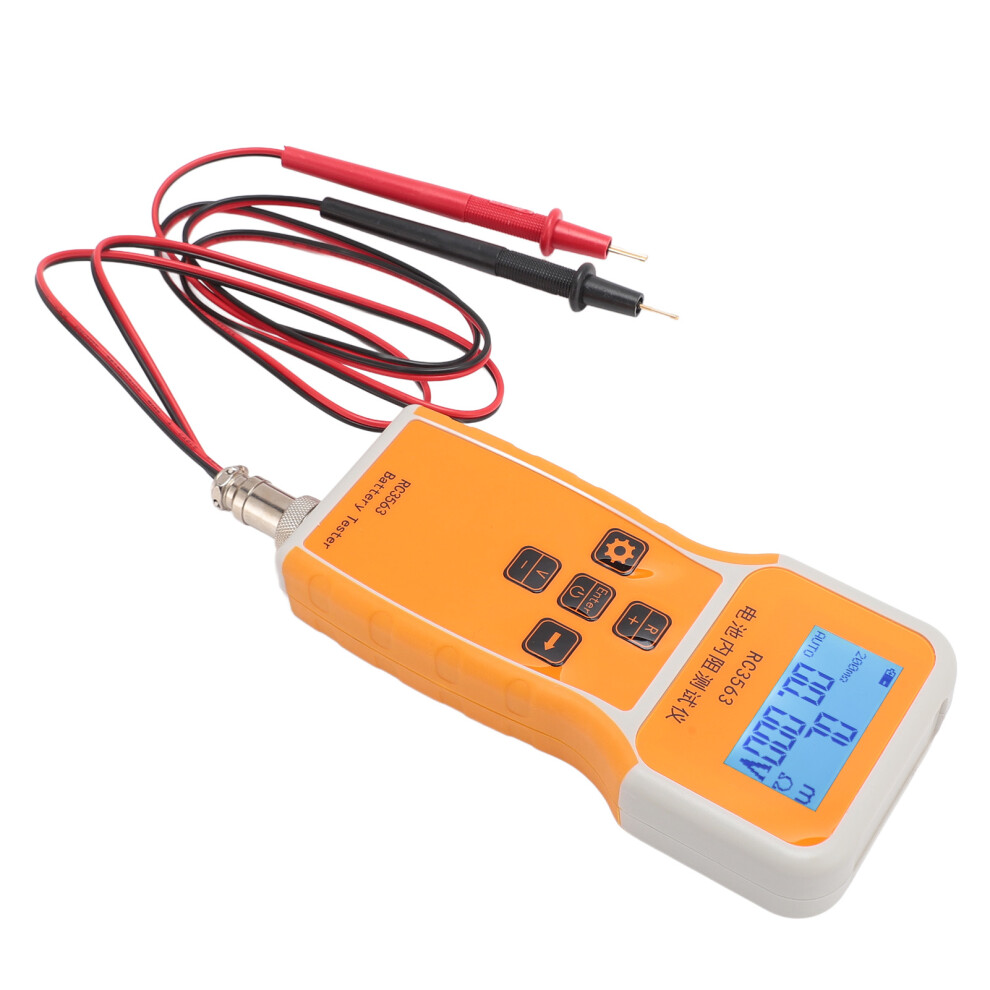

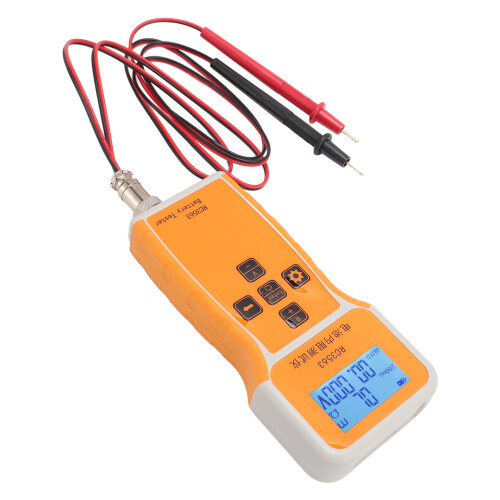

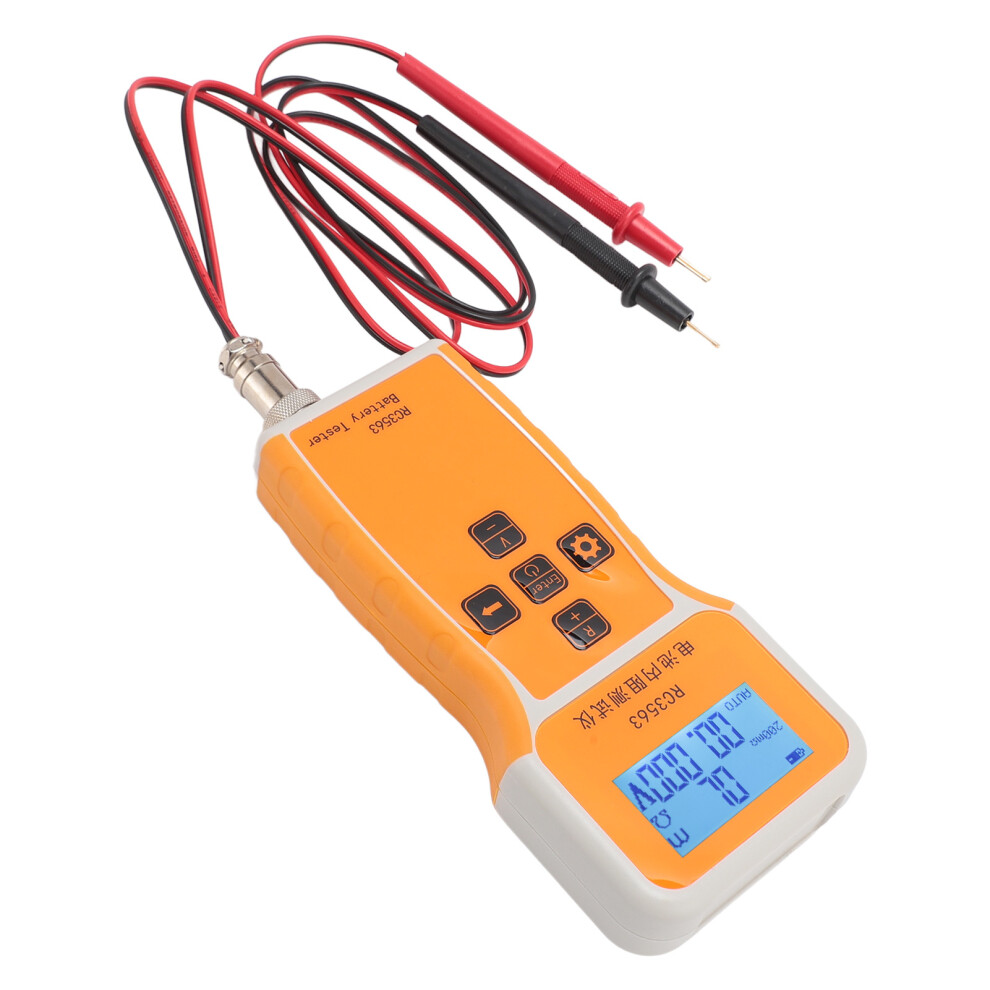

RC3563 1000mAh ABS Handheld Battery Tester LCD

Description de RC3563 1000mAh ABS Handheld Battery Tester LCD

RC3563 Battery Tester High Accuracy Handheld Battery Internal Resistance Tester with LCD Display Screen
Item Type: Battery Internal Resistance Tester
Material: ABS
Rated Operating Conditions:
Working Environment: -10 To +40 Relative Humidity <80%
Storage Environment: -20 To +80 Relative Humidity <80%.
Technical Specifications:
Basic Accuracy Of Resistance: 0.5%
Basic Accuracy Of Voltage: 0.5%
Resistance Measurement Range: 1uΩ-200Ω
Voltage Measurement Range: 0.0001V To 100VDC
Test Signal Frequency: AC 1KHz
Test Signal Current: 2mΩ 20mΩ 50mA
200mΩ 2Ω Gear 5mA
20Ω 200Ω Stages 0.5mA
Serial Port: Need To Be Opened In The Machine To Communicate With The Computer, The Default Is Closed, Baud Rate Of 115200
Resistance Range: 6 Ranges Automatically And Manually.
Voltage Range: 3 Ranges Automatically And Manually
Display Update: 5 Times Per Sec
Resistance Calibration: Each Range Individually Calibrated Manually, Do Not Affect Each Other
Calibration XY Calibration: Belong To The Resistance Calibration Range, Recalibrate, Enter Into The Resistance Calibration, Press The Setup "SET" Key, Enter Into The Calibration.
CALXY Calibration, At This Time, You Must Clamp The Calibration Resistor Around 20mΩ, Long Press The R Key, X, Y Calibration Results, Calibrate In The Same Number For Many Times Is Good
Voltage Calibration: Each Range Is Calibrated Manually Without Affecting Each Other.
Factory Settings: Save The Factory Information, One Key Can Restore The Factory Status.
Backlight Control: Enter The Setting Menu To Turn Off And On.
Energy Saving Settings: 20 Minutes Delay, No Operation Automatically Shutdown
Charging Power: 5V 1A Charging, Suitable For Android Phone Charger (Not Included)
Built In Lithium Polymer Battery: 1000mAh
