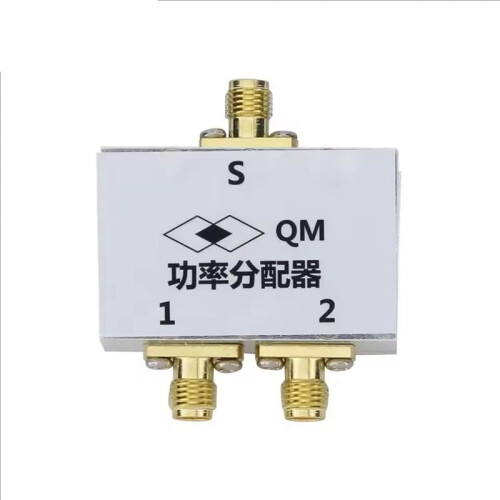

1-700MHz RF Power Divider Combiner Power Splitter Intermediate Frequency Power

1-700MHz RF Power Divider Combiner Power Splitter Intermediate Frequency Power Περιγραφή

Technical parameters of power divider:
Performance: One to two power equal division,
model: PD017020S;
Operating frequency: 1MHZ-700MHz;
Typical insertion loss: 0.6dB (excluding 3dB allocation ratio)

Typical isolation of branch port: 20dB (typical value)
Phase imbalance: 2
Amplitude imbalance: 0.1dB
Maximum carrying power: 33dBm (2W);
Input/output impedance: 50Q;
Interface: SMA (outer screw inner hole)
Power divider (abbreviated as power divider) is a fundamental circuit in RF and microwave circuit systems. This module covers a frequency range of 1MHz-700MHz, including FM, 325M, 433M, and other typical clock distribution frequency points, achieving power division. It can also be used as a combiner and is widely used in clock distribution multi-channel output and intermediate frequency signal division. The module has a low insertion loss and high isolation structure, which is compact and easy to integrate with other devices
Colour:As Shown
Material:CNC

Package Contents:
1 * RF Power Divider
