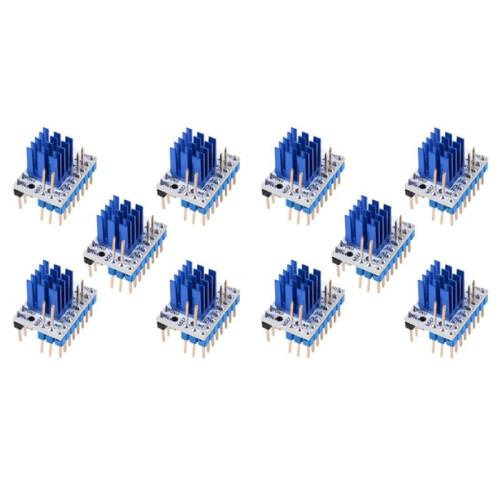

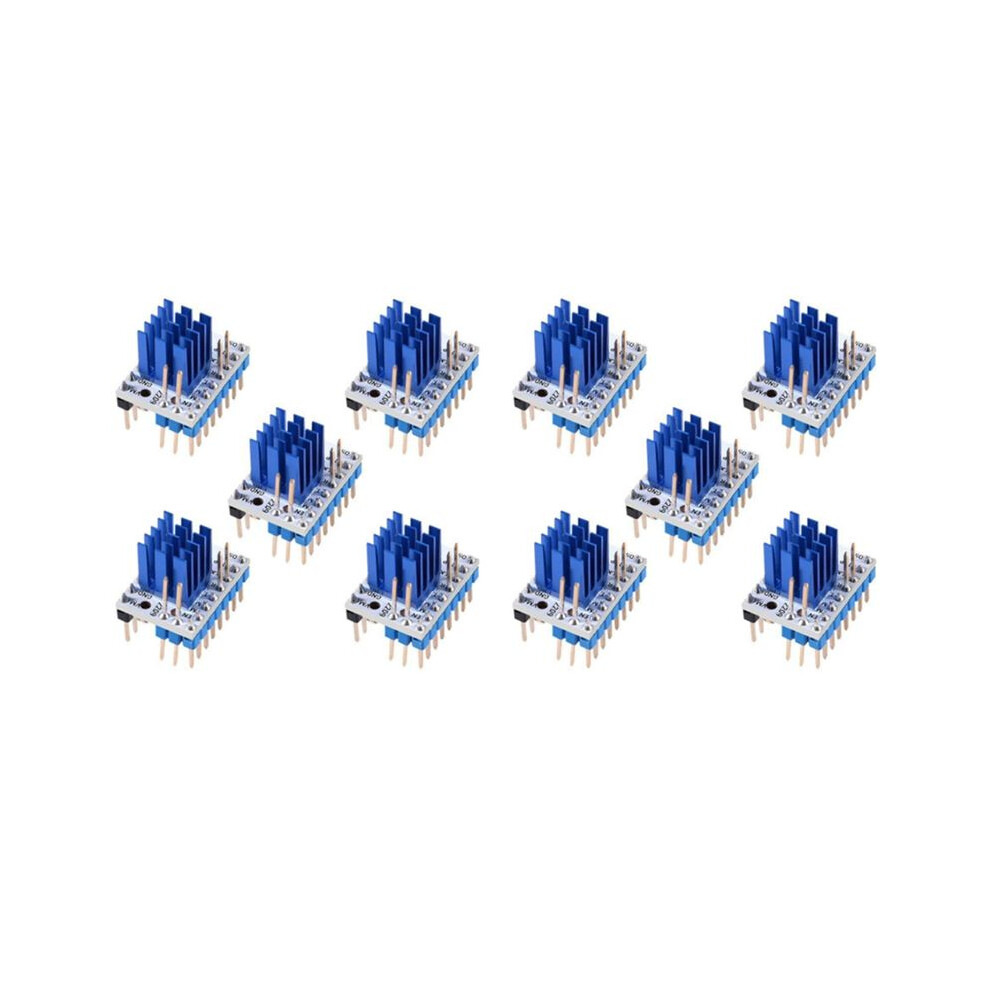

10Pcs TMC2209 V3.0 Stepper Motor Driver Stepping Rod Silent Driver 256 Microstep Current 2.8A VS TMC2208

10Pcs TMC2209 V3.0 Stepper Motor Driver Stepping Rod Silent Driver 256 Microstep Current 2.8A VS TMC2208 Περιγραφή

For StepStick and Pololu A4988 compatible hardware
Drive capability to 1.7A (RMS) continuous coil current -2.8A
Step / Dir interface with microstep interpolation ( to 256 microsteps)
Configure via CFG pin or UART interface
stealthChop2-for quiet operation and smooth motion

Extended period-high dynamic motor control chopper (available through UART, OTP, CFG pins
Enable) coolStep-current control to save
Stall Guard4-sensorless motor load detection
TMC2209 is an ultra-quiet motor driver IC for two-phase stepper motors. TMC2209 is pin compatible with many traditional drivers and TMC2208. TRINAMICs' advanced StealthChop2 chopper ensures noise-free operation of the motor, achieving high efficiency and motor torque. Its combination of fast current regulation and resonance suppression function can achieve high dynamic movement. StallGuard is used to return to the origin without sensor to prevent stalling. The built-in power MOSFET can handle motor currents to 2A RMS, with protection and diagnostic functions, and stable and reliable operation. An easy-to-use UART interface opens tuning and control options. Store application tuning in OTP memory. The drive can be set for noise-free operation and very precise operation through a separate pulse direction, thereby achieving a cost-effective and highly competitive solution
Colour:+white
Material:plastic
Size:2.01x1.51cm

Package Contents:
10 x TMC2209 V3.0
10 x radiator
