2 Piece of 12V-36V Voltage Protection Module, Discharge Protection Module, Low Power Disconnect

2 Piece of 12V-36V Voltage Protection Module, Discharge Protection Module, Low Power Disconnect Περιγραφή

Instructions: When a new battery is used for the first , the rated voltage value is close to the actual value. To judge the stop discharge voltage, a reasonable discharge voltage value can be obtained according to the universal voltage calculation method of the battery.
When the old battery is used, the actual voltage value and the rated voltage value are quite different, so you need to measure the end voltage value in actual use.
Battery charging usually uses slow charging (fast charging can be relatively large in voltage and current, but it is easy to damage the battery.) The charging voltage of slow charging is 1.2 times the rated voltage, and the charging current is adjusted to about 2/10 of the rated capacity current of the battery. For example: the charging voltage of a 6V 50Ah battery is about 7.2 volts, and the charging current is adjusted to 10A.
Reference formula: charging voltage = rated voltage X1.2 charging current = rated current X0.2

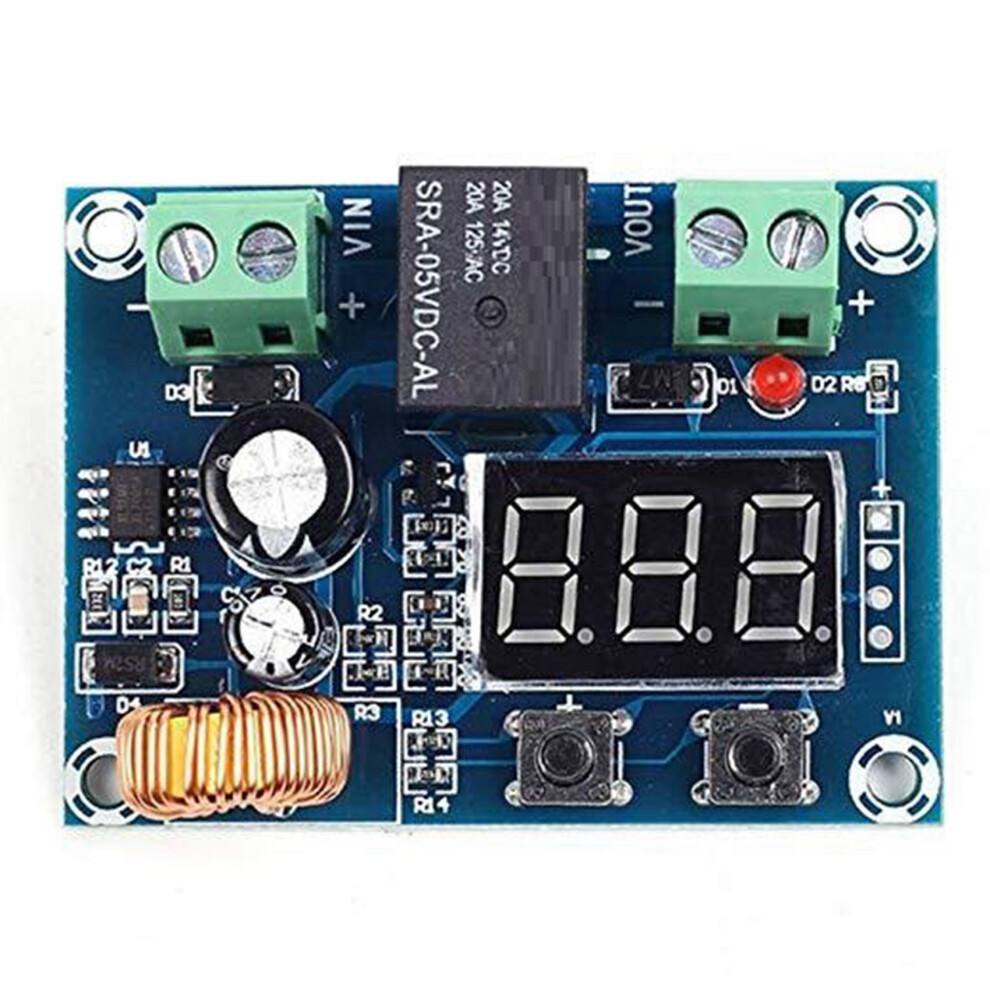

Product name: Battery over-discharge protection module

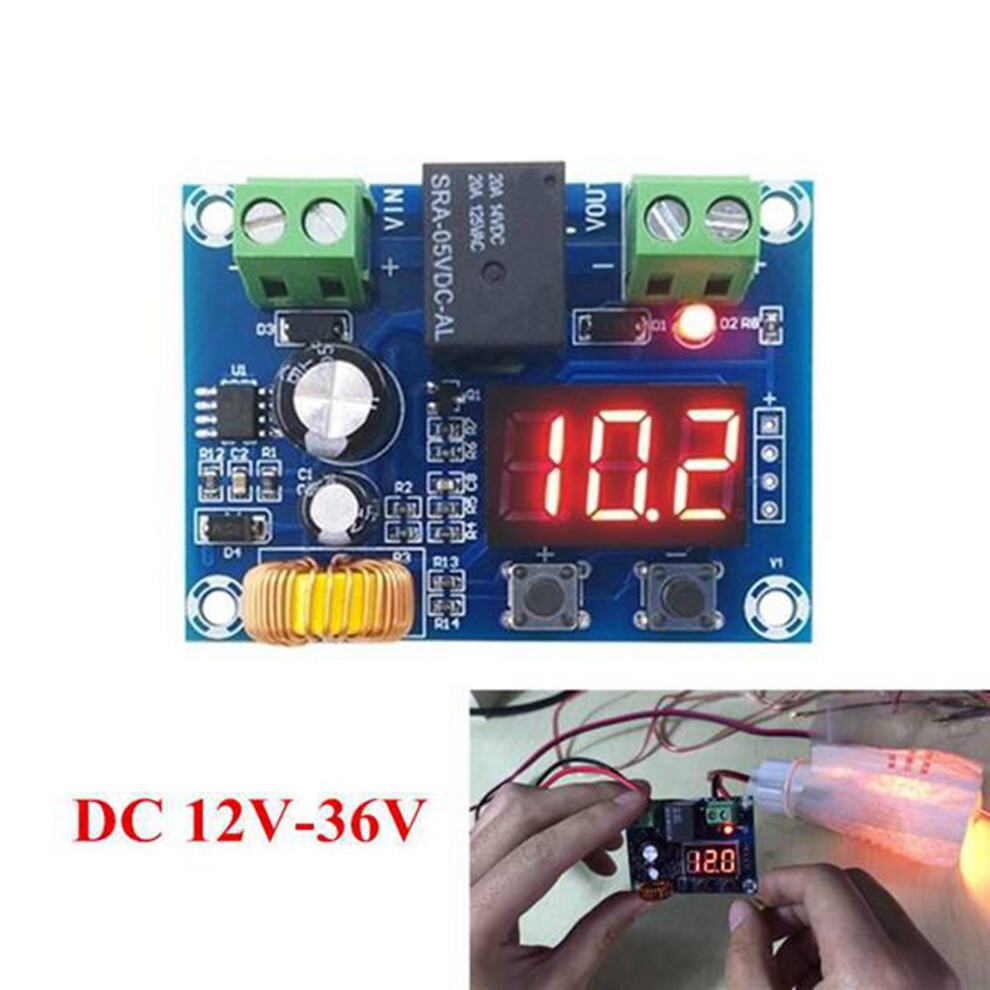

Power supply voltage: 12-36V
Output voltage: equal to the supply voltage
Control accuracy: 0.1V
Power consumption: less than 1.5W
Range of use: various storage batteries/lithium batteries
Net weight: 56g

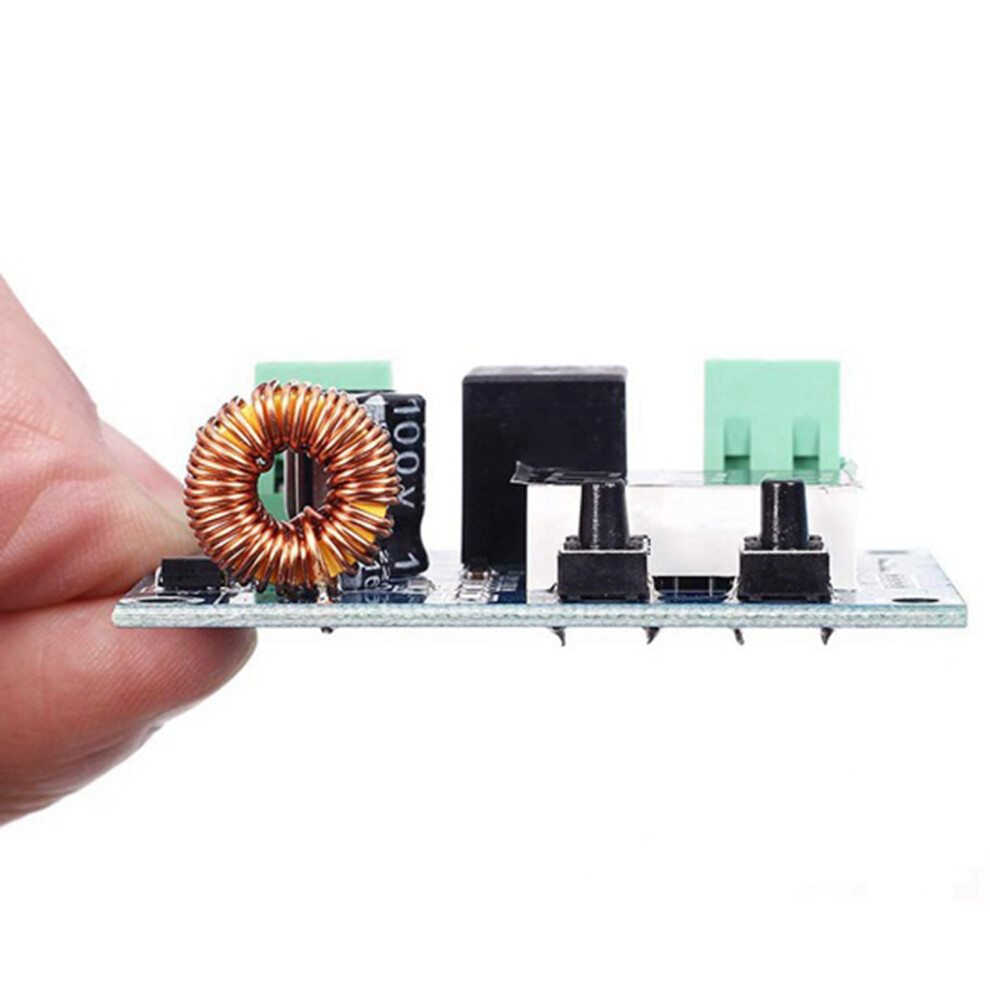

Product size: 57 x 42 x 19mm
Scope of application

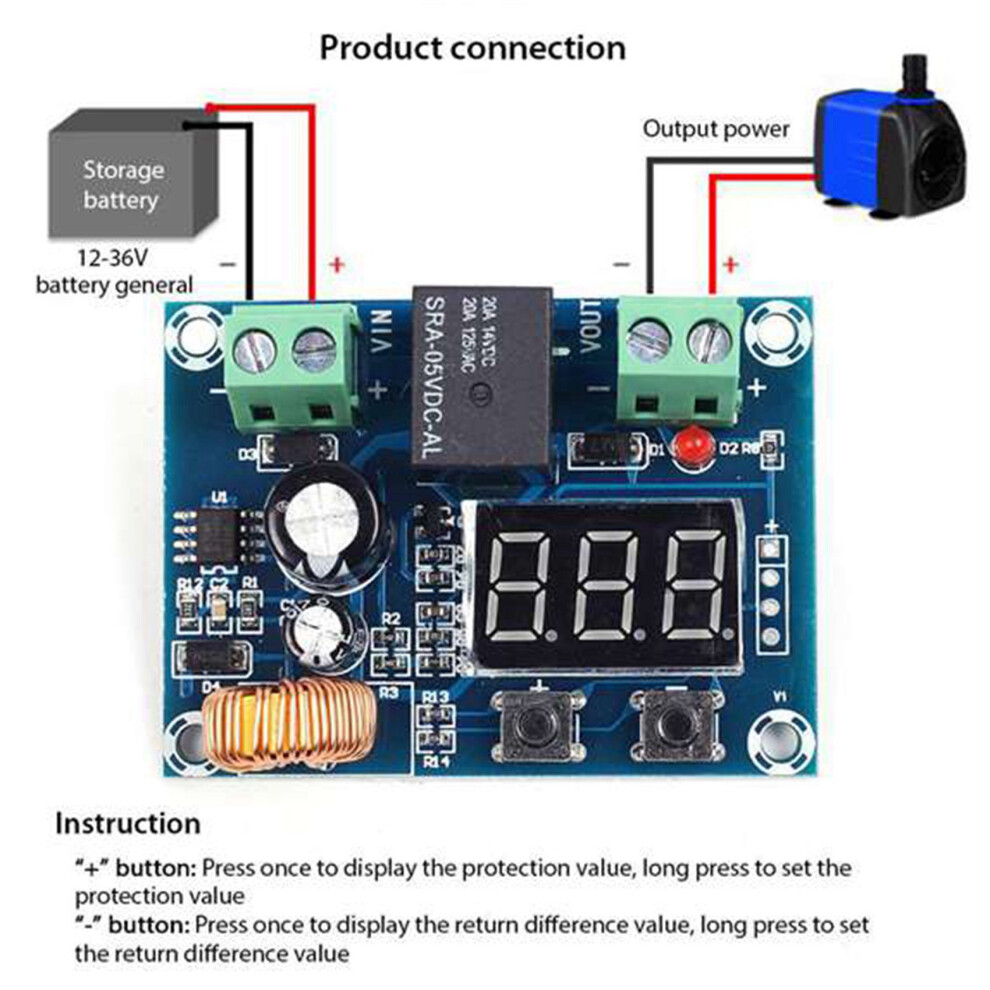

Applicable to all electric two-wheeled tricycle batteries within the applicable voltage range; Discharge protection of car batteries and new electric vehicle batteries; Over-discharge protection of various batteries; Solar, wind and other power supply systems.
Colour: as shown
Material: plastic

Package Contents:

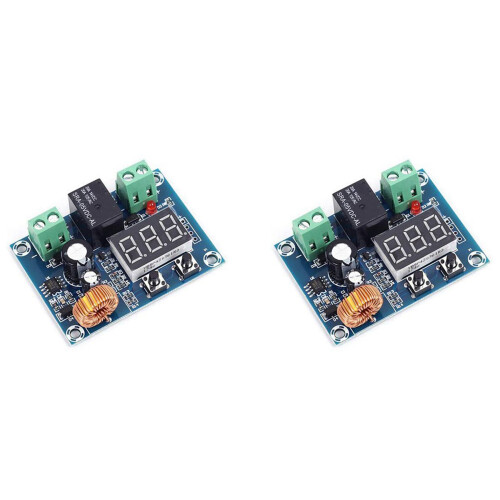

2 x XH-M609 voltage protection module
