2 Way Ethernet Network Relay Module Ip Remote Access Controller Intelligent Home Industrial Grade Support Modbus
Νέο
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 126,000 κριτικές με βαθμολογία « Άριστα »
42,42 €
57,69 €
Έκπτωση 26%!
+3,26 € Παράδοση
1%
Τι είναι το άμεσο Cashback;
Μάθετε περισσότερα
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (3,26 €) | Τρι 23 - Δευ 29 Ιουν
Πωλείται από: GRbuy
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Τα πιο δημοφιλή στο Δρομολογητές δικτύου
Περιγραφή & Λεπτομέρειες
Περίληψη
- This product is resistant to high temperatures and can operate from -40 degrees to plus 85 degrees. Super anti-interference ability, can be connected to external high-current AC contactor and relay, will not crash under strong electromagnetic interference.
- The true 100M speed enables reliable communication with zero delay commands. Industrial grade products. Support for automatic IP acquisition. Support 10 TCP client connections under the TCP server. Through the provided configuration software, you can configure five working modes: TCP server, TCP client, UDP server, UDP client, DNS domain name.

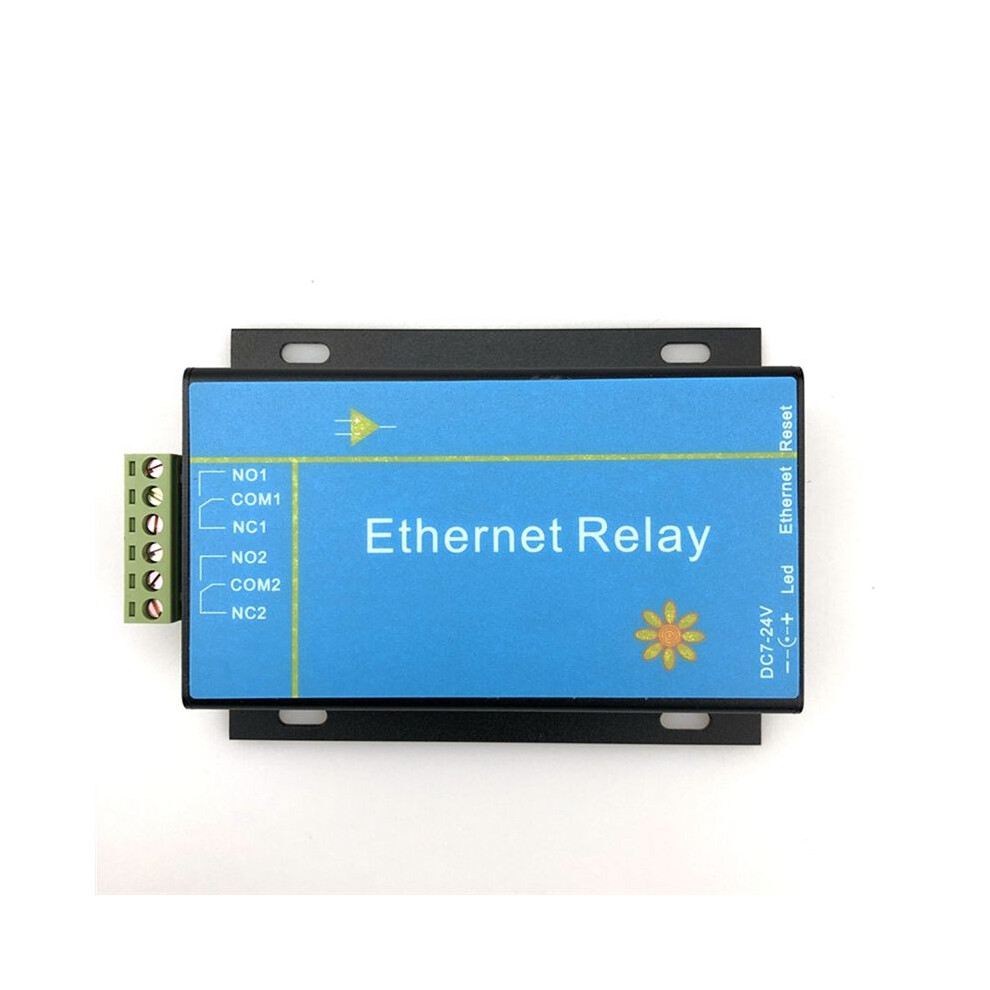

- 4. In the figure above, the COM1 first relay common terminal, NO1 first relay is normally open, and NC1 second relay is normally closed. COM2, NO2, NC2 are the second way, the function is the same as above.
- Reset, used to restore the factory equipment. In the absence of power, use a toothpick or a sharp object to hold the reset hole intact, connect the power supply, and then turn on the toothpick next to the LED indicator light to restore the factory equipment IP to 192.168.0.105.
- If you want to upgrade the software, you must be in the reset state to upgrade. After successful reset, the LED flashes quickly (flashes twice a second). If you want the controller to operate normally, you need to power it on again. The normal running LED is in slow-flash status (flashing once every second).
2 Way Ethernet Network Relay Module Ip Remote Access Controller Intelligent Home Industrial Grade Support Modbus Περιγραφή
This product is resistant to high temperatures and can operate from -40 degrees to 85 degrees. Super anti-interference ability, can be connected to external high-current AC contactor and relay, will not crash under strong electromagnetic interference.
The true 100M speed enables reliable communication with zero delay commands. Industrial grade products. Support for automatic IP acquisition. Support 10 TCP client connections under the TCP server. Through the provided configuration software, you can configure five working modes: TCP server, TCP client, UDP server, UDP client, DNS domain name.
4. In the figure above, the COM1 first relay common terminal, NO1 first relay is normally open, and NC1 second relay is normally closed. COM2, NO2, NC2 are the second way, the function is the same as above.
Reset, used to restore the factory equipment. In the absence of power, use a toothpick or a object to hold the reset hole intact, connect the power supply, and then turn the toothpick next to the LED indicator light to restore the factory equipment IP to 192.168.0.105.
If you want to upgrade the software, you must be in the reset state to upgrade. After successful reset, the LED flashes quickly (flashes twice a second). If you want the controller to operate normally, you need to power it again. The normal running LED is in slow-flash status (flashing once every second).
Introduction to working mode:
The working mode is configured with the provided configuration software.
1, TCP server
In this mode, the device can only be connected through the TCP client and supports the connection of 10 TCP clients.
2, TCP client
In this mode, the device actively connects to the TCP server (remote IP and remote port number are parameters for device connection). Only one server can be connected.
3, UDP server
In this mode, any UDP communication is supported.
4, UDP client
In this mode, only UDP communic
Λεπτομέρειες
| OPC | PS5HYQ9 |
|---|---|
| Κωδικοί | 6033077661090 (EAN) |
Στοιχεία Προϊόντος
| Height | 3cm |
|---|---|
| Width | 15cm |
| Length | 15.5cm |
| Weight | 0.226kg |
| Colour | Blue |
| Material | Metal |
