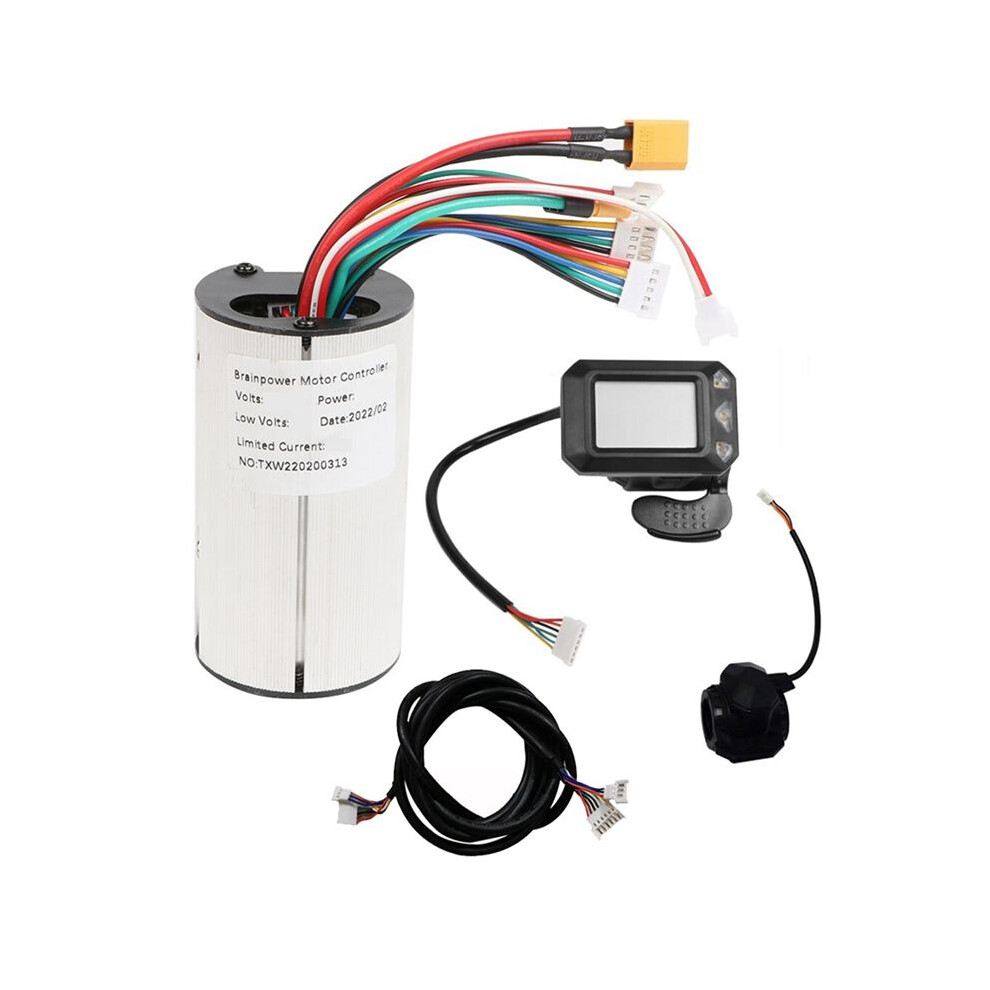

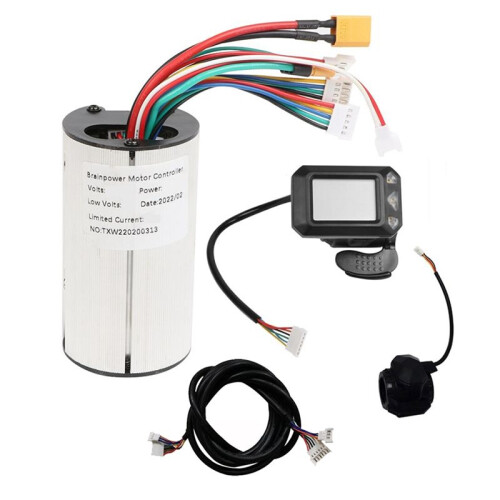

24V Electric Scooter Controller+LCD Display+Brake+Extension Cable Motor Controller Electric Scooter Part

24V Electric Scooter Controller+LCD Display+Brake+Extension Cable Motor Controller Electric Scooter Part Περιγραφή

Replacement controller for the electric scooter
EABS electronic brake
Zero start
between kilometers and miles
3 gear speed mode

Scope of application:Electric Scooter
Support single trip mileage record and ODO total mileage record
Intelligent saving delay automatic shutdown
Suitable for folding scooter controller replacement, Wheel 4inch 5inch 5.5inch 6.5inch, power 350w and below brushless motors
Technical data
a)P0, lack volatge (battery voltage below this will not work)
b)P1, wheel diameter
c)P2, motor pole pairs,
d)P3, it is speed signal choice (speed from hall sensor or LCD meter)
e)P4, it is or Mile. 0 is , 1 is Miles
f)P5, 0 is zero start, 1 is not.
g)P6, Cruise choice. (it is related to scooter model). 1 is yes. 0 is no.
h)P7, Soft start choice (it is related to scooter model) 0 is soft start. 1 is hard
i)P8, Percentage of output power
if motor don't work,don't link the hall try again
Different batches may result in different product appearances, printed text, and colors, which do not affect usage.
Type:24V
Colour:Black & Silver
Material:Metal+Plastic

Package Contents:
1 * Controller
1 * LCD Display
1 * Brake
1 * Extension Cable
