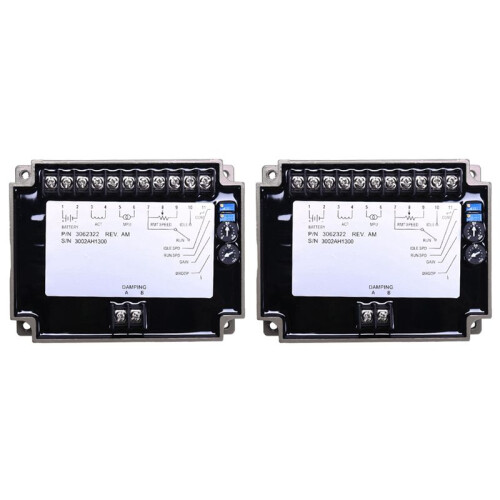

2X 3062322 Generator Speed Controller Speed Stabilizer Electric Governor Engine Control Circuit Board Module Genset Part

2X 3062322 Generator Speed Controller Speed Stabilizer Electric Governor Engine Control Circuit Board Module Genset Part Περιγραφή

name: speed controller
appliction: generator
Brief Introduction of functions:speed controller is a design with full electric closed loop path control function, which can It controls the motor perfectly when connecting with the combined actuator in the EFC system, since it can Controls engine speed quickly and accurately once there is an instant load change.

electrical specification:
Model Number: 3062322
RPM stability: Less than 0 25%
Speed range: 1 KHz ~ 6.5 KHz
Thermal stability: max. 0. 7%
IDLE Regulation: 260 20Hz
DROOP regulation: minimum 15Hz 6Hz / 1 amplifier
Maximum: 400Hz 75Hz / 1 Amp
External speed regulation: 200Hz (with 1 K ohm connected)
Auxiliary input sensitivity: 148Hz / 1 V., 10Hz
Impedance: 1M ohm
Environment:
Working temperature range: -40-85
Operating humidity range: maximum 95%
Average temperature: -55 ~ 92Celsius
Shocking: 20-100 HZ 500mm / sec.
input power supply
Voltage: 12 V or 24 V
Pole ground pole: negative pole
Power supply: 40 mA
Actuator continuous current: Minimum 1 A, maximum 4.5A
MPU signal: 2 ~ 120V RMS
DROOP function: when the load increases, the engine operating speed will be Decreased If you turn down in a clockwise direction, the value of the running speed will be Increase; if you turn down in the reverse direction, the fall value of the running speed will be Diminished.
colour:Black
Material:metal
size:15 x 15 x 6.5cm

Package Contents:
2 x Speed control
Note: The above parameters are tested with an operating frequency of 3800Hz.
