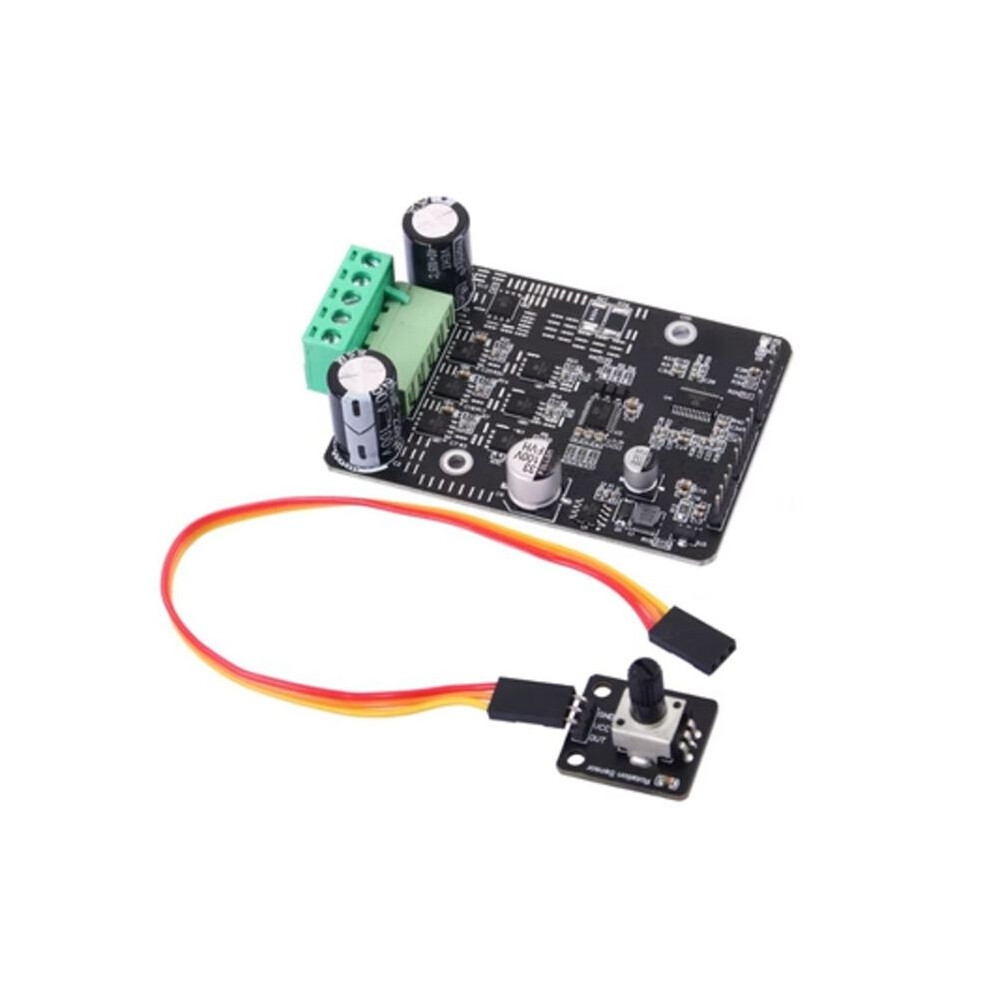

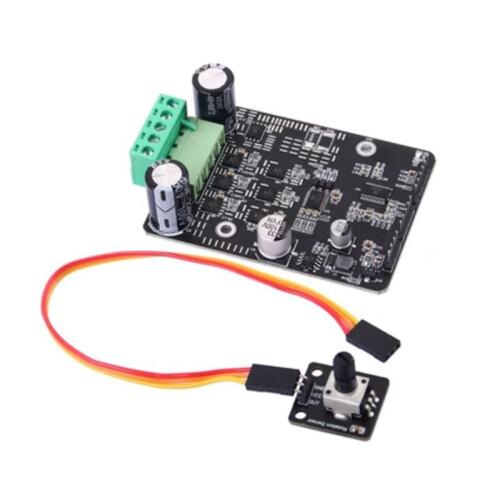

2X 6-80V BLDC 3-Phase Brushless Motor Controller PWM High Power 1600W 20A Hall Motor Control Driver Board

2X 6-80V BLDC 3-Phase Brushless Motor Controller PWM High Power 1600W 20A Hall Motor Control Driver Board Περιγραφή

Features: the working voltage is 6-80V, and the anti-reverse connection protection is supported, and the module will not be damaged due to the power reverse connection.
The module is bare by default. If the motor is driven below 5A current, it does not need to be forced to dissipate heat, but only needs to ensure normal ventilation. If the drive current exceeds 5A, it must be forced to dissipate heat.
Board 5pin Hall interface, used to access the motor Hall signal.Onboard burning interface for updating the burning program.
Onboard LED indicator for standby, working, error and other states.Onboard potentiometer (0.5~5V), PWM speed control interface (frequency 1~20KHz), duty cycle 10~.
Onboard FG speed feedback interface, calculation speed RPM=FG frequency Hzx60/pole number.Onboard CW/CCW steering interface, suspended for clockwise CW, short-circuited GND for counterclockwise CCW steering.Onboard UART serial port. Users can control the module through the serial port protocol.

Specifications:
Operating voltage: 6-80V
Maximum current: rated 20A 50A
Maximum power: 1600W
Overcurrent protection: yes
Motor drive base
There is hall starting and commutating bottom layer
Phase compensation algorithm
Velocity closed-loop PID algorithm
Current limiting PID algorithm
Downwind start- algorithm
Applications:
Pumps, all kinds of compressors, all kinds of fans/fans, electric screwdrivers, electric curtains, automatic doors, hydraulic oil pumps, air pumps, refrigerators brushless compressors, lawn mowers, sprayer, underwater thrusters, etc.
Material: PC+Metal
colour: Black

Package Contents:
2 x Brushless Motor Controller(Due to different product batches, the appearance may be different, which does not affect use)
