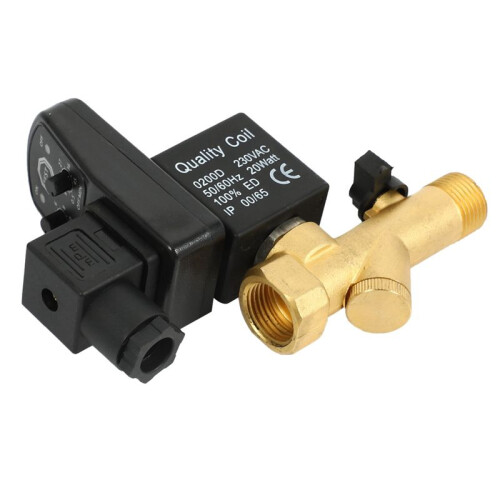

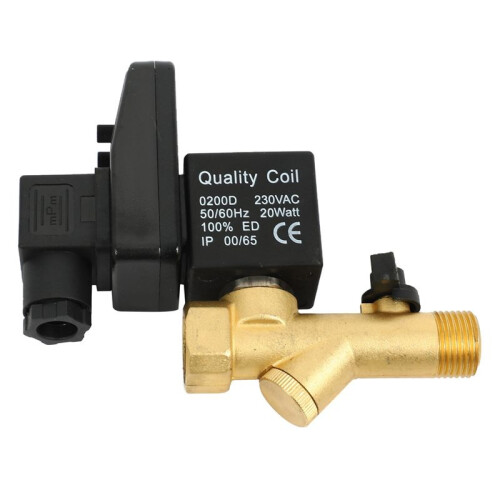

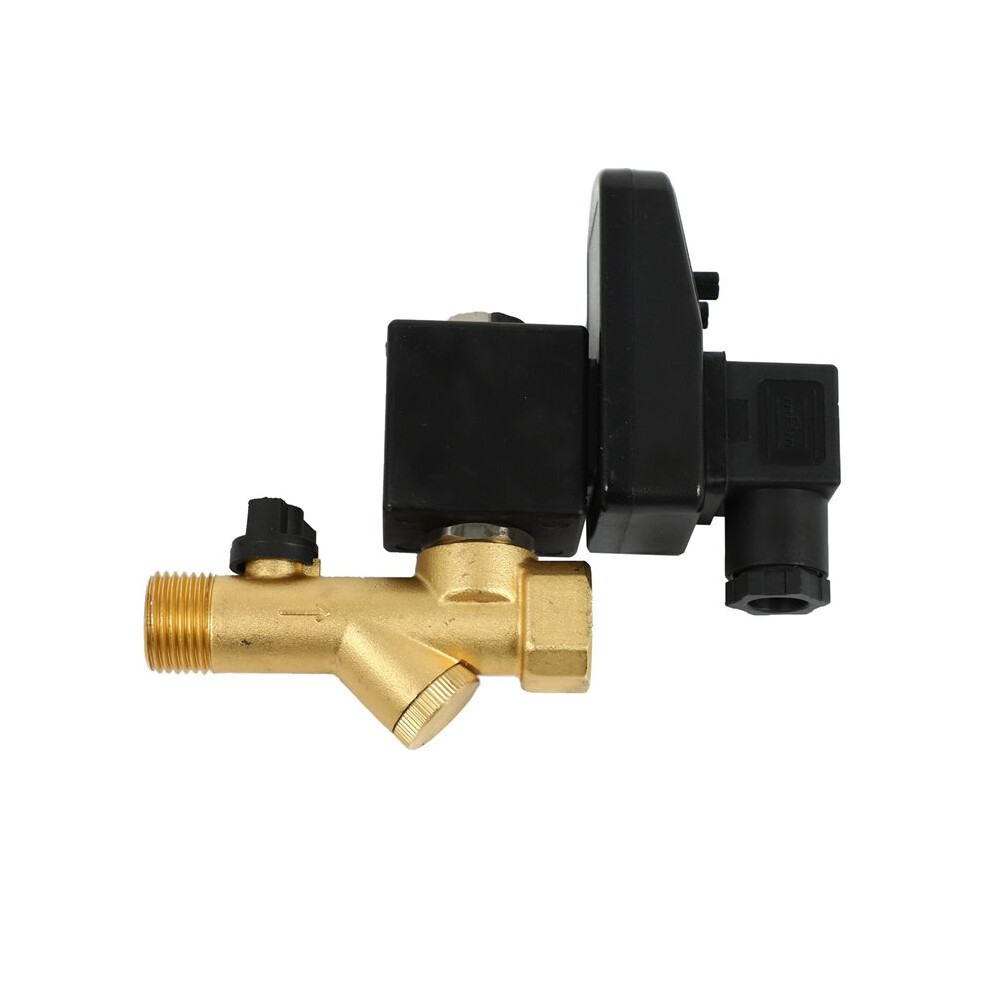

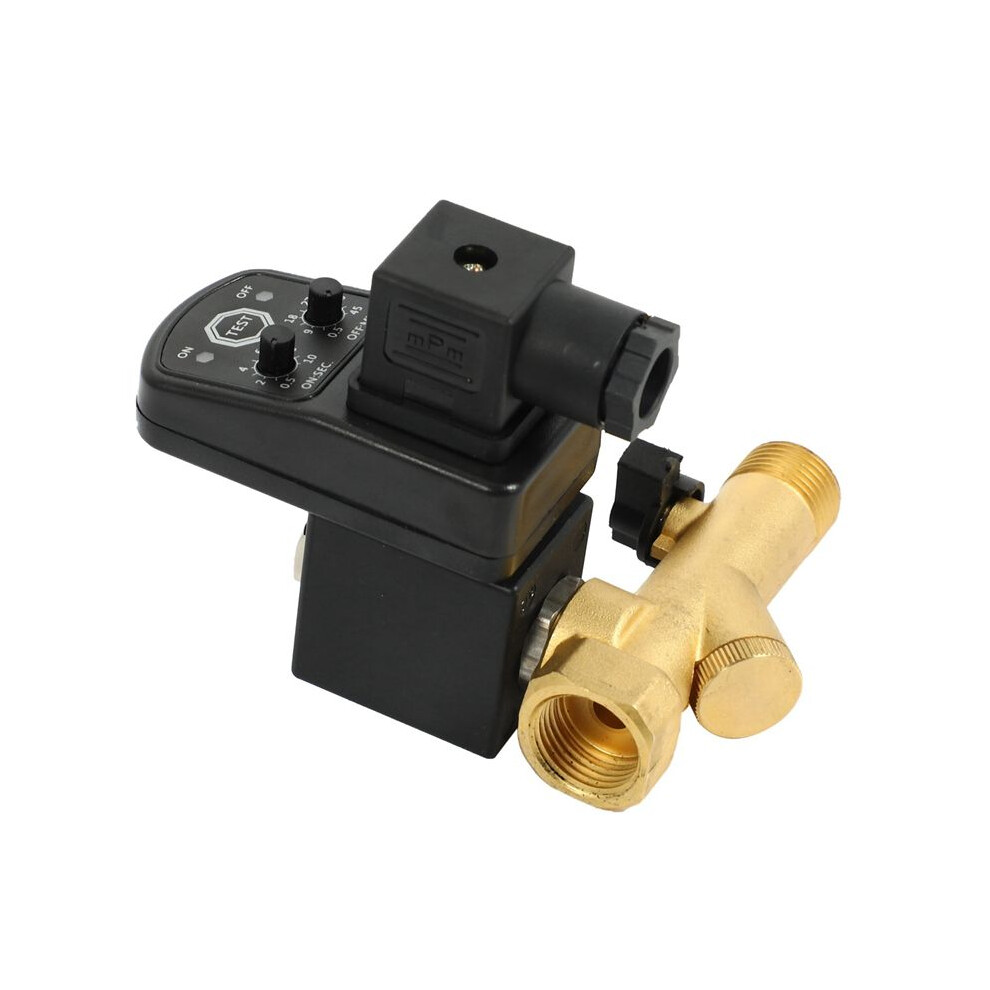

2X AC 220V 1/2inch Electronic Timed 2way Air Compressor Gas Tank Automatic Drain Valve

2X AC 220V 1/2inch Electronic Timed 2way Air Compressor Gas Tank Automatic Drain Valve Περιγραφή

Name: Electronic drain valve
Model: 507292
Indicator lamp: LED indicating power / off
Voltage range: +/-10%
Protection grade: IP65

Insulation: class H
Maximum working pressure: 1.6Mpa
Maximum temperature: 90 Celsius
Ambient temperature: -40 Celsius to 60 Celsius
The largest current consumption: 4mA
Power supply voltage: 24-240V AC/ 50/60Hz

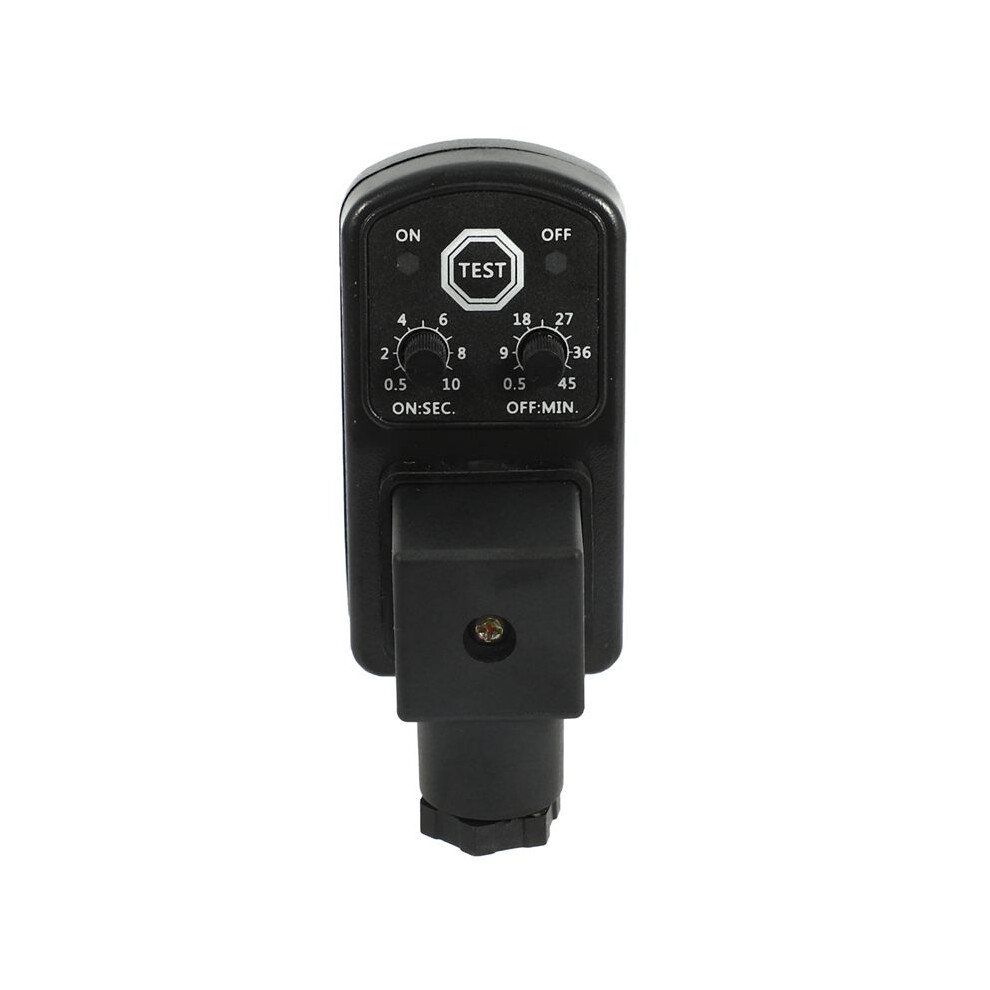

Discharge (): 0.5--10 seconds
interval (OFF): 0.5--45 minutes
Widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components
Clean the compressed air system before installation.
Note the direction of the arrow when installing the valve: outlet do not use the hose that not against the impact of air.
Power supply voltage should be consistent with the drain valve voltage: the positive pole must be connected to connector "1" when using .
When leave the factory the drain valve has connected to the cable, brownness is fiery L, is the zero N,yellow-green color is the safety ground wire GND.
Be sure to tighten the long screw the terminal box to prevent water from burning.
Warning! When installing the electronic drain valve, make sure that:
Compressed air has been emptied (that is, under zero pressure).
The power supply has been switched off.
colour: Gold + black
Material: metal
size: flow aperture: 5 mm
In / out port size: 1/2inch

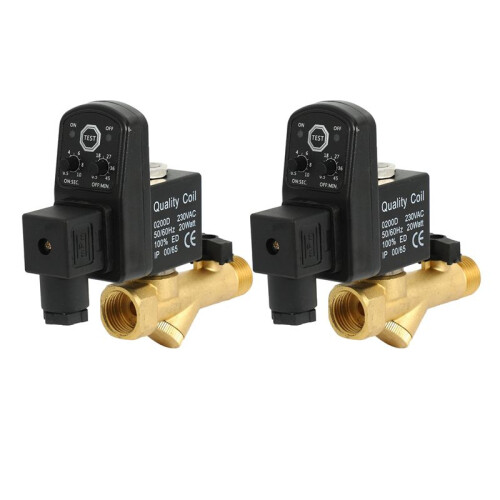

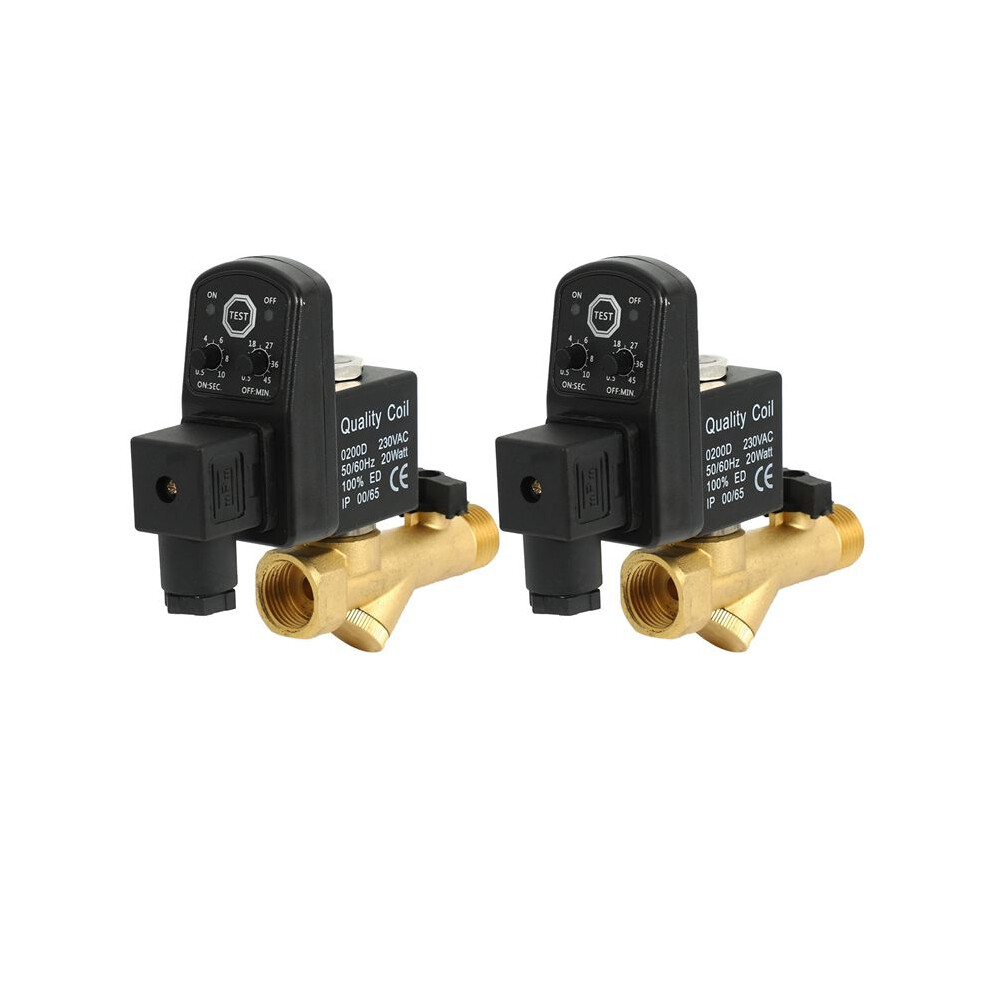

Package Contents: 2 x Electronic drain valve
