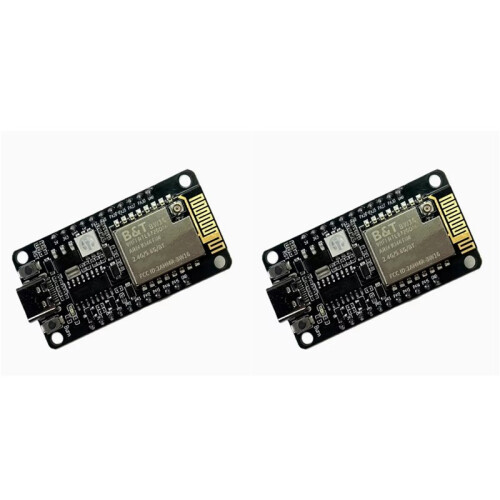

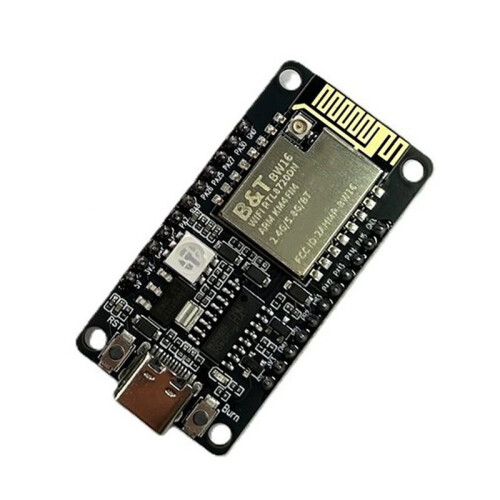

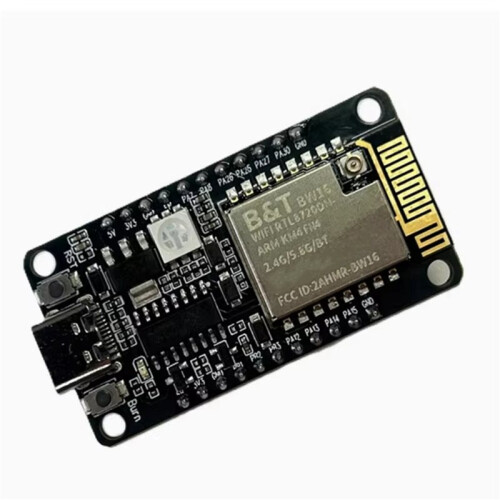

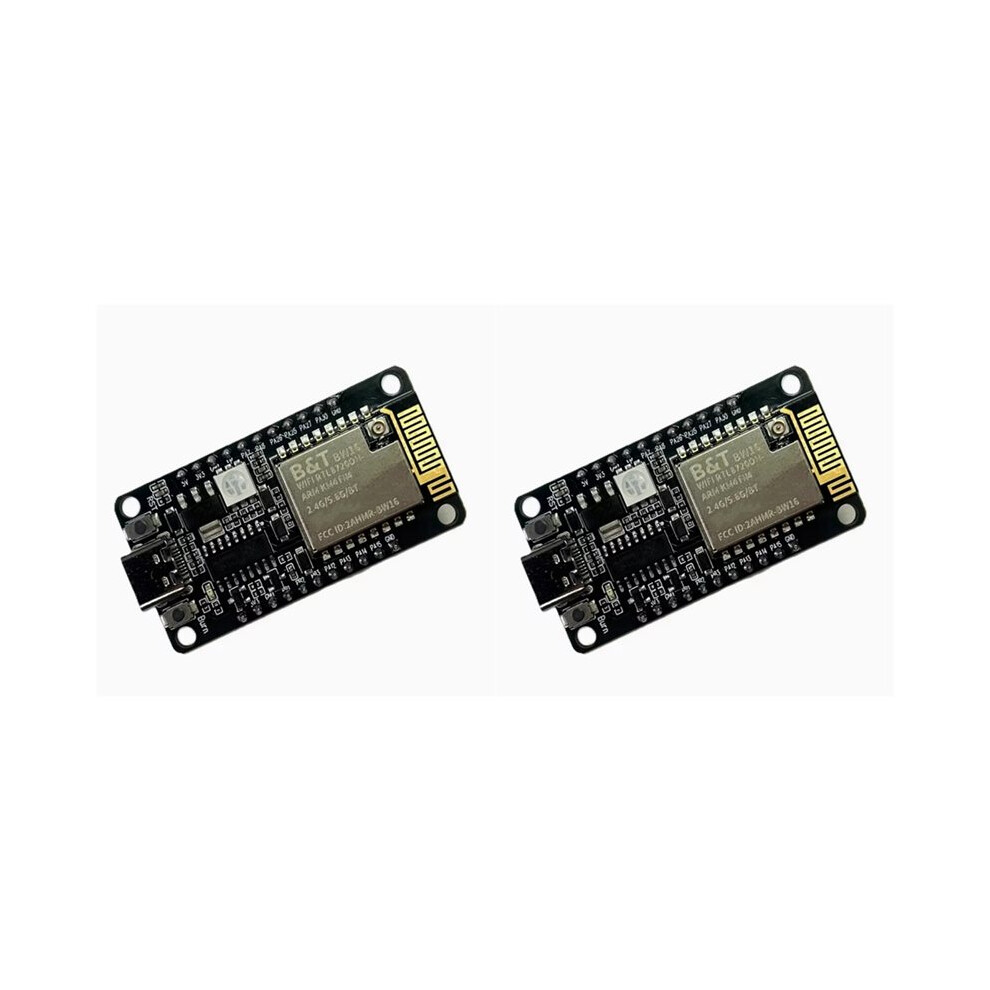

2X BW16 KIT Devboard with IPEX RTL8720DN NodeMCU Serial Port to Wifi Wireless WIFI Module BW16 Module Weld

2X BW16 KIT Devboard with IPEX RTL8720DN NodeMCU Serial Port to Wifi Wireless WIFI Module BW16 Module Weld Περιγραφή

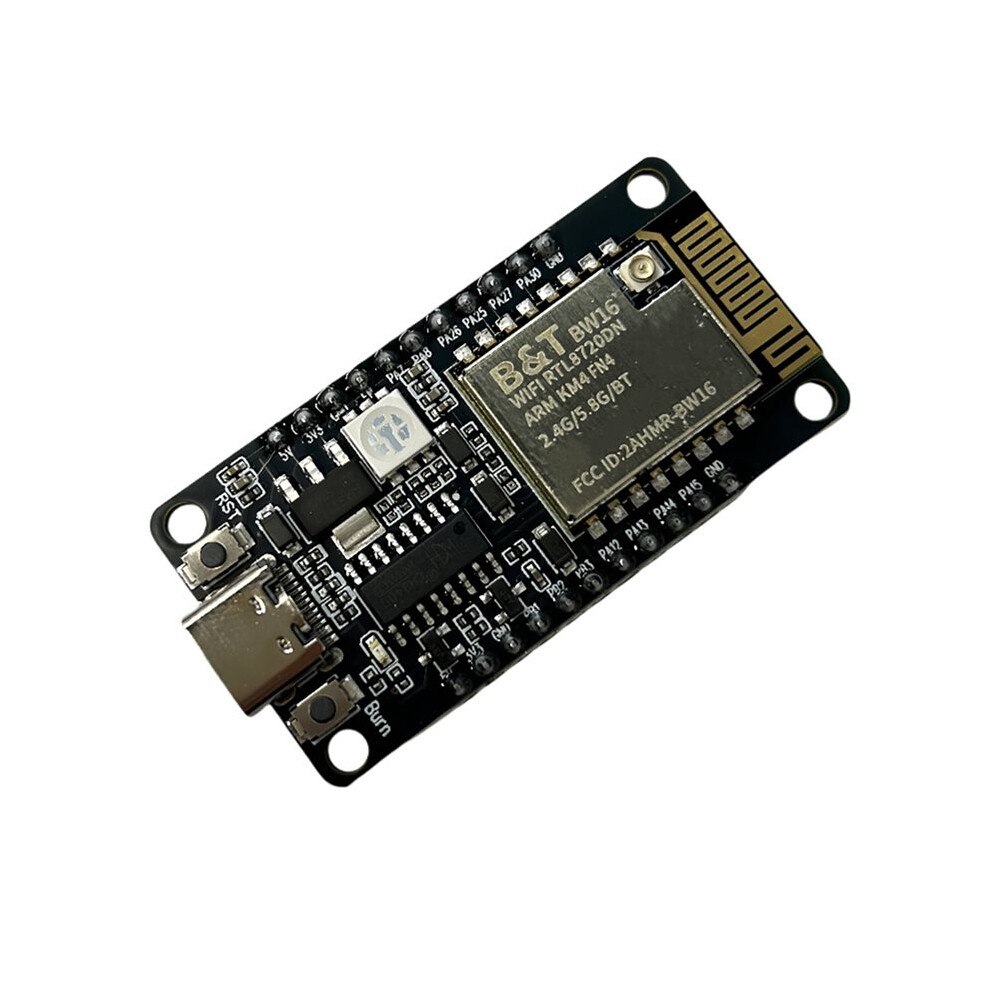

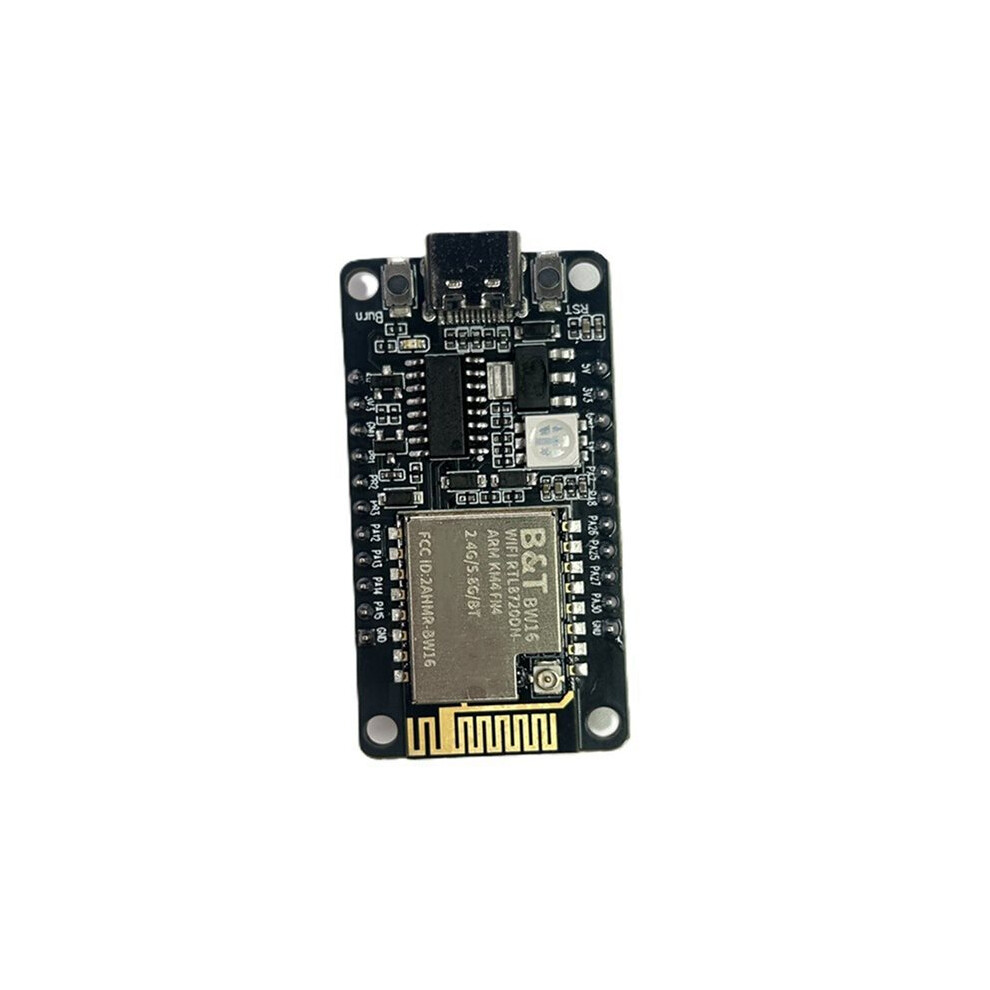

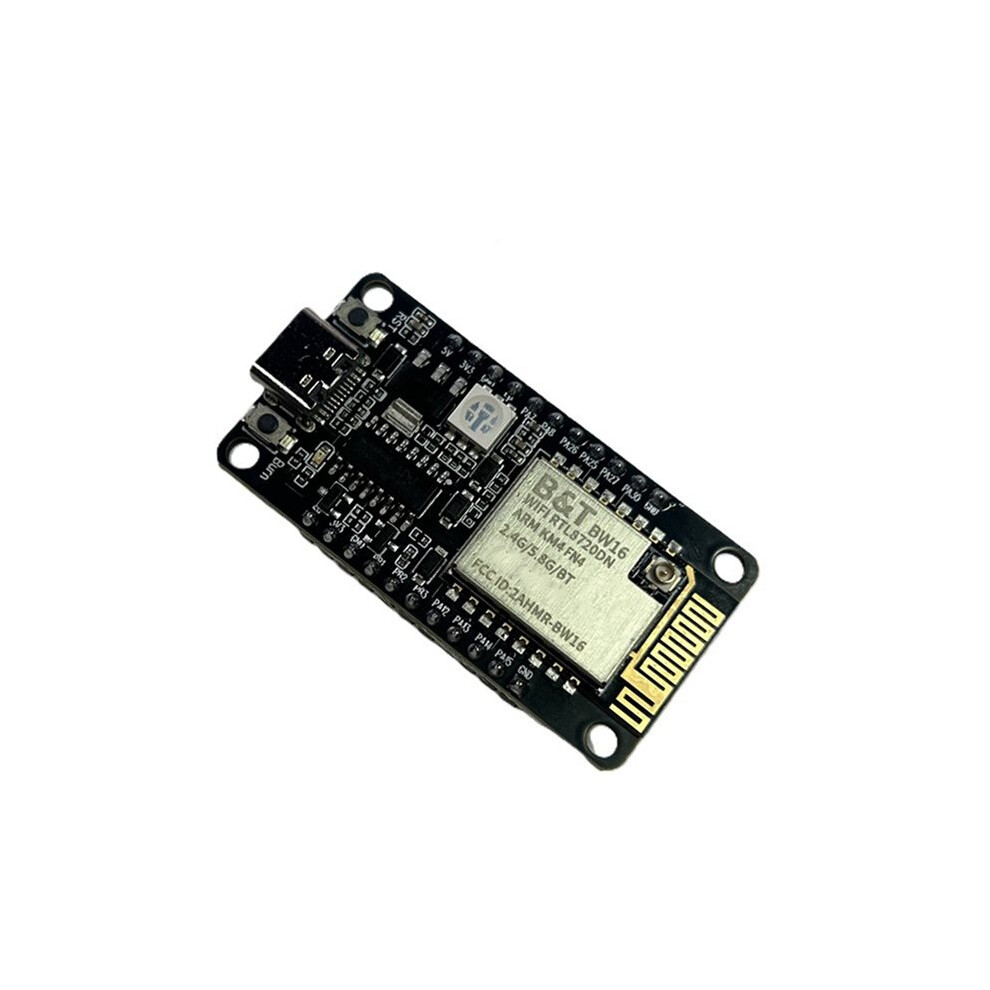

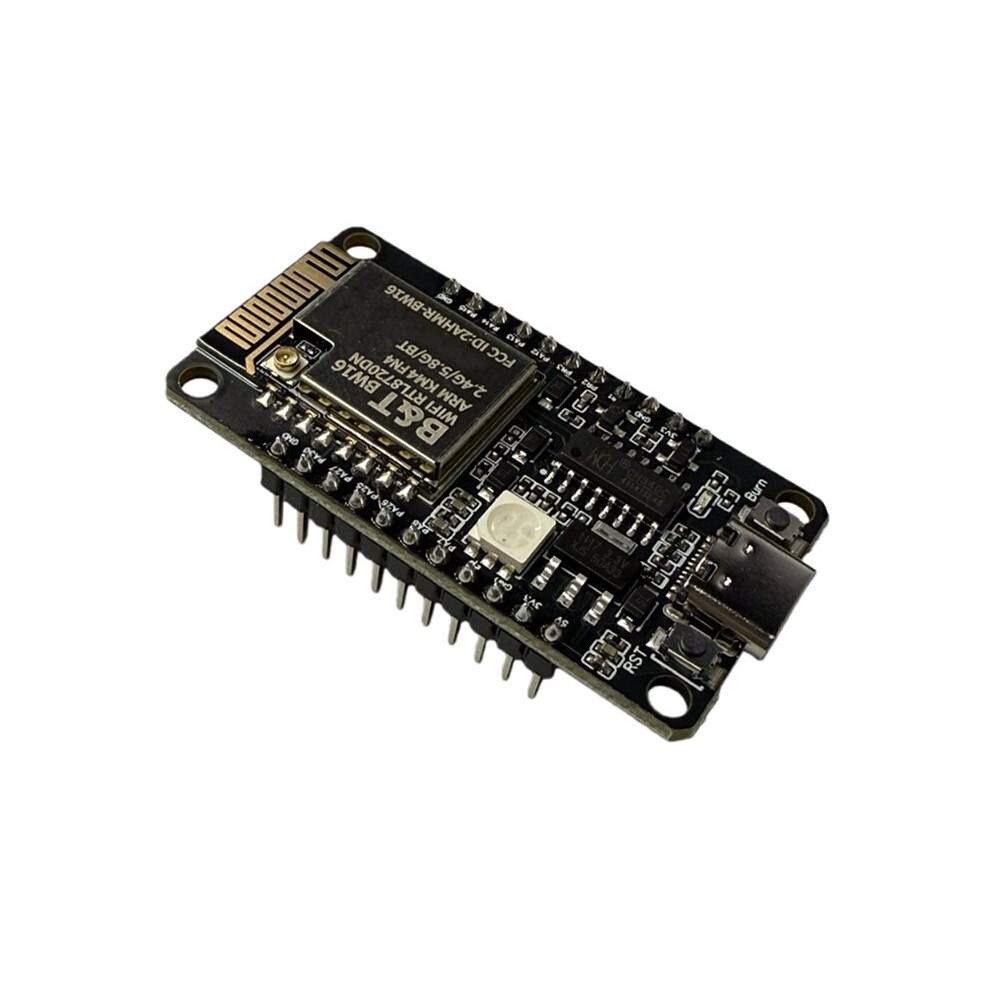

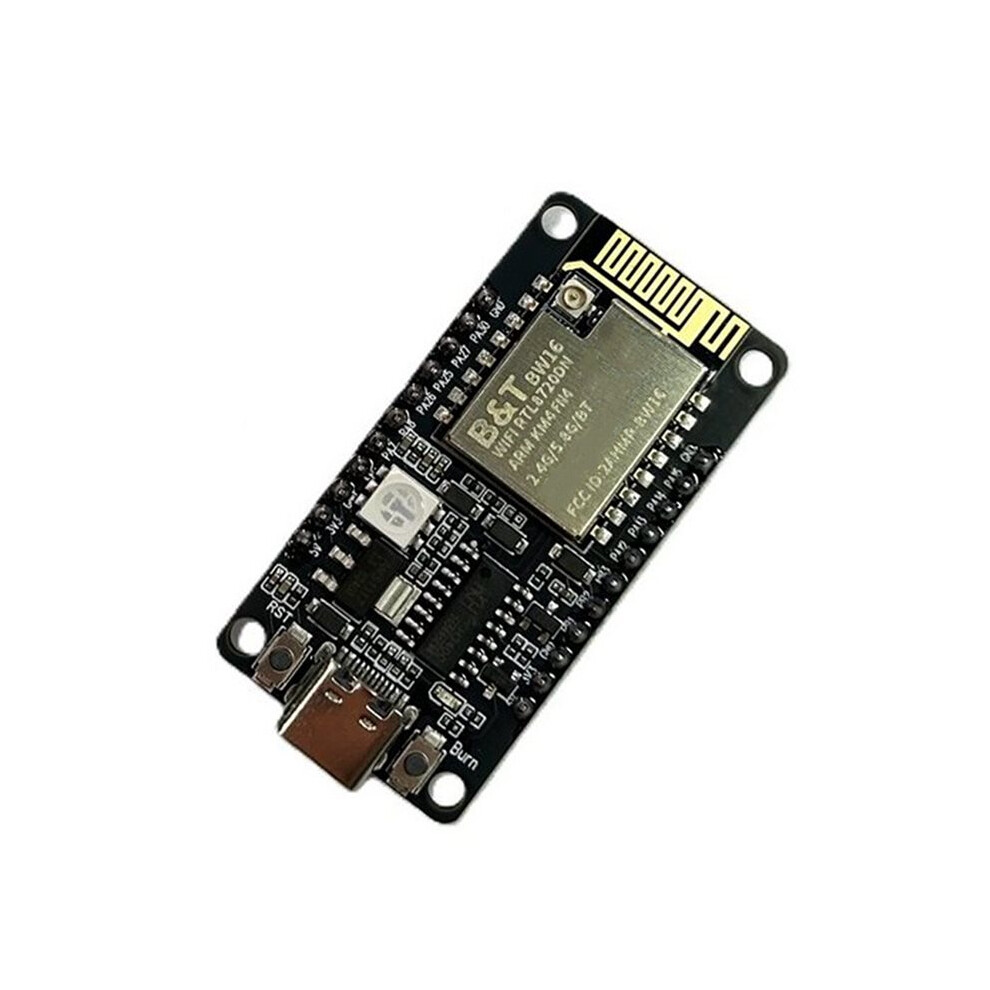

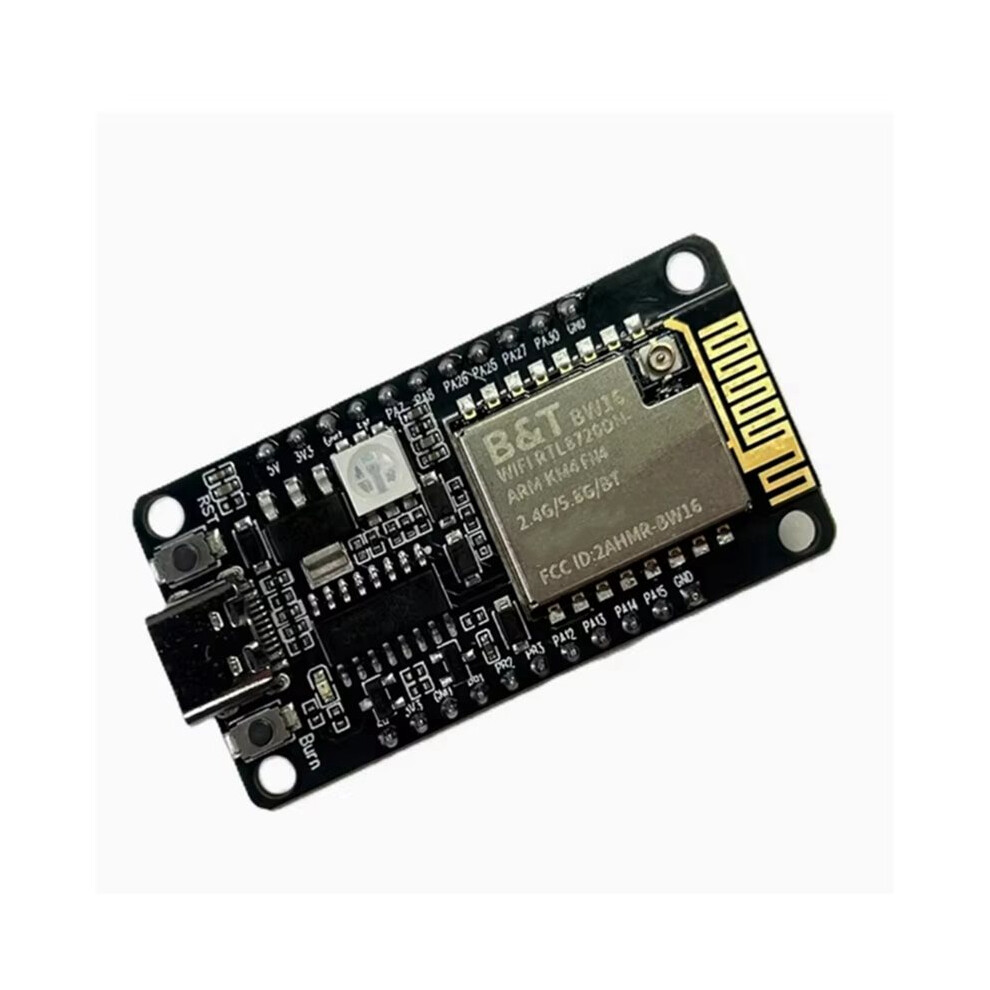

The BW16-Kit development board is a core development board designed for the BW16 module. It continues the classic design of the NodeMCU development board, bringing out all I/O pins to both sides. It features onboard RGB LEDs, and developers can connect peripherals according to their needs.
BW16 is a dual-band Wi-Fi+ SoC module developed based RTL8720DN.BW16 supports dual-band (2.4GHz or 5GHz) WLAN and low-power 5.0;
It integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11a/b/g/n), , baseband and RF baseband, and provides a set of configurable GPIO for control of different peripheral devices.
BW16 also integrates internal storage, supports simple application development, and can realize full Wi-Fi and BT 5.0 protocol functions.

Specifications:
Development Board Model: BW16-Kit
Compatible Module: BW16
Package: DIP-22 (2.54mm pitch standard header)
Antenna Type: IPEX
Spectrum Range: 2400-2483.5MHz or 5180-5825MHz
WiFi: Supports 802.11a/b/g/n
: BLE 5.0
Operating Environment: -40C~85C
Storage Environment: -40C~125C, Less than 90%RH
Power Supply: 5V, Greater than 500mA
Supported Interfaces: UART/GPIO/ADC/PWM/IC/SPI/SWD
Number of GPIO : 13 (TXO, RXO, TX1, RX1)
Security: AES/DES/SHA
Flash: 4MB
Supports 802.11a/b/g/n 1x1, 2.4GHz or 5GHz
Support HT20/HT40 mode
Supports low power beacon listening mode, low power receive mode, low power suspend mode
Built-in AES/DES/SHA hardware engine
Support for TrustZone-M, support for safe startup
Support for SWD debug port access protection and disabling modes
supports high power mode (7dBm, sharing the same PA as Wi-Fi)
Wi-Fi and BT share the same antenna
Support ST
