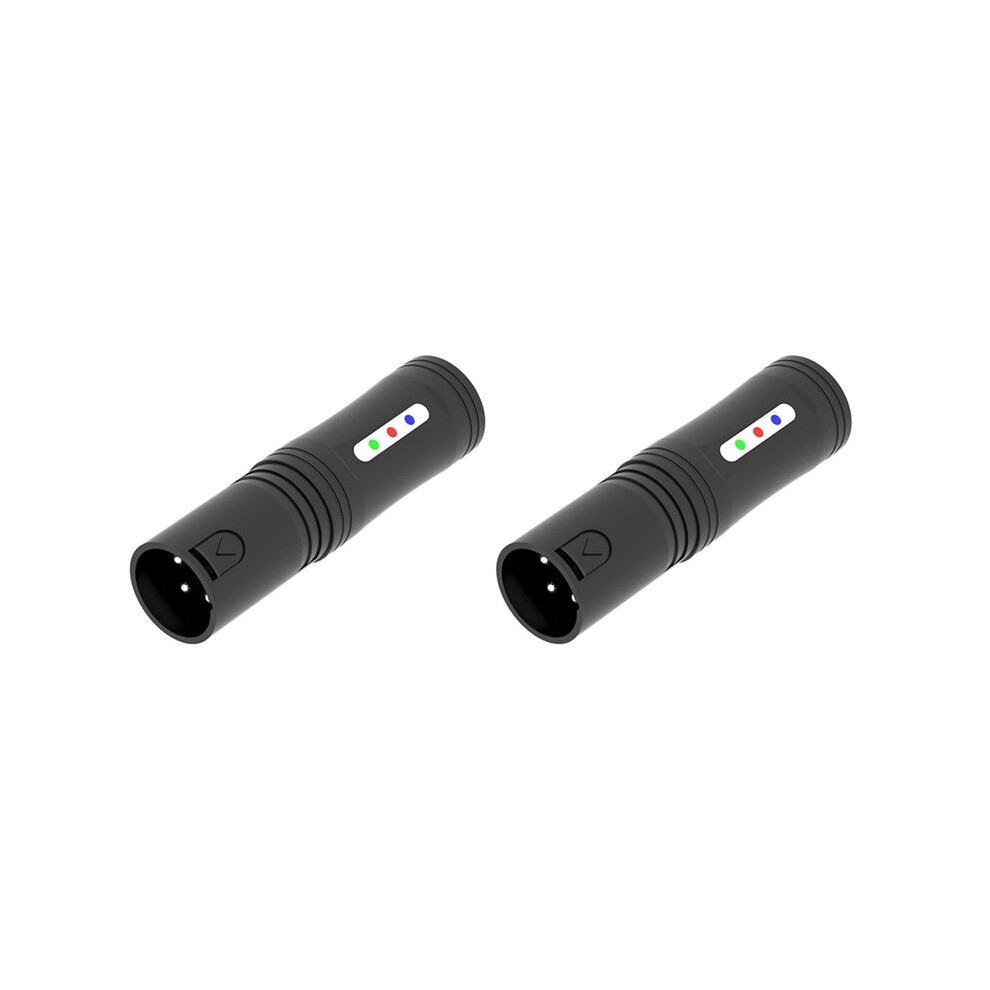

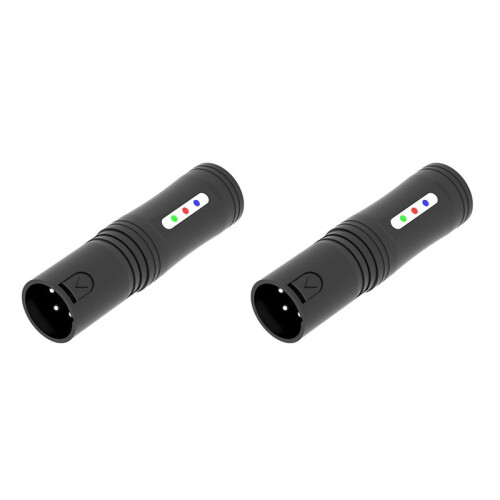

2X DMX512 Tester Par Light Moving Light Stage Light Dmx Signal Fault Test Tool

2X DMX512 Tester Par Light Moving Light Stage Light Dmx Signal Fault Test Tool Περιγραφή

Scenes to be used: At the performance site or during engineering debugging, if the signal of some lamps is unstable, or the lamps are out of control or unresponsive. You can use this signal tester to test signals, or you can test signal lines individually. One end of the signal cable is connected to the signal output port of the console, and the other end is connected to the signal tester.
Warm reminder: During testing, it must be ensured that the console is connected to the signal. Testing other than signal lines is never allowed. Each lighting console has a different refresh rate, so some testers will cause the LED indicator to flicker when testing signals. (This situation does not affect the normal use of the measuring device)

measuring device fault prompt:
1. The , red and green indicators are all , which means the signal is normal.
2. A single green indicator light lights , indicating that the ground wire is disconnected or short-circuited.
3. A single indicator light lights , indicating that the positive pole of the signal is disconnected or short-circuited.
4. A single red indicator light lights , indicating that the negative pole of the signal is disconnected or short-circuited.
5. The red and green indicator lights are , indicating that the negative pole of the signal and the ground wire are short-circuited.
Colour:As Shown
Material:Stainless steel

Package Contents:
2 * DMX512 tester
