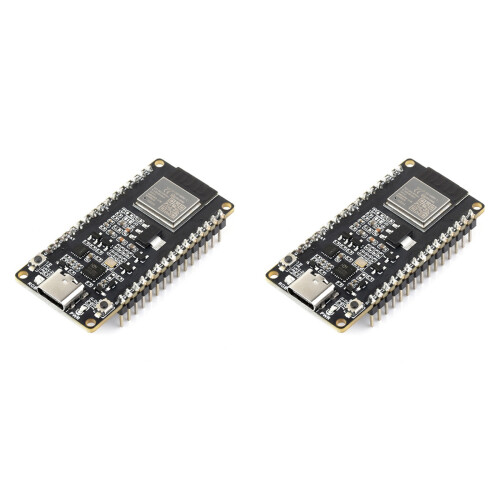

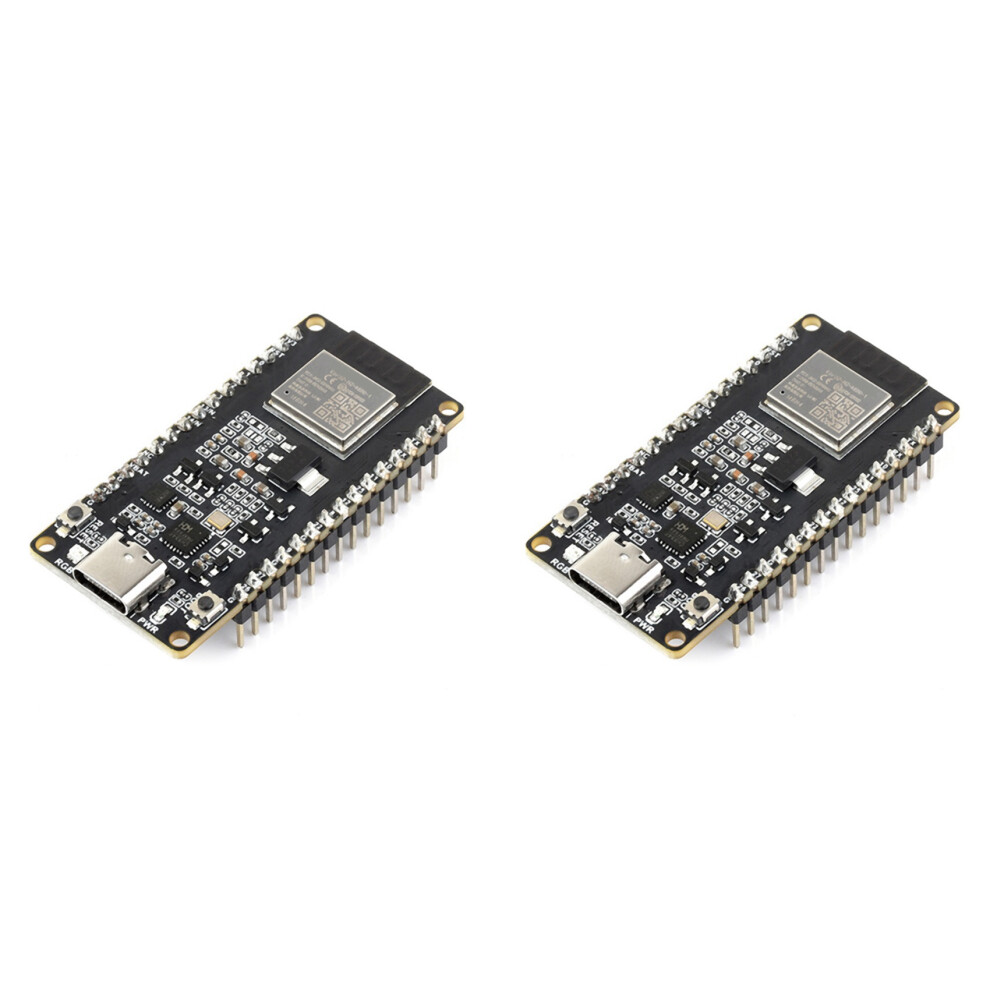

2X ESP32-H2 Development Board ESP32 H2 DEV KIT N4 M Module 4MB Flash Support BLE/Zigbee/Thread Wireless Communication

2X ESP32-H2 Development Board ESP32 H2 DEV KIT N4 M Module 4MB Flash Support BLE/Zigbee/Thread Wireless Communication Περιγραφή

ESP32-H2-DEV-KIT-N4 is a device that integrates 5 and IEEE80215.4 (Zigbee 3.0 and Thread) entry-level RISC-V microcontroller development board, compact in size and powerful in function.It has rich peripheral interfaces and can be used in home, industrial automation, consumer electronics and other fields.

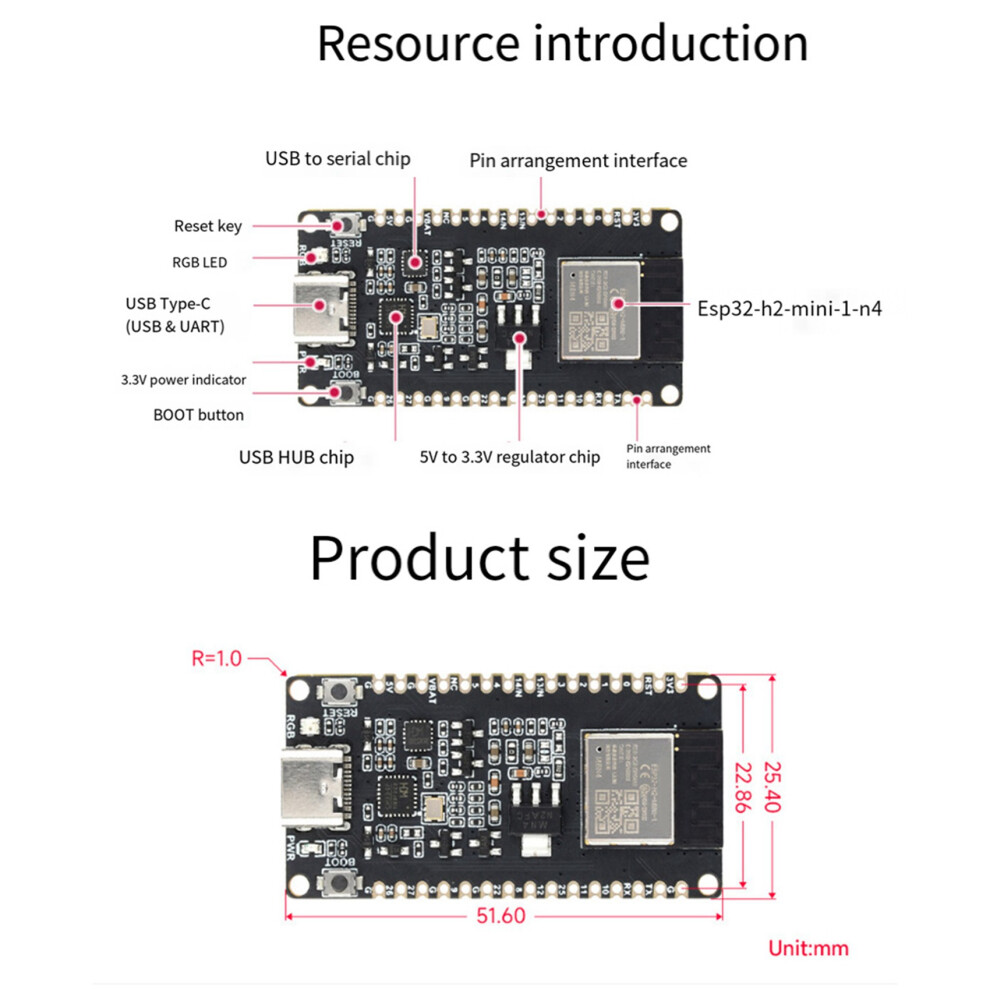

In terms of hardware, it uses the ESP32-H2--1-N4 module, which is equipped with a RISC-V 32-bit single-core processor, supports a main frequency of to 96MHz, has a built-in 4MB Flash, and integrates a wealth of peripherals including SPI and UART. , 12C, 12S, LED PWM, ADC and other interfaces: It also has CH343 serial port and CH334USB HUB dual chips onboard, which can be used and developed through a USB-C interface for USB and UART.
The pin interface is compatible with ESP32-H2-DevKitM-1 development Board, compatible with and expanded a variety of peripheral devices, more convenient to use
In terms of software, you can choose the official ESP-IDF development environment for development. Related sample programs and tutorials are provided to facilitate users to quickly get started with development and apply it to products.

Main features:
Using ESP32-H2--1-N4 module, equipped with RISCV 32-bit single-core processor, clocked at to 96MHz, built-in 4MB Flash memory
Integrated 5 and IEEE 80215.4 (Zigbee30 and Thread) wireless communications with superior radio frequency performance
Using USB Type-C interface, no need to worry about plugging forward and reverse
Onboard CH343 and CH334 chips can meet USB requirements through a TypeC interface
and UART development and usage requirements

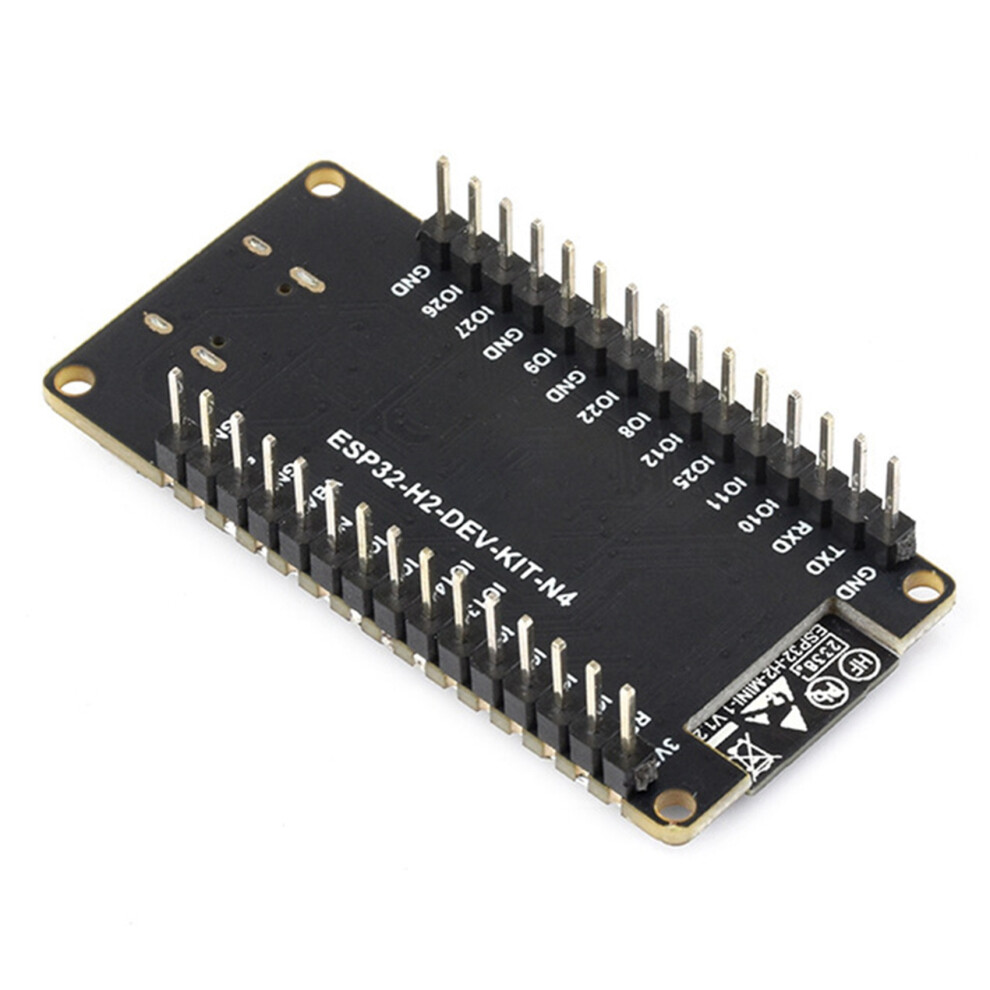

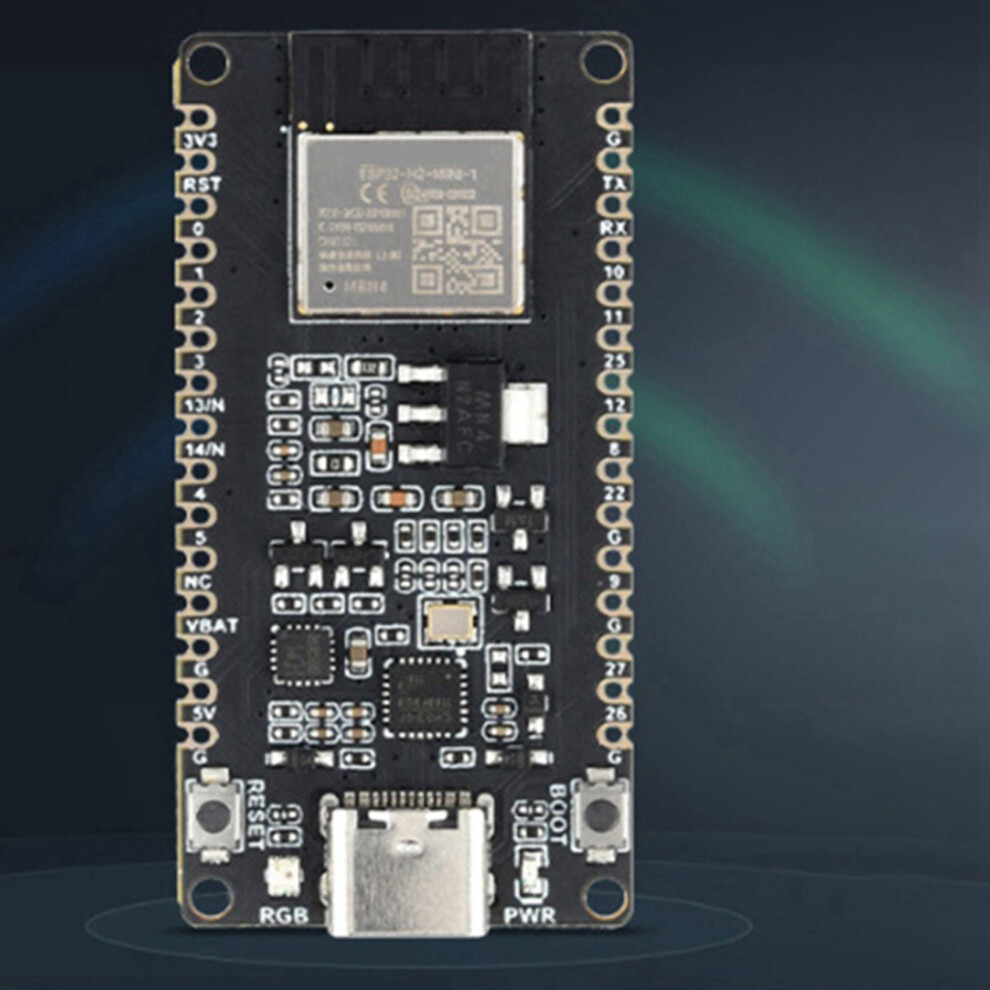

Leads to rich peripheral interfaces, pin compatible with ESP32-H2-DevKitM-1 development board, compatibility
and strong scalability
Stamp hole design can be directly welded and integrated in
